WTL-2400AXE — 802.11AX Wi-Fi 6E Tri-band Wireless PCI Express Adapter

Descripción

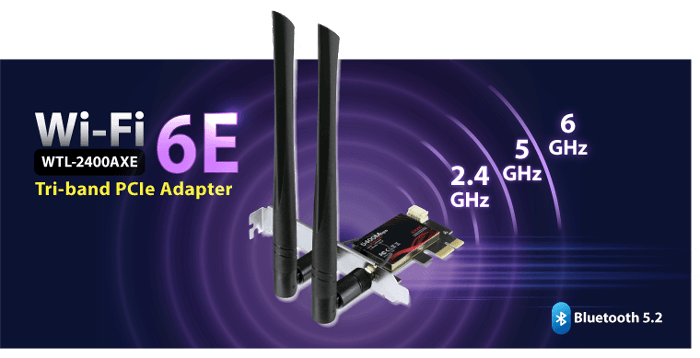

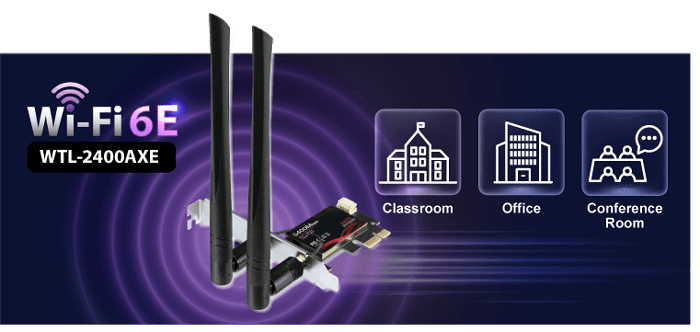

Upgrade Desktops to Fast, Low-Latency Wi-Fi 6E PLANET WTL-2400AXE is a tri-band 802.11ax Wi-Fi 6E PCI Express x1 wireless adapter powered by the Intel® AX210 chipset. It brings next-generation connectivity to desktop PCs with 2×2 MIMO and OFDMA for high efficiency and lower latency. The adapter supports speeds up to 574 Mbps on 2.4 GHz and up to 2400 Mbps on 5/6 GHz for cleaner spectrum and reduced interference in dense environments. With Bluetooth® 5.2 (via onboard USB interface), users can connect keyboards, mice, headsets and other peripherals without a separate dongle, simplifying the workspace. Designed for easy deployment in business and home offices, WTL-2400AXE includes two external 5 dBi antennas to enhance signal coverage. It operates seamlessly on Windows® 10/11 and Linux Kernel 5.10+ , making it an ideal upgrade for high-bandwidth applications such as 4K/8K streaming, cloud collaboration, AR/VR trials and online gaming. Hassle-free Installation for Tri-Band Wi-Fi WTL-2400AXE uses a standard PCI Express x1 interface for Wi-Fi data and an internal USB connection for Bluetooth functionality. Once installed, your desktop gains simultaneous access to 2.4, 5 and 6 GHz bands under the Wi-Fi 6E standard, maximizing spectrum choices and minimizing contention with legacy devices. Wi-Fi 6E Technology Highlights The WTL-2400AXE brings the latest Wi-Fi 6E (802.11ax) to desktops with 2×2 MIMO, OFDMA, MU-MIMO, BSS Coloring, 160 MHz channel width and WPA3-SAE security. It delivers up to 574 Mbps (2.4 GHz) and 2400 Mbps (5 and 6 GHz) performance and additionally opens the 6 GHz band to reduce interference and latency in high-density environments. Multiple OS Support The WTL-2400AXE works seamlessly with Windows® 11 64-bit (2.4, 5 and 6 GHz) and Windows® 10 64-bit 2.4, 5 and 6 GHz). It is also compatible with Linux distributions using the iwlwifi driver (kernel 5.10+ ); 6 GHz availability depends on regulatory domain and distro enablement. Bluetooth® 5.2 is supported via the onboard USB interface. Low-Profile design The adapter supports both full-height and low-profile PCI Express slots, making it easy to deploy in compact desktops and IPCs. Package includes : full-height bracket and low-profile bracket for flexible installation. Applications Wi-Fi 6E Desktop Adapters PLANET WTL-2400AXE , built on the Intel® AX210 2×2 Wi-Fi 6E platform , brings tri-band 2.4, 5 and 6 GHz connectivity to business desktops and IPCs. With 160 MHz channels, OFDMA/MU-MIMO, BSS Coloring, and WPA3-SAE , it is ideal for organizations standardizing on Wi-Fi 6/6E in offices, classrooms, and meeting rooms—using the clean 6 GHz band to reduce co-channel interference and deliver consistent efficiency and lower latency on existing infrastructure. As a dependable 6E desktop client, WTL-2400AXE delivers up to 2400 Mbps (5 and 6 GHz) and 574 Mbps (2.4 GHz) , while Bluetooth® 5.2 connects headsets, scanners, keyboards, and mice. The PCI Express® x1 interface and full-height/low-profile brackets ensure easy integration into mainstream PCs and embedded systems for video conferencing, cloud collaboration, BYOD screen casting, and large-file sync/backup—also making it a practical 6E test client for AP validation in labs and pilots. (6 GHz availability depends on region, AP, and OS—Windows® 11 recommended.) Key Features Intel® AX210 Wi-Fi 6E 2×2 chipset for performance and reliability Tri-band 2.4/5/6 GHz 802.11ax with OFDMA and MU-MIMO for higher efficiency Throughput: up to 574 Mbps (2.4 GHz); up to 2400 Mbps (5 and 6 GHz) PCI Express x1 interface for Wi-Fi data; USB interface for Bluetooth function Bluetooth® 5.2 for seamless connection to headsets, keyboards, mice, etc. Two 5 dBi external antennas to enhance signal coverage and stability Security-ready with modern Wi-Fi encryption (802.11ax standard compliant) Operating temperature 0–55 °C for daily office and SOHO environments Windows® 10, Windows® 11 and Linux® driver support for quick integration

Especificaciones técnicas

Controller

Intel® AX210

Interface

PCIe 2.0 x1（Wi-Fi via PCIe, Bluetooth via USB） ** On certain small-form-factor business desktops with a single chipset-attached (PCH) PCIe slot, PCIe 2.x fallback compatibility may be limited, which can prevent proper detection. We recommend using PCIe 3.0 or newer adapters on such platforms, or a motherboard with a CPU-attached x16 slot.

Antenna

2 × external 5 dBi

Dimensions (W x D x H)

65 × 44.5 × 1.6 mm

Weight

84g

Power Supply

PCI Express bus-powered (3.3V) USB 5V (internal header) for Bluetooth function No external power connector required

Power Consumption

Max. 0.33 watts / 1.13 BTU/h (Power on without any connection; Wi-Fi only, 3.3 V@100 mA) Max. 0.66 watts / 2.25 BTU/h (Full loading; Wi-Fi only, 3.3 V@200 mA)

Standard

IEEE 802.11ax/ac/n/b/g/a

Bands

2.4 GHz: 2400–2483.5 MHz 5 GHz: 5150–5850 MHz 6 GHz: 5925–7125 MHz

Data Rate

2.4 GHz up to 574 Mbps 5 GHz up to 2400 Mbps 6 GHz up to 2400 Mbps

MIMO

2×2 spatial streams

Version

Bluetooth 5.2 (via USB interface)

Operating System Support

Windows® 10 (64-bit) Windows® 11 (64-bit) Linux® (64-bit, kernel 5.10+ with iwlwifi & Intel firmware)

Standards Compliance

IEEE 802.11a/b/g (2.4/5 GHz) IEEE 802.11n (HT) IEEE 802.11ac (VHT; up to 80/160 MHz) IEEE 802.11ax (HE; 2.4/5/6 GHz, Wi-Fi 6E) Bluetooth® 5.2 (via internal USB interface) PCI Express x1 (for Wi-Fi interface) USB (for Bluetooth function)

Regulatory Compliance

FCC Part 15 Class B, CE

Operating Temperature

0 ~ 55 degrees C

Storage Temperature

-10 ~ 70 degrees C

Operating Humidity

5 ~ 90%, relative humidity, non-condensing

Storage Humidity

5 ~ 90%, relative humidity, non-condensing

Package Contents

1 × WTL-2400AXE Wi-Fi 6E PCIe x1 adapter (full-height bracket pre-installed) 1 × Low-profile bracket 2 × External antennas 1 × Bluetooth® USB header cable (9-pin) 1 × QR code sheet
