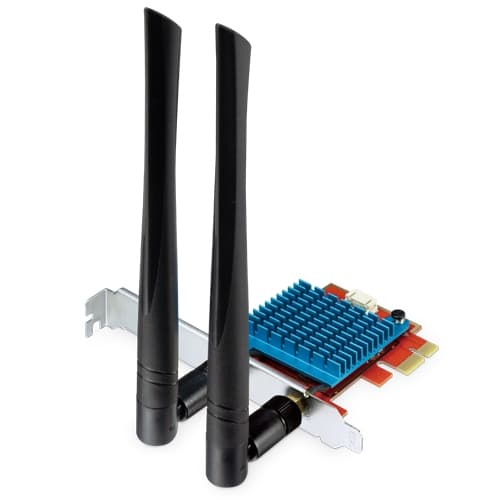

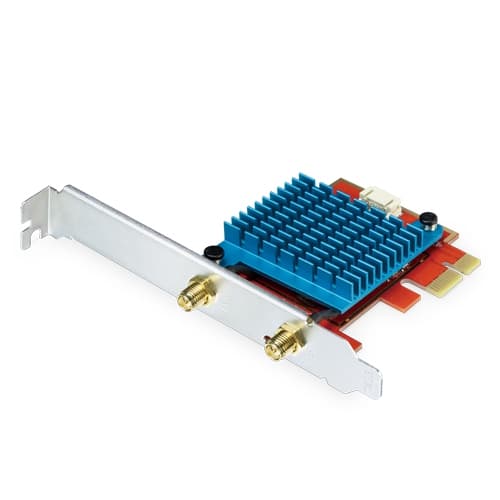

WTL-5800BE — 802.11be Wi-Fi 7 Tri-band Wireless PCI Express Adapter

Descripción

Upgrade Desktops to Fast, Low-Latency Wi-Fi 7 PLANET WTL-5800BE is a tri-band 802.11be/EHT Wi-Fi 7 PCI Express x1 wireless adapter powered by the Intel® BE200NGW chipset. It brings next-generation connectivity to desktop PCs with 2×2 MIMO and OFDMA for high efficiency and lower latency. The adapter supports speeds up to 574 Mbps (2.4 GHz), 2400 Mbps (5 GHz) and 5800 Mbps (6 GHz) , opening the new 6 GHz band for cleaner spectrum and reduced interference in dense environments. With Bluetooth® 5.4 (via onboard USB interface), users can connect keyboards, mice, headsets and other peripherals without a separate dongle, simplifying the workspace. Designed for easy deployment in business and home offices, WTL-5800BE includes two external 5 dBi antennas to enhance signal coverage. It operates seamlessly on Windows® 10, Windows® 11 and Linux® making it an ideal upgrade for high-bandwidth applications such as 4K/8K streaming, cloud collaboration, AR/VR trials and online gaming. Hassle-free Installation for Tri-Band Wi-Fi WTL-5800BE uses a standard PCI Express x1 interface for Wi-Fi data and an internal USB connection for Bluetooth functionality. Once installed, your desktop gains simultaneous access to 2.4, 5 and 6 GHz bands under the Wi-Fi 7 standard, maximizing spectrum choices and minimizing contention with legacy devices. Wi-Fi 7 Technology Highlights The WTL-5800BE brings the latest Wi-Fi 7 (IEEE 802.11be/EHT) to desktops with 2×2 MIMO, OFDMA, MU-MIMO, BSS Coloring, 4096-QAM, Multi-RU, and MLO (Multi-Link Operation) . It supports channel widths up to 320 MHz on 6 GHz and 160 MHz on 5 GHz with WPA3-SAE security. It delivers up to 574 Mbps (2.4 GHz), 2400 Mbps (5 GHz), and 5800 Mbps (6 GHz) , helping reduce interference and latency in high-density environments. Multiple OS Support The WTL-5800BE works seamlessly with Windows® 11 64-bit (2.4, 5 and 6 GHz) and Windows® 10 64-bit (2.4, 5 and 6 GHz). It is also compatible with Linux distributions using the iwlwifi driver (kernel 6.16+ ); 6 GHz availability depends on regulatory domain and distro enablement. Bluetooth® 5.4 is supported via the onboard USB interface. Low-Profile design The adapter supports both full-height and low-profile PCI Express slots, making it easy to deploy in compact desktops and IPCs. Package includes : full-height bracket and low-profile bracket for flexible installation. Applications Wi-Fi 7 Desktop Adapters PLANET WTL-5800BE upgrades desktops and IPCs to next-generation Wi-Fi 7, providing tri-band 2.4, 5 and 6 GHz connectivity and Bluetooth® 5.4 for everyday collaboration. Leveraging the cleaner 6 GHz spectrum and 2×2 EHT, it enables multi-gigabit wireless (up to 5800 Mbps PHY on 6 GHz) with lower interference for video conferencing, cloud apps, 4K/8K media and large-file sync in high-density offices and classrooms . Two external 5 dBi antennas and the included low-profile bracket make installation flexible in compact business PCs and industrial chassis, and it also serves as a convenient 6 GHz client for validating Wi-Fi 7 AP performance (availability depends on region/AP/OS). Key Features Intel® BE200NGW Wi‑Fi 7 2×2 chipset for performance and reliability Tri-band 2.4, 5 and 6 GHz 802.11be/EHT with OFDMA and MU-MIMO for higher efficiency Throughput: up to 574 Mbps (2.4 GHz); up to 2400 Mbps (5 GHz); up to 5800 Mbps (6 GHz). PCI Express x1 interface for Wi-Fi data; USB interface for Bluetooth function Bluetooth® 5.4 for seamless connection to headsets, keyboards, mice, etc. Two 5 dBi external antennas to enhance signal coverage and stability Security-ready with modern Wi-Fi encryption (802.11be/EHT standard compliant) Operating temperature 0–55 °C for daily office and SOHO environments Windows® 10, Windows® 11 and Linux® driver support for quick integration

Especificaciones técnicas

Controller

Intel® BE200NGW

Interface

PCIe 2.0 x1（Wi-Fi via PCIe, Bluetooth via USB） **On certain small-form-factor business desktops with a single chipset-attached (PCH) PCIe slot, PCIe 2.x fallback compatibility may be limited, which can prevent proper detection. We recommend using PCIe 3.0 or newer adapters on such platforms, or a motherboard with a CPU-attached x16 slot.

Antenna

2 × external 5 dBi

Dimensions (W x D x H)

71.5 × 58 × 1.6 mm

Weight

55g

Power Supply

PCI Express bus-powered (3.3V) USB 5V (internal header) for Bluetooth function No external power connector required

Power Consumption

Max. 0.36 watts / 1.23 BTU/h (Power on without any connection; Wi-Fi only, 3.3 V@110 mA) Max. 0.69 watts / 2.35 BTU/h (Full loading; Wi-Fi only, 3.3 V@210 mA)

Standard

IEEE 802.11ax, 802.11ac, 802.11n, 802.11b, 802.11g and 802.11a

Bands

2.4 GHz: 2400–2483.5 MHz 5 GHz: 5150–5850 MHz 6 GHz: 5925–7125 MHz Region-dependent; actual channels and EIRP follow local regulations.

Data Rate

2.4 GHz up to 574 Mbps; 5 GHz up to 2400 Mbps; 6 GHz up to 5800 Mbps

MIMO

2×2 spatial streams

Version

Bluetooth 5.4 (via USB interface)

Operating System Support

Windows® 10 64-bit Windows® 11 64-bit Linux® Kernel 6.16+

Standards Compliance

IEEE 802.11be/EHT; backward compatible with 802.11ax/ac/a/b/g/n and amendments (a,b,d,e,g,h,i,k,n,r,u,v,w) Bluetooth® 5.4 (via internal USB) PCI Express® x1 (Wi-Fi) and USB (Bluetooth)

Regulatory Compliance

FCC Part 15 Class B, CE

Operating Temperature

0 ~ 55 degrees C

Storage Temperature

-10 ~ 70 degrees C

Operating Humidity

5 ~ 90%, relative humidity, non-condensing

Storage Humidity

5 ~ 90%, relative humidity, non-condensing

Package Contents

1 × WTL-5800BE Wi-Fi 7 PCIe x1 adapter (full-height bracket pre-installed) 1 × Low-profile bracket 2 × External 5 dBi antennas 1 × Bluetooth® USB header cable (9-pin) 1 × QR code sheet
