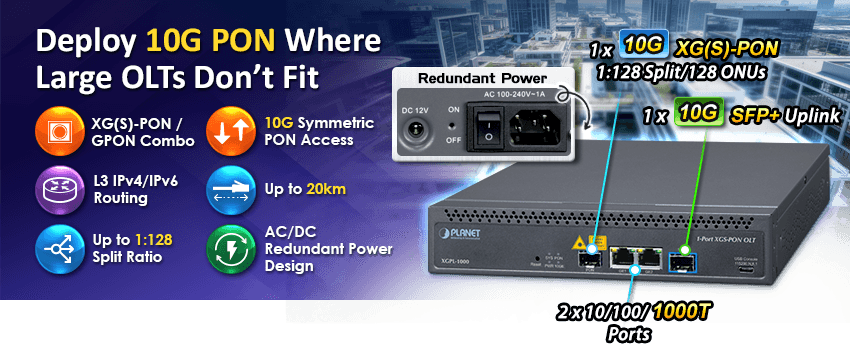

XGPL-1000 — 1-Port XGS-PON OLT with 2-Port 10/100/1000T + 1-Port 10G SFP+ and 1 AC + 1 DC

Descripción

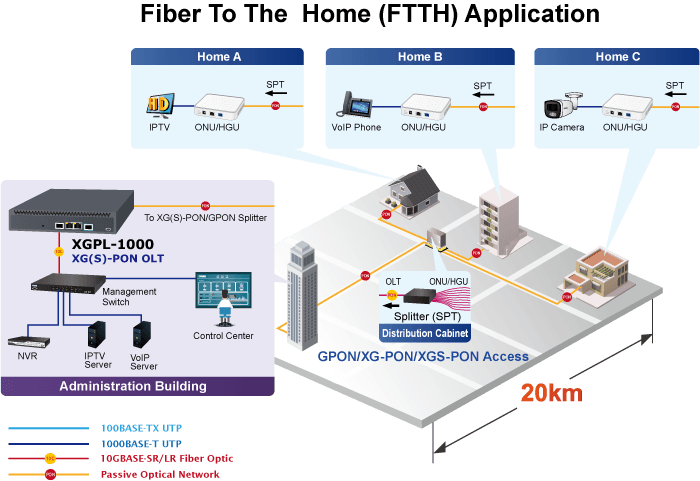

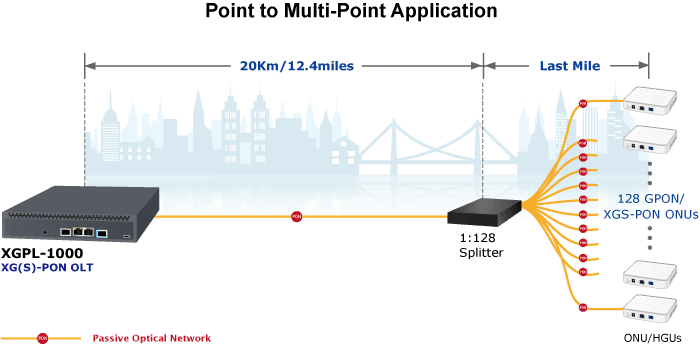

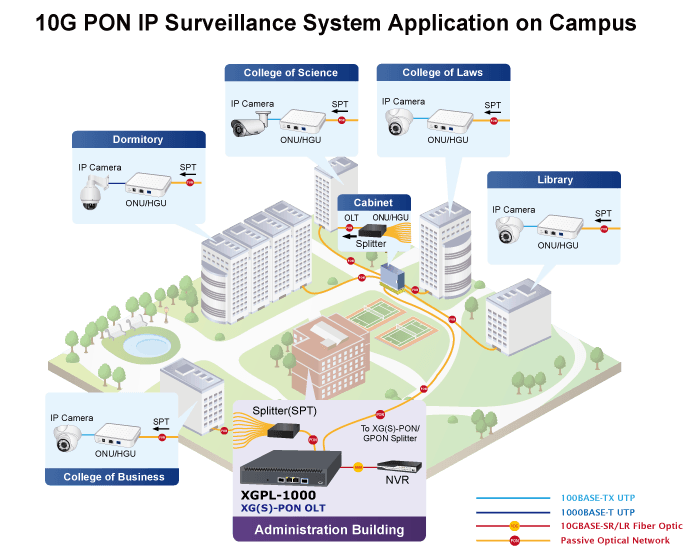

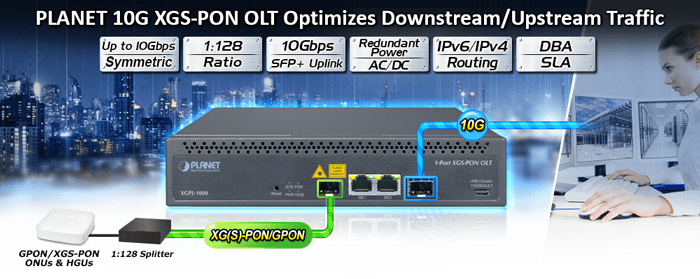

High-performance XG(S)-PON / GPON Combo OLT for FTTx Applications PLANET XGPL-1000 XG(S)-PON / GPON Combo Optical Line Terminal (OLT) consists of one XG(S)-PON / GPON Combo PON port, two Gigabit Ethernet ports, one 10G SFP+ uplink port and USB console port. It supports GPON, XG-PON and XGS-PON standards, providing flexible deployment for both existing GPON networks and next-generation 10G PON broadband access networks. It is easy to install and maintain a PON deployment of up to 128 ONU and HGU devices, providing highly-effective XG(S)-PON / GPON solutions and convenient management for fiber optic broadband networks. 10G PON High-speed and Long-distance Coverage for Triple Play Services The XGPL-1000 provides high bandwidth of up to 9.953Gbps downstream and 9.953Gbps upstream in XGS-PON mode, while also supporting GPON and XG-PON access technologies. It offers long-distance coverage of up to 20km between equipment nodes and flexibility for network deployment. The XGPL-1000 is a cost-effective and scalable access solution for triple-play service applications such as HDTV, IPTV, voice-over-IP (VoIP), multimedia services and surveillance networks. High Split Ratio for Cost-effective XG(S)-PON / GPON Deployment The XGPL-1000 is an ideal solution for FTTx applications. It helps to minimize the investment cost for carriers and service providers by offering a high split ratio of 1:128 per PON port and supporting the usage of PLANET ONUs and HGUs. With support for VLAN, Dynamic Bandwidth Allocation (DBA), Service Level Agreement (SLA) and Access Control List, the XGPL-1000 enables secure, flexible and efficient bandwidth management for multiple end users through a passive optical splitter. Flexible and Extendable 10Gb Ethernet Solution The XGPL-1000 has one 10G SFP+ uplink port to deliver ultra-high-speed networking over long distances to service providers. The 10G SFP+ slot supports dual speed and 10GBASE-SR/LR or 1000BASE-SX/LX. With its 10G Ethernet uplink capability and additional 2-port Gigabit Ethernet connectivity, the administrator can flexibly choose suitable SFP/SFP+ transceivers according to the transmission distance or required transmission speed to extend the network efficiently. Redundant AC and DC Power Input Design to Increase Reliability The XGPL-1000 is equipped with one 100~240V AC power input and one 12V DC power input, providing power redundancy for reliable operation. When one power source fails, the backup power input helps maintain stable service and improves availability for broadband access networks. Layer 3 IPv4 and IPv6 Software VLAN Routing for Secure and Flexible Management To help customers build secure and flexible broadband networks, the XGPL-1000 not only provides high transmission performance and Layer 2 switching technologies, but also supports IPv4/IPv6 software VLAN routing. This allows traffic to be routed across different VLANs and IP subnets, making network management more secure, flexible and efficient. Robust Layer 2 Features The XGPL-1000 can be programmed for basic switch management functions such as port speed configuration, VLAN, Spanning Tree Protocol, WRR, bandwidth control and IGMP/MLD snooping. It also supports 802.1Q tagged VLAN, Q-in-Q, VLAN translation and DSCP-to-CoS mapping. These features provide reliable traffic control and flexible service deployment for FTTx applications. Efficient and Secure Management For efficient management, the XGPL-1000 is equipped with console, Web, Telnet, CLI and SNMP management interfaces. With the built-in Web-based management interface, the XGPL-1000 offers an easy-to-use, platform-independent management and configuration facility. For text-based management, it can be accessed via Telnet and the console port. For standard-based monitoring and management software, it supports SNMP management. Moreover, the XGPL-1000 offers secure remote management by supporting SSHv2 connection, which encrypts the packet content at each session. Applications Cost-effective 10G PON Access for Triple Play, Surveillance and FTTx Applications PLANET XGPL-1000 delivers high-speed voice, data and video services to residential and business subscribers through GPON, XG-PON and XGS-PON technologies. With PON technology, the XGPL-1000 offers competitive advantages including long-term fiber infrastructure deployment, lower operating costs from the reduction of active network components, support for up to 20km transmission distance between equipment nodes, easy installation and maintenance, and high-bandwidth access for next-generation broadband services. Supporting up to 1:128 optical split ratio, the XGPL-1000 allows service providers to connect multiple ONU and HGU devices through a passive optical splitter, making it ideal for FTTH, FTTB, FTTO, SOHO and small business broadband access applications. With up to 9.953Gbps downstream and 9.953Gbps upstream bandwidth in XGS-PON mode, the XGPL-1000 is suitable for bandwidth-demanding applications such as HDTV, IPTV, VoIP, multimedia streaming, cloud services and IP surveillance networks. The XGPL-1000 also supports existing GPON deployment while providing a smooth upgrade path to 10G PON networks. It is the perfect solution for service providers, system integrators and enterprises requiring a cost-effective, scalable and flexible fiber access network. Key Features XG(S)-PON / GPON Combo Port 1 XG(S)-PON / GPON Combo PON port Supports GPON, XG-PON and XGS-PON tri-mode coexistence Supports adaptive switching via different optical modules GPON: 2.488Gbps downstream and 1.244Gbps upstream XG-PON: 9.953Gbps downstream and 2.488Gbps upstream XGS-PON: 9.953Gbps downstream and 9.953Gbps upstream Maximum transmission distance of up to 20km PON port supports up to 128 ONT/HGU devices Compliant with ITU-T G.984.x, ITU-T G.987 and ITU-T G.9807 standards Supports T-CONT DBA and x-GEM traffic Supports data encryption, multicast, port VLAN and user separation Supports ONT auto-discovery, link detection and remote software upgrade Supports power-off alarm function for easy link problem detection Physical Ports 2 10/100/1000BASE-T RJ45 copper ports 1 10GBASE-SR/LR SFP+ uplink slot, compatible with 1000BASE-SX/LX/BX SFP 1 USB console interface for basic management and setup 1 XG(S)-PON / GPON Combo SFP+ PON slot Switching Hardware-based 10/100Mbps half/full duplex and 1000Mbps full duplex mode Supports flow control, auto-negotiation and auto MDI/MDI-X Features Store-and-Forward mode with wire-speed filtering and forwarding rates IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation Working with Rate Limit (Kbps) function Supports automatic address learning and address aging 8K MAC address table 30Gbps switch fabric 44.64Mpps forwarding rate Uplink Port Management Traffic statistics and optical information display Port configuration for description, admin status, speed, flow control, isolation, PVID, broadcast and unicast storm limit, ingress and egress rate limit, and MAC limit OLT Management User-friendly GUI management 2 control interfaces: Out-of-Band IP: USB serial port In-Band IP: Gigabit TP and 10G SFP+ uplink ports Supports ONT/HGU authentication to prevent illegal ONT access to the network Supports online ONT configuration and management Supports user management and alarm management ONT/HGU Management ONT/HGU port control ONT/HGU VLAN mode ONT/HGU configuration and management ONT/HGU link detection ONT/HGU remote software upgrade PON Management Traffic statistics and optical information display Port configuration for description, admin status, broadcast and unicast storm limit, ingress and egress rate limit PON range configuration and ALS configuration Supports VLAN division and user separation to avoid broadcast storms Supports broadcasting storm resistance function ONU Management ONU List Automatic Discovery Automatic Learn ONU Image Upgrade Rogue ONU Table List and Config Profile Management ONU profile configuration ONU profile binding Rapid deployment Layer 3 IP Routing Features IPv4/IPv6 static routing Routing interface provides per VLAN routing mode Loopback function for all Ethernet and PON interfaces Supports dynamic/static ARP Supports WAN connection modes: DHCP PPPoE Static IP Supports NAT and DMZ Layer 2 Features Supports VLAN IEEE 802.1Q tag-based VLAN VLAN translation Provider bridging, VLAN Q-in-Q, IEEE 802.1ad PON P2P DSCP-to-CoS QoS mapping Supports bi-directional mapping between Layer 3 DSCP fields and Layer 2 CoS within VLAN tags Supports Spanning Tree Protocol RSTP, IEEE 802.1w Rapid Spanning Tree Protocol MAC table and PON MAC table display and aging configuration Link Layer Discovery Protocol (LLDP) Port mirroring to monitor incoming or outgoing traffic on a specific port Supports port isolation Supports port rate limitation Supports 4096 VLANs Quality of Service Ingress and egress rate limit per port bandwidth control Dynamic Bandwidth Allocation (DBA) on PON interfaces Service Level Agreement (SLA) Upstream/downstream rate limitation based on each ONT/ONU/HGU 4 priority queues on all switch ports Scheduling for priority queues: Weighted Round Robin (WRR) Strict Priority Traffic classification: IEEE 802.1p CoS DSCP Precedence VLAN ID Policy-based ingress and egress QoS Multicast Supports IPv4 IGMP snooping Supports IPv6 MLD snooping v1 and v2 Supports 256 IP multicast groups Querier mode support Security Authentication TACACS+ user access authentication IPv4/IPv6 Access Control List IP-based Access Control List MAC-based Access Control List Port-based Access Control List Protocol-based Access Control List DHCP snooping to filter distrusted DHCP messages Dynamic ARP inspection / restriction to discard ARP packets with invalid MAC address to IP address binding Transmission data encryption on the PON interface WAN IPv4/IPv6/IPv4 & IPv6 versions Static / DHCP / PPPoE connection mode options NAT NAT configuration options NAT DMZ Hosts Management IPv4 and IPv6 dual stack management IPv4 DNS / IPv4 gateway IPv6 SLAAC / IPv6 gateway Switch management interfaces: Console Telnet Command Line Interface Web management SNMP management SSHv2 secure access SNMP management SNMP trap for interface Link Up and Link Down notification BOOTP and DHCP for IP address assignment Firmware upgrade via Web interface Configuration upload/download through Web interface Reset button for system reboot or reset to factory default User privilege level control Network Time Protocol (NTP) Network diagnostics: ICMP remote IP ping Traceroute diagnosis Remote syslog alarm System log DHCP Functions DHCP relay DHCP Option 82 DHCP snooping DHCP server DHCPv6 server DHCPv6 relay

Especificaciones técnicas

PON Interface

1 x XG(S)-PON / GPON Combo SFP+ slot

Ethernet Interface

2 x 10/100/1000BASE-T copper ports, port-1 to port-2 1 x 10GBASE-X SFP+ slot, supporting 10GBASE-SR/LR SFP+ transceiver Backward compatible with 1000BASE-X SFP transceiver

Console

One USB serial port (115200, 8, N, 1)

RAM

512MB

Flash Memory

256MB

Dimensions (W x D x H)

210 x 173 x 43.6mm

Weight

1.07kg

Power Consumption

AC 240V: Max. 2.8 watts / 9.5BTU (Power on without any connection) Max.9.3 watts / 31.7BTU (Full loading) DC 12V: Max. 3.4 watts / 11.6BTU (Power on without any connection) Max.10.1 watts / 34.4BTU (Full loading)

Power Requirements - AC

100~240V AC, 1A max.

Power Requirements - DC

12V DC, 1A max.

Lightning Protection

Power supply 6KV / Device Interface 4KV

Fan

1

PON Port

1 x XG(S)-PON / GPON Combo PON port

Physical Interface

SFP+ slot

Connector Type

XG(S)-PON & GPON Combo mode: N2_C+

Transmission Speed

GPON: Downstream 2.488Gbps; Upstream 1.244Gbps XG-PON: Downstream 9.953Gbps; Upstream 2.488Gbps XGS-PON: Downstream 9.953Gbps; Upstream 9.953Gbps

Optical Split Ratio

Up to 128

Transmission Distance

20km

PON Module Wavelength

XG(S)-PON: Up 1270nm / Down 1577nm GPON: Up 1310nm / Down 1490nm

PON Fiber Type

9/125um SMF(Single mode fiber optic)

PON Function

T-CONT DBA x-GEM traffic Data encryption, multicast, port VLAN and user separation ONT auto-discovery, link detection and remote software upgrade VLAN division and user separation to avoid broadcast storms Power-off alarm function Broadcasting storm resistance function

Switch Architecture

Store-and-forward

Switch Fabric

30Gbps

Switch Throughput

44.64Mpps

Address Table

8K

ARP Table

8K

Jumbo Frame

10/100/1000BASE-T RJ45 copper ports: 9022Bytes XG(S)-PON / GPON Combo PON port: 1652 Bytes 10GBASE-SR/LR SFP+ slot: 9036 Bytes

Flow Control

Back pressure for half duplex IEEE 802.3x pause frame for full duplex Working with Rate Limit(Kbps) function

IP Interfaces

Max. 512 VLAN interfaces for IPv4 Max. 512 VLAN interfaces for IPv6

Routing Protocols

IPv4/IPv6 static routing

WAN

IPv4/IPv6/IPv4 & IPv6 versions Static/DHCP/PPPoE connect mode options

NAT

NAT1/NAT2/NAT4(default) for NAT Config options NAT DMZ Hosts

ARP

Dynamic / static ARP

Port Configuration

Description Admin Status (Port disable/enable) Speed Flow control Isolate PVID Broadcast and Unicast Storm Limit Ingress & Egress Rate Limit

Port Mirroring

TX/RX/Both 1 to 1

VLAN

IEEE 802.1Q tag-based VLAN, up to 4096 VLANs VLAN Translation Bridging (VLAN Q-in-Q, IEEE 802.1ad) PON P2P DSCP-to-CoS QoS Mapping: Supports bi-directional mapping between Layer 3 DSCP fields and Layer 2 CoS (IEEE 802.1p) within VLAN tags

Spanning Tree Protocol

IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)

Multicast

IPv4 IGMP snooping v1 and v2 Up to 256 multicast groups IPv6 MLD v1/v2 snooping Up to 256 multicast groups Querier mode support

Storm Control

Broadcast Storm Limit Unicast Storm Limit 0/64-13000kbps

Bandwidth Control

Ingress Rate Limit Egress Rate Limit 0/64-1000000kbps

PON Interfaces

Dynamic Bandwidth Allocation (DBA) Service Level Agreement (SLA) Limiting the upstream/downstream rate based on each ONT/ONU/HGU

Priority Queue

4 priority queues on all switch ports

Scheduling for Priority Queues

Weighted Round Robin (WRR) Strict Priority

Traffic Classification

IEEE 802.1p CoS / DSCP / Precedence VLAN ID Policy-based ingress and egress QoS

Access Control List

Supports Standard and Expanded ACL IP-based ACL MAC-based ACL Port-based ACL Protocol-based ACL ACL based on: MAC Address IPv4/IPv6 IP Address Protocol-number Port Up to 1k entries

Security

Transmission data encryption on the PON interface DHCP snooping Dynamic ARP inspection

Authentication

TACACS+ users access authentication

System Configuration

Console and Telnet Web browser SNMP v1, v2c

Secure Management Interfaces

SSHv2 SNMPv3 HTTPS Web management

System Management

IPv4 and IPv6 dual stack management IPV4 DNS/IPv4 Gateway IPv6 SLAAC/IPv6 Gateway SNMP MIB and TRAP SNMP RMON 1, 2, 3, 9 four groups Firmware upgrade by HTTPS protocol through Ethernet network Configuration upload/download through HTTPS protocol IEEE 802.1ab LLDP protocol NTP client

DHCP Function

DHCP Relay DHCP Option 82 DHCP Snooping DHCP Server DHCPv6 Server DHCPv6 Relay

Event Management

Remote syslog System log

Maintenance

Reset button for system reboot or reset to factory default User privilege levels control Network diagnostic ICMP remote IP ping Traceroute diagnosis

SNMP MIBs

RFC 1213 MIB-II RFC 1215 Internet Engineering Task Force RFC 1271 RMON RFC 1354 IP-Forwarding MIB RFC 1493 Bridge MIB RFC 1643 Ether-like MIB RFC 1907 SNMPv2 RFC 2011 IP/ICMP MIB RFC 2012 TCP MIB RFC 2013 UDP MIB RFC 2096 IP forward MIB RFC 2233 if MIB RFC 2452 TCP6 MIB RFC 2454 UDP6 MIB RFC 2465 IPv6 MIB RFC 2466 ICMP6 MIB RFC 2573 SNMPv3 notification RFC 2574 SNMPv3 VACM RFC 2674 Bridge MIB Extensions

Regulatory Compliance

CE / LVD

Standards Compliance

ITU-T G.984.x GPON ITU-T G.987 XG-PON ITU-T G.9807 XGS-PON IEEE 802.3z Gigabit 1000BASE-SX/LX IEEE 802.3ae 10Gb/s Ethernet IEEE 802.3x Flow Control and Back Pressure IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1ab LLDP RFC 768 UDP RFC 783 TFTP RFC 792 ICMP RFC 793 IP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 RFC 5246 (TLS 1.2)

Operating

Temperature: -20 ~60 degrees C Relative Humidity: 5 ~ 95% (non-condensing)

Storage

Temperature: -40 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
