XGPN-100 — XGS-PON SFU ONT with 1-Port 10GbE

Descripción

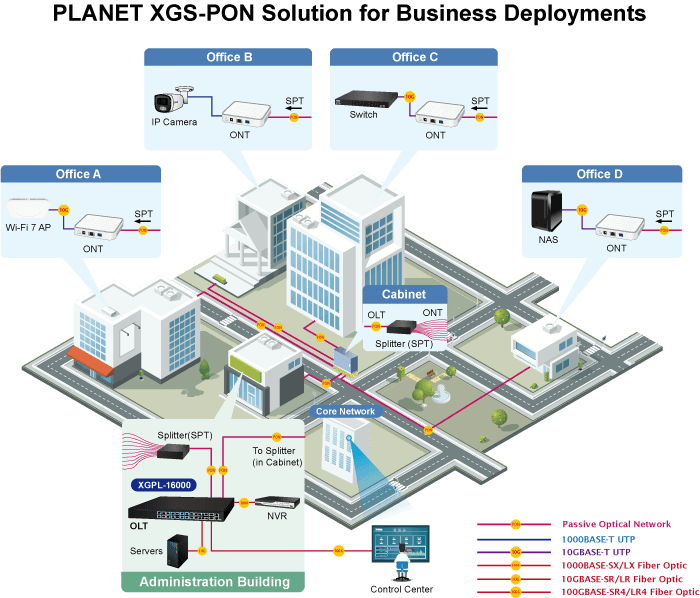

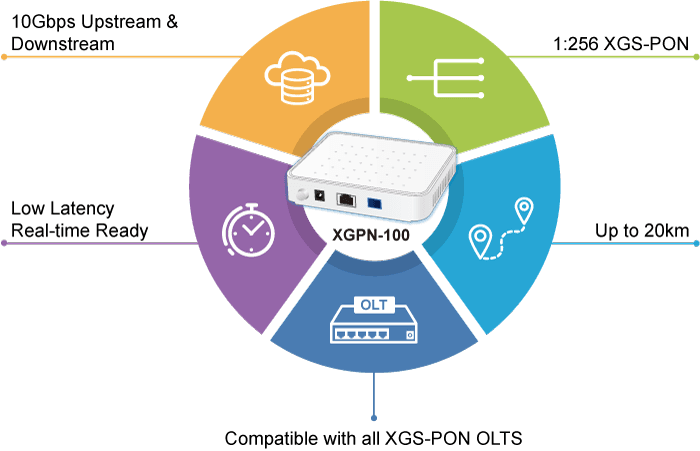

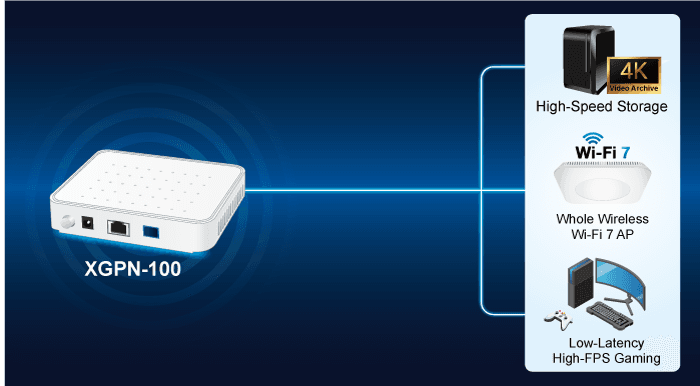

Superior Access Performance PLANET XGPN-100 is a high-performance XGS-PON Single Family Unit (SFU) designed to provide ultra-fast fiber broadband connectivity. With 10Gbps symmetrical transmission speeds, it seamlessly integrates with XGS-PON Optical Line Terminals (OLTs) to deliver high-speed, low-latency, and future-ready networking for residential and enterprise applications. Designed for maximum efficiency and extended coverage, it ensures reliable connectivity across various deployment scenarios. Blazing-fast 10Gbps upstream and downstream for next-generation broadband access Seamless OLT compatibility, supporting XGS-PON deployments with ease 1:256 high split ratio, optimizing network capacity and scalability Extended 20km coverage range, perfect for FTTH and enterprise networks Low latency and stable connections ensure seamless real-time applications Delivering High-speed Fiber Connectivity for ISP and Enterprise Networks The XGPN-100 features one 10Gbps XGS-PON fiber port and one 10G RJ45 Ethernet port, making it an ideal solution for high-bandwidth applications in both residential and business environments. Whether used for FTTH, enterprise networking, or small business operations, the XGPN-100 ensures seamless ultra-high-speed data transfer with minimal latency. Perfectly Designed for Fiber-to-the-Premises (FTTP) Applications Built with a 10Gbps fiber interface, the XGPN-100 can support various optic types for WAN connectivity and can extend network coverage up to 20km over fiber connections. Its high-speed 10G Ethernet port enables direct connection to high-performance networking devices, such as servers, enterprise routers, and high-speed workstations, ensuring a smooth and reliable network experience. With advanced QoS features, the XGPN-100 can efficiently handle bandwidth-intensive applications, including IPTV, cloud computing, online gaming, and real-time video streaming, while ensuring optimal traffic prioritization and load balancing. 10G Ethernet Port for High-Bandwidth Network Integration As modern businesses and households demand multi-gigabit connectivity, the XGPN-100 provides a 10G RJ45 port that supports full 10GbE speeds. This allows users to connect directly to high-speed networking equipment, such as NAS, gaming consoles, and external 802.11ax (Wi-Fi 6) or future 802.11be (Wi-Fi 7) access points via Ethernet, delivering superior data transmission speeds and signal quality. By leveraging standard Cat 6A cables, users can achieve 10Gbps network speeds without costly fiber upgrades, making it a cost-effective and high-performance solution for next-generation networking needs. Applications High-Performance XGS-PON SFU for Business-Class Connectivity The XGPN-100 is a compact and high-speed XGS-PON SFU (Single Family Unit) designed for enterprise and commercial deployments requiring symmetric 10Gbps bandwidth. Equipped with a 10G Ethernet port, it provides a dedicated fiber uplink for a wide range of applications, including IP surveillance aggregation, office Wi-Fi backhaul, NAS access, and high-throughput workstation connectivity. When deployed alongside the XGPL-16000 OLT, the XGPN-100 enables reliable and efficient service delivery across business districts, multi-unit buildings, and distributed commercial environments. Its plug-and-play form factor makes it ideal for system integrators and enterprise IT teams seeking simplified, scalable fiber rollout. Key Features XGS-PON Port One SC/UPC type XGS-PON port Up to 10Gbps upstream and 10Gbps downstream Maximum distance of up to 20km Compliant with ITU-T G.987.3, G.988, G.989 LED indicators for link status Ethernet 802.1Q VLAN and QoS IGMP snooping and IGMP proxy MLD snooping and MLD proxy IPv4/IPv6 protocol Physical Hardware One 10GBASE-T RJ45 port backward compatible with 100/1G/2.5GBASE-T Features Multiple operation modes: routing, bridging, and hybrid (routing and bridging) Half-duplex backpressure flow control Head-of-Line blocking prevention mechanism Dynamic Bandwidth Allocation (DBA) WR, SP, and FIFO queue scheduling algorithms Layer 2/3/4 classification rules IEEE 802.3x flow control QoS with 8 priority queues Port rate limiting Security IEEE 802.1x authentication Port storm suppression MAC/IP/Port filtering URL and domain name filtering DHCP snooping DDoS protection Port mapping Management Web, TELNET, TR-069, and OMCI for remote management OAM (Operations, Administration, and Maintenance) TFTP/Web/TR-069/OLT firmware upgrade Syslog, NTP, DHCP relay, and option 82

Especificaciones técnicas

UNI Port

1 x 10GBASE-T RJ45 port backward compatible with 100/1G/2.5G/5GBASE-T

PON Port

Transmission rate: Downlink 10Gbps/uplink 10Gbps Network Coverage Radius: 20 kilometers Receiver Sensitivity: ≤-28dBm Transmit Optical Power: 0.5~5dBm Optical interface type: SC/UPC

Reset Button

Press for about 15 seconds to reset the device to factory default

Thermal Fan

Fanless

LED Indicators

PWR ( Green ) PON ( Green ) LOS ( Red ) 10GE ( Green )

Installation

Desktop installation or wall mounting

Power Requirements

12V AC, 1A max.

Power Consumption

6W max.

Weight

236g

Dimensions (WxDxH)

140.06 x 105.06 x 27.4mm

Enclosure

Plastic

Heat Dissipation

Extended use of up to 24 hours does not result in performance degradation or damage due to device overheating or deformation.

Data Forwarding

Routing mode, bridging mode, and hybrid mode (routing and bridging)

DNS

DNS Relay

DHCP

DHCP server

VLAN

Port-based VLAN IEEE 802.1Q VLAN

Multicast

IGMP snooping IGMP proxy MLD snooping MLD proxy

QoS

Backpressure flow control (Half-duplex) IEEE 802.3x flow control (Full-duplex) Head-of-Line blocking prevention mechanism IEEE 802.1p, CoS 8 priority queues per port WR, SP, and FIFO queue scheduling algorithms Port rate limiting

Reliability

Loop detection function Dying gasp function Type B dual-homing protection

Security

Port protection Firewall: MAC/IP/Port/URL/Domain name filtering DDoS protection Port storm suppression Port mapping

Management Configuration

Supports multiple management methods: Web, TELNET, TR069, OMCI, and OAM Firmware upgrade via TFTP/WEB/TR069/OLT

Standards

ITU-T G.987.3, G.988, G.989 Supports China Communications Industry Standard GB/T 43699-2024 "Access Network Technical Requirements for 10Gbit/s Symmetrical Passive Optical Network (XGS-PON)" IEEE 802.1Q, VLAN

Operating

Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing)

Storage

Temperature: -10 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
