XGS-6350-16X8Y4C — Layer 3 16-Port 10G SFP+ + 8-Port 25G SFP28 + 4-Port 100G QSFP28 Managed Ethernet Switch

Descripción

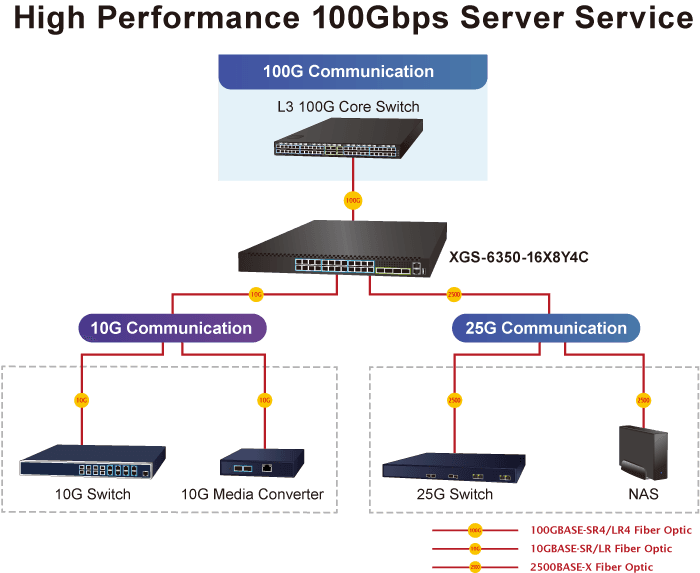

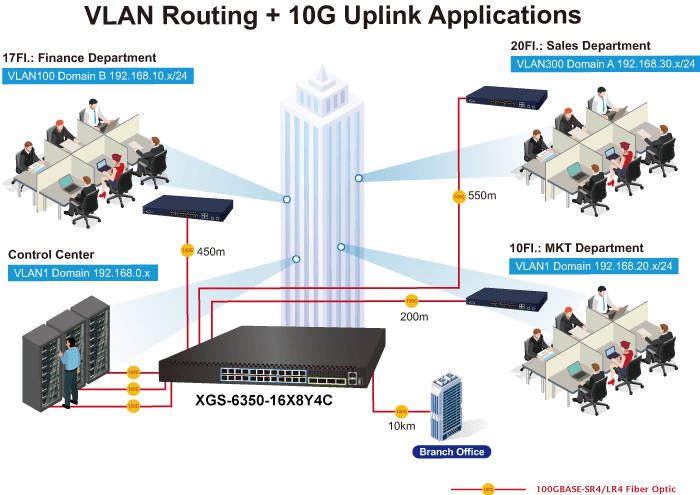

Optimized Data Center and AI Infrastructure Performance PLANET XGS-6350-16X8Y4C is a high-performance Layer 3 Managed Switch designed for the next-generation Metro , Data Center , AI Computing and Enterprise network requirements. It features high-density 40G/100GbE QSFP28, 25G SFP28 and 10G SFP+ fiber interfaces in a compact 1RU chassis, delivering scalable and ultra-high-speed connectivity for AI workloads and cloud applications. Layer 3 Routing and Multicast Support The XGS-6350-16X8Y4C provides comprehensive Layer 3 managed features to streamline service deployment across both traditional L2 networks and fully virtualized data centers. With advanced routing capabilities—including Static Routing , RIP/OSPF , DHCP Relay , BGP , and multicast routing protocols such as PIM-DM/SM —this switch delivers high-performance and scalable network operations for next-generation infrastructures. Adaptive 10G/25G/40G/100G Transceivers for AI and High-Performance Networks The administrator can flexibly choose the appropriate transceivers based on the required transmission speed or distance, enabling efficient expansion of 10G/25G/40G/100G networks for modern AI , cloud , and high-performance computing workloads . In addition, with a switching capacity of 1520Gbps , the XGS-6350-16X8Y4C can reliably handle massive data flows in secure and scalable topologies, making it ideal for backbone connections or high-capacity servers running AI inference , real-time analytics , video streaming , and multicast applications . Extractive Power Supply Design to Increase Flexibility The XGS-6350-16X8Y4C is equipped with one extractive 100~240V AC power supply unit, so it is easy to replace the power for users. Besides, the XGS-6350-16X8Y4C reserves another backup power slot on the rear panel and users can add the second AC or DC power to the redundant power supply installation. The AC power or DC power is optional. The redundant power system is specifically designed to handle the demands of high-tech facilities requiring the highest power integrity. High Performance The XGS-6350-16X8Y4C boasts a high-performance switch architecture that is capable of providing non-blocking switch capacity as high as 1520Gbps , which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Rich Multi-layer Networking Protocols The XGS-6350-16X8Y4C comes with the complete Layer 3 managed function with comprehensive protocols and applications to facilitate the rapid service deployment and management for both the traditional L2 and L3 networks. With support for advanced features, including RIP , RIPng , OSPFv2 , OSPFv3 , BGP , BGP4+ , etc., this switch is ideal for the traditional or fully-virtualized data center. Strong Multicast The XGS-6350-16X8Y4C supports abundant multicast features. In Layer 2, it features IPv4 IGMPv1/v2/v3 snooping and IPv6 MLD v1/v2 snooping. With Multicast VLAN Registration (MVR), multicast receiver/sender control and illegal multicast source detection functions can be had. In Layer 3 multicast protocols, it features PIM-DM , PIM-SM and PIM-SSM which make the XGS-6350-16X8Y4C great for any robust networking. Full IPv6 Support The XGS-6350-16X8Y4C supports IPv4-to-IPv6 technologies including IPv4 manual/automatic tunnel , IPv6-to-IPv4 tunnel, and Intra-Site Automatic Tunnel Addressing Protocol ( ISATAP ) tunnel. It comprehensively supports IPv6 Neighbor Discovery, DHCPv6, Path MTU Discovery, IPv6-based Telnet, SSH and ACL, meeting the need of IPv6 network device management and service control. High Reliability The key components of the XGS-6350-16X8Y4C such as management module, power system and the fan system support redundancy design. All system modules support hot-swap and seamless switching without manual intervention. It supports In-service Software Upgrade ( ISSU ) and Graceful Restart ( GR) for OSPF/BGP routing protocol, guaranteeing the user data non-stop forwarding when the system is upgrading. It supports Bidirectional Forwarding Detection ( BFD ) that realizes fault detection and service recovery in seconds through linking with Layer 2 or Layer 3 protocol. Excellent and Secure Traffic Control The XGS-6350-16X8Y4C is loaded with powerful traffic management and WRR features to enhance services offered by telecoms and enterprises. The WRR functionalities include wire-speed Layer 4 traffic classifiers and bandwidth limitation which are particularly useful for multi-tenant unit, multi-business unit, Telco, or network service applications. Powerful Security from Layer 2 to Layer 4 The ACL policies supported can classify the traffic by source/destination IP addresses, source/destination MAC addresses, IP protocols, TCP/UDP, IP precedence, time ranges and ToS. Moreover, various policies can be conducted to forward the traffic. The XGS-6350-16X8Y4C also provides IEEE 802.1x port-based access authentication, which can be deployed with RADIUS, to ensure the port level security and block illegal users. Thus, the XGS-6350-16X8Y4C empowers enterprises and campuses to take full advantage of the limited network resources and guarantees the best performance in VoIP and video conferencing transmission. Robust Layer 2 Features The XGS-6350-16X8Y4C can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Spanning Tree Protocol, WRR, bandwidth control and IGMP snooping. It also supports 802.1Q tagged VLAN, Q-in-Q, voice VLAN and GVRP Protocol. In addition, the number of VLAN interfaces is 1K and the number of VLAN IDs is 4K. By supporting port aggregation, the XGS-6350-16X8Y4C allows the operation of a high-speed trunk combined with multiple ports. It enables up to 32 groups for trunk with a maximum of 8 ports for each group. Efficient and Secure Management For efficient management, the XGS-6350-16X8Y4C Managed 100Gigabit Switch is equipped with console, Web and SNMP management interfaces. With its built-in Web-based management interface, the XGS-6350-16X8Y4C offers an easy-to-use, platform-independent management and configuration facility. The XGS-6350-16X8Y4C supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software. For reducing product learning time, the XGS-6350-16X8Y4C offers Cisco-like command via Telnet or console port. Moreover, the XGS-6350-16X8Y4C offers secure remote management by supporting SSH connection which encrypts the packet content at each session. Moreover, the XGS-6350-16X8Y4C offers secure remote management by supporting SSHv1/v2 and TLSv1.3 connection which encrypts the packet content at each session. Centralized Hardware Stacking Management Up to 10 XGS-6350-16X8Y4C units can be stacked to operate as a single logical switch, simplifying network management and expansion. The ring-based stacking design provides redundancy so that data traffic continues even if one unit fails. The switches can also be hot-swapped without service interruption, greatly streamlining upgrades and scaling for increasing bandwidth demands. Flexibility and Extension Solution The XGS-6350-16X8Y4C provides 10Gbps SFP+ and 25G SFP28 and 100Gbps QSFP28 Fiber interfaces. Each of the SFP+ slots supports Dual Speed, 10GBASE-SR/LR or 1000BASE-SX/LX, each of the SFP28 slots supports 25G/10G/1G, and each of the QSFP28 slots supports native 100 Gigabit Ethernet , 40G and 4 x 10 Gigabit Ethernet modes . Therefore, the administrator can flexibly choose the suitable SFP transceiver according to not only the transmission distance, but also the transmission speed required. The distance can be extended from 550 meters to 2km (multi-mode fiber) or up to 10/20/30/40/50/70/80 km (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions. Redundant Ring, Fast Recovery for Critical Network Applications The XGS-6350-16X8Y4C supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in harsh environments. In a certain simple Ring network, the recovery time could be less than 50ms to quickly bring the network back to normal operation. Applications High-Availability Mesh Networking for Big Data Systems By leveraging advanced optical fiber networking technology with high flexibility, scalability, and ease of deployment, the XGS-6350-16X8Y4C delivers high-capacity switching performance up to 1520Gbps and supports transmission distances of up to 80km over single-mode fiber. It provides robust and rapid self-recovery capabilities to minimize service interruptions and protect against external link failures. The switch integrates Multiple Spanning Tree Protocol (IEEE 802.1s MSTP) to strengthen system reliability and ensure continuous uptime in mission-critical environments. With its high bandwidth and resilient architecture, the XGS-6350-16X8Y4C is an ideal solution for data centers, service providers, and telecom operators building redundant, high-capacity infrastructures for Big Data and analytics platforms. Layer 3 VLAN Routing and 100G Uplink Application With the built-in Layer 3 routing capabilities, the XGS-6350 Series ensures reliable inter-VLAN and inter-subnet routing. The routing protocols can be applied on VLAN interfaces, supporting up to 32K hardware-based routing entries. As an ideal solution for enterprise networks, the XGS-6350 Series provides enhanced security, improved traffic control, optimized bandwidth utilization, and high-speed 100G uplink connectivity. Key Features Physical Ports 16 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP 8 25G SFP28 slots, compatible with 1G/10GBASE-SX/LX/BX SFP 4 QSFP28 slots, each supports native 100 Gigabit Ethernet, 40G and 4 x 10 Gigabit Ethernet modes RJ45 to DB9 console interface (115200,N,8,1) for switch basic management and setup MGMT port for HTTP server access USB port IPv4 Features Static Routing, RIP v1/v2, OSPFv2 and BGP Policy Routing BFD for OSPF and BGP IPv6 Features ICMPv6, DHCPv6, ACLv6, IPv6 Telnet IPv6 Neighbor Discovery Path MTU Discovery MLD and MLD Snooping IPv6 Static Routing, RIPng, OSPFv3 and BGP4+ Manual Tunnel, ISATAP Tunnel and 6-to-4 Tunnel Multicast Routing Features Supports Multicast Routing Protocols: PIM-DM (Protocol Independent Multicast - Dense Mode) PIM-SM (Protocol Independent Multicast - Sparse Mode) PIM-SSM (Protocol Independent Multicast - Source-Specific Multicast Mode) Supports IGMP v1/v2/v3 Layer 2 Features Auto-MDI/MDI-X detection on each RJ45 port Prevents packet loss flow control IEEE 802.3x pause frame flow control in full-duplex mode Back-pressure flow control in half-duplex mode High performance Store-and-Forward architecture, broadcast storm control, port loopback detects 112K MAC address table, automatic source address learning and aging (for XGS-6350-16X8Y4C) Supports VLAN IEEE 802.1Q tag-based VLAN GVRP for dynamic VLAN management Up to 4094 active VLANs Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported Private VLAN Edge (PVE) supported GVRP protocol for Management VLAN Protocol-based VLAN MAC-based VLAN Supports Link Aggregation Maximum 32 trunk groups with up to 8 ports per trunk group IEEE 802.3ad LACP (Link Aggregation Control Protocol) Cisco ether-channel (static trunk) Supports Spanning Tree Protocol STP, IEEE 802.1D (Classic Spanning Tree Protocol) RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol) MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN) BPDU & root guard Port mirroring to monitor the incoming or outgoing traffic on a particular port (many to many) Provides port mirror (many-to-1) Supports G.8032 ERPS (Ethernet Ring Protection Switching) Quality of Service 8 priority queues on all switch ports Supports strict priority and WRR (Weighted Round Robin) CoS policies Traffic classification IEEE 802.1p CoS/ToS IPv4/IPv6 DSCP Port-based WRR Strict priority and WRR CoS policies Multicast Supports IPv4 IGMP snooping v1, v2 and v3; and IPv6 MLD v1 and v2 snooping Querier mode supports Supports Multicast VLAN Register (MVR) Security Authentication IEEE 802.1x port-based network access authentication Built-in RADIUS client to cooperate with the RADIUS servers RADIUS/TACACS+ users access authentication Change of Authorization (COA) Access Control List IP-based Access Control List (ACL) MAC-based Access Control List (ACL) Port-based Access Control List (ACL) Time-based ACL DHCP Snooping to filter distrusted DHCP messages Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding IP Source Guard prevents IP spoofing attacks Management IPv4 and IPv6 dual stack management Switch Management Interfaces Console and Telnet Command Line Interface HTTP web switch management SNMP v1 and v2c switch management SSHv2, SSLv3, TLSv1.3 and SNMP v3 secure access SNMP Management Four RMON groups (history, statistics, alarms, and events) SNMP trap for interface Link Up and Link Down notification Built-in Trivial File Transfer Protocol (TFTP) client BOOTP and DHCP for IP address assignment System Maintenance Firmware upload/download via HTTP Reset button for system reboot or reset to factory default Dual images DHCP Functions: DHCP Relay DHCP Option 82 DHCP Server User Privilege levels control Network Time Protocol (NTP) Network Diagnostic SFP-DDM (Digital Diagnostic Monitor) ICMP remote IP ping Syslog remote alarm System Log Supports ping, trace route function for IPv4 and IPv6 PLANET Smart Discovery Utility for deployment management PLANET NMS, and CloudNMS for deployment management Stacking Management Virtualized multiple XGS-6350-16X8Y4C switches integrated into one logical device Single IP address stack management, supporting up to 10 hardware units stacked together Stacking architecture supports redundant Ring mode

Especificaciones técnicas

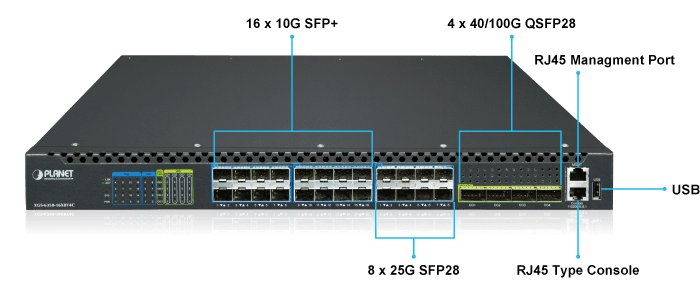

QSFP28 Slots

4 , each supports native 100/40 Gigabit Ethernet and 4 x 10 Gigabit Ethernet modes

SFP28 Slots

8 25G SFP28 interfaces Compatible with 1G/10GBASE-SX/LX/BX SFP+ transceiver

SFP+ Slots

16 10GBASE-SR/LR SFP+ interfaces Compatible with 1000BASE-SX/LX/BX SFP transceiver

MGMT

1 x 10/100/1000BASE-T RJ45 port

Console

1 x RJ45-to-DB9 serial port (115200, 8, N, 1)

USB

1 x USB 2.0

LED Indicator

System: PWR, SYS Green Ports: 10G SFP+ interfaces: LNK/ACT, Green 25G SFP28 interfaces: LNK/ACT, Green 40G/100G QSFP Port: LNK/ACT, Green

Dimensions (W x D x H)

442.5 x 280.25 x 44.6 mm 1U height

Weight

4333g

Power Consumption

System on: 54 watts/184.1 BTU (maximum) Full loading: 116.5 watts/397.2BTU (maximum)

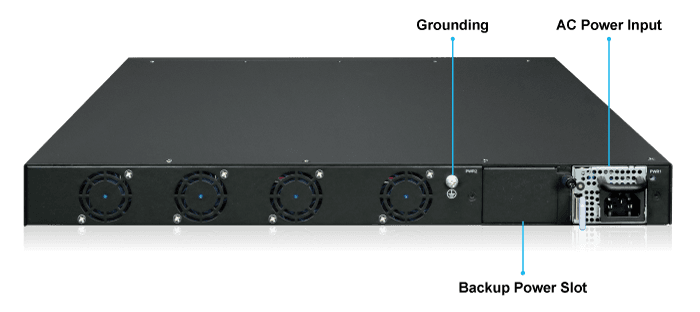

Power Requirements

AC 100~240V, 50/60Hz

Fan

4(Smart FAN)

Switch Architecture

Store-and-forward

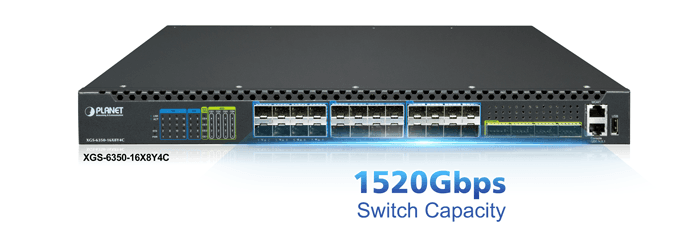

Switch Capacity

1520Gbps/non-blocking

Switch Throughput

1130Mpps

Address Table

112K MAC address table with auto learning function

ARP Table

2K

Routing Table

IPv4: 16K IPv6: 8K

VLAN Interface

1K

IP Interface

4096

ACL Table

IPv4 ifp: 4862 efp: 1023 IPv6 ifp: 2301 efp: 511

Routing entries

32K

Shared Data Buffer

8MB

Jumbo Frame

12KB

Flow Control

Back pressure for half duplex IEEE 802.3x pause frame for full duplex

IP Routing Protocol

RIP v1/v2 OSPFv2 BGP (Border Gateway Protocol) Static routing

Multicast Routing Protocol

PIM-DM and PIM-SM PIM-SSM

VRRP

Configure VRRP in interface VLAN VRRP priority VRRP standby VRRP track

Routing Features

VRRP Policy routing Load balance through equal-cost routing BFD (Bidirectional Forwarding Detection) for OSPF and BGP

DHCP

DHCP client DHCP server, default route DHCP relay

IP Routing Protocol

RIPng OSPFv3 BGP4+

Routing Features

Manual tunnel ISATAP tunnel 6-to-4 tunnel

IPv6 Functions

ICMPv6, DHCPv6, ACLv6, IPv6 Telnet IPv6 Neighbor Discovery Path MTU Discovery

Port Configuration

Port disable/enable Flow control disable/enable Bandwidth control on each port Port loopbacks detect

Port Status

Display each port’s speed duplex mode, link status, flow control status and auto negotiation status

VLAN

IEEE 802.1Q tag-based VLAN, up to 4K VLAN entries IEEE 802.1ad Q-in-Q VLAN stacking/tunneling GVRP for VLAN management Private VLAN Edge (PVE) supported Protocol-based VLAN MAC-based VLAN IP subnet VLAN

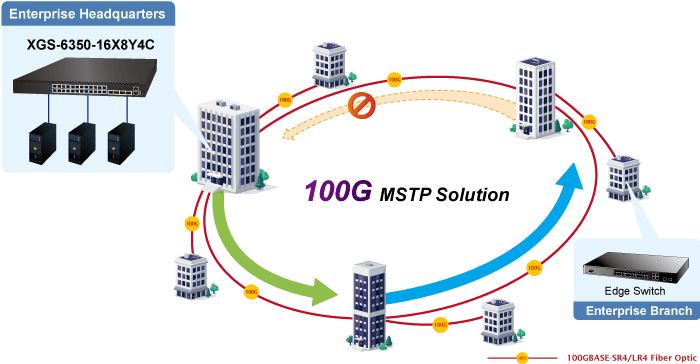

Spanning Tree Protocol

IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) BPDU protection, root protection

IPv4 IGMP Snooping

IPv4 IGMP v1/v2/v3 snooping IGMP Fast Leave IPv4 Querier mode support IGMP Filtering and IGMP Throttling IGMP Proxy reporting

IPv6 MLD Snooping

IPv6 MLD v1/v2 snooping Multicast VLAN Register (MVR)

Bandwidth Control

Ingress and Egress At least 64Kbps stream

Ring

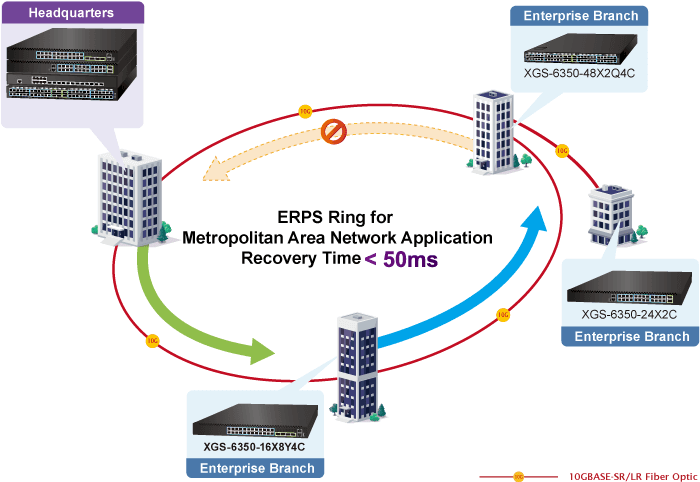

Supports ITU-T G.8032 ERPS

Link Aggregation

IEEE 802.3ad LACP/static trunk Supports 32 groups with 8 ports per trunk group

QoS

8 priority queues on all switch ports Traffic Supervision and Traffic Shaping Scheduling for priority queues Weighted Round Robin (WRR) Strict priority (SP) SP+WRR Traffic classification: IEEE 802.1p CoS DSCP DiffServ Precedence TOS VLAN ID IP ACL MAC ACL Port ACL Policy-based ingress and egress QoS 802.1p and DSCP priority remark

Authentication

IEEE 802.1x port-based network access control AAA authentication: TACACS+ and IPv4/IPv6 over RADIUS

Access Control List

Supports Standard and Expanded ACL IP-based ACL/MAC-based ACL/Port-based ACL Time-based ACL Up to 1K entries

Security Port isolation

Port isolation Port security, supports IP + MAC + port binding Identification and filtering of L2/L3/L4 based ACL Defend against DOS or TCP attacks Suppression of broadcast, multicast and unknown unicast packet DHCP Snooping, DHCP Option 82 Command line authority control based on user levels

AAA

TACACS+ and IPv4/IPv6 over RADIUS

Network Access Control

IEEE 802.1x port-based network access control

System Configuration

Console and Telnet Web browser SNMP v1, v2c

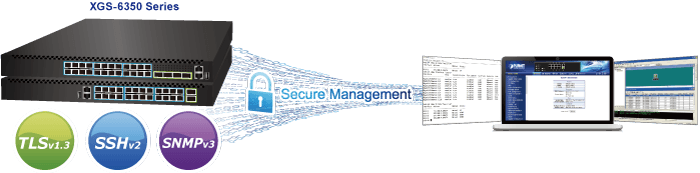

Secure Management Interfaces

SSHv2, SSLv3 TLS v1.3 and SNMPv3 Maximum 8 sessions for SSH and Telnet connection

System Management

Supports both IPv4 and IPv6 Protocols Supports the user IP security inspection for IPv4/IPv6 SNMP Supports MIB and TRAP Supports TFTP, FTP Supports IPv4/IPv6 NTP Supports RMON 1, 2, 3, 9 groups Supports the RADIUS authentication for IPv4/IPv6 Telnet user name and password Supports Change of Authorization (COA) The right configuration for users to adopt RADIUS server’s shell management Supports CLI, console, Telnet Supports Security IP safety net management function: avoid unlawful landing at non-restrictive area Supports TACACS+ Supports SPAN, RSPAN PLANET Smart Discovery Utility PLANET NMS, and CloudNMS

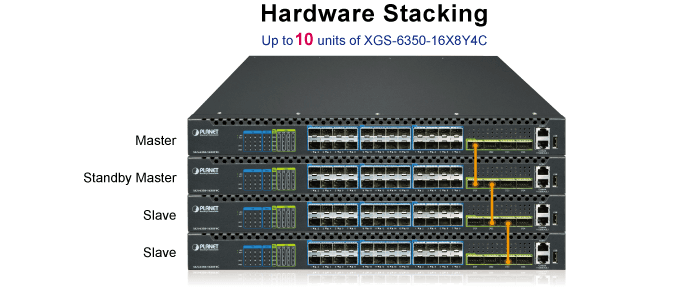

Stacking Management

10 members max. 2 software-defined ports function as Stacking Up and Down interfaces Note: The model and firmware version of each switch must be identical.

Event Management

Supports syslog server for IPv4 and IPv6

SNMP MIBs

RFC 1066 TCP/IP‐based MIB RFC 1213 MIB-II RFC 1215 Internet Engineering Task Force RFC1757 RMON group 1,2,3,9 RFC 1354 IP-Forwarding MIB RFC 1493 Bridge MIB RFC 1643 Ether-like MIB RFC 1907 SNMPv2 RFC 2011 IP/ICMP MIB RFC 2012 TCP MIB RFC 2013 UDP MIB RFC 2096 IP forward MIB RFC 2233 if MIB RFC 2452 TCP6 MIB RFC 2454 UDP6 MIB RFC 2465 IPv6 MIB RFC 2466 ICMP6 MIB RFC 2573 SNMPv3 notification RFC 2574 SNMPv3 VACM RFC 2674 Bridge MIB Extensions

Regulatory Compliance

FCC Part 15 Class A, CE

Standards Compliance

IEEE 802.3z Gigabit 1000BASE-SX/LX IEEE 802.3ae 10Gb/s Ethernet IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1X port authentication network control IEEE 802.1ab LLDP RFC 768 UDP RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 FRC 3810 MLD v2 RFC 2328 OSPF v2 RFC 1058 RIP v1 RFC 2453 RIP v2 RFC 5176 COA

Operating

Temperature: 0 ~ 50 degrees C Relative Humidity: 10 ~ 85% (non-condensing)

Storage

Temperature: -40 ~ 80 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
