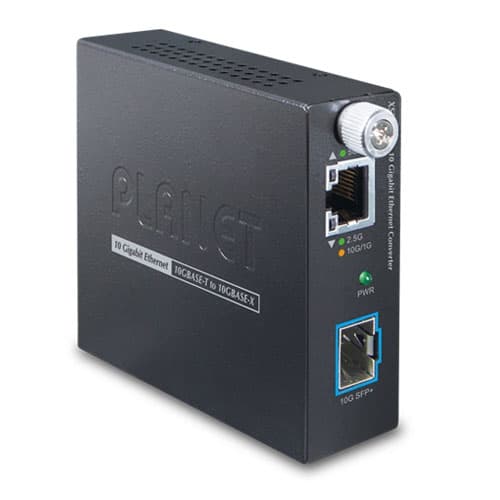

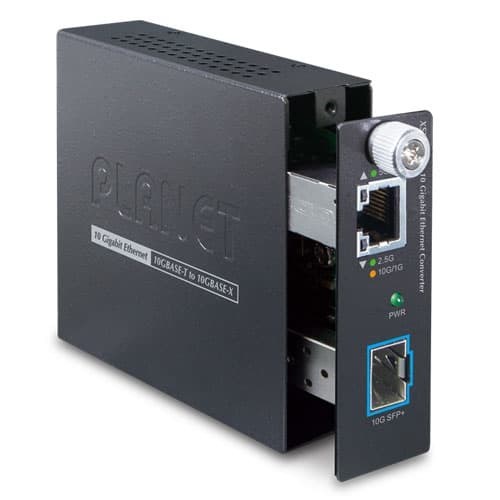

XST-705A — 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Smart Media Converter

Descripción

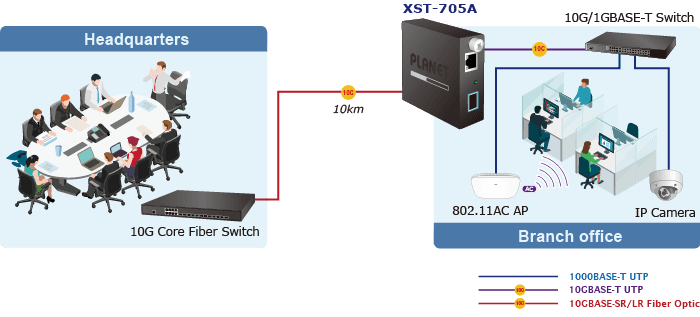

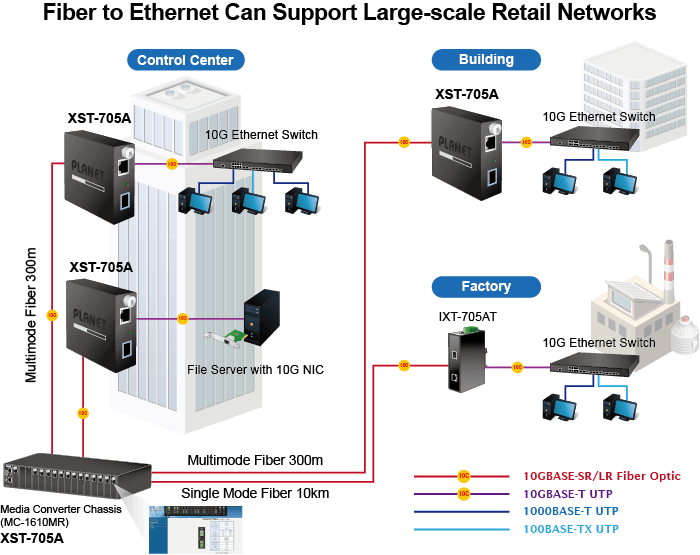

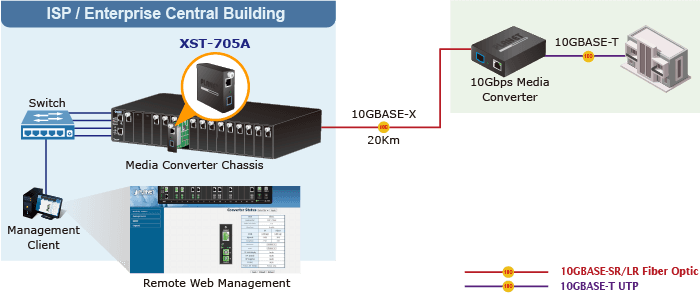

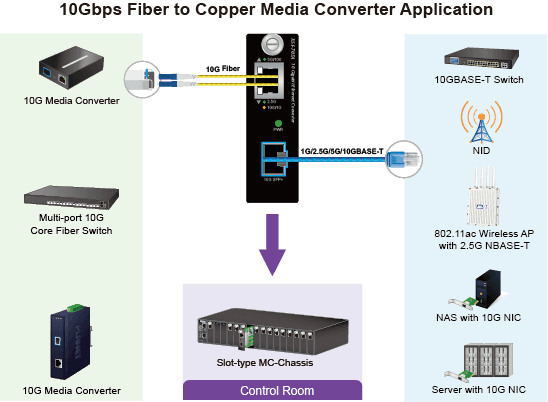

Flexible and Reliable Network Distance Extension Solution PLANET XST-705A Smart Media Converter is equipped with one 10G/5G/2.5G/1G/100BASE-T auto-negotiation port and one 10GBASE-X SFP+ slot. It supports 10Gigabit Ethernet media conversion from copper 10GBASE-T to fiber multi-mode or single-mode, utilizing 10GBASE-SR or 10GBASE-LR SFP+ transceiver installed in the SFP+ slot to extend distances to servers, switches and patch panels. The deployment distance can be extended from 300 meters (multi-mode) to up to 60 kilometers (single-mode).They are designed for use in network environments where the ultra-high bandwidth provided by 10Gigabit Ethernet is required, for example, data center cloud computing, enterprise backbones, campus networks, and carrier infrastructure. Diversified Central Management and Easy Chassis Installation The XST-705A Smart Media Converter can be used as a stand-alone unit or as a slide-in module to the PLANET 19-inch Managed Media Converter Chassis series (MC-1610MR / MC-1610MR48). When working with Managed media converter chassis, the chassis can assist in providing DC power to the XST-705A and can be managed. Its port status such as link on/off can be monitored through the local RS232 console or remote web interface. Installing multiple XST-705As in the MC-1610MR is ideal for telecom and corporate applications where a number of 10Gbps fiber links need to be managed and controlled from a central location. High Performance 10Gbps Ethernet Capacity The XST-705A offers wire-speed packets transfer performance without the risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments. With a 20Gbps internal fabric and featuring auto negotiation support in its 10 Gigabit port, the XST-705A Smart Media Converter can handle large amounts of data in a secure topology linking to a backbone or high capacity servers. Fiber-optic Linking Capability Enables Extension of Network Deployment The SFP+ slot of the XST-705A is compatible with 10GBASE-SR or 10GBASE-LR (Small Form Factor Pluggable) fiber-optic transceivers. The fiber optic uplink capability guarantees the throughput to all nodes hooked into the network and the 10 Gigabit Ethernet distance can be extended from 300 meters (multi-mode fiber cable) to 10/40/60 kilometers (single-mode fiber cable). It is ideal for applications within the data centers and distributions. Low Power Consumption The XST-705A adopting the advanced chip technology has the power-saving feature like a low power consumption of only 3.8watts when in full operation. Applications Fiber-optic Linking Capability Enables Extension of Network Deployment The SFP+ slot of the XST-705A is compatible with 10GBASE-SR or 10GBASE-LR (Small Form Factor Pluggable) fiber-optic transceivers. The fiber optic uplink capability guarantees the throughput to all nodes hooked into the network and the 10 Gigabit Ethernet distance can be extended from 300 meters (multi-mode fiber cable) to 10/40/60 kilometers (single-mode fiber cable). It is ideal for applications within the factory data centers and distributions. Standalone and Centrally-managed Media Converter Installation PLANET XST-705A adopts advanced media conversion technology to meet the demand for today’s growing networking. It is very flexible for the XST-705A to work as a standalone device or to be installed in the central web smart media converter chassis for centralized management, which supports hot swapping to avoid network downtime. The XST-705A is provides a diverse choice of fiber connecting types to meet different network applications. Key Features Physical Port One 10G/5G/2.5G/1G/100BASE-T RJ45 interface with auto MDI/MDI-X function One 10GBASE-X SFP+ slot Layer 2 Features IEEE 802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliant Supports auto-negotiation and 100Mbps half/full duplex and 1/2.5/5/10Gbps full duplex mode Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) 16K jumbo frame size support Automatic address learning and address aging Case and Installation External 5V DC, 2A power supply Wall-mount design Supports 6000 VDC Ethernet ESD protection 100 meters over Cat. 6A / Cat. 7 at 10Gbps 0 to 50 degrees C operating temperature Co-works with PLANET’s 19” Managed Media Converter Chassis series (MC-1610MR / MC-1610MR48) Plug and Play installation

Especificaciones técnicas

Copper Interface

1 x 10G/5G/2.5G/1G/100BASE-T RJ45 Auto-MDI/MDI-X, auto-negotiation

Fiber Optic Interface

1 x 10GBASE-X SFP+ interface

LED

System: PWR ( Green ) 10G/5G/2.5G/1G/100 BASE-T RJ45 Interfaces: 1G/10G LNK ( Amber ) 5G/2.5G/100M LNK ( Green )

ESD Protection

6KV DC

Enclosure

Compact-sized metal case

Installation

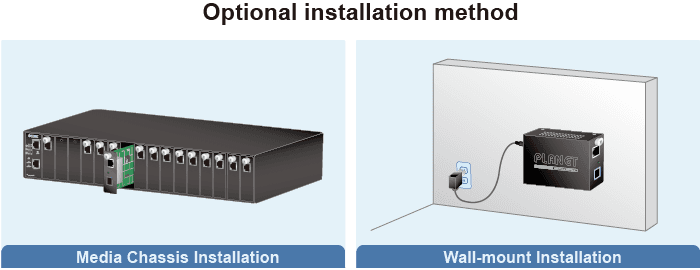

Desktop or wall mounting

Dimensions (WxDxH)

93.8 x 80.75 x 26.4mm

Weight

182g (device only)

Power Requirements

5V DC, 2A max.

Power Consumption

3.8 watts / 13 BTU per hour (max.)

Switch Processing Scheme

Store and Forward

Flow Control

Copper Interface: Back pressure for half duplex IEEE 802.3x pause frame for full duplex

Fabric

20Gbps

Jumbo Frame

16K

Network Cables

10G/5G/2.5G/1G/100M BASE-T: 10G--Cat. 6A/Cat. 7 5G--Cat. 6/Cat. 6A/Cat. 7 1G/2.5G--Cat. 5e/Cat. 6/Cat. 6A/Cat. 7 100M--Cat. 5/Cat. 5e/Cat. 6/Cat. 6A/Cat. 7 Cat. 5/5e/6/6A/7 UTP cable (100 meters, max.) EIA/TIA-568 100-ohm STP (100 meters, max.) 10GBASE-LR/SR/BX: 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m 9/125μm single-mode fiber optic cable, up to 60km

Regulatory Compliance

FCC Part 15 Class A, CE

Operating environment

0 ~ 50 degrees C

Storage Environment

-10 ~ 70 degrees C

Operating Humidity

5 ~ 95%, relative humidity (non-condensing)

Storage Humidity

5 ~ 95%, relative humidity (non-condensing)

Standards Compliance

IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3an 10GBASE-T IEEE 802.3ae 10Gbps Ethernet IEEE 802.3x full-duplex flow control (Copper Port)
