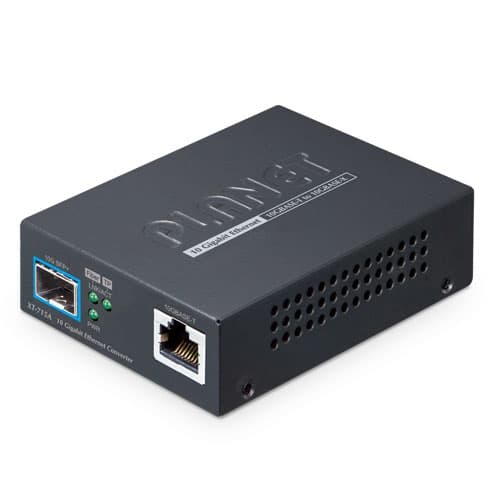

XT-715A — 10GBASE-T to 10GBASE-X SFP+ Media Converter

Descripción

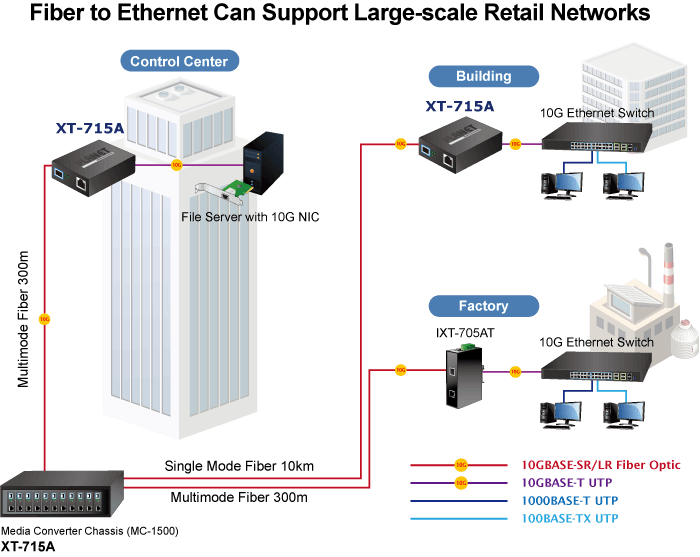

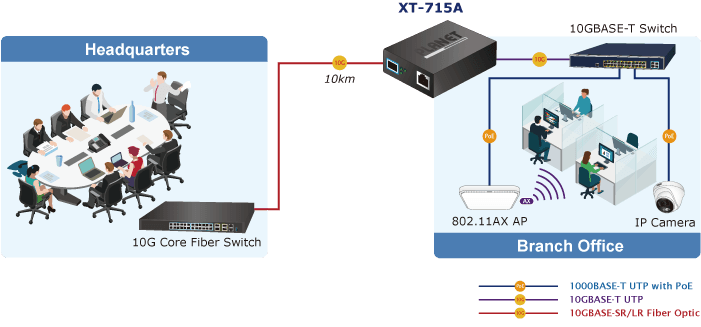

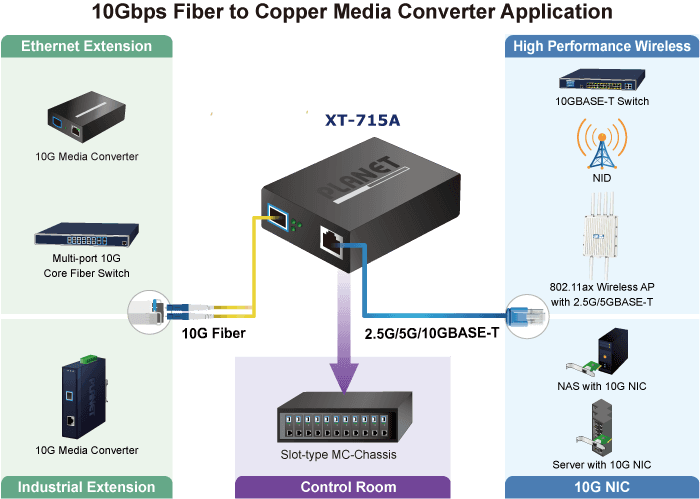

Flexible and Reliable 10G Network Distance Extension Solution PLANET XT-715A Media Converter, adopting the IEEE 802.3bz/an/ae Ethernet standard technology, is equipped with one 2.5G/5G/10GBASE-T auto-negotiation port and one 10GBASE-X SFP+ slot. It supports 10Gigabit Ethernet media conversion from copper 10GBASE-T to fiber multi-mode or single-mode transmission, utilizing a 10GBASE-SR or 10GBASE-LR SFP+ transceiver placed in the SFP+ slot to extend distances where servers and switches can be reached. The deployment distance can be extended from 300 meters (multi-mode fiber cable) to 2/10/20/40/60/70/80 kilometers (single-mode fiber cable). They are designed for use in network environments where the ultra-high bandwidth provided by 10Gigabit Ethernet is required, for example, data center cloud computing, enterprise backbones, campus networks, and carrier infrastructure. High Performance 10Gbps Ethernet Capacity The XT-715A offers wire-speed packets transfer performance without the risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments. With a 20Gbps internal fabric,16K jumbo frame feature and auto negotiation support in its 10 Gigabit port, the XT-715A can handle extremely large amounts of data transmission in a secure topology linking to data center cloud computing, enterprise backbones or high capacity servers, campus networks, and carrier infrastructure. 10G Fiber-optic Linking Capability Enables Extension of Network Deployment The SFP+ slot of the XT-715A is compatible with 10GBASE-SR or 10GBASE-LR (Small Form Factor Pluggable) fiber-optic transceivers. The fiber optic uplink capability guarantees the throughput to all nodes hooked into the network and the 10 Gigabit Ethernet distance can be extended from 300 meters (multi-mode fiber cable) to 2/10/20/40/60/70/80 kilometers (single-mode fiber cable). It is ideal for applications within the data centers and distributions Optic Mode Connector Type Distance Multi-mode Duplex LC 300m Single mode Duplex LC 2/10/20/40/60/80km Single mode WDM Simplex LC 10/20/40/60/70km Low Power Consumption for Energy Savings The XT-715A adopting the advanced chip technology has the power-saving feature that has a low power consumption of only 5.3 watts when in full operation. Used as Standalone Unit or With Chassis The XT-715A Media Converter can be used as a standalone unit or as a slide-in module to the PLANET Media Converter Chassis (MC-700 and MC-1500 chassis series). The media chassis can assist in providing DC power to the XT-715A Media Converter to maintain the fiber-optic network in one centralized location. It can be DIN-rail or wall mounted for efficient use of cabinet space. Applications Ideal for Deploying Network with 10G Fiber-optic Cabling for ISPs and Enterprises With 10G performance of data transmission and easy installation, the XT-715A can build the FTTH (Fiber to the Home) or FTTC (Fiber to the Curb) network for ISPs and the FTTBs (Fiber to the Buildings) network for small enterprises network. Key Features Physical Port Media conversion between 2.5G/5G/10GBASE-T and 10GBASE-X SFP+ fiber optic Copper RJ45 port supports 2.5G/5G/10GBASE-T auto-negotiation and auto-MDI/MDI-X 10GBASE-X SFP+ Fiber Optic allows Multi-mode fiber using LC connector Single-mode fiber using LC connector Layer 2 Features IEEE 802.3bz/an/ae Ethernet standard compliant Non-blocking full wire-speed forwarding rate IEEE 802.1Q tag-based VLAN transparency, multicast passthrough 16K jumbo frame IEEE 802.3x full-duplex and half-duplex back pressure flow control to eliminate the loss of packets Mechanical Metal case LED indicators for easy network diagnostics 100 meters over Cat 6A/Cat 7 at 10Gbps RJ45 port External 5V DC, 2A power input socket Wall mounting or DIN-rail installation (optional) 0 to 50 degrees C operating temperature Compact in size, Plug and Play installation Best with PLANET’s 10”/19” Media Converter Chassis (MC-700/MC-1500/MC-1500R/MC-1500R48)

Especificaciones técnicas

Copper Port

2.5G/5G/10GBASE-T Ethernet RJ45 interface Auto-negotiation, auto MDI/MDI-X

SFP Interface

10GBASE-X SFP+ interface

Fiber Mode

May vary on SFP Module

Fiber Port Type (connector)

SFP, LC type

Fiber Maximum Distance

May vary on SFP Module

Network Cables

2.5G/5G/10GBASE-T: 2.5G--Cat 5e/Cat 6/Cat 6A/Cat 7 5G--Cat 6/Cat 6A/Cat 7 10G--Cat 6A/Cat 7 Cat 5e/6/6A/7 UTP cable (100 meters, max.) EIA/TIA-568 100-ohm STP (100 meters, max.) 10GBASE-X: 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m 9/125μm single-mode fiber optic cable, up to 80km

Enclosure

Metal case

Dimensions (W x D x H)

93.5 x 70 x 26 mm

Weight

216g

LED

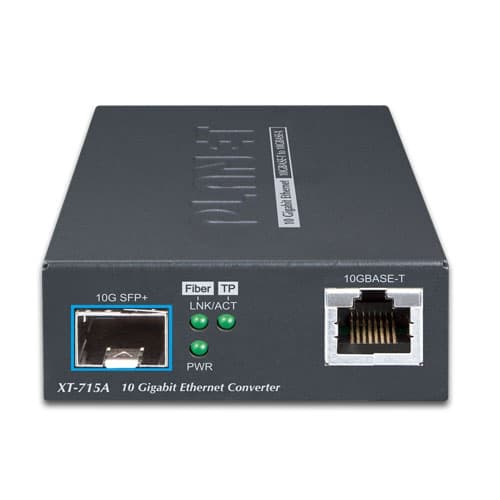

System: PWR ( Green ) 10GBASE-X SFP+ Interface: Fiber LNK/ACT( Green ) 10GBASE-T Ethernet Port: TP LNK / ACT( Green )

Power Supply

DC 5V, 2A Power Socket, external AC-to-DC adapter

Installation

Wall-mount or DIN-rail installation(Optional)

Forwarding Rate

Non-blocking full wire-speed forwarding rate

Flow Control

Back pressure for half duplex mode IEEE 802.3x pause frame for full duplex mode

Maximum Frame Size

16K

Regulatory Compliance

FCC Part 15 Class A, CE

Protocols and Standards Compliance

IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3an 10GBASE-T IEEE 802.3ae 10Gbps Ethernet IEEE 802.3x Flow Control

Temperature

Operating: 0 ~ 50 degrees C Storage: -10 ~ 70 degrees C

Humidity

5% ~ 95% non-condensing
