XT-815A — 2-Port 10G/2.5G/1G/100BASE-X SFP+ Media Converter

Descripción

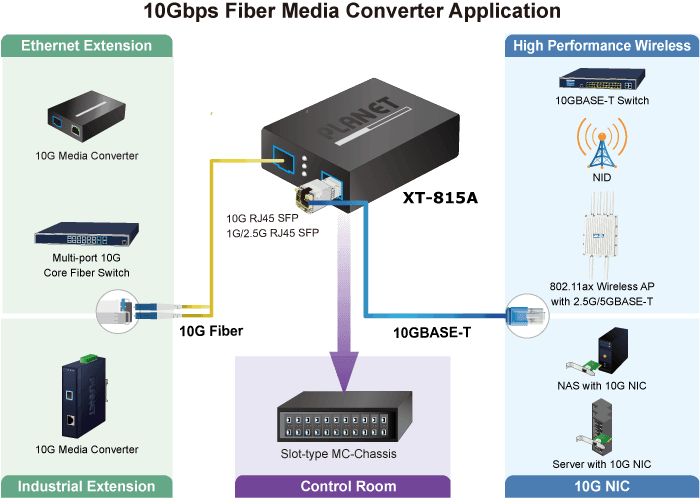

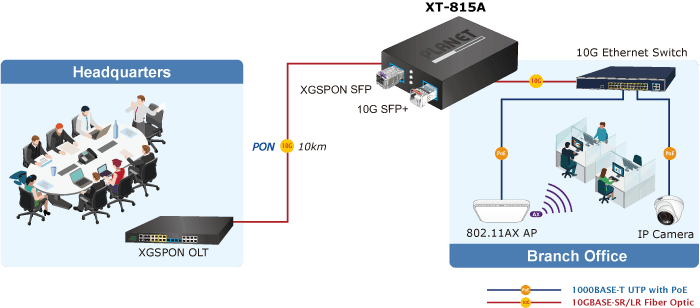

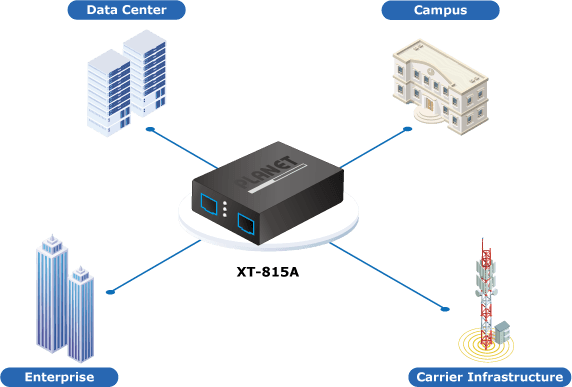

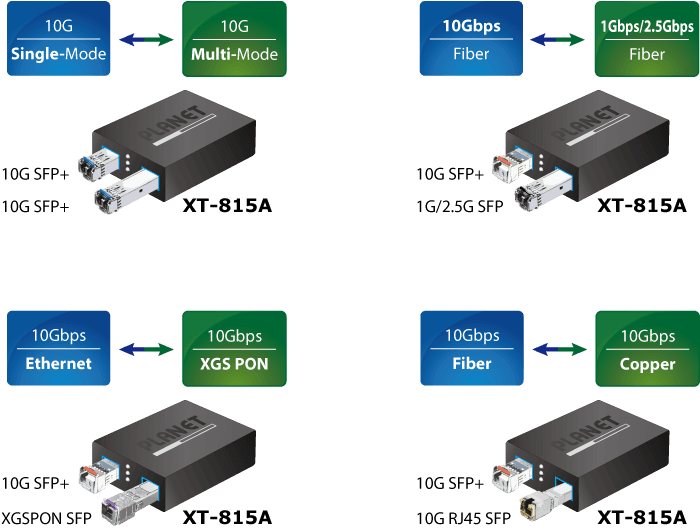

High Performance, Flexibility, and Reliability PLANET XT-815A is a commercial-grade 2-Port 10G/2.5G/1GBASE-X and 100BASE-FX SFP+ media converter designed for the networks that require high-speed transmission over fiber cabling. Suitable for enterprise backbone, hospital, campus and telecom infrastructures, the XT-815A delivers robust performance and versatility for a wide range of applications. Versatile Features to Meet Diverse Networking Needs The XT-815A provides broad bandwidth and powerful processing capacity. Its dual fiber-optic 10GBASE-X SFP+ interfaces support multiple speeds like 10GBASE-SR/LR, 2500BASE-X, 1000BASE-SX/LX and 100BASE-FX to enable the administrator to choose a suitable SFP/SFP+ transceiver based on distance or speed requirements. It also supports flexible conversion between multi-mode and single-mode fiber, extending transmission distances from 300 meters to 80 kilometers using 10GBASE-SR or 10GBASE-LR SFP+ modules. 10GBASE-X fiber to 2.5G/1G/100BASE-X fiber Multi-mode fiber to Single mode fiber Duplex fiber to Simplex fiber 10Gbps XGSPON/2.5Gbps GPON fiber-optic networking to 10Gbps Ethernet fiber-optic networking. Its dual ports connect to servers, switches, storage systems, and wireless access points. The XT-815A also supports 10GPON to 10Gbps Ethernet bridging, making it suitable for data center cloud computing, enterprise backbone networks, and inter-building deployments. Two Fiber Optic Ports Double the Distance of Deployment The XT-815A offers two 10G fiber ports, which can be used for single mode and multimode conversion, as well as for converting between PON and Ethernet. Since both ports are fiber optic, the transmission distance can reach up to 120km on both ends, significantly extending the service coverage. Stable and Efficient Chipset with High Network Performance The XT-815A features built-in 2-Port 10GBASE-X SFP+ interfaces, ensuring stable data transmission. It provides a 40Gbps switching fabric and 12K jumbo frame support, enabling seamless handling of large data traffic. Additionally, the 4K MAC address table and VLAN pass-through functionality enhance network management efficiency. Flexible Deployment and High Compatibility The XT-815A can be used as a standalone device or as a module in PLANET MC-series media converter chassis (e.g., MC-1500R), facilitating centralized fiber network management. With multi-rate auto-detection (10G/2.5G/1G/100Mbps) and compatibility with standard SFP/SFP+ modules, the XT-815A adapts to various networking requirements. Its compact design and LED indicators simplify installation and network diagnostics. Applications Ideal Applications for Enhanced Network Efficiency and Flexibility The XT-815A is perfect for network deployments with high bandwidth demands, including fast data transmission in data centers, efficient operations in enterprise backbones, long-distance fiber extension over kilometers, and telecom FTTH/FTTC network construction. Its easy installation and high-performance capabilities make the XT-815A an ideal choice for businesses and service providers alike. Thus, networks can be upgraded with the XT-815A for achieving 10G high speed, flexibility, and reliability. Perfect Applications for Advanced Networks The XT-815A is ideal for environments that demand high-performance, long-distance, and reliable networking solutions. With its 10G data transmission capabilities and easy installation, it is perfectly suited for deploying FTTH (Fiber to the Home) and FTTC (Fiber to the Curb) networks for ISPs, as well as FTTB (Fiber to the Building) networks for small- to medium-sized enterprises. Additionally, its ability to bridge 10GPON to 10G Ethernet and support a wide range of fiber transmission distances makes it a powerful tool for enterprise backbones, data centers, and campus-wide network extensions. Whether extending connectivity across a city or ensuring seamless data transmission within an enterprise, the XT-815A offers the flexibility and performance needed for modern network demands. Key Features Physical Port Media conversion between 10GBASE-X SFP+, 2.5GBASE-X, 1000BASE-X, and 100BASE-FX fiber optic Dual 10GBASE-X SFP+ fiber optic ports supporting Multi-mode fiber with LC connector Single-mode fiber with LC connector SFP transceivers support auto-detection for 10G/2.5G/1G/100Mbps Layer 2 Features Fully compliant with IEEE 802.3ae/bz/an Ethernet standards Non-blocking full wire-speed forwarding performance 12K jumbo frame support for handling large data transmissions Transparent IEEE 802.1Q VLAN tagging and multicast pass-through IEEE 802.3x full-duplex flow control and back-pressure for packet loss prevention Mechanical Features Durable metal casing for enhanced reliability LED indicators to facilitate network diagnostics Compact size and Plug-and-Play installation External 5V DC, 2A power input socket Wall mounting or DIN-rail installation (optional) 0 to 50 degrees C operating temperature Compatible with PLANET 10”/19” Media Converter Chassis (MC-700/MC-1500/MC-1500R/MC-1500R48).

Especificaciones técnicas

SFP+ Port

Dual 10GBASE-X SFP+ interfaces Backward compatible with 100BASE-FX, 1000BASE-X and 2500BASE-X SFP transceivers

Fiber Mode

May vary on SFP+/SFP Module

Fiber Port Type (connector)

SFP, LC type

Fiber Maximum Distance

May vary on SFP Module

Network Cables

May vary on SFP+ and SFP modules

Enclosure

Metal case

Dimensions (W x D x H)

94 x 70.3 x 26.2 mm

Weight

195g

Power Supply

DC 5V, 2A Power Socket, external AC-to-DC adapter

Installation

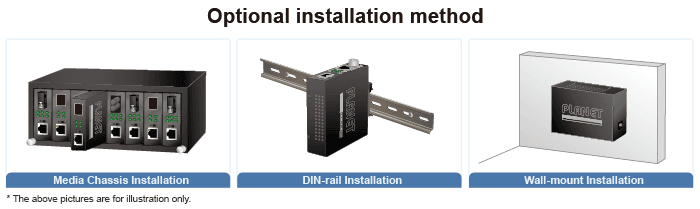

Wall-mount or DIN-rail installation (optional)

LED

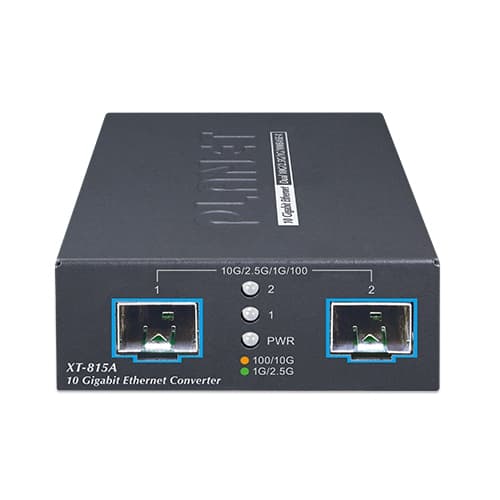

System: PWR ( Green ) SFP+ Port: 2.5Gbps/1Gbps LNK/ACT( Green ) 10Gbps /100Mbps LNK/ACT( Amber )

Switch Architecture

Store-and-Forward

Fabric

40Gbps backbone to ensure high-speed data transmission

Forwarding Rate

Non-blocking, full wire-speed forwarding rate

Flow Control

Half duplex: Back pressure eliminates packet loss Full duplex: IEEE 802.3x pause frame support for efficient flow control

Maximum Frame Size

Supports jumbo frames up to 12K

VLAN Support

Transparent 802.1Q VLAN pass-through for seamless integration in tagged network environments

Priority Switching

8-level QoS priority switching for traffic optimization Supports 802.1p priority for efficient traffic management

Regulatory Compliance

FCC Part 15 Class A, CE

Protocols and Standards Compliance

IEEE 802.3z Gigabit SX/LX IEEE 802.3ae 10 Gigabit Ethernet IEEE 802.3x Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.1p Class of Service

Temperature

Operating: 0 ~ 50 degrees C Storage: -10 ~ 70 degrees C

Humidity

5% ~ 95% non-condensing
