XVR-800BE — Enterprise Wi-Fi 7 5100BE + Dual 10G VPN Security Router with 4-Port 10/100/1000T

Descripción

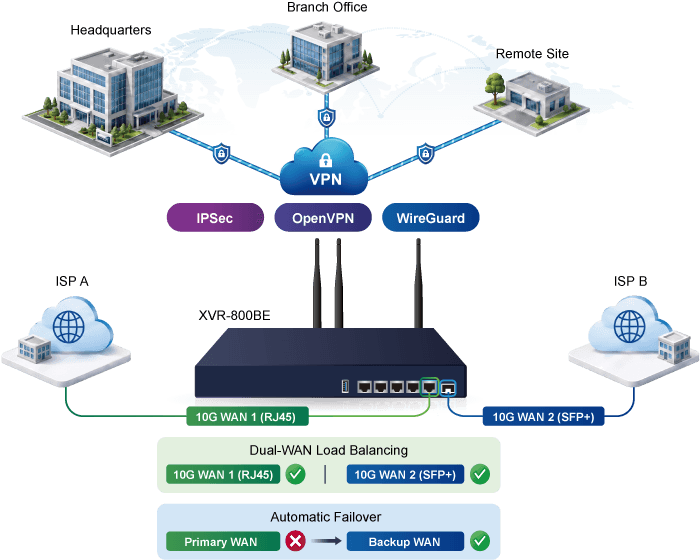

Dual 10G-Capable VPN Gateway with Comprehensive Multi-VPN and Post-Quantum Security Support This VPN Gateway is designed for high-performance enterprise connectivity, featuring flexible 10G fiber and copper WAN/LAN interfaces and 4 Gigabit LAN ports for efficient network deployment. It supports multiple VPN protocols—including IPSec, SSL (OpenVPN), WireGuard, GRE, PPTP, and L2TP—to enable secure communication across distributed networks. With PQC TLS (Post-Quantum Cryptography TLS) readiness, the XVR-800BE enhances long-term security against emerging quantum computing threats. The gateway also delivers dual-WAN failover, load balancing, and advanced routing in a compact industrial-grade design. The XVR-800BE serves as a central gateway connecting diverse IPv6-enabled IoT devices and network environments, as illustrated below. Automatic Failover between Dual WAN With its fiber and copper dual WAN interfaces—10GBASE-X SFP+ and 10GBASE-T—the XVR-800BE ensures continuous Internet connectivity through automatic failover. Administrators can freely set the WAN priority, and when the primary link becomes unavailable, the secondary WAN interface takes over instantly. This design guarantees reliable, always-on network uptime for mission-critical applications. Flexible 10Gbps WAN interface Enables Extension of Network Deployment The XVR-800BE is equipped with both copper and fiber WAN interfaces, featuring an SFP+ slot that supports a wide range of SFP+ transceivers for FTTx and long-distance extensions. Administrators can select SFP+ modules according to distance requirements: Multi-mode fiber: 550 m to 2 km Single-mode / WDM fiber: 10 km, 20 km, 30 km, 40 km, 50 km, 60 km, 70 km, up to 120 km This capability allows the device to efficiently uplink to backbone switches or monitoring centers over long distances. Secure Boot for Trusted System Integrity The XVR-800BE incorporates a Secure Boot mechanism to ensure that only authenticated and trusted firmware can be executed during system startup. This hardware-based protection prevents unauthorized or tampered firmware from being loaded, safeguarding the device against malicious attacks at the system level and ensuring a trusted foundation for network security. Excellent Ability in Threat Defense The XVR-800BE with built-in SPI (stateful packet inspection) firewall and DoS/DDoS attack mitigation functions provides high efficiency and extensive protection for your network. Thus, virtual server and DMZ functions can let you set up servers in the Intranet and still provide services to the Internet users. Cybersecurity Network Solution to Minimize Security Risks The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. For efficient management, the XVR-800BE is equipped with HTTPS web and SNMP management interfaces. With the built-in web-based management interface, the XVR-800BE offers an easy-to-use, platform independent management and configuration facility. The XVR-800BE supports SNMP and it can be managed via any management software based on the standard SNMP protocol. With support for advanced security mechanisms such as Secure Boot and PQC TLS readiness, the XVR-800BE ensures long-term protection against evolving cyber threats, including quantum-era attacks. High-Availability VPN Security Router Designed for SMB Applications The XVR-800BE ensures strong data privacy and secure remote access through its comprehensive VPN suite. It supports IPSec VPN with DES/3DES/AES encryption and MD5, SHA-1, SHA-256, SHA-384, and SHA-512 authentication, as well as GRE tunneling, SSL VPN, PPTP, L2TP, and WireGuard for modern, lightweight, high-speed encrypted connections. With this extensive VPN capability, the XVR-800BE provides secure, flexible, and resilient connectivity for branch sites, remote workers, and sensitive business operations. Flexible Routing with NAT Disable Capability The XVR-800BE supports NAT disable functionality, allowing it to operate in pure routing mode for advanced network deployment scenarios. This feature is particularly beneficial for environments requiring end-to-end IP transparency, such as enterprise backbone networks, data centers, or integration with upstream security systems. By disabling NAT, administrators can achieve greater control over traffic flow and routing policies. Ultra-Wide Channel for High-Speed Wi-Fi 7 Connectivity The XVR-800BE supports up to 160 MHz channel bandwidth and delivers a peak wireless transmission rate of up to 5100 Mbps. Designed for commercial environments, it provides the speed, efficiency, and reliable performance required for bandwidth-intensive network services. Higher Throughput with 4096-QAM With 4096-QAM encoding, the XVR-800BE transmits more data within each signal, increasing wireless throughput and transmission efficiency. It is ideal for high-bandwidth applications such as 4K/8K video streaming, AR/VR experiences, and real-time cloud services. Reliable Dual-Band Wireless Connectivity Supporting concurrent 2.4 GHz and 5 GHz wireless connectivity, the XVR-800BE provides flexible coverage and high-speed data transmission. Its robust dual-band design maintains stable and reliable connections in high-density or interference-prone commercial environments. Maximizing Work Efficiency with PLANET SD-WAN Gateway PLANET XVR-800BE incorporated in SD-WAN (software-defined wide area network) function can greatly increase WAN optimization for multiple WAN links to be managed. With SD-WAN, users can connect any application across all available network connections at every site. It improves application performance and provides a high-quality user experience for increasing business productivity and reducing IT costs. Integrated Wi-Fi Management for Secure and Easy Deploymen The XVR-800BE integrates an AP Controller , Captive Portal , RADIUS authentication , and DHCP server to streamline Wi-Fi deployment for small and medium-sized businesses. These built-in services eliminate the need for external servers, enabling administrators to centrally manage APs, enforce access policies, and deliver secure employee and guest Wi-Fi networks with reduced setup complexity. Centralized Remote Control of Managed APs Through its intuitive web-based interface, the XVR-800BE allows easy centralized control of PLANET Smart APs, with simple configuration of SSIDs, radio settings, and security policies. A quick four-step setup pushes wireless profiles to multiple APs or groups at once, enabling fast rollout and reduced deployment cost. Administrators can cluster APs of the same model for unified management, flexibly expand or remove APs, and perform bulk provisioning or firmware upgrades—all from a single control point. This ensures scalable, efficient, and low-maintenance Wi-Fi management. Intelligent SFP Diagnosis Mechanism The XVR-800BE supports SFP-DDM (digital diagnostic monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage. PLANET CloudNMS – Cloud-Based Universal Network Management PLANET’s CloudNMS platform and mobile app empower IT staff to remotely manage all network devices and Powered Devices (PDs) in real time. Designed for enterprises and industries, CloudNMS minimizes the need for on-site troubleshooting by providing centralized monitoring, fault detection, and instant alerts. With CloudNMS , businesses can manage diverse network deployments more efficiently , securely , and intelligently —all from a single cloud-based platform. Applications Reliable Multi-Site Connectivity with Dual 10G WAN The XVR-800BE provides secure and reliable connectivity for headquarters, branch offices, and remote sites through IPSec, SSL (OpenVPN), and WireGuard VPN. With dual 10G WAN connectivity , it enables flexible high-speed network deployment and automatic failover to maintain continuous network access when the primary connection is unavailable. Load balancing and advanced routing further optimize network traffic for reliable business operations. High-Speed Wi-Fi 7 Connectivity with Centralized Network Management The XVR-800BE combines Wi-Fi 7 5100BE wireless connectivity with AP Controller, Captive Portal, RADIUS authentication, and DHCP server capabilities for small and medium-sized businesses. Its high-speed dual-band wireless connectivity and centralized AP management enable administrators to efficiently deploy and manage secure employee and guest networks. Key Features Highlights Wi-Fi 7 5100BE dual-band wireless connectivity with up to 5100Mbps Trusted platform security with Secure Boot and hardware TRNG Multi-protocol VPN with IPSec, OpenVPN, WireGuard, GRE, PPTP and L2TP PQC-ready TLS architecture for post-quantum migration Dual 10G WAN interfaces with SD-WAN, load balancing, automatic failover and High Availability Integrated AP Controller, Captive Portal, RADIUS, CloudNMS and security monitoring Hardware 4 10/100/1000BASE-T RJ45 ports 1 1G/2.5G/5G/10GBASE-T RJ45 Port for WAN/LAN interface 1 1G/2.5G/10GBASE-X SFP+ slot for WAN/LAN interface 1 USB port for system configuration backup and restoration Reset button and fanless design Desktop installation or rack mounting Wi-Fi 7 Wireless Interface Supports Wi-Fi 7 (802.11be) dual-band wireless connectivity Provides combined wireless speeds of up to 5100Mbps , with approximately 689Mbps at 2.4GHz and 4324Mbps at 5GHz Supports up to 160MHz channel bandwidth Supports 4096-QAM (4K-QAM) for increased wireless throughput Advanced MIMO technology for high-performance wireless connectivity Dual-band 2.4GHz and 5GHz operation for flexible wireless deployment Trusted Platform Security Secure Boot to ensure only authenticated and trusted firmware is executed during system startup Hardware TRNG (True Random Number Generator) for high-entropy cryptographic key generation Security design follows EU Cyber Resilience Act (CRA) principles Firewall & Traffic Control Stateful Packet Inspection (SPI) firewall MAC Filtering and IP Filtering NAT ALGs (Application Layer Gateway) Port forwarding and DMZ support VPN & Secure Tunneling IPSec/Remote Server (Net-to-Net, Host-to-Net) GRE, PPTP Server L2TP Server SSL Server/Client (OpenVPN, compatible with VPN services such as Surfshark and NordVPN) WireGuard Server/Client Encryption methods: DES, 3DES, AES, AES-128/192/256 Authentication methods: MD5, SHA-1, SHA-256, SHA-384, SHA-512 Supports up to 100 concurrent SSL VPN connections Cryptography & Quantum Readiness PQC-ready TLS architecture for future post-quantum cryptographic migration Routing, SD-WAN & WAN Optimization Static Route Dynamic Route OSPF SD-WAN for multi-WAN traffic optimization Outbound load balancing NAT disable support for pure routing mode deployment High Availability & WAN Resilience Automatic failover for dual-WAN High Availability (HA) Network Services Static IP/PPPoE/DHCP client for WAN DHCP server and NTP client for LAN Protocols: TCP/IP, UDP, ARP, IPv4, IPv6 QoS, IGMP and UPnP MAC address clone DDNS: PLANET DDNS, Easy DDNS, DynDNS and No-IP Wireless & AP Management Built-in AP Controller for centralized PLANET Smart AP management Centralized SSID, radio and security policy provisioning Bulk AP provisioning and firmware upgrade System Management, Monitoring & Reporting Setup wizard Dashboard for system and security monitoring Security log viewer and event reports SFP-DDM (Digital Diagnostic Monitor) Secure management access via HTTPS; HTTP access supported SNMPv1, SNMPv2c and SNMPv3 management Auto reboot PLANET NMS System and Smart Discovery Utility for deployment management PLANET CloudNMS app for real-time monitoring

Especificaciones técnicas

Ethernet

4 10/100/1000BASE-T RJ45 Ethernet ports (Port 1 to 4) 1 1G/2.5G/5G/10GBASE-T RJ45 port (Port 5) Supports WAN port mode or LAN port mode over software configuration

Fiber

One 1G/2.5G/10GBASE-X SFP+ port (Port 6) Supports WAN port mode or LAN port mode over software configuration

USB Port

1 USB 2.0 port for system configuration backup and restoration

Reset Button

Reset to factory default

Thermal Fan

1

LED Indicators

System: PWR, Internet, ( Green ) Wireless Interfaces (2.4G & 5G) LNK/ACT ( Green ) Ethernet Interfaces (Port 1-4): 10/100/1000 LNK/ACT ( Green ) Ethernet Interfaces (Port 5): 1G/2.5G/5G/10G LNK/ACT ( Green ) Fiber Interfaces (Port 6): 1G/2.5G/10G LNK/ACT ( Green )

Installation

Desktop installation or rack mounting

Power Requirements

100-240V AC, 50/60Hz, auto-sensing

Power Consumption / Dissipation

Max. 3.3 watts/10.92 BTU (Power on without any connection) Max. 11 watts/37.53 BTU (Full loading)

Weight

1725g

Dimensions (W x D x H)

330.2 x 200 x 43.1mm, 1U height

Enclosure

Metal

Wireless Standard

IEEE 802.11be (Wi-Fi 7)

Frequency Band

2.4GHz and 5GHz

Wireless Data Rate

Up to 5100Mbps

2.4GHz Data Rate

Up to approximately 689Mbps

5GHz Data Rate

Up to approximately 4324Mbps

Channel Width

Up to 160MHz

Modulation

4096-QAM (4K-QAM)

MIMO

Advanced MIMO technology

Firewall Security

Cybersecurity Secure Boot Stateful Packet Inspection (SPI) Blocks DoS/DDoS attack

ALG (Application Layer Gateway)

SIP, RTSP, FTP, H.323, TFTP

NAT

Port forwarding DMZ Host UPnP NAT disable (supports routing mode)

Content Filtering

MAC filtering IP filtering Web filtering

Bandwidth Management

Outbound load balancing Failover for dual-WAN QoS (Quality of Service)

Operation Mode

Routing mode

Routing Protocol

Static Route, Dynamic Route (RIP), OSPF

VLAN

802.1Q Tag-based, Port-based, Multi-VLAN

Multicast

IGMP Proxy

NAT Throughput

Up to 9Gbps

Outbound Load Balancing

Supported algorithms: Weight

Protocol

IPv4, IPv6, TCP/IP, UDP, ARP, HTTP, HTTPS, NTP, DNS, PLANET DDNS, PLANET Easy DDNS, DHCP, PPPoE, SNMPv1/v2c/v3

Key Features

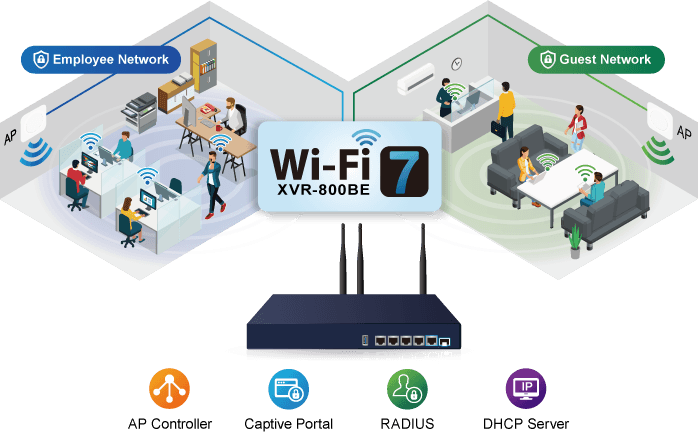

HA (High Availability) Captive Portal RADIUS Server/Client AP Control

VPN Function

IPSec/Remote Server (Net-to-Net, Host-to-Net) GRE PPTP Server L2TP Server SSL Server/Client (Open VPN) WireGuard

VPN Tunnel Capacity by Protocol

IPSec: 16 GRE: 5 PPTP: 100 SSL VPN: 100

VPN Throughput

Max. 1.3Gbps

Encryption Methods

DES, 3DES, AES or AES-128/192/256 encryption PQC TLS (Post-Quantum Cryptography TLS) ready

Authentication Methods

MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm

Basic Management Interfaces

Web browser SNMP v1, v2c PLANET Smart Discovery utility/UNI-NMS supported PLANET NMS System/CloudNMS

Secure Management Interfaces

SSHv2, TLSv1.3, SNMP v3

System Log

System Event Log

Others

Setup wizard Dashboard System status/service Statistics Connection status Auto reboot Diagnostics

Regulatory Compliance

CE, FCC

Operating

Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing)

Storage

Temperature: -10 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
