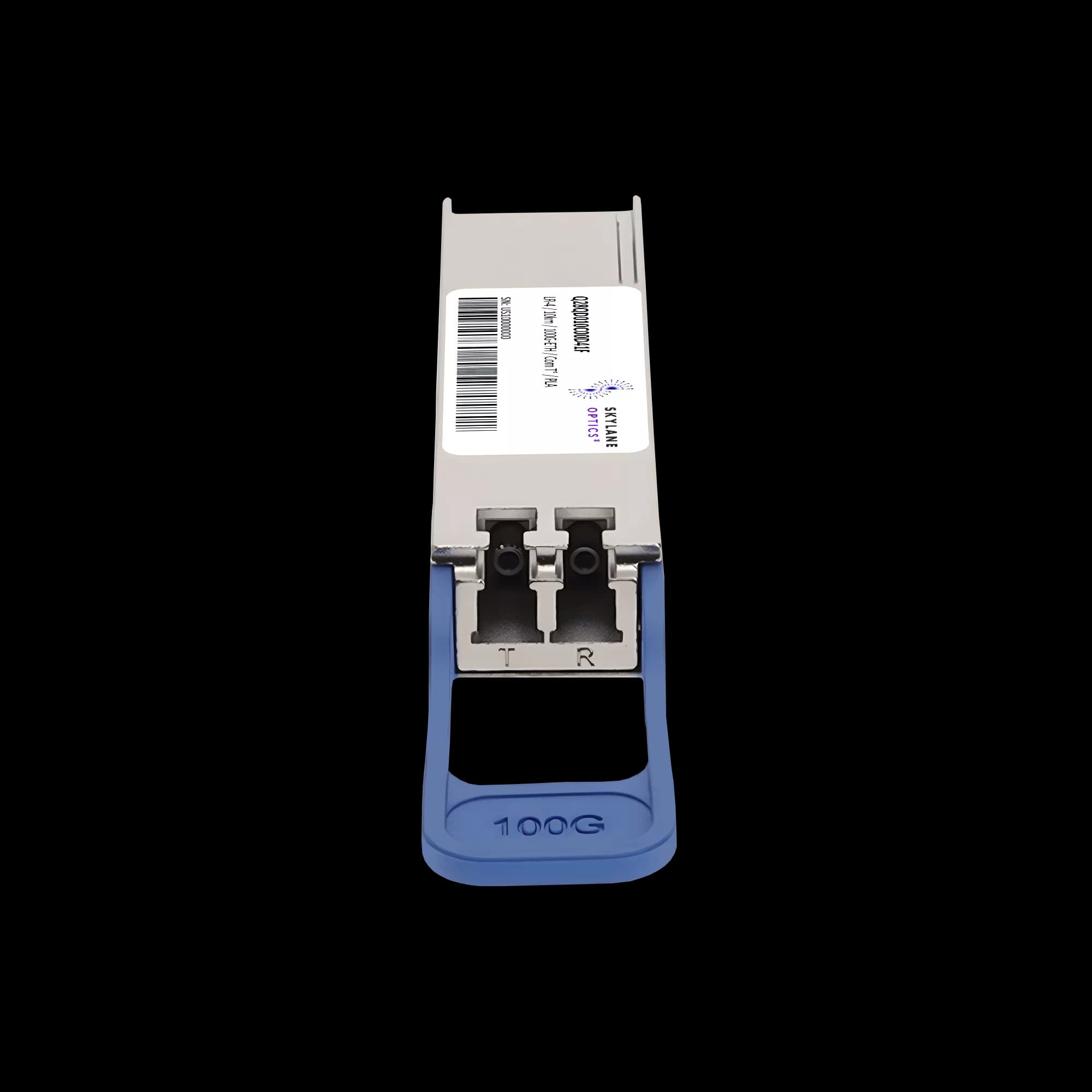

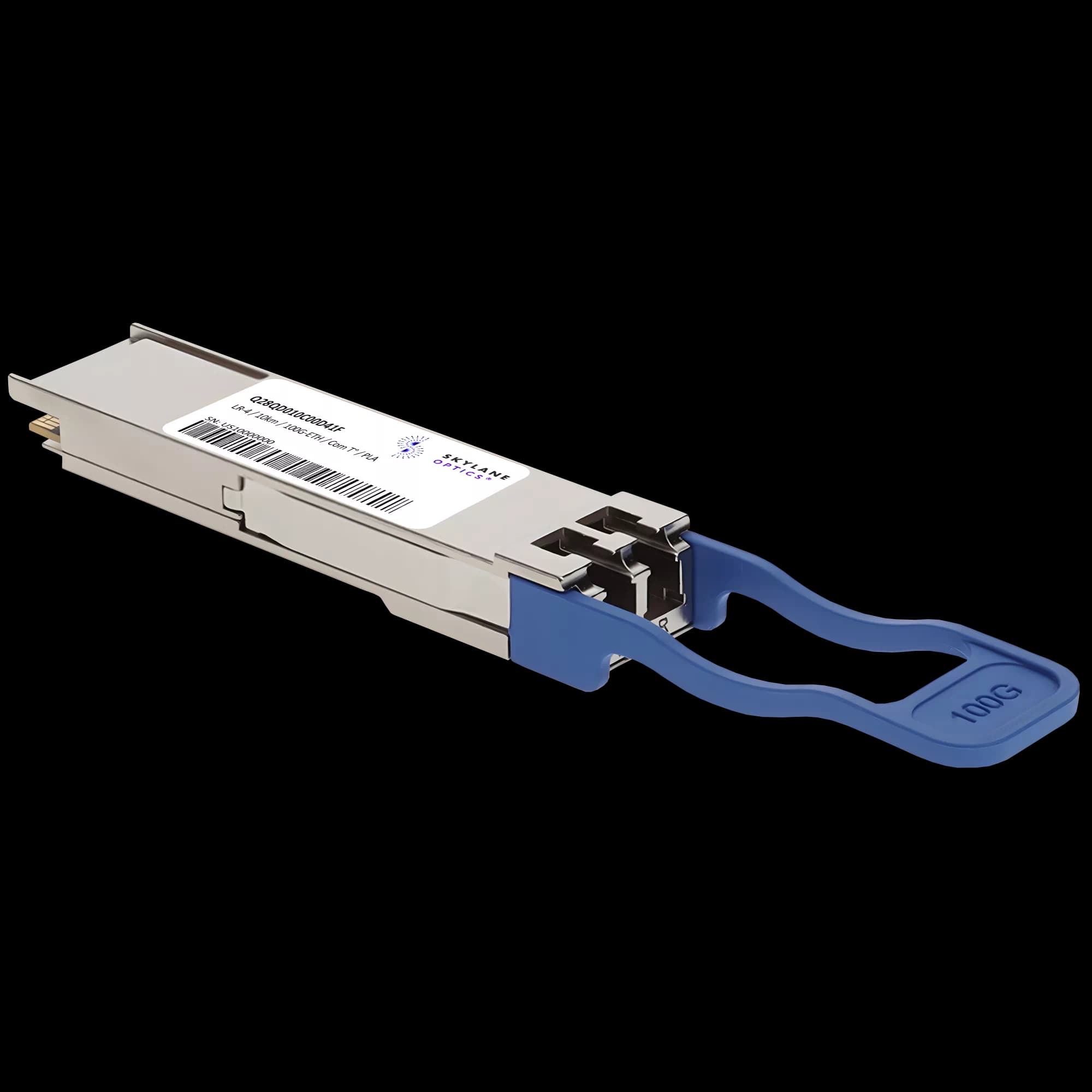

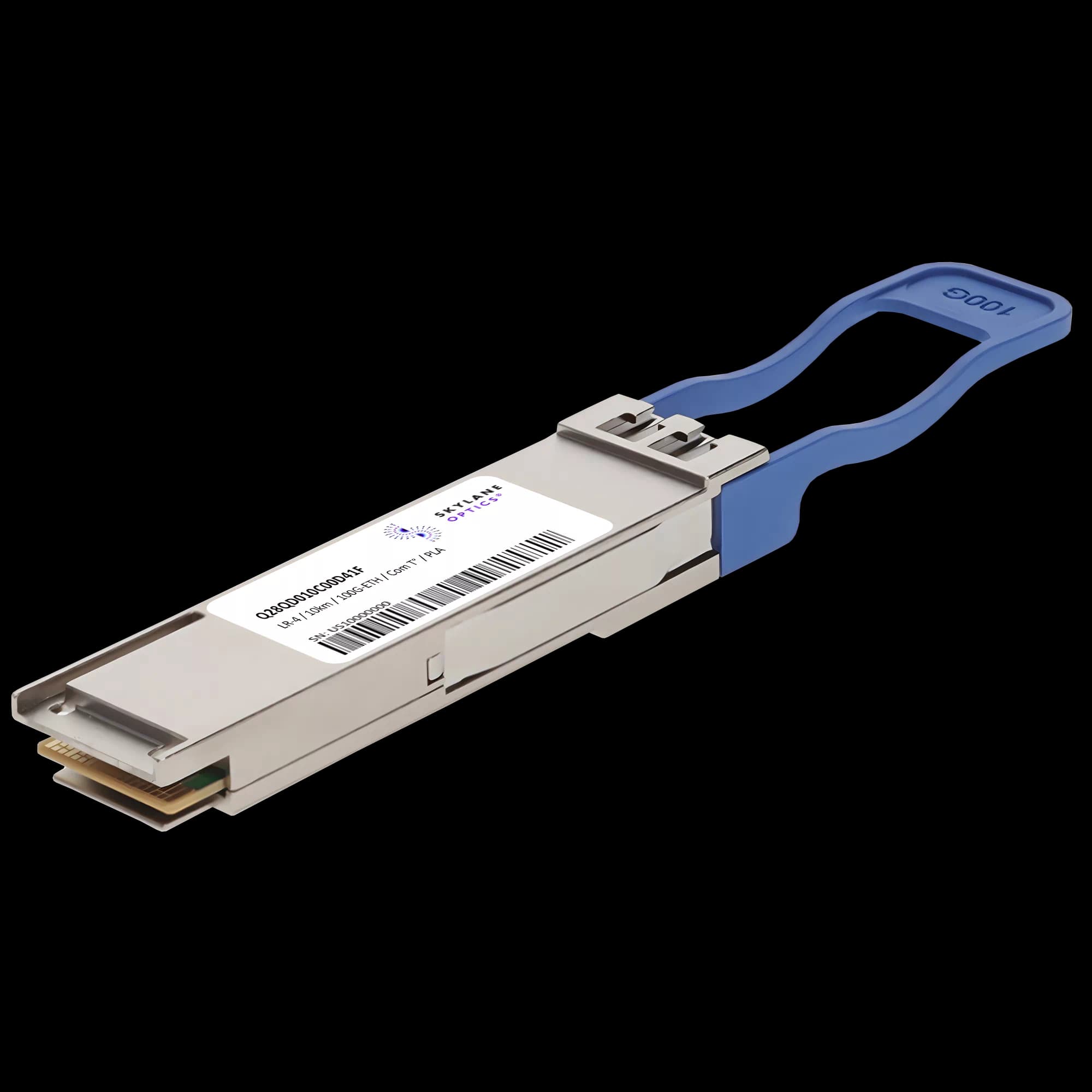

100GBase-LR4 QSFP28 Transceiver - Q28QD010C00D41F Cisco® QSFP-100G-LR4 Compatible

Descripción

100GBase-LR4 QSFP28 Transceiver - Q28QD010C00D41F Features The Skylane® Q28QD010C00D41F is a high-performance QSFP28 transceiver compatible with Cisco® QSFP-100G-LR4. It delivers 100Gbps over single-mode fiber (SMF) up to 10km using four wavelengths (1295–1309nm) via an LC duplex connector. Ideal for data center, enterprise, and access networks, this hot-pluggable module supports Digital Optical Monitoring (DOM) and is fully compliant with MSA and IEEE standards. Each unit is uniquely serialized, rigorously tested, and backed by a limited lifetime warranty. Applications 100GBase Ethernet Access and Enterprise Features SFF-8665 Compliance Duplex LC Connector Commercial Temperature 0 to 70 Celsius Single-mode Fiber Hot Pluggable Excellent ESD Protection Metal with Lower EMI RoHS Compliant and Lead Free Absolute Maximum Ratings Parameter Symbol Min. Typ. Max. Unit Maximum Supply Voltage Vcc -0.5 3.6 V Storage Temperature TS -40 85 °C Operating Case Temperature Tc 0 25 70 °C Operating Humidity RH 5 85 % Receiver Damage Threshold, per Lane Rxdmg 5.5 dBm Electrical Characteristics Parameter Symbol Min. Typ. Max. Unit Notes Power Dissipation PD 3.5 W Power Supply Voltage Vcc 3.135 3.3 3.465 V Transmitter Differential data input swing per lane Vin 900 Mvp-p Input Impedance (Differential) Zin 10 % Stressed Input Parameters Eye width 0.46 UI Applied pk-pk sinusoidal jitter IEEE 802.3bm Table 88-13 Eye height 95 mv DC common mode voltage -350 2850 mv Receiver Differential output amplitude 200 900 Mvp-p Output Impedance (Differential) Zout 10 % Output Rise/Fall Time tr/tf 12 ps 20%~80% Eye width 0.57 UI Eye height differential 228 mv Vertical eye closure 5.5 db Optical Characteristics Parameter Symbol Min. Typ. Max. Unit Notes Transmitter Signaling Speed per Lane Brave 25.78 Gbps Data Rate Variation -100 +100 Lane_0 Center Wavelength λC0 1294.53 1295.56 1296.59 nm Lane_1 Center Wavelength λC1 1299.02 1300.05 1301.09 nm Lane_2 Center Wavelength λC2 1303.54 1304.58 1305.63 nm Lane_3 Center Wavelength λC3 1308.09 1309.14 1310.19 nm Average Launch Power each Lane Peach -4.3 4.5 dBm 1 Optical Modulation Amplitude (OMA) each Lane TxOMA -1.3 4.5 dBm Difference in launch power between any two lanes (OMA) 5 dB Launch power in OMA minus TDP, each lane -2.3 dBm Transmitter and dispersion penalty (TDP), each lane 2.2 dB Extinction Ratio ER 4 dB Side-mode Suppression ratio SMSRmin 30 dB Average launch power of OFF transmitter per lane -30 dBm Relative Intensity Noise RIN -130 dB/hz Transmitter Reflectance -12 dB Optical Return Loss Tolerance 20 dB Transmitter eye mask definitions: X1, X2, X3, Y1, Y2, Y3 0.25, 0.4, 0.45, 0.25, 0.28, 0.4 2 Receiver Signaling Speed per Lane BRAVE 25.78 Gbps Data Rate Variation -100 +100 ppm Damage threshold per lane Rxdmg 5.5 dBm Lane_0 Center Wavelength λC0 1294.53 1295.56 1296.59 nm Lane_1 Center Wavelength λC1 1299.02 1300.05 1301.09 nm Lane_2 Center Wavelength λC2 1303.54 1304.58 1305.63 nm Lane_3 Center Wavelength λC3 1308.09 1309.14 1310.19 nm Average Receive Power per Lane Rxpow -10.6 4.5 dBm 3 Receive Power (OMA) per Lane RxOMA 4.5 dBm Receive Sensitivity in OMA per Lane Rxsens -8.6 dBm Receiver 3 dB electrical upper cutoff frequency, per lane 31 GHz Stressed Receiver Sensitivity (OMA) per Lane RXSRS -6.8 dBm 4 Optical Return Loss ORL -26 dB LOS Assert LOSA -25 dBm LOS De-Assert LOSD -12 dBm LOS Hysteresis 0.5 dB conditions of stressed receiver sensitivity test Vertical eye closure penalty VECP 1.8 dB 5 Stressed eye J2 Jitter J2 0.3 UI 5 Stressed eye J9 Jitter J9 0.47 UI 5 Cisco® QSFP-100G-LR4 Compatible 100GBase-LR4 QSFP28 Transceiver - Q28QD010C00D41F - Datasheet

Especificaciones técnicas

Parameter

Symbol | Min. | Typ. | Max. | Unit

Maximum Supply Voltage

Vcc | -0.5 | | 3.6 | V

Storage Temperature

TS | -40 | | 85 | °C

Operating Case Temperature

Tc | 0 | 25 | 70 | °C

Operating Humidity

RH | 5 | | 85 | %

Receiver Damage Threshold, per Lane

Rxdmg | 5.5 | | | dBm

Parameter

Symbol | Min. | Typ. | Max. | Unit | Notes

Power Dissipation

PD | | 3.5 | | W |

Power Supply Voltage

Vcc | 3.135 | 3.3 | 3.465 | V |

Differential data input swing per lane

Vin | | 900 | | Mvp-p |

Input Impedance (Differential)

Zin | 10 | | | % |

Eye width

| | 0.46 | | UI |

Applied pk-pk sinusoidal jitter

| IEEE 802.3bm Table 88-13 |

Eye height

| | 95 | | mv |

DC common mode voltage

| -350 | | 2850 | mv |

Differential output amplitude

| 200 | | 900 | Mvp-p |

Output Impedance (Differential)

Zout | | | 10 | % |

Output Rise/Fall Time

tr/tf | 12 | | | ps | 20%~80%

Eye width

| 0.57 | | | UI |

Eye height differential

| 228 | | | mv |

Vertical eye closure

| | | 5.5 | db |

Signaling Speed per Lane

Brave | | 25.78 | | Gbps |

Data Rate Variation

| -100 | | +100 | |

Lane_0 Center Wavelength

λC0 | 1294.53 | 1295.56 | 1296.59 | nm |

Lane_1 Center Wavelength

λC1 | 1299.02 | 1300.05 | 1301.09 | nm |

Lane_2 Center Wavelength

λC2 | 1303.54 | 1304.58 | 1305.63 | nm |

Lane_3 Center Wavelength

λC3 | 1308.09 | 1309.14 | 1310.19 | nm |

Average Launch Power each Lane

Peach | -4.3 | | 4.5 | dBm | 1

Optical Modulation Amplitude (OMA) each Lane

TxOMA | -1.3 | | 4.5 | dBm |

Difference in launch power between any two lanes (OMA)

| | | 5 | dB |

Launch power in OMA minus TDP, each lane

| -2.3 | | | dBm |

Transmitter and dispersion penalty (TDP), each lane

| | | 2.2 | dB |

Extinction Ratio

ER | 4 | | | dB |

Side-mode Suppression ratio

SMSRmin | 30 | | | dB |

Average launch power of OFF transmitter per lane

| | | -30 | dBm |

Relative Intensity Noise

RIN | | | -130 | dB/hz |

Transmitter Reflectance

| | | -12 | dB |

Optical Return Loss Tolerance

| | | 20 | dB |

Transmitter eye mask definitions

X1, X2, X3, Y1, Y2, Y3: | 0.25, 0.4, 0.45, 0.25, 0.28, 0.4 | 2

Signaling Speed per Lane

BRAVE | | 25.78 | | Gbps |

Data Rate Variation

| -100 | | +100 | ppm |

Damage threshold per lane

Rxdmg | | | 5.5 | dBm |

Average Receive Power per Lane

Rxpow | -10.6 | | 4.5 | dBm | 3

Receive Power (OMA) per Lane

RxOMA | | | 4.5 | dBm |

Receive Sensitivity in OMA per Lane

Rxsens | | | -8.6 | dBm |

Receiver 3 dB electrical upper cutoff frequency, per lane

| | | 31 | GHz |

Stressed Receiver Sensitivity (OMA) per Lane

RXSRS | | | -6.8 | dBm | 4

Optical Return Loss

ORL | | | -26 | dB |

LOS Assert

LOSA | | | -25 | dBm |

LOS De-Assert

LOSD | | | -12 | dBm |

LOS Hysteresis

| | | 0.5 | dB |

Vertical eye closure penalty

VECP | | | 1.8 | dB | 5

Stressed eye J2 Jitter

J2 | | | 0.3 | UI | 5

Stressed eye J9 Jitter

J9 | | | 0.47 | UI | 5
