Fiber Optic PLC Box Type Splitter

Descripción

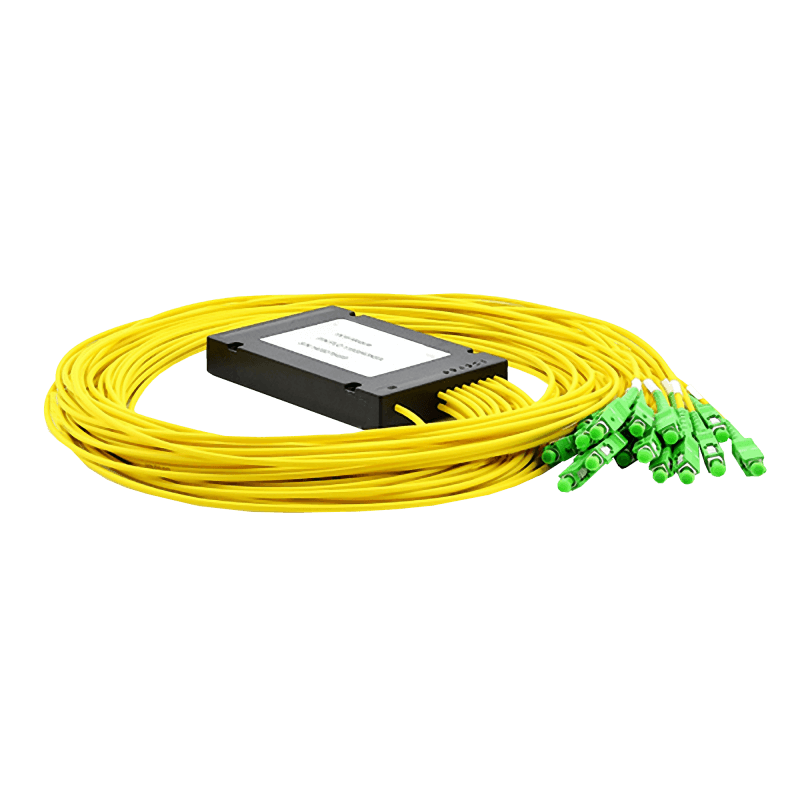

Fiber Optic PLC Box Type Splitter Features The box shaped optical passive splitter that is designed for fiber optic distribution boxes and closures, uses PLC (Planar Light-wave Circuit) to distribute the optical power 1 input to desired number of ports with a compact body. Compact optical splitter using PLC (Planar Light-wave Circuit) and suitable for installation in optical equipment. This splitter is the best choice for constructing Passive Optical Networks. Generic specifications 1xn standard and premium grade Without connector loss. Features Compact packaging size Efficient for usage in optical equipment High reliability Low Insertion Loss. Suitable for Installation In a splicing closure. High reliability Can be mounted on shelves or cabinets. Parameter Unit 1 x 2 1 x 4 1 x 8 1 x 16 1 x 32 1 x 64 Operating wavelength nm 1260 – 1650 Insertion loss standard grade dB ≤ 4.0 ≤ 7.3 ≤ 10.5 ≤ 13.8 ≤ 17.0 ≤ 20.6 Uniformity standard grade dB ≤ 0.6 ≤ 0.6 ≤ 0.8 ≤ 1.2 ≤ 1.5 ≤ 1.8 PDL standard grade dB ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 Insertion loss premium grade dB ≤ 3.8 ≤ 7.0 ≤ 10.2 ≤ 13.5 ≤ 16.8 ≤ 20.3 Uniformity premium grade dB ≤ 0.5 ≤ 0.5 ≤ 0.8 ≤ 1.2 ≤ 1.2 ≤ 1.8 PDL premium grade dB ≤ 0.2 ≤ 0.2 ≤ 0.2 ≤ 0.2 ≤ 0.2 ≤ 0.3 Return loss dB ≥ 55 Directivity dB ≥ 55 Operating temperature °C –40 to +85 Package dimension (L x W x H) mm 40 x 4 x 4 47 x 7 x 4 58 x 12 x 4 PLC Box Type Splitter | Datasheet

Especificaciones técnicas

Parameter

Unit | 1 x 2 | 1 x 4 | 1 x 8 | 1 x 16 | 1 x 32 | 1 x 64

Operating wavelength

nm | 1260 – 1650

Insertion loss standard grade

dB | ≤ 4.0 | ≤ 7.3 | ≤ 10.5 | ≤ 13.8 | ≤ 17.0 | ≤ 20.6

Uniformity standard grade

dB | ≤ 0.6 | ≤ 0.6 | ≤ 0.8 | ≤ 1.2 | ≤ 1.5 | ≤ 1.8

PDL standard grade

dB | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3

Insertion loss premium grade

dB | ≤ 3.8 | ≤ 7.0 | ≤ 10.2 | ≤ 13.5 | ≤ 16.8 | ≤ 20.3

Uniformity premium grade

dB | ≤ 0.5 | ≤ 0.5 | ≤ 0.8 | ≤ 1.2 | ≤ 1.2 | ≤ 1.8

PDL premium grade

dB | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ≤ 0.3

Return loss

dB | ≥ 55

Directivity

dB | ≥ 55

Operating temperature

°C | –40 to +85

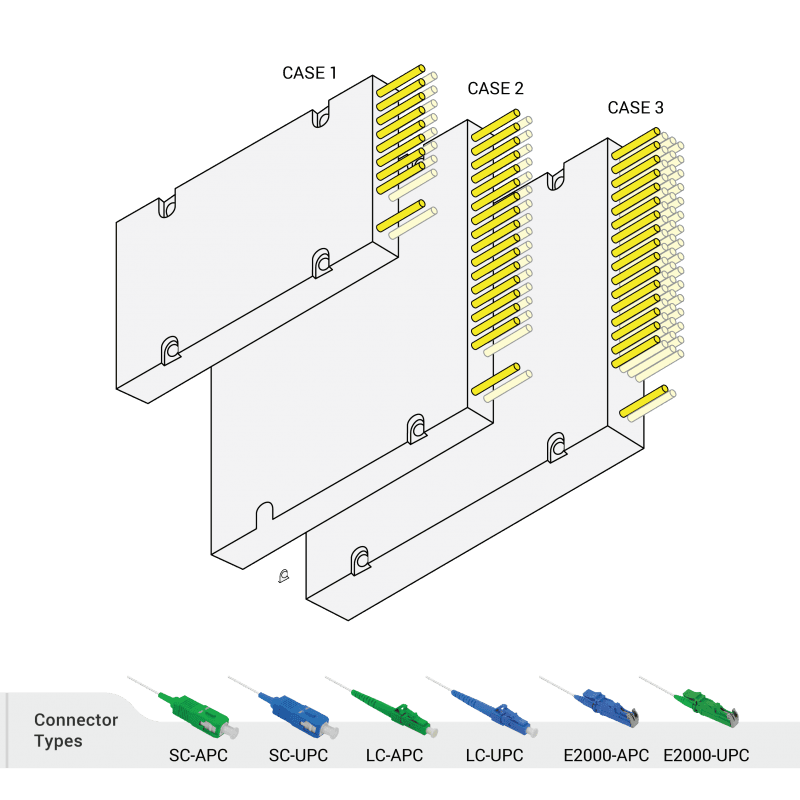

Package dimension (L x W x H)

mm | 40 x 4 x 4 | 47 x 7 x 4 | 58 x 12 x 4
