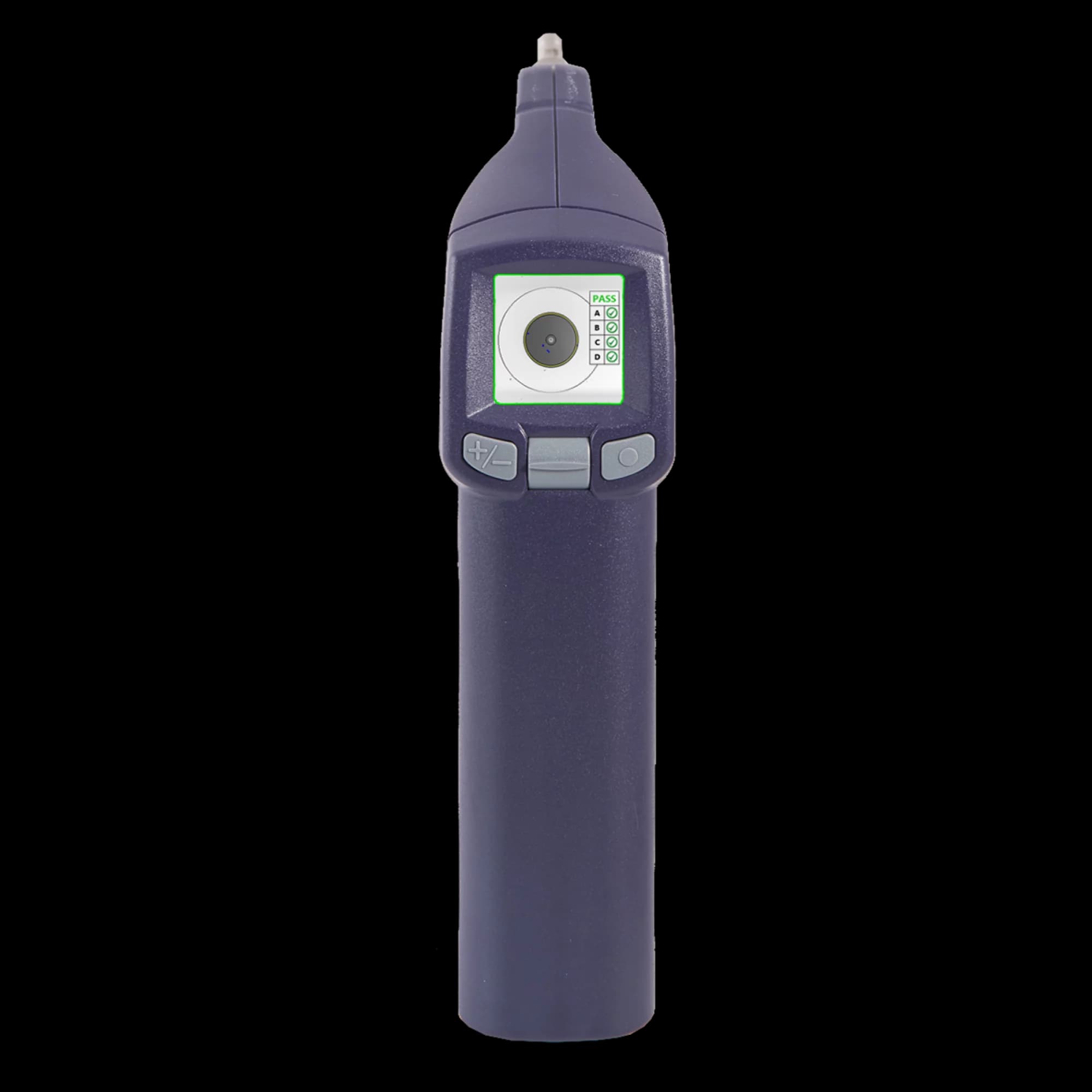

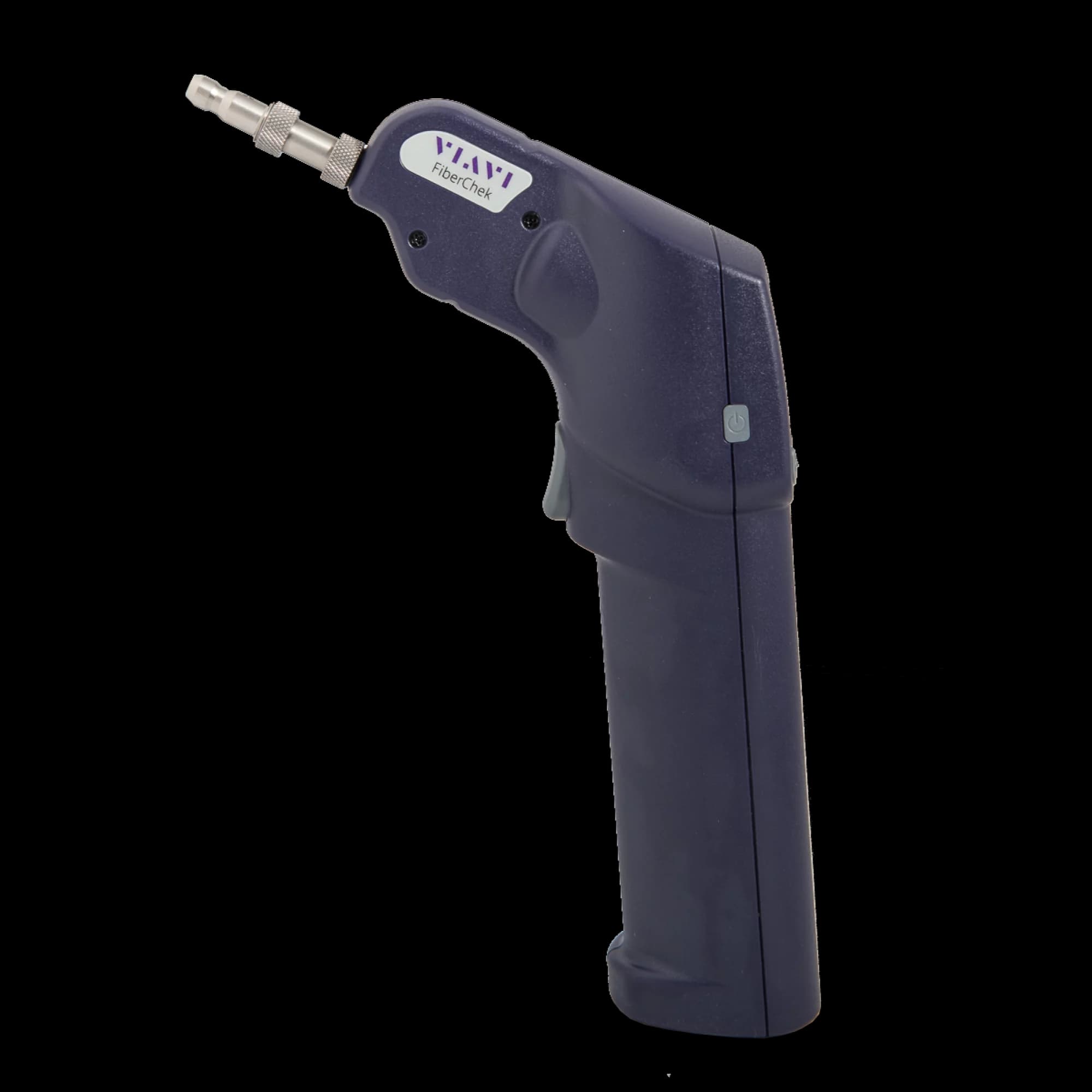

FiberChek Probe Microscope
FiberChek Probe Microscope
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

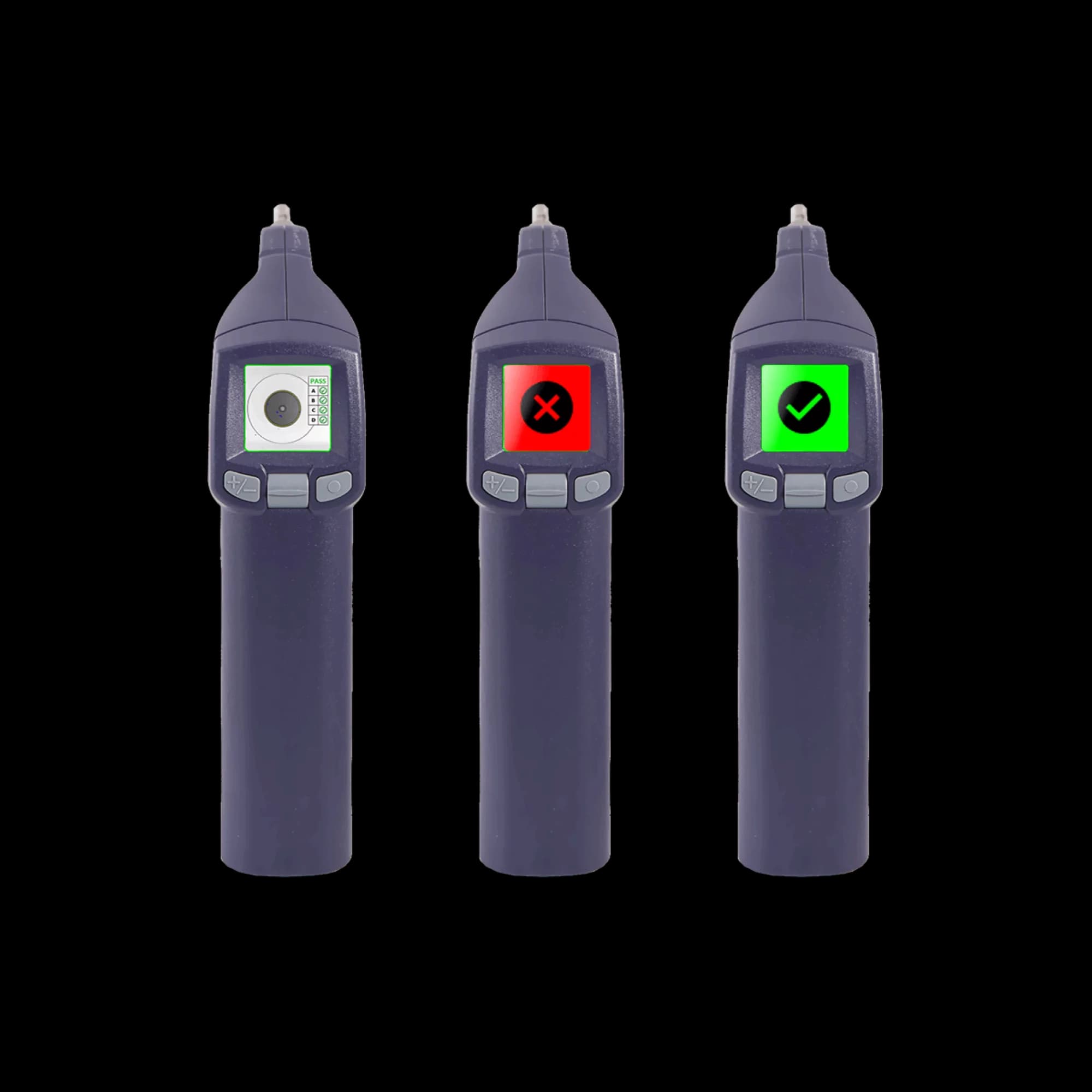

FiberChek Probe Microscope Features The FiberChek fiber probe from VIAVI is an "all-in-one" autonomous handheld inspection device that every fiber technician can rely on for all of today's fiber optic inspection needs. VIAVI FiberChek Probe has built-in capabilities for image viewing, auto-focus, Pass/Fail analysis, storing and recalling results. VIAVI FiberChek probe makes fiber inspection an automatic procedure and ensures high performance and precise results. FiberChek probe can be used as on its own and can be connected (using WiFi or USB) to other test devices or computers. VIAVI FiberChek Probe Features Inspects fiber end faces for both patch cord and bulkhead Percise endface tests with certification reports Instantly captures, analyzes, and grades fiber end faces PASS/FAIL results according to pre-configured setting Fully autonomous inspection Automate the inspection workflow Accurate and fast test performance Easily access connections in any location Connect with anything and test anywhere! Integrated touch screen with live fiber viewing Auto-Center Auto-Focus Built-in fiber endface analysis User-selectable acceptance profiles Can store results on device or export them WiFi and USB connection capabilities VIAVI FiberChek Probe Details Dimensions (H x W x D) 218 x 50 x 131 mm (8.6 x 2.0 x 5.2 in) Weight 272 g (9.5 oz) Display 128 x 128 x 1.5 in OLED touch screen Connector USB 2.0 (Micro-B) Power source Internal LiON battery, USB power Run time 6 hr Charge time 2 hr (2 A max power source) 8 hr (500 mA max power source) Field-of-view values (µm) High Magnification Horizontal: 740 µm Vertical: 550 µm Low Magnification Horizontal: 370 µm Vertical: 275 µm Live image 640 x 480 Power supply 12 V, 2 A with interchangeable wall plug for EU, UK, US, and AU Camera sensor 2560 x 1920, 1/2.5 in CMOS, 5 megapixel Particle size detection <1 µm Built-In LCD resolution (in pixels) Live Image: 128 x 120 Light source Blue LED, 100,000+ hr life Lighting technique Coax Certification CE, EN/IEC 61326 Storage Temperature -10˚to +70˚C (14˚ to 158˚F) Operating Temperature 0˚ to +50˚ C (32˚ to 122˚F) Storage Humidity 0-95% non-condensing Operating Humidity 10-95% non-condensing Save Options JPG image, PNG image, HTML report, PDF report Fiberchek Probe Microscope | Datasheet
Especificaciones técnicas
- Dimensions (H x W x D)
- 218 x 50 x 131 mm (8.6 x 2.0 x 5.2 in)
- Weight
- 272 g (9.5 oz)
- Display
- 128 x 128 x 1.5 in OLED touch screen
- Connector
- USB 2.0 (Micro-B)
- Power source
- Internal LiON battery, USB power
- Run time
- 6 hr
- Charge time
- 2 hr (2 A max power source) 8 hr (500 mA max power source)
- Field-of-view values (µm)
- High Magnification | Horizontal: 740 µm Vertical: 550 µm
- Low Magnification
- Horizontal: 370 µm Vertical: 275 µm
- Live image
- 640 x 480
- Power supply
- 12 V, 2 A with interchangeable wall plug for EU, UK, US, and AU
- Camera sensor
- 2560 x 1920, 1/2.5 in CMOS, 5 megapixel
- Particle size detection
- <1 µm
- Built-In LCD resolution (in pixels)
- Live Image: 128 x 120
- Light source
- Blue LED, 100,000+ hr life
- Lighting technique
- Coax
- Certification
- CE, EN/IEC 61326
- Storage Temperature
- -10˚to +70˚C (14˚ to 158˚F)
- Operating Temperature
- 0˚ to +50˚ C (32˚ to 122˚F)
- Storage Humidity
- 0-95% non-condensing
- Operating Humidity
- 10-95% non-condensing
- Save Options
- JPG image, PNG image, HTML report, PDF report
