Modular High Density Panel with Organizer | 1U 4 Slots
Modular High Density Panel with Organizer | 1U 4 Slots
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

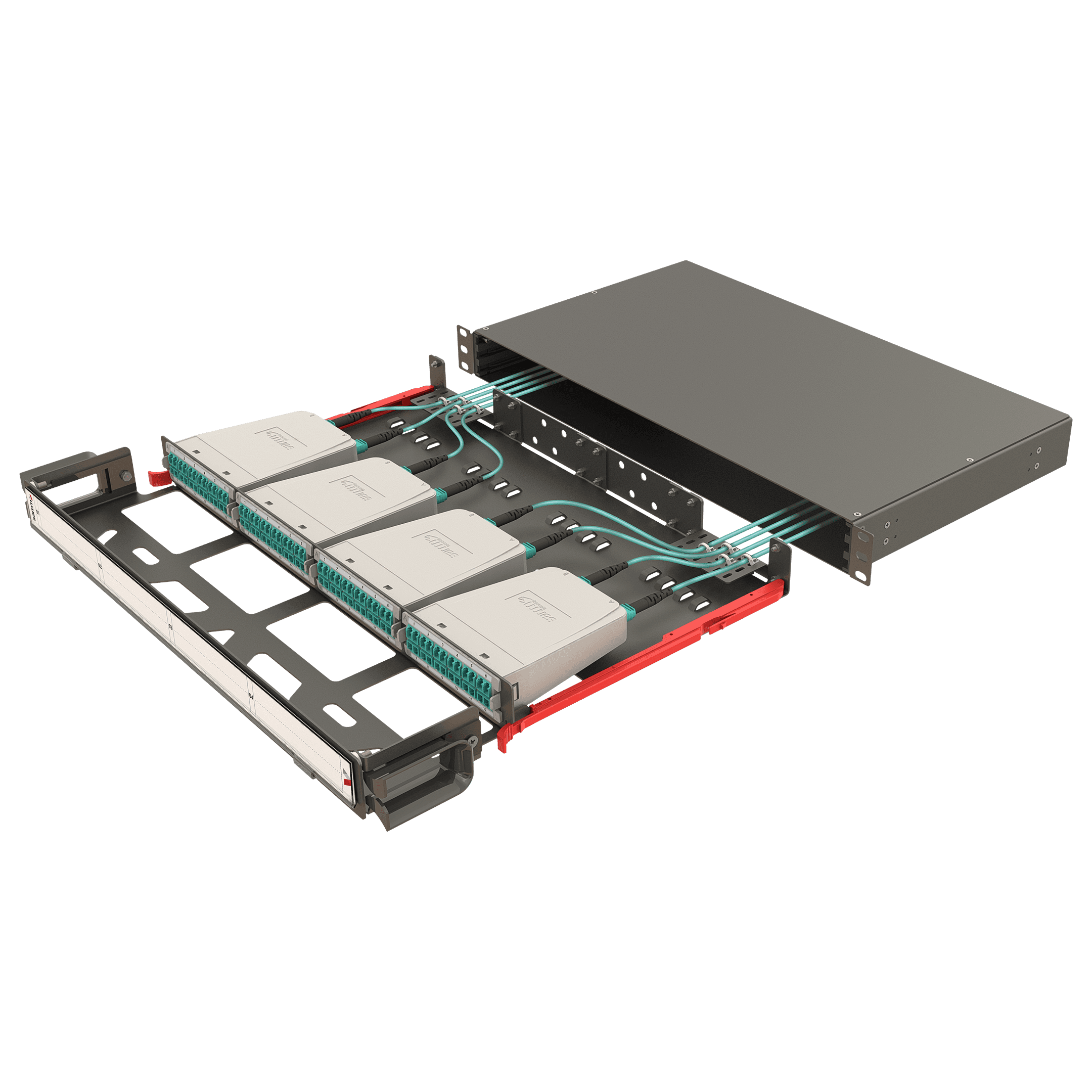

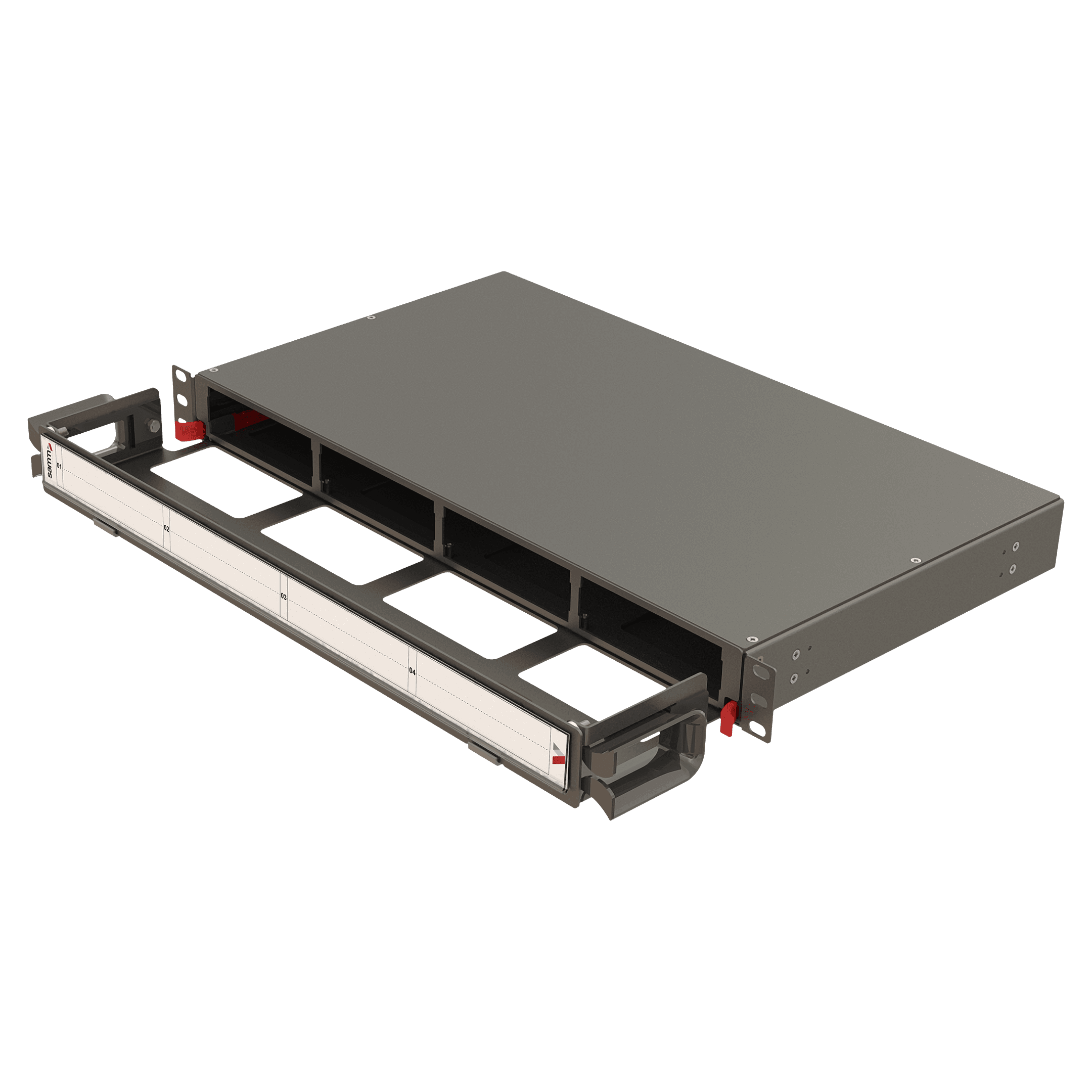

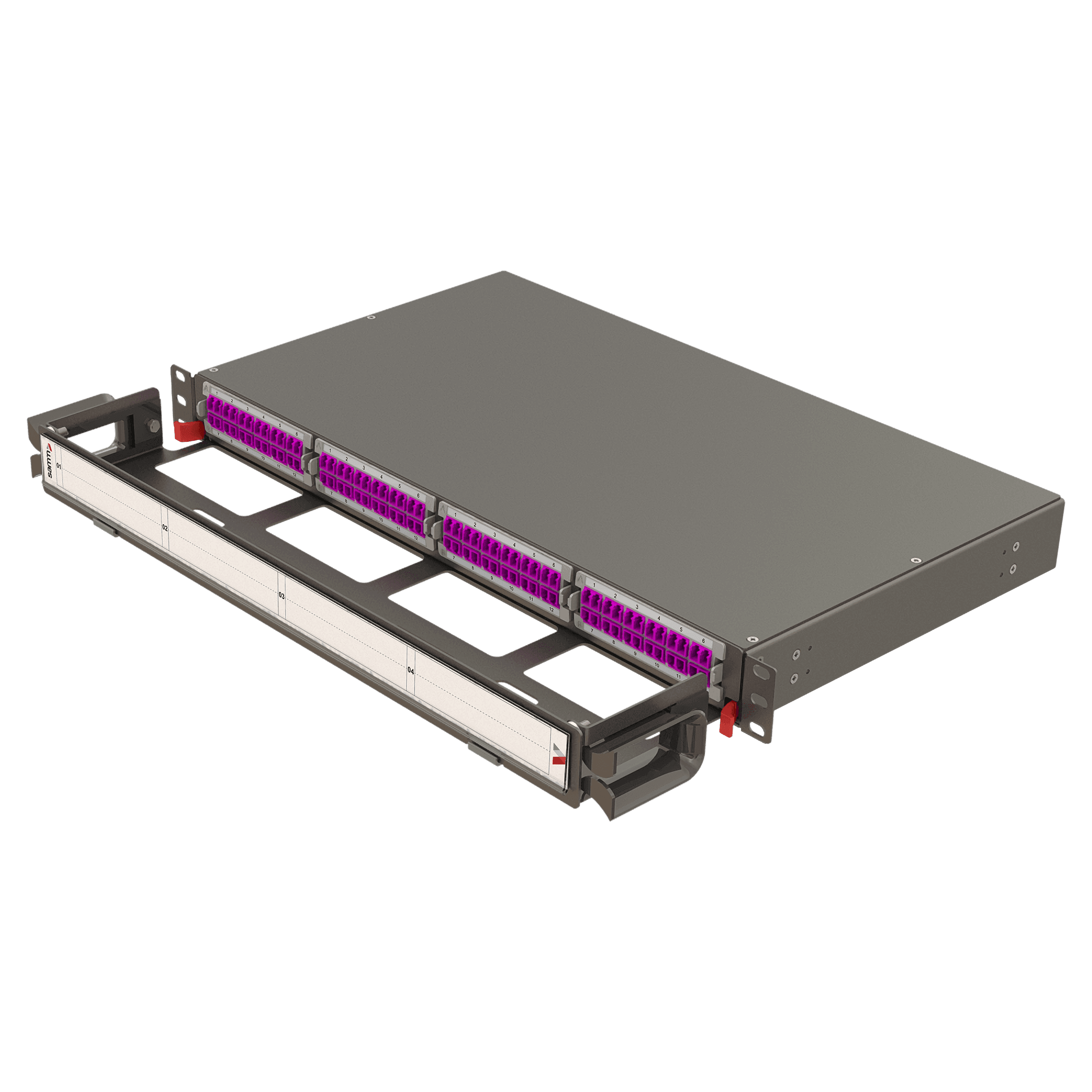

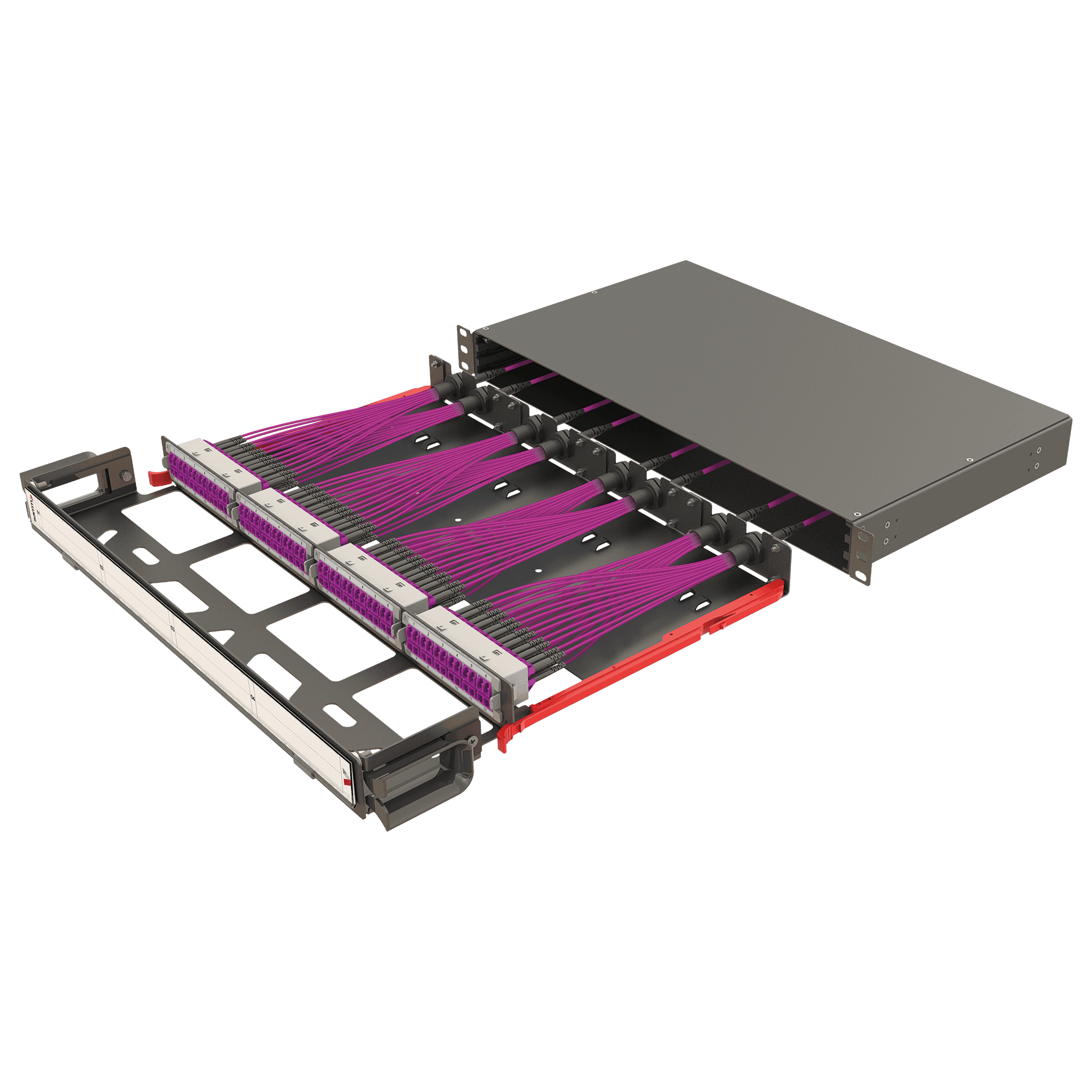

Modular High Density Panel with Organizer | 1U 4 Slots Features 1U high density modular fiber optic panels can terminate, organize and distribute up to 48 fibers. This panel is designed to be mounted on 19“ rack systems and it has 4 slots in a 1U unit that can hold MTP/LC conversion cassettes and MTP/LC/SC patch adapter modules. This HD Modular fiber optic panel has a front cable organizer and is compatible with optional accessories such as pre-installed inner splicing trays, cable tie-up plates, fanout fixing plates, blind plates, optical adapters and fiber pigtails. High Density Modular Fiber Panels are generally used in data centers. Modular HD Series Panel Features Modular structure with many different variations Suitable for Base-12 and Base-24 topologies Patented Rail Design Different rear cable entry option Front cable organizer for routing patch cords In 1U 96 LC connector capacity 4 trays per 1U for maximum flexibility during operation and installation Labelling front for module identification Extracting the modules of the trays for better access to cables during installation 1U High Density Modular Fiber Optic Panels with Organizer | Datasheet
