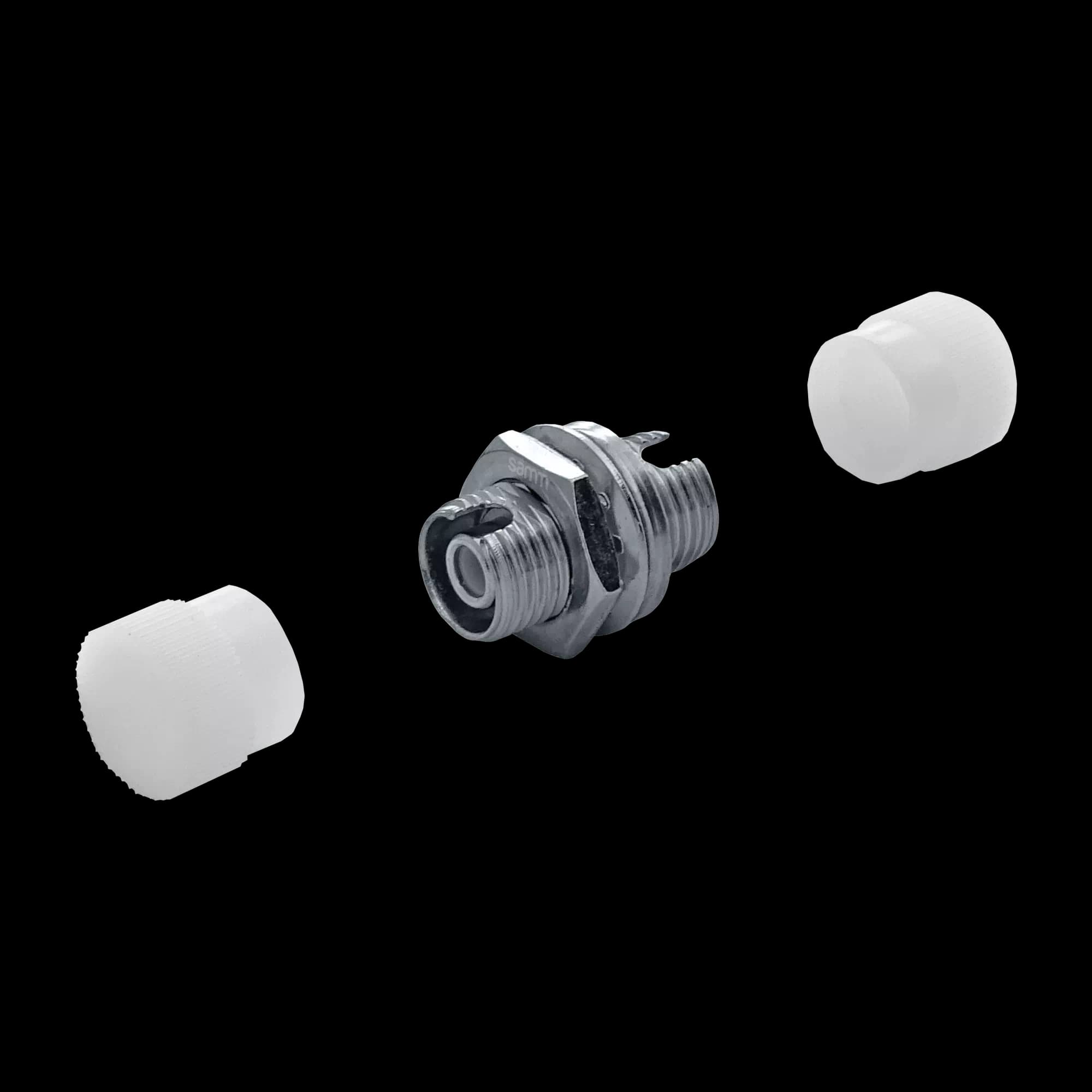

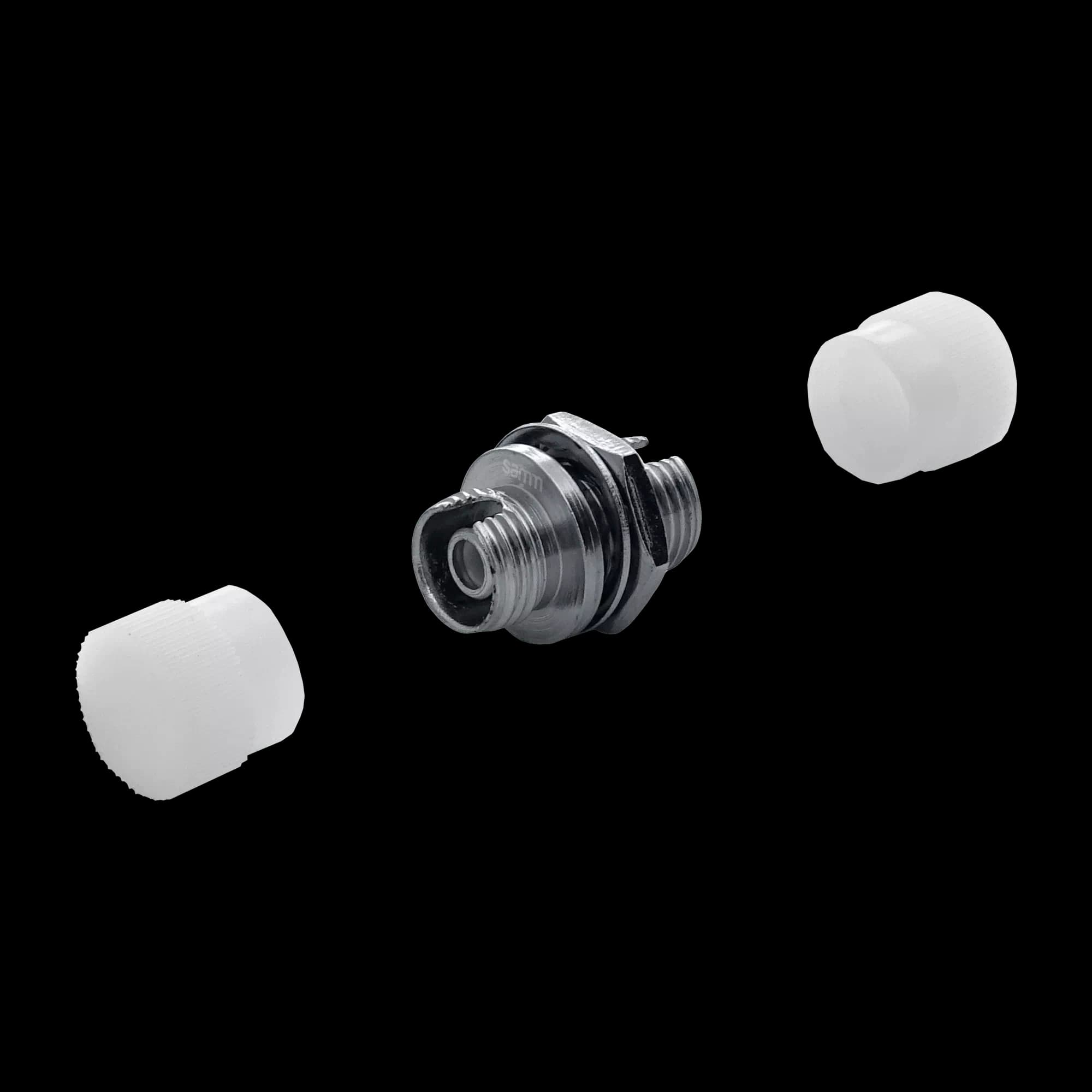

FC Simplex Adapter | Round D-Shape

Descripción

FC Simplex Adapter | Round D-Shape Features The FC Simplex round adapters are used to patch connect two FC connectors to each other. They are made of metal and they are also known as FC couplers. Properties Insertion Loss (Max./Typical) 0.2 / 0.1 dB Repeatability ΔIL/mating ± 0.1 dB Operational Temperature -25 ≤ T ≤ +70 °C Storage Temperature -40 ≤ T ≤ +80 °C Mating Cycles 1000 matings RoHS Compliant FC Simplex Fiber Optic Adapter | Datasheet

Especificaciones técnicas

Insertion Loss (Max./Typical)

0.2 / 0.1 dB

Repeatability ΔIL/mating

± 0.1 dB

Operational Temperature

-25 ≤ T ≤ +70 °C

Storage Temperature

-40 ≤ T ≤ +80 °C

Mating Cycles

1000 matings

RoHS

Compliant
