LSH (E2000) Simplex Adapter | w/ Flange

Descripción

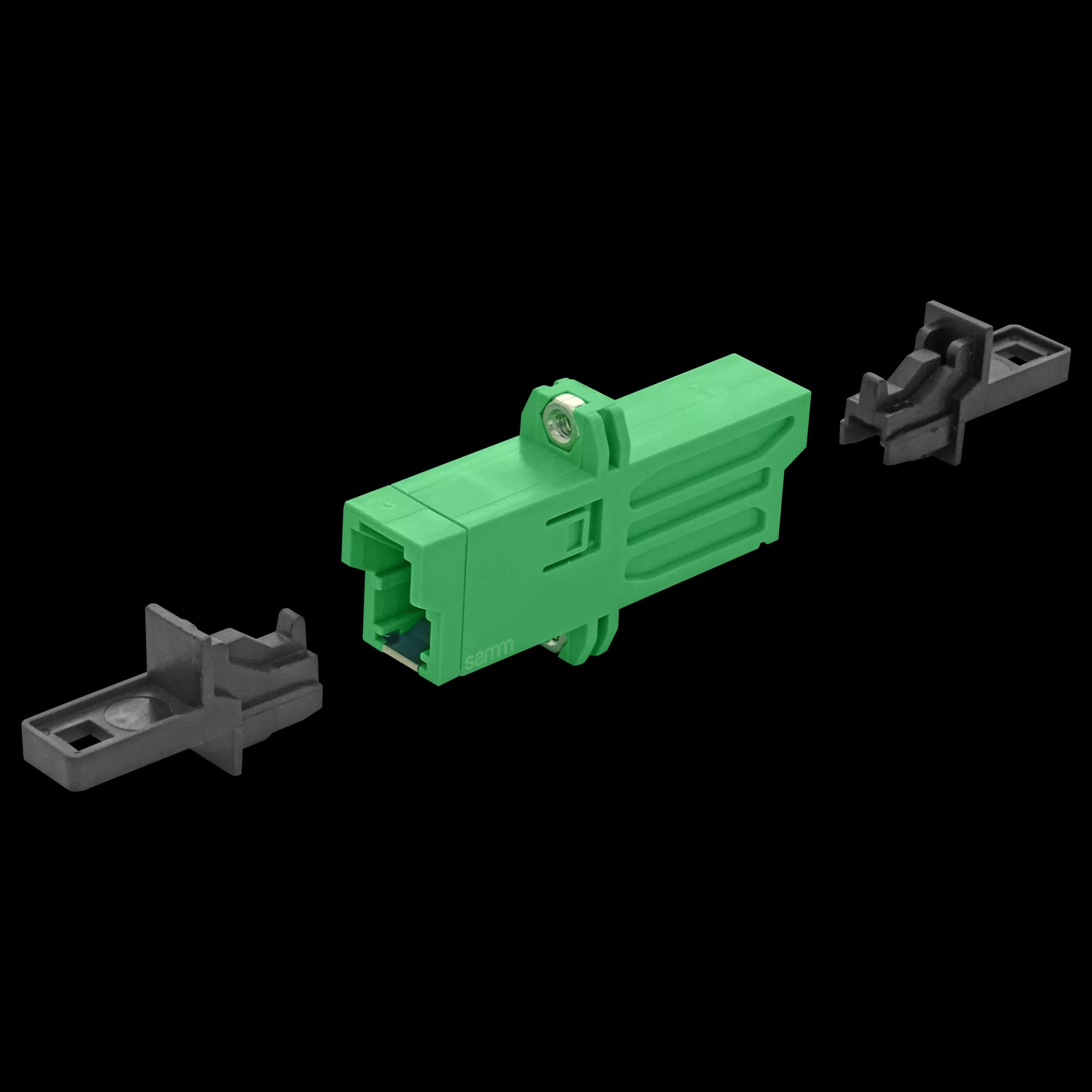

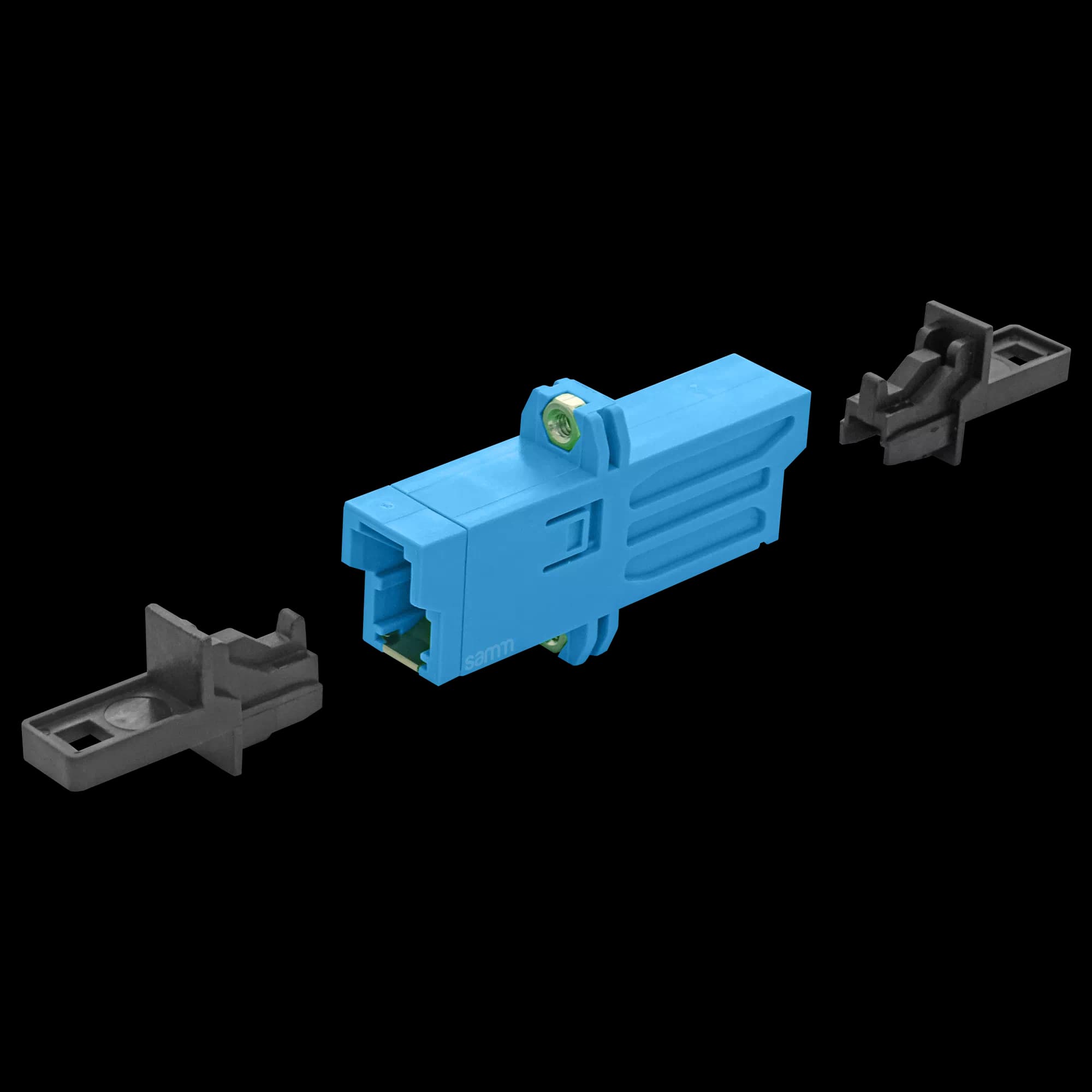

LSH (E2000) Simplex Adapter | w/ Flange Features The LSH (E2000) Simplex flanged adapters are used to patch connect two E2000 connectors to each other. They come is 5 color options to indicate the fiber type as the following: Single Mode adapters come in Blue for UPC or Green for APC and Multi-mode adapters come in Beige for OM1/OM2, Aqua for OM3 and Violet for OM4. Properties Insertion Loss (Max./Typical) 0.2 / 0.1 dB Repeatability ΔIL/mating ± 0.1 dB Operational Temperature -25 ≤ T ≤ +70 °C Storage Temperature -40 ≤ T ≤ +80 °C Mating Cycles 1000 matings Allignment Sleeve Ceramic Material LSZH Flammability UL94-V0 RoHS Compliant E2000 Simplex Adapter | Datasheet

Especificaciones técnicas

Insertion Loss (Max./Typical)

0.2 / 0.1 dB

Repeatability ΔIL/mating

± 0.1 dB

Operational Temperature

-25 ≤ T ≤ +70 °C

Storage Temperature

-40 ≤ T ≤ +80 °C

Mating Cycles

1000 matings

Allignment Sleeve

Ceramic

Material

LSZH

Flammability

UL94-V0

RoHS

Compliant
