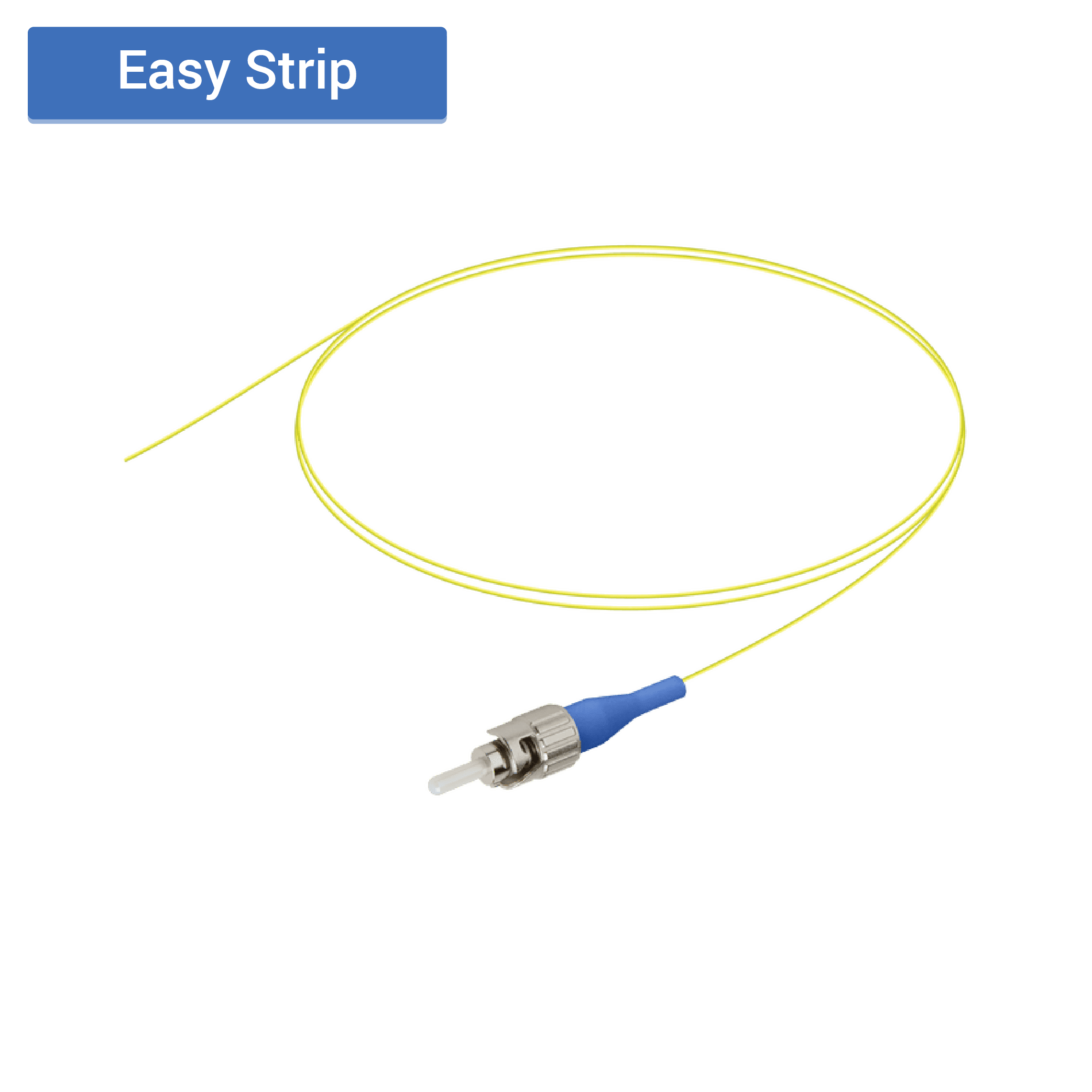

ST/UPC Pigtail | Single Mode G657.A2 | 0.9mm
ST/UPC Pigtail | Single Mode G657.A2 | 0.9mm
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
ST/UPC Pigtail | Single Mode G657.A2 | 0.9mm Features ST (Straight Type) type connectors have 2.5 mm diameter ferule structure. The abbreviations PC, UPC and APC are definitions expressing the physical differences of the surface geometries of the connectors on the ceramic ferrules. UPC (Ultra Physical Contact) indicates that the ceramic ferule structure on the connector has an extra polished flat structure; APC (Angled Physical Contact) indicates that the ceramic ferrule structure on the connector has an extra polished 8 ° angle structure. 0.9 mm diameter pigtail cables are manufactured with easy-to-strip tubes and ITU-T G657.A2 bend sensitive fibers, then assembled at one end with ST type connector. TIA / EIA-598 color standard is used for 12-color pigtail sets. Specifications Insertion Loss (IEC 61300-3-4-Method-B): ≤ 0.30 dB Return Loss (IEC 61300-3-6-Method-B): ≥ 50 dB (UPC), ≥ 60 dB (APC) Durability: <0,1 dB typical change for >500 matings Flammability: UL94 V-0 Operating Temperature: -40 ° C to +85 ° C Connector End Face Geometry: IEC 61755-3 LC Connector Compliance: IEC 61754-20, TIA 604-10-A, RoHS SC Connector Compliance: IEC 61754-4, TIA 604-3, RoHS FC Connector Compliance: IEC 61754-13, TIA 604-4-A, RoHS ST Connector Compliance: IEC 61754-2, TIA 604-2, RoHS LSH Connector Compliance: IEC 61754 - 15, TIA 604 - 16, RoHS Weight (Kg) 0.10000000149011612 Fiber Optic Pigtail | Single Mode Datasheet
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
