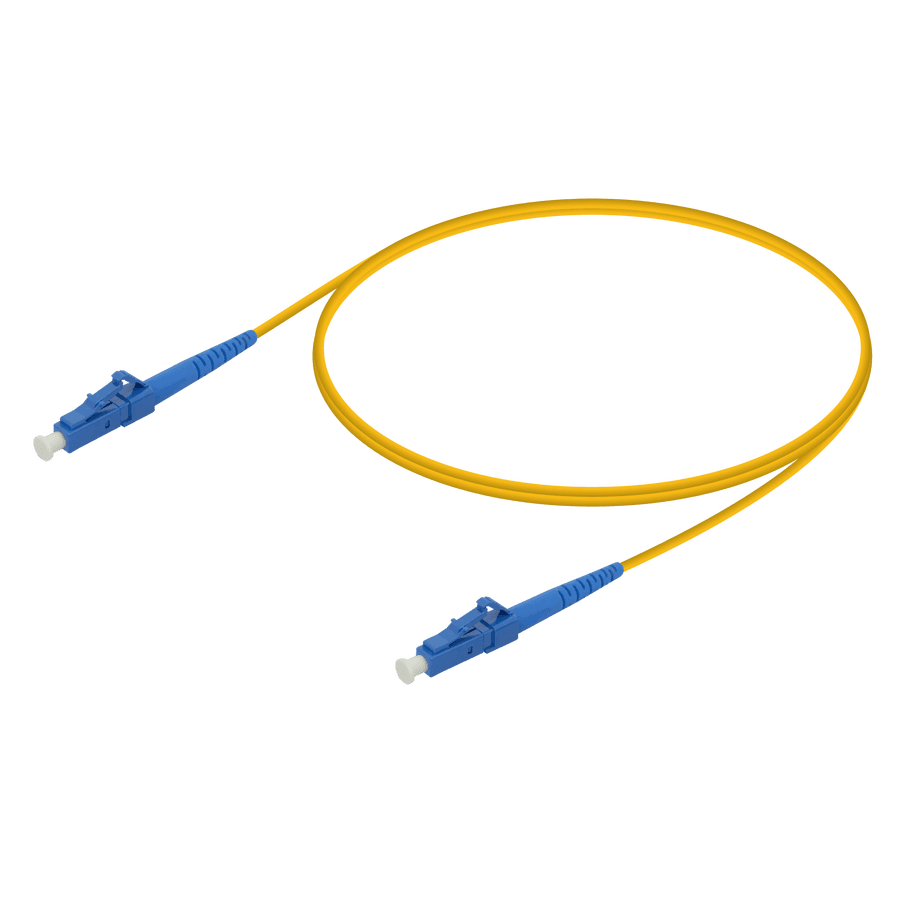

LC/UPC-LC/UPC | Single Mode G657.A2 Simplex Patch Cord | 2.0mm
LC/UPC-LC/UPC | Single Mode G657.A2 Simplex Patch Cord | 2.0mm
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
LC/UPC-LC/UPC | Single Mode G657.A2 Simplex Patch Cord | 2.0mm Features LC (Lucent Connector) type connectors have 1.25 mm diameter ferule structure. The abbreviations PC, UPC and APC are definitions expressing the physical differences of the surface geometries of the connectors on the ceramic ferrules. UPC (Ultra Physical Contact) indicates that the ceramic ferule structure on the connector has an extra polished flat structure; APC (Angled Physical Contact) indicates that the ceramic ferrule structure on the connector has an extra polished 8 ° angle structure. 2.0 mm diameter patch cord cables are manufactured with ITU-T G657.A2 bend sensitive fibers, then assembled at both two ends with LC type connectors. Specifications Insertion Loss (IEC 61300-3-4-Method-B): ≤ 0.30 dB Return Loss (IEC 61300-3-6-Method-B): ≥ 50 dB (UPC), ≥ 60 dB (APC) Durability: <0,1 dB typical change for >500 matings Flammability: UL94 V-0 Operating Temperature: -40 ° C to +85 ° C Connector End Face Geometry: IEC 61755-3 LC Connector Compliance: IEC 61754-20, TIA 604-10-A, RoHS SC Connector Compliance: IEC 61754-4, TIA 604-3, RoHS FC Connector Compliance: IEC 61754-13, TIA 604-4-A, RoHS ST Connector Compliance: IEC 61754-2, TIA 604-2, RoHS LSH Connector Compliance: IEC 61754 - 15, TIA 604 - 16, RoHS Weight (Kg) 0.10000000149011612 Fiber Optic Patch Cord | Simplex Single Mode | Datasheet
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
