S179 Fusion Splicer Kit

Descripción

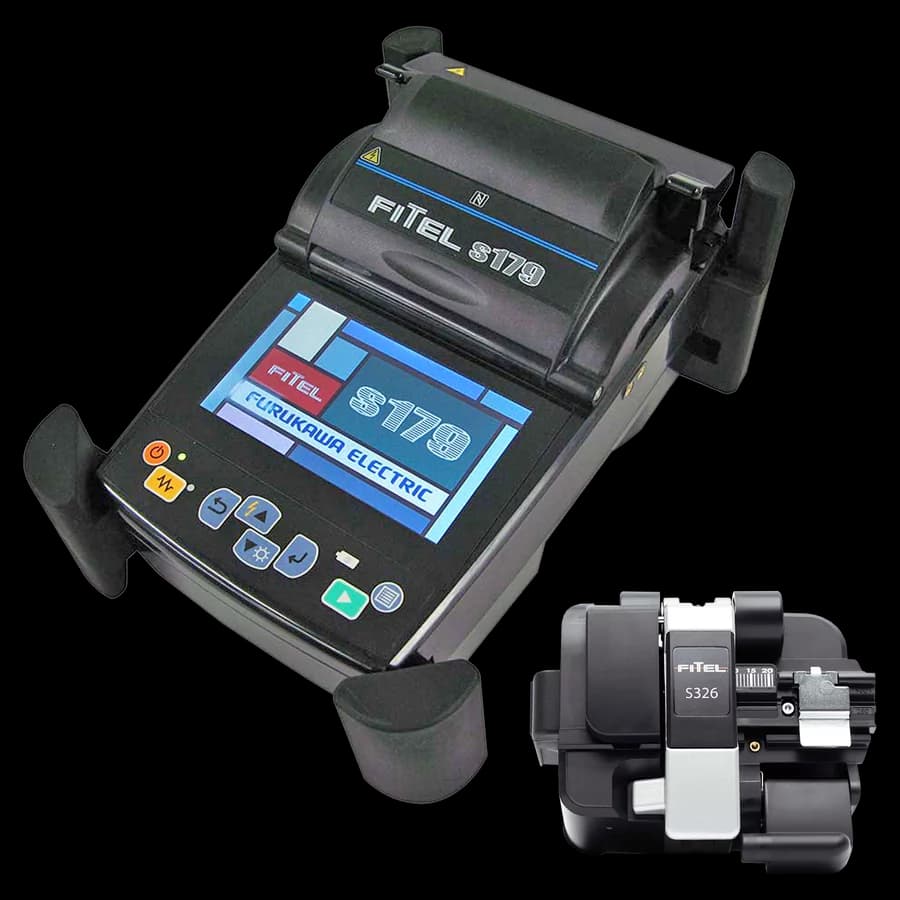

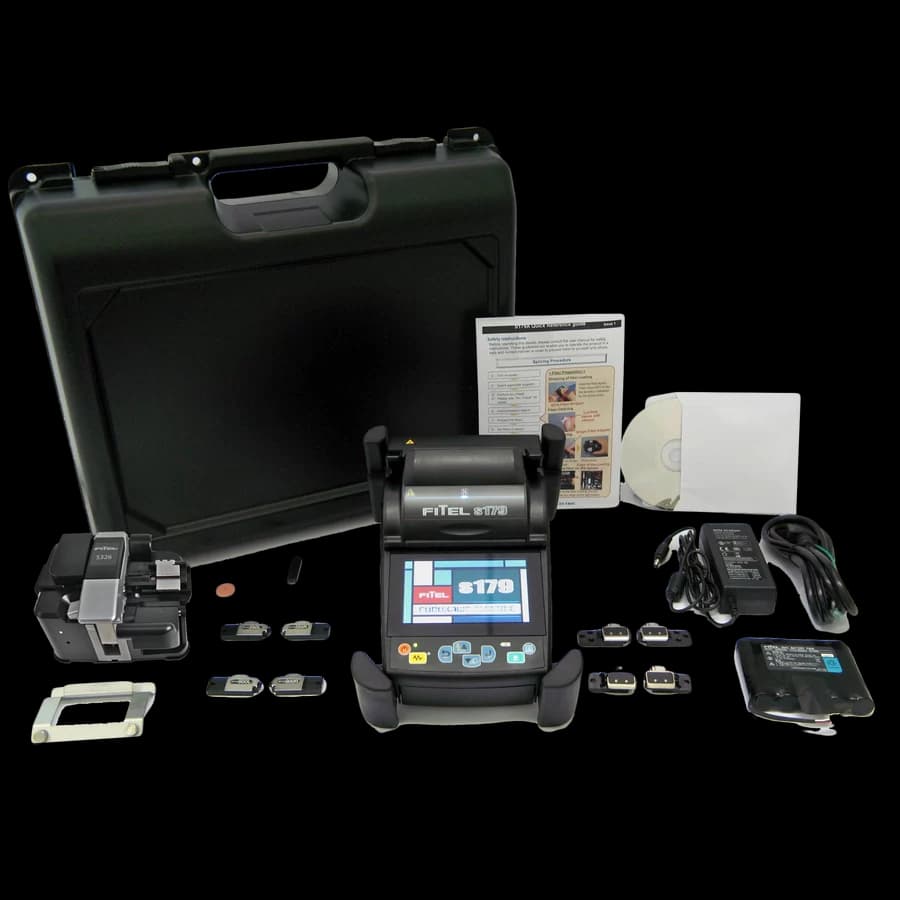

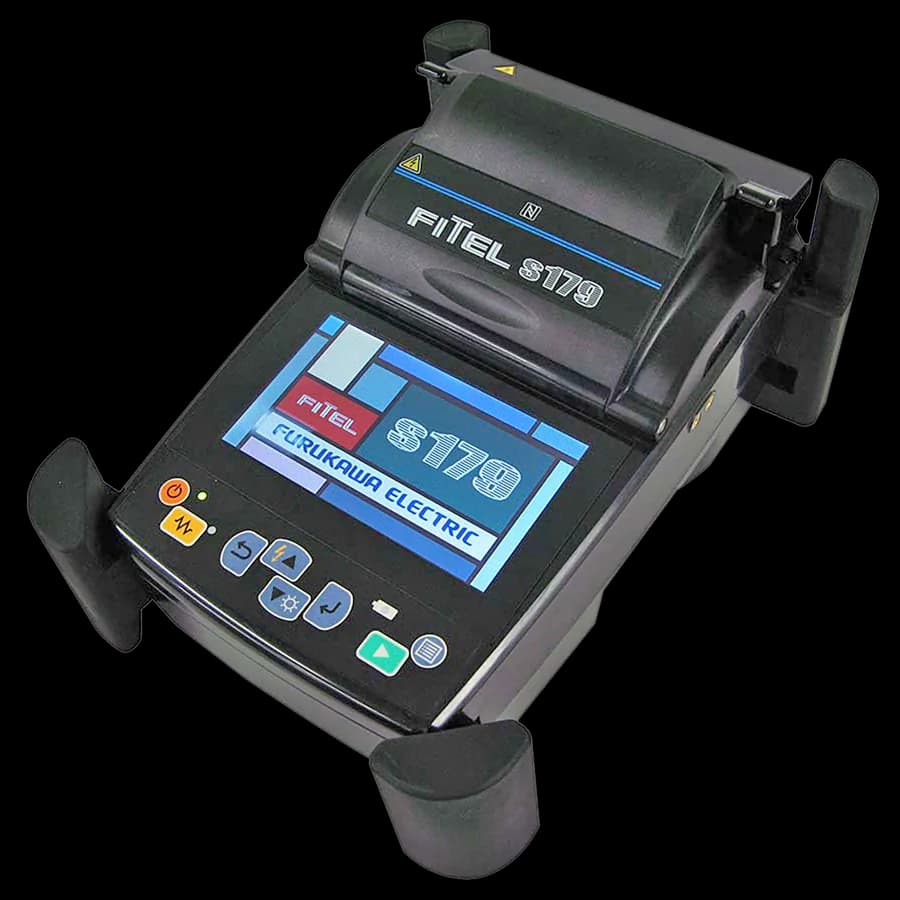

S179 Fusion Splicer Kit Features The FITEL S179 Core Alignment Fusion Splicer offers powerful performance delivering fast, low-loss and reliable optical fiber splicing even under harsh environmental conditions. By combining speed, precision, durability, portability and state of the art communication methods all in one unit, this fusion splicing machine is suitable for rapid network deployment and production assembly lines. The FITEL S179 fusion splicer is completely suitable for use with all Metro, LAN and FTTx fibres, including ultra bend-insensitive fibers. Embedded NFC (Near Field Communication), Smartphone control and data management function makes the S179 one of the most advanced and user-friendly fusion splicing machines from FITEL. Features High Speen Splicing and Heating 6 Seconds splicing 9 Seconds heating Easy 50° heating SOC connectors compatibility High propulsion motor 200 splicing cycles in one charge Usability Bigger and Brighter 4.3" Screen Superior fiber profile image Touch Screen and Keypad control. One touch Zoom. Easy camera switch 3 Uppers LEDs and 1 Lower LED Wider Opening angle Design and Built Ruggedized design IK07 Drop resistant 76 cm 5 Axis Water resistant IP x2 Dust resistant IP 5x Improved inclination by 2.5 Wider splicing chamber Easy maintenance Removable V groove Removable corner pads Easy grasp, great portability Connectivity USB 2.0 port USB Dongle Advanced Security via NFC Bluetooth pairing and control Fusion Splicing S179 - PRODUCT SPECIFICATIONS Applicable Fibers SM, MM, DSF, NZD, EDF, BIF/UBIF (Bend insensitive fiber) Cladding Diameter 80~150 µm Coating Diameter 100~3000 µm Fiber Cleave Length 5~16 mm Average Splice Loss SM: 0.02 dB, MM: 0.01 dB, DSF: 0.04 dB, NZD: 0.04 dB Splice Time 6 seconds (semi-auto mode) 9 seconds (regular mode) Heat Time 9 sec (60mm, Tyco SMVOUV1120-1, coating diameter 250-900 µm, Power mode)5 13 sec (60mm, FITEL S921, 250 µm, Power mode), 15 sec (60mm, FITEL S921, 900 µm, Power mode) Splice Programs Max. 300 Automatic Splicing Selection Available Heat Programs Max. 100 Automatic Heating Start Available Applicable Sleeves 20/40/60 mm Fiber Holder Tight holder (Loose tube applicable) or Removable Fiber Holder System Tension Test 1.96 N Splice Return Loss 60 dB or greater Attenuation Splice Function Intentional high splice loss of 0.1 dB to 15 dB (0.1 dB step) can be made for an inline fixed attenuator Fiber Image Magnification 278X, 556X Splice Memory 20 000 Image Capture Capacity Last 100 images to be automatically captured + Up to 100 images to be stored permanently Dimension 138W × 211D × 114H mm (not including shock absorber) 170W × 238D × 122H mm (including shock absorber) Weight 1.6kg (without battery) 1.9 kg (with battery) Monitor 4.3 ” wide colour LCD monitor with touch screen Data Output USB ver.2.0 mini B Battery Capacity Typical 200 splice/heat cycles *6 Typical 230 splice/heat cycles, 90 sec/cycle Altitude up to 5,000 m Wind Protection up to 15 m/s. Operating Temperature -10 to +50°C (without excessive humidity) Storage Temperature -40 to +60°C (without excessive humidity) Humidity 0 to 95% RH (non-condensing) Power Source AC Input 100 to 240 V (50/60 Hz), DC Input 11 to 24 V without any change of hardware Fitel S179 Fusion Splicer | Datasheet

Especificaciones técnicas

Applicable Fibers

SM, MM, DSF, NZD, EDF, BIF/UBIF (Bend insensitive fiber)

Cladding Diameter

80~150 µm

Coating Diameter

100~3000 µm

Fiber Cleave Length

5~16 mm

Average Splice Loss

SM: 0.02 dB, MM: 0.01 dB, DSF: 0.04 dB, NZD: 0.04 dB

Splice Time

6 seconds (semi-auto mode)

Heat Time

9 sec (60mm, Tyco SMVOUV1120-1, coating diameter 250-900 µm, Power mode)5

Splice Programs

Max. 300

Automatic Splicing Selection

Available

Heat Programs

Max. 100

Automatic Heating Start

Available

Applicable Sleeves

20/40/60 mm

Fiber Holder

Tight holder (Loose tube applicable) or Removable Fiber Holder System

Tension Test

1.96 N

Splice Return Loss

60 dB or greater

Attenuation Splice Function

Intentional high splice loss of 0.1 dB to 15 dB (0.1 dB step) can be made for an inline fixed attenuator

Fiber Image Magnification

278X, 556X

Splice Memory

20 000

Image Capture Capacity

Last 100 images to be automatically captured + Up to 100 images to be stored permanently

Dimension

138W × 211D × 114H mm (not including shock absorber)

Weight

1.6kg (without battery)

Monitor

4.3 ” wide colour LCD monitor with touch screen

Data Output

USB ver.2.0 mini B

Battery Capacity

Typical 200 splice/heat cycles *6

Altitude

up to 5,000 m

Wind Protection

up to 15 m/s.

Operating Temperature

-10 to +50°C (without excessive humidity)

Storage Temperature

-40 to +60°C (without excessive humidity)

Humidity

0 to 95% RH (non-condensing)

Power Source

AC Input 100 to 240 V (50/60 Hz), DC Input 11 to 24 V without any change of hardware
