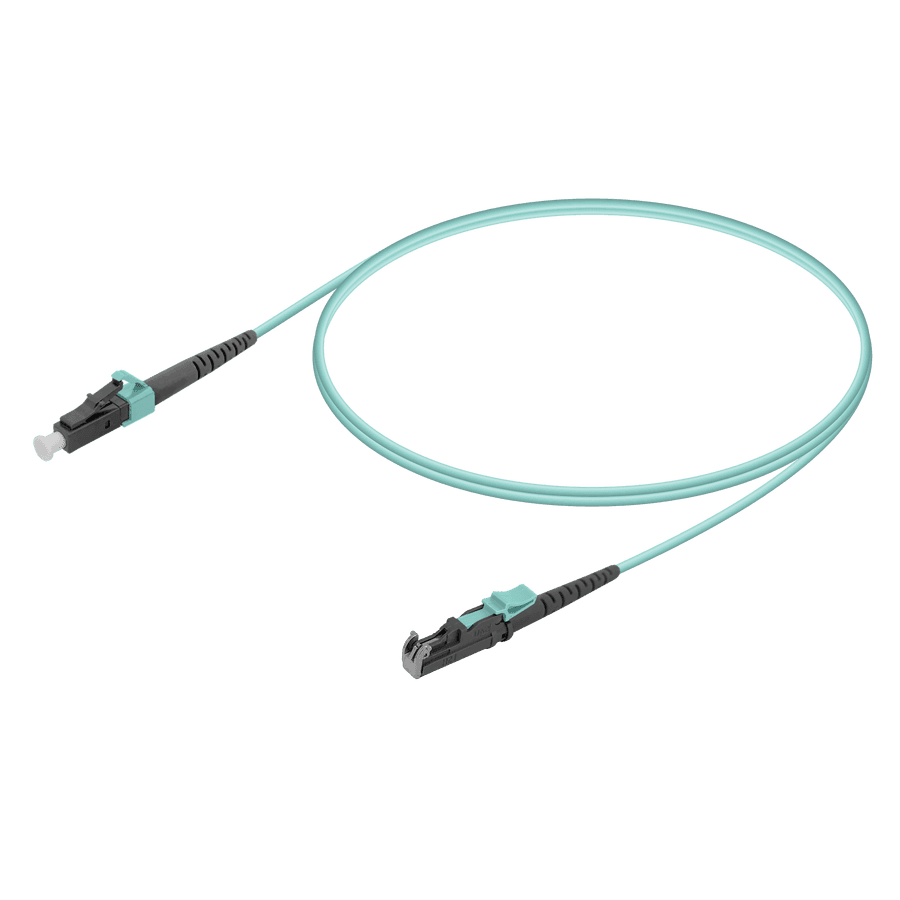

LC/UPC-LSH/UPC | Multi Mode G651.OM3 Simplex Patch Cord | 2.0mm
LC/UPC-LSH/UPC | Multi Mode G651.OM3 Simplex Patch Cord | 2.0mm
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
LC/UPC-LSH/UPC | Multi Mode G651.OM3 Simplex Patch Cord | 2.0mm Features LC (Lucent Connector) type connectors have 2.5 mm diameter ferule structure; LSH (E2000) type connectors are designed with a protection cover for the ferrule. The abbreviations PC, UPC and APC are definitions expressing the physical differences of the surface geometries of the connectors on the ceramic ferrules. UPC (Ultra Physical Contact) indicates that the ceramic ferule structure on the connector has an extra polished flat structure; APC (Angled Physical Contact) indicates that the ceramic ferrule structure on the connector has an extra polished 8 ° angle structure. 2.0 mm diameter patch cord cables are manufactured with ITU-T G651.OM3 bend sensitive fibers, then assembled at one end with LC type; other end with LSH type connectors. The LSH connector is compatible with E2000 connector standards. Specifications Insertion Loss (IEC 61300-3-4-Method-B): ≤ 0.30 dB Return Loss (IEC 61300-3-6-Method-B): ≥ 35 dB Durability: <0,1 dB typical change for >500 matings Flammability: UL94 V-0 Operating Temperature: -40 ° C to +85 ° C Connector End Face Geometry: IEC 61755-3 LC Connector Compliance: IEC 61754-20, TIA 604-10-A, RoHS SC Connector Compliance: IEC 61754-4, TIA 604-3, RoHS FC Connector Compliance: IEC 61754-13, TIA 604-4-A, RoHS ST Connector Compliance: IEC 61754-2, TIA 604-2, RoHS LSH Connector Compliance: IEC 61754 - 15, TIA 604 - 16, RoHS Weight (Kg) 0.10000000149011612 Fiber Optic Patch Cord | Simplex Multi Mode | Datasheet
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
