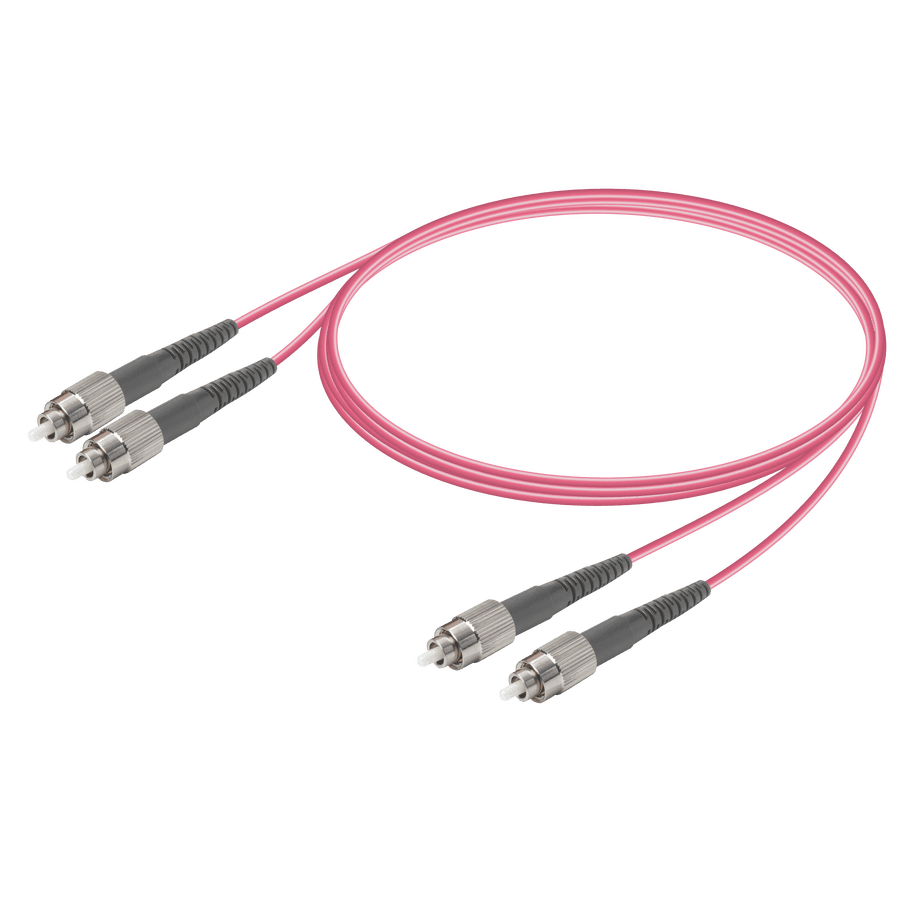

FC/UPC-FC/UPC | Multi Mode G651.OM4 Duplex Patch Cord | 2.0x4.1mm
FC/UPC-FC/UPC | Multi Mode G651.OM4 Duplex Patch Cord | 2.0x4.1mm
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
FC/UPC-FC/UPC | Multi Mode G651.OM4 Duplex Patch Cord | 2.0x4.1mm Features FC type connectors have 2.5 mm diameter ferule structure. The abbreviations PC, UPC and APC are definitions expressing the physical differences of the surface geometries of the connectors on the ceramic ferrules. UPC (Ultra Physical Contact) indicates that the ceramic ferule structure on the connector has an extra polished flat structure; APC (Angled Physical Contact) indicates that the ceramic ferrule structure on the connector has an extra polished 8 ° angle structure. 2.0x4.1 duplex patch cord cables are manufactured with ITU-T G651.OM4 bend sensitive fibers, then assembled at both two ends with FC type connectors. Specifications Insertion Loss (IEC 61300-3-4-Method-B): ≤ 0.30 dB Return Loss (IEC 61300-3-6-Method-B): ≥ 35 dB Durability: <0,1 dB typical change for >500 matings Flammability: UL94 V-0 Operating Temperature: -40 ° C to +85 ° C Connector End Face Geometry: IEC 61755-3 LC Connector Compliance: IEC 61754-20, TIA 604-10-A, RoHS SC Connector Compliance: IEC 61754-4, TIA 604-3, RoHS FC Connector Compliance: IEC 61754-13, TIA 604-4-A, RoHS ST Connector Compliance: IEC 61754-2, TIA 604-2, RoHS LSH Connector Compliance: IEC 61754 - 15, TIA 604 - 16, RoHS Weight (Kg) 0.20000000298023224 Fiber Optic Patch Cord | Duplex Multi Mode | Datasheet
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
