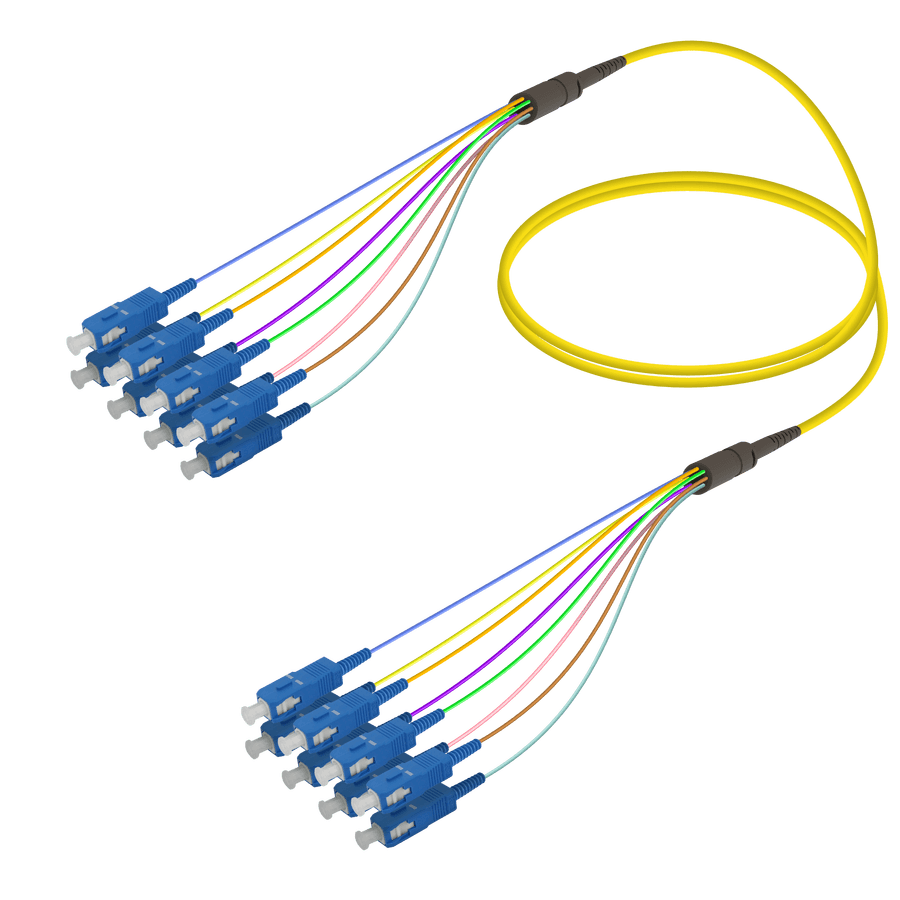

SC/UPC-SC/UPC | 8 Fibers Fanout | Single Mode G657.A2 | 3.0/0.9mm
SC/UPC-SC/UPC | 8 Fibers Fanout | Single Mode G657.A2 | 3.0/0.9mm
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
SC/UPC-SC/UPC | 8 Fibers Fanout | Single Mode G657.A2 | 3.0/0.9mm Features SC (Square Connector) type connectors have 2.5 mm diameter ferule structure. The abbreviations PC, UPC and APC are definitions expressing the physical differences of the surface geometries of the connectors on the ceramic ferrules. UPC (Ultra Physical Contact) indicates that the ceramic ferule structure on the connector has an extra polished flat structure; APC (Angled Physical Contact) indicates that the ceramic ferrule structure on the connector has an extra polished 8 ° angle structure. 3.0 mm diameter multi fiber cables that consist of 8 fibers (each diameter is 250 micron) that are manufactured with ITU-T G657.A2 bend sensitive fibers. All fibers tubed (each diameter is 0.9 mm) with use divider that a special solution, in both sides, then assembled at both end with SC type connectors. Specifications Insertion Loss (IEC 61300-3-4-Method-B): ≤ 0.30 dB Return Loss (IEC 61300-3-6-Method-B): ≥ 50 dB (UPC), ≥ 60 dB (APC) Durability: <0,1 dB typical change for >500 matings Flammability: UL94 V-0 Operating Temperature: -40 ° C to +85 ° C Connector End Face Geometry: IEC 61755-3 LC Connector Compliance: IEC 61754-20, TIA 604-10-A, RoHS SC Connector Compliance: IEC 61754-4, TIA 604-3, RoHS FC Connector Compliance: IEC 61754-13, TIA 604-4-A, RoHS ST Connector Compliance: IEC 61754-2, TIA 604-2, RoHS LSH Connector Compliance: IEC 61754 - 15, TIA 604 - 16, RoHS Fiber Optic Fanout | 8 Fibers Single Mode 0.9mm | Datasheet
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
