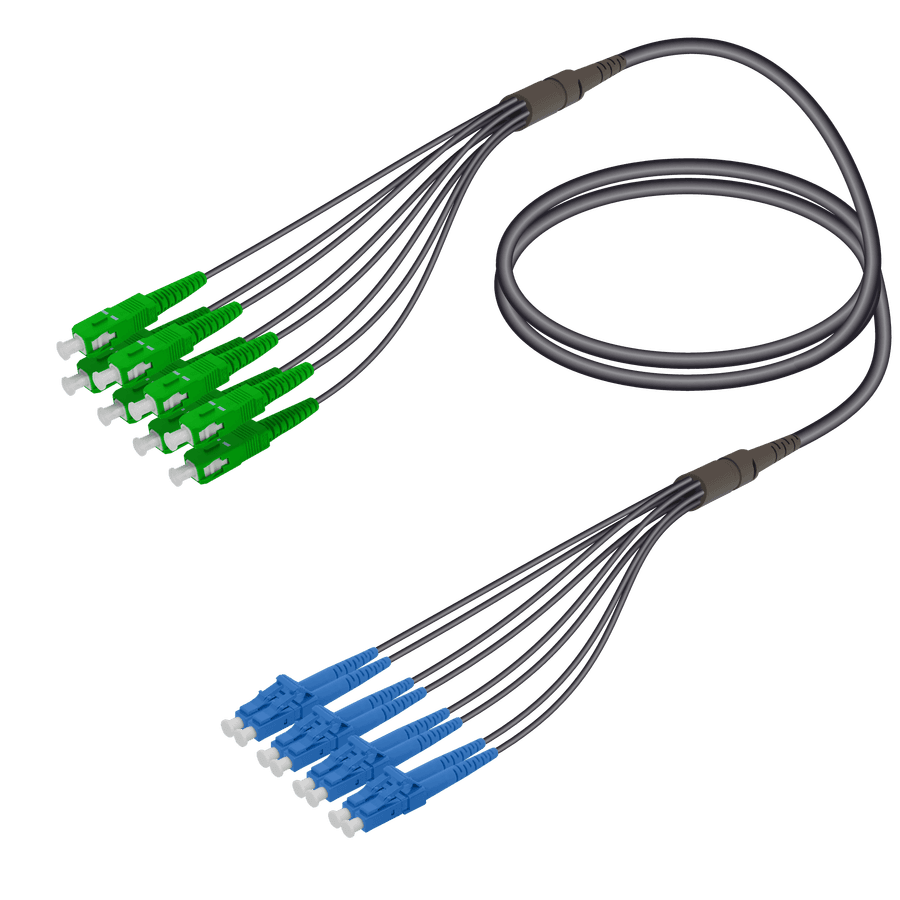

SC/APC-LC/UPC | 8 Fibers Universal Fanout | Single Mode G657.A2 | 4.8/1.8mm
SC/APC-LC/UPC | 8 Fibers Universal Fanout | Single Mode G657.A2 | 4.8/1.8mm
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
SC/APC-LC/UPC | 8 Fibers Universal Fanout | Single Mode G657.A2 | 4.8/1.8mm Features This universal (indoor/outdoor) fanout assembly has 8 green SC/APC connectors on one side and 8 blue LC/UPC connectors on the other, and they are connected by 8 single-mode A2 1.8mm fiber cords that have 8 fibers with 9µm core diameter and 125µm cladding diameter, and they are bonded within a 4.8mm main cord. SC means "Square Connector" and it has 2.5mm diameter ceramic ferrule and LC means "Lucent Connector" and it has 1.25mm diameter ceramic ferrule. The connector ferrule on one side is UPC, which means its surface is ultra polished for ultra physical contact, and the other ferrule is APC, which means it is polished in an 8° angle for a high precision angled physical contact. Specifications Insertion Loss (IEC 61300-3-4-Method-B): ≤ 0.30 dB Return Loss (IEC 61300-3-6-Method-B): ≥ 50 dB (UPC), ≥ 60 dB (APC) Durability: ≥ 1000 mating cycles Flammability: UL94 V-0 Operating Temperature: -40 ° C to +85 ° C Connector End Face Geometry: IEC 61755-3 LC Connector Compliance: IEC 61754-20, TIA 604-10-A, RoHS SC Connector Compliance: IEC 61754-4, TIA 604-3, RoHS FC Connector Compliance: IEC 61754-13, TIA 604-4-A, RoHS ST Connector Compliance: IEC 61754-2, TIA 604-2, RoHS E2000 Connector Compliance: IEC 61754 - 15, TIA 604 - 16, RoHS Fiber Optic Universal Fanout | 8 Fibers Single Mode 1.8mm | Datasheet
