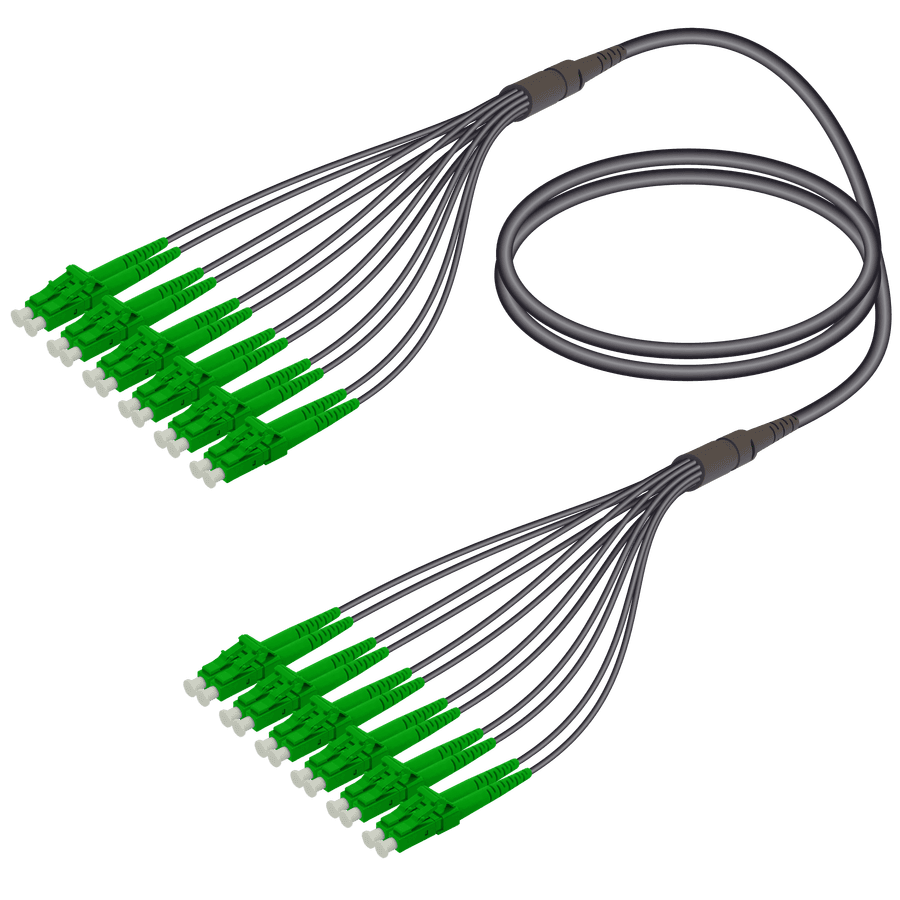

LC/APC-LC/APC | 12 Fibers Universal Fanout | Single Mode G657.A2 | 4.8/1.8mm
LC/APC-LC/APC | 12 Fibers Universal Fanout | Single Mode G657.A2 | 4.8/1.8mm
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
LC/APC-LC/APC | 12 Fibers Universal Fanout | Single Mode G657.A2 | 4.8/1.8mm Features This universal (indoor/outdoor) fanout assembly has 12 green LC/APC connectors on both sides, and they are connected by 12 single-mode A2 1.8mm fiber cords that have 12 fibers with 9µm core diameter and 125µm cladding diameter, and they are bonded within a 4.8mm main cord. LC means "Lucent Connector" and it has 1.25mm diameter ceramic ferrule. The connector ferrule on one side is APC, which means it is polished in an 8° angle for a high precision angled physical contact. Specifications Insertion Loss (IEC 61300-3-4-Method-B): ≤ 0.30 dB Return Loss (IEC 61300-3-6-Method-B): ≥ 50 dB (UPC), ≥ 60 dB (APC) Durability: ≥ 1000 mating cycles Flammability: UL94 V-0 Operating Temperature: -40?C to +85?C Connector End Face Geometry: IEC 61755-3 LC Connector Compliance: IEC 61754-20, TIA 604-10-A, RoHS SC Connector Compliance: IEC 61754-4, TIA 604-3, RoHS FC Connector Compliance: IEC 61754?13, TIA 604?4?A, RoHS ST Connector Compliance: IEC 61754?2, TIA 604?2, RoHS E2000 Connector Compliance: IEC 61754 - 15, TIA 604 - 16, RoHS Fiber Optic Universal Fanout | 12 Fibers Single Mode 1.8mm | Datasheet
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
