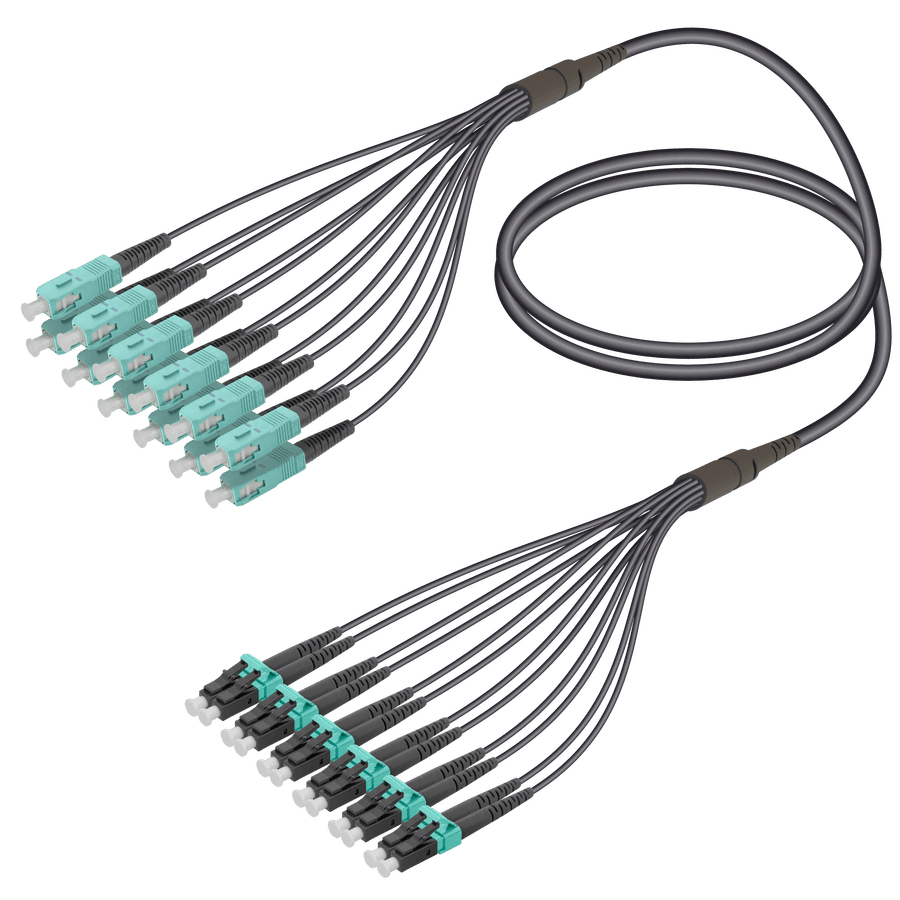

SC/UPC-LC/UPC | 12 Fibers Universal Fanout | Multi Mode G651.OM3 | 4.8/1.8mm
SC/UPC-LC/UPC | 12 Fibers Universal Fanout | Multi Mode G651.OM3 | 4.8/1.8mm
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
SC/UPC-LC/UPC | 12 Fibers Universal Fanout | Multi Mode G651.OM3 | 4.8/1.8mm Features This universal (indoor/outdoor) fanout assembly has 12 aqua SC/UPC connectors on one side and 12 aqua LC/UPC connectors on the other, and they are connected by 12 multi-mode OM3 1.8mm fiber cords that have 12 fibers with 50µm core diameter and 125µm cladding diameter, and they are bonded within a 4.8mm main cord. SC means "Square Connector" and it has 2.5mm diameter ceramic ferrule. LC means "Lucent Connector" and it has 1.25mm diameter ceramic ferrule. The connector ferrule on both sides is UPC, which means its surface is ultra polished for ultra physical contact. Specifications Insertion Loss (IEC 61300-3-4-Method-B): ≤ 0.30 dB Return Loss (IEC 61300-3-6-Method-B): ≥ 50 dB (UPC), ≥ 60 dB (APC) Durability: ≥ 1000 mating cycles Flammability: UL94 V-0 Operating Temperature: -40 ° C to +85 ° C Connector End Face Geometry: IEC 61755-3 LC Connector Compliance: IEC 61754-20, TIA 604-10-A, RoHS SC Connector Compliance: IEC 61754-4, TIA 604-3, RoHS FC Connector Compliance: IEC 61754-13, TIA 604-4-A, RoHS ST Connector Compliance: IEC 61754-2, TIA 604-2, RoHS E2000 Connector Compliance: IEC 61754 - 15, TIA 604 - 16, RoHS Fiber Optic Universal Fanout | 12 Fibers Multi Mode 1.8mm | Datasheet
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
