MTP Elite Male-Male Patch Cord | Base-24 | Multi-Mode G651.OM3 | 3.0mm

Descripción

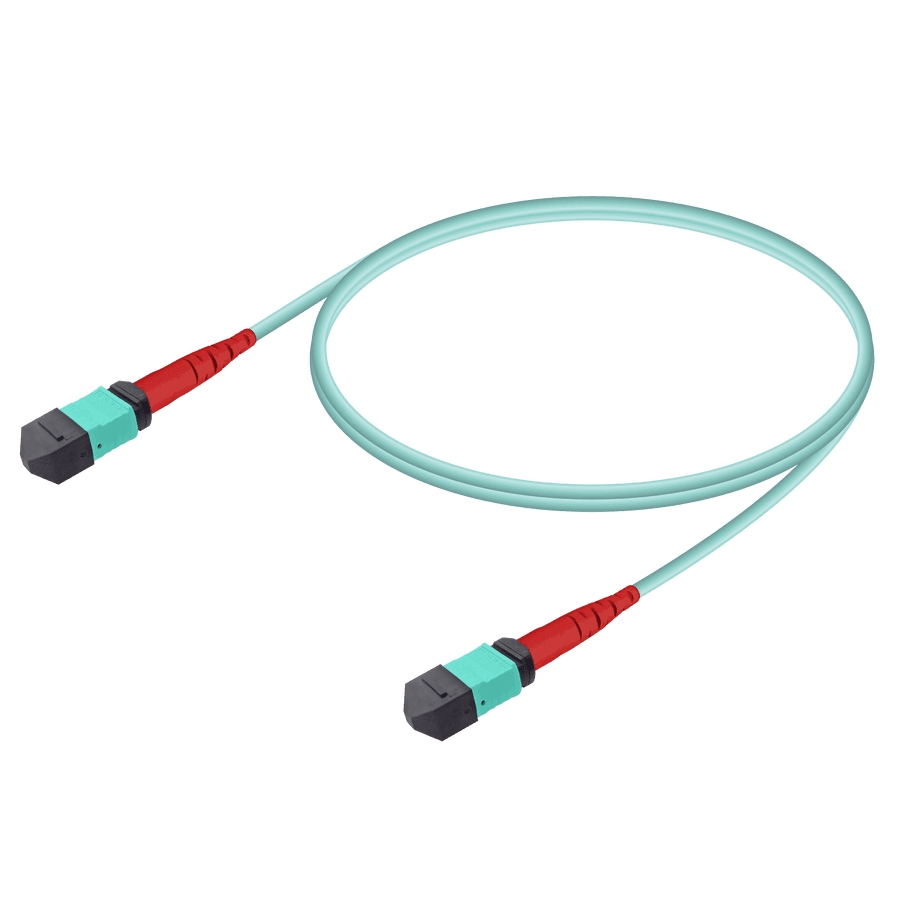

MTP Elite Male-Male Patch Cord | Base-24 | Multi-Mode G651.OM3 | 3.0mm Features This MTP to MTP patch cord has one Male Base-24 MTP connector on each side, and they are connected by a Multi -mode OM3 fiber cord that has 24 fibers with 50µm core diameter and 125µm cladding diameter. The Elite MTP connector is a high performance version of the MPO (Multi-fiber Push On) connector and it is designed for better mechanical and optical performance. MTP connectors can terminate 8, 12 or 24 fibers in a single connector, and provide a great 'space advantage' especially in high density data centers. MTP Male connectors have two alignment pins; and MTP Female connectors have two pin slots in response. Features Lower Insertion Loss & Higher Performance Complied to ANSI/TIA-568-C.3, IEEE 802.3ba and adheres to ANSI/TIA-942 Low IL and stable signal transmission ensuring your network safety High-quality MTP connectors and guaranteed by 3D interferometer 100% factory tested Applications QSFP+ to QSFP+ Connection QSFP to QSFP Connection 40GE to 40GE Interconnection PSM4 to PSM4 Connection 4x25G to 4x25G connection 400G to 400G Interconnection Specifications Insertion Loss (IEC 61300-3-4-Method-B) Average: 0.10 dB, Max: 0.35 dB Return Loss (IEC 61300-3-6-Method-B) ≥ 60 dB Durability >100 mating cycles Flammability UL94 V-0 Operating Temperature -10°C to +70°C Cable Diameter 3.0 mm MTP Connector Compliance IEC 61754-7, TIA 604-5, RoHS Fiber Structure for Transceiver Modules TRANSCEIVER FORM FACTOR CONNECTOR FIBER COUNT FIBER TYPE 100G CFP/CFP2/CPAK SR10 / XSR10 24F MTP (MPO) 20 OM3/OM4 SR4 CPAK 12F MTP (MPO) 12 OM3/OM4 SR4 / XSR4 QSFP28 12F MTP (MPO) 8 OM3/OM4 PSM4 QSFP28 12F MTP (MPO) 8 OS2 CWDM4 QSFP28 LC 2 OS2 LRL4 CFP2/CPAK/QSFP28 LC 2 OS2 SWDM4 QSFP28 LC 2 OM3/OM4 SR-BD QSFP28 LC 2 OM3/OM4 40G SR4 QSFP+ 12F MTP (MPO) 8 OM3/OM4 40G-C/X/ESR4 QSFP+ 12F MTP (MPO) 8 OM3/OM4 BIDI QSFP+ LC 2 OM3/OM4 LX4 QSFP+ LC 2 OM3/OM4 UNIV QSFP+ LC 2 OM3/OM4, OS2 LR4 / LRL4 / IR4 QSFP+ LC 2 OS2 SWDM4 QSFP+ LC 2 OM3/OM4 PLRL4 / PLR4 QSFP+ 12F MTP (MPO) 8 OS2 4x10G IR / LR QSFP+ 12F MTP (MPO) 8 OS2 10x10G LR CPAK 24F MTP (MPO) 20 OS2 25G SR SFP28 LC 2 OM3/OM4 LR SFP28 LC 2 OM3/OM4 10G SR SFP+ LC 2 OM3/OM4 LR SFP+ LC 2 OM3/OM4 1G SX SFP LC 2 OM3/OM4 LX SFP LC 2 OS2 Weight (Kg) 0.20000000298023224 Fiber Optic MTP Patch Cord | Multi Mode | Datasheet 24F MTP to MTP Patch Cord | 3.0mm | Drawing

Especificaciones técnicas

Insertion Loss (IEC 61300-3-4-Method-B)

Average: 0.10 dB, Max: 0.35 dB

Return Loss (IEC 61300-3-6-Method-B)

≥ 60 dB

Durability

>100 mating cycles

Flammability

UL94 V-0

Operating Temperature

-10°C to +70°C

Cable Diameter

3.0 mm

MTP Connector Compliance

IEC 61754-7, TIA 604-5, RoHS

TRANSCEIVER

FORM FACTOR | CONNECTOR | FIBER COUNT | FIBER TYPE

100G

CFP/CFP2/CPAK | SR10 / XSR10 | 24F MTP (MPO) | 20 | OM3/OM4

SR4

CPAK | 12F MTP (MPO) | 12 | OM3/OM4

SR4 / XSR4

QSFP28 | 12F MTP (MPO) | 8 | OM3/OM4

PSM4

QSFP28 | 12F MTP (MPO) | 8 | OS2

CWDM4

QSFP28 | LC | 2 | OS2

LRL4

CFP2/CPAK/QSFP28 | LC | 2 | OS2

SWDM4

QSFP28 | LC | 2 | OM3/OM4

SR-BD

QSFP28 | LC | 2 | OM3/OM4

40G

SR4 | QSFP+ | 12F MTP (MPO) | 8 | OM3/OM4

40G-C/X/ESR4

QSFP+ | 12F MTP (MPO) | 8 | OM3/OM4

BIDI

QSFP+ | LC | 2 | OM3/OM4

LX4

QSFP+ | LC | 2 | OM3/OM4

UNIV

QSFP+ | LC | 2 | OM3/OM4, OS2

LR4 / LRL4 / IR4

QSFP+ | LC | 2 | OS2

SWDM4

QSFP+ | LC | 2 | OM3/OM4

PLRL4 / PLR4

QSFP+ | 12F MTP (MPO) | 8 | OS2

4x10G

IR / LR | QSFP+ | 12F MTP (MPO) | 8 | OS2

10x10G

LR | CPAK | 24F MTP (MPO) | 20 | OS2

25G

SR | SFP28 | LC | 2 | OM3/OM4

LR

SFP28 | LC | 2 | OM3/OM4

10G

SR | SFP+ | LC | 2 | OM3/OM4

LR

SFP+ | LC | 2 | OM3/OM4

1G

SX | SFP | LC | 2 | OM3/OM4

LX

SFP | LC | 2 | OS2
