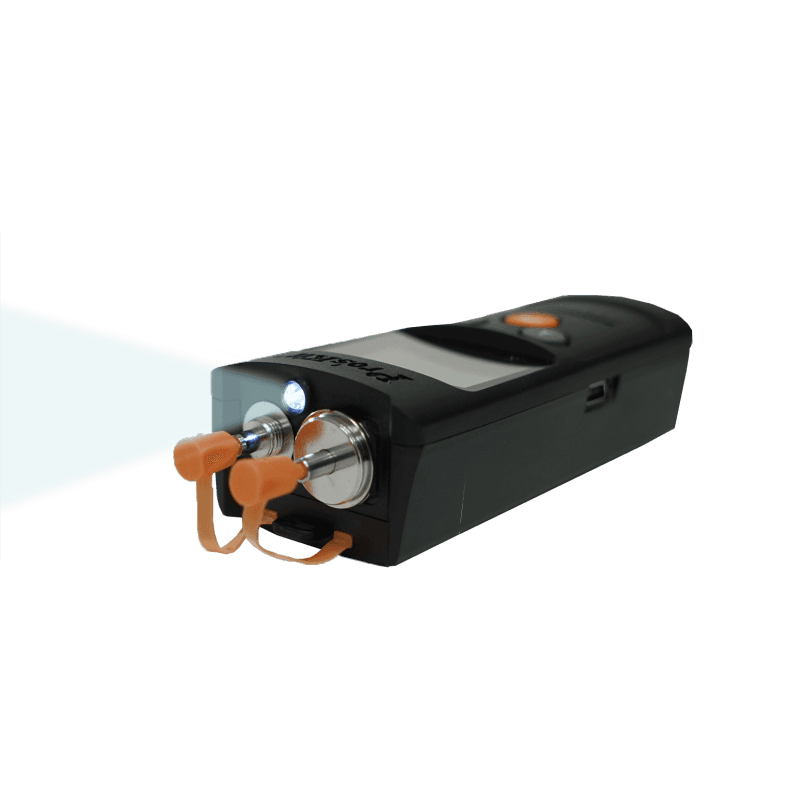

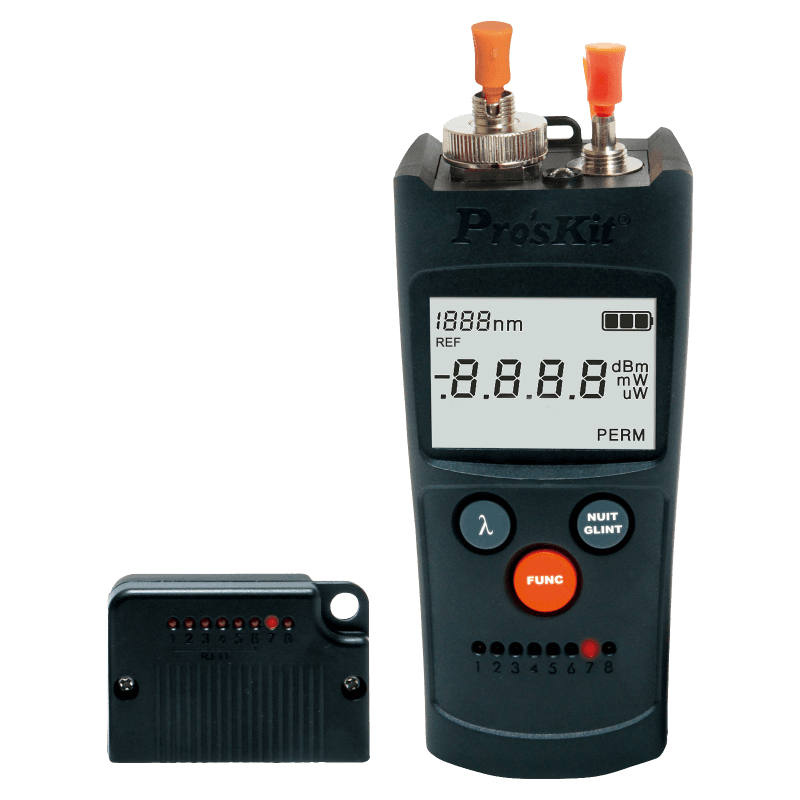

Multi-Functional Optical Power Meter | 4 in 1
Multi-Functional Optical Power Meter | 4 in 1
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
Multi-Functional Optical Power Meter | 4 in 1 Features MT-7602 test device can be used as an optical power meter, fiber optic visual fault locator, fiber cable tester and a flashlight. Functions Optical Power Meter Wide range of power measurement from 850nm to 1625nm Multiple mode:850nm/1300nm/ Single mode:1310nm/1490nm/1550nm/1625nm Power measurements in dBm,mW and uM Supports 2.5mm universal connectors (for ST/SC/FC) visual fault locator Easy to locate the breakpoint and bad connections in fiber optic cables Supports 2.5mm universal connectors (for ST/SC/FC) Both continuous and flashing modes available Fiber Cable Tester Pin to pin cable map indicator (1~8 LEDs) Tests two types of connectors(RJ-11&RJ-45) The maximum length measurement: 600M LED Flash Light Convenient for working in a dark environment Features 2 modes for long illumination and SOS signal Optical Power Meter Detector Type InGaAs Optical Connector ST/SC/FC & 2.5mm Universal Calibrated Wavelengths Multiple mode:850nm/1300nm/ Single mode:1310nm/1490nm/1550nm/1625nm Measurement Range +6 ~ -70 dBm Frequency Identification 270Hz, 1KHz, 2KHz Ref. Yes Accuracy ± 0.2 dB Power Measurement Linearity ±0.1 dB Display Resolution ±0.01 dB Power Display Units dBm、mW、μW Visual Fault Locator Output power ＜1mW Range 3~5 kM @SM Connector ST/SC/FC & 2.5mm Universal Laser safety rating Class 2 Wavelength 650nm±20nm Output modes Continuous (CW) 、2 Hz pulsed Reverse battery protection Yes Lan Cable Tester Connector RJ45 & RJ11 shared Cable UTP LAN cable(8P8C)、Telecom cable(6P2C/6P4C/6P6C) Measuring length Max. 600 meter Automatic Power Off 10 min.(Can be cancelled) Low Battery Warning Low battery energy Battery Life 100 hours (only OPM) Power source AA/LR6 1.5V×2 pcs Size 125×52×34 mm Fiber Optic Test Devices | Datasheet
Especificaciones técnicas
- Optical Power Meter
- Detector Type | InGaAs
- Optical Connector
- ST/SC/FC & 2.5mm Universal
- Calibrated Wavelengths
- Multiple mode:850nm/1300nm/ Single mode:1310nm/1490nm/1550nm/1625nm
- Measurement Range
- +6 ~ -70 dBm
- Frequency Identification
- 270Hz, 1KHz, 2KHz
- Ref.
- Yes
- Accuracy
- ± 0.2 dB
- Power Measurement Linearity
- ±0.1 dB
- Display Resolution
- ±0.01 dB
- Power Display Units
- dBm、mW、μW
- Visual Fault Locator
- Output power | ＜1mW
- Range
- 3~5 kM @SM
- Connector
- ST/SC/FC & 2.5mm Universal
- Laser safety rating
- Class 2
- Wavelength
- 650nm±20nm
- Output modes
- Continuous (CW) 、2 Hz pulsed
- Reverse battery protection
- Yes
- Lan Cable Tester
- Connector | RJ45 & RJ11 shared
- Cable
- UTP LAN cable(8P8C)、Telecom cable(6P2C/6P4C/6P6C)
- Measuring length Max.
- 600 meter
- Automatic Power Off
- 10 min.(Can be cancelled)
- Low Battery Warning
- Low battery energy
- Battery Life
- 100 hours (only OPM)
- Power source
- AA/LR6 1.5V×2 pcs
- Size
- 125×52×34 mm
