Male MTP Elite to LC/APC Universal Fanout | Base-8 | Single Mode G657.A2 | 4.8/1.8mm
Male MTP Elite to LC/APC Universal Fanout | Base-8 | Single Mode G657.A2 | 4.8/1.8mm
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

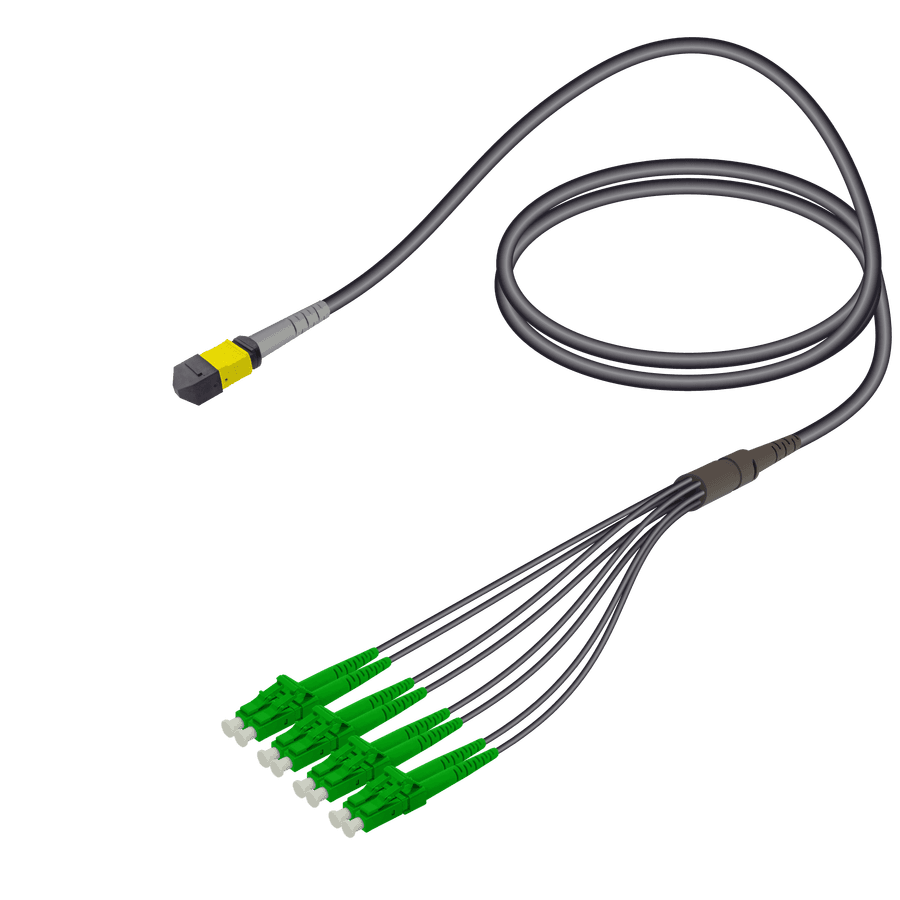

Male MTP Elite to LC/APC Universal Fanout | Base-8 | Single Mode G657.A2 | 4.8/1.8mm Features This MTP to LC universal (indoor/outdoor) fanout assembly has one Male Base-8 MTP connector on one side and 4 LC/APC Duplex connectors on the other, and they are connected by eight 1.8mm single-mode A2 fiber cords that have 8 fibers with 9µm core diameter and 125µm cladding diameter, and they are bonded within a 4.8mm main cord. LC means "Lucent Connector" and it has 1.25mm diameter ceramic ferrule. The APC ferrule means it is polished in an 8° angle for a high precision angled physical contact. The Elite MTP connector is a high performance version of the MPO (Multi-fiber Push On) connector and it is designed for better mechanical and optical performance. MTP connectors can terminate 8, 12 or 24 fibers in a single connector, and provide a great 'space advantage' especially in high density data centers. MTP Male connectors have two alignment pins; and MTP Female connectors have two pin slots in response. Features Lower Insertion Loss & Higher Performance Complied to ANSI/TIA-568-C.3, IEEE 802.3ba and adheres to ANSI/TIA-942 Low IL and stable signal transmission ensuring your network safety High-quality MTP connectors and guaranteed by 3D interferometer 100% factory tested Applications QSFP to SFP+ Connection QSFP+ to SFP+ Connection PSM4 to SFP+ Connection 40GE to 10GE Interconnection 400G to 100G Interconnection Specifications Insertion Loss (IEC 61300-3-4-Method-B) MTP ≤0,35dB (avg: 0,1dB); LC ≤0,3dB Return Loss (IEC 61300-3-6-Method-B) MTP : ≥60dB; LC: UPC≥50dB APC≥60dB Durability >100 mating cycles Flammability UL94 V-0 Operating Temperature -10?C to +70?C Cable Diameter 4.8 mm MTP Connector Compliance IEC 61754-7, TIA 604-5, RoHS LC Connector Compliance IEC 61754-20, TIA 604-10-A, RoHS Fiber Structure for Transceiver Modules TRANSCEIVER FORM FACTOR CONNECTOR FIBER COUNT FIBER TYPE 100G CFP/CFP2/CPAK SR10 / XSR10 24F MTP (MPO) 20 OM3/OM4 SR4 CPAK 12F MTP (MPO) 12 OM3/OM4 SR4 / XSR4 QSFP28 12F MTP (MPO) 8 OM3/OM4 PSM4 QSFP28 12F MTP (MPO) 8 OS2 CWDM4 QSFP28 LC 2 OS2 LRL4 CFP2/CPAK/QSFP28 LC 2 OS2 SWDM4 QSFP28 LC 2 OM3/OM4 SR-BD QSFP28 LC 2 OM3/OM4 40G SR4 QSFP+ 12F MTP (MPO) 8 OM3/OM4 40G-C/X/ESR4 QSFP+ 12F MTP (MPO) 8 OM3/OM4 BIDI QSFP+ LC 2 OM3/OM4 LX4 QSFP+ LC 2 OM3/OM4 UNIV QSFP+ LC 2 OM3/OM4, OS2 LR4 / LRL4 / IR4 QSFP+ LC 2 OS2 SWDM4 QSFP+ LC 2 OM3/OM4 PLRL4 / PLR4 QSFP+ 12F MTP (MPO) 8 OS2 4x10G IR / LR QSFP+ 12F MTP (MPO) 8 OS2 10x10G LR CPAK 24F MTP (MPO) 20 OS2 25G SR SFP28 LC 2 OM3/OM4 LR SFP28 LC 2 OM3/OM4 10G SR SFP+ LC 2 OM3/OM4 LR SFP+ LC 2 OM3/OM4 1G SX SFP LC 2 OM3/OM4 LX SFP LC 2 OS2 Weight (Kg) 0.30000001192092896 MTP/MPO to LC Universal Fanout | Base-8 Single Mode | Datasheet
Especificaciones técnicas
- Insertion Loss (IEC 61300-3-4-Method-B)
- MTP ≤0,35dB (avg: 0,1dB); LC ≤0,3dB
- Return Loss (IEC 61300-3-6-Method-B)
- MTP : ≥60dB; LC: UPC≥50dB APC≥60dB
- Durability
- >100 mating cycles
- Flammability
- UL94 V-0
- Operating Temperature
- -10?C to +70?C
- Cable Diameter
- 4.8 mm
- MTP Connector Compliance
- IEC 61754-7, TIA 604-5, RoHS
- LC Connector Compliance
- IEC 61754-20, TIA 604-10-A, RoHS
- TRANSCEIVER
- FORM FACTOR | CONNECTOR | FIBER COUNT | FIBER TYPE
- 100G
- CFP/CFP2/CPAK | SR10 / XSR10 | 24F MTP (MPO) | 20 | OM3/OM4
- SR4
- CPAK | 12F MTP (MPO) | 12 | OM3/OM4
- SR4 / XSR4
- QSFP28 | 12F MTP (MPO) | 8 | OM3/OM4
- PSM4
- QSFP28 | 12F MTP (MPO) | 8 | OS2
- CWDM4
- QSFP28 | LC | 2 | OS2
- LRL4
- CFP2/CPAK/QSFP28 | LC | 2 | OS2
- SWDM4
- QSFP28 | LC | 2 | OM3/OM4
- SR-BD
- QSFP28 | LC | 2 | OM3/OM4
- 40G
- SR4 | QSFP+ | 12F MTP (MPO) | 8 | OM3/OM4
- 40G-C/X/ESR4
- QSFP+ | 12F MTP (MPO) | 8 | OM3/OM4
- BIDI
- QSFP+ | LC | 2 | OM3/OM4
- LX4
- QSFP+ | LC | 2 | OM3/OM4
- UNIV
- QSFP+ | LC | 2 | OM3/OM4, OS2
- LR4 / LRL4 / IR4
- QSFP+ | LC | 2 | OS2
- SWDM4
- QSFP+ | LC | 2 | OM3/OM4
- PLRL4 / PLR4
- QSFP+ | 12F MTP (MPO) | 8 | OS2
- 4x10G
- IR / LR | QSFP+ | 12F MTP (MPO) | 8 | OS2
- 10x10G
- LR | CPAK | 24F MTP (MPO) | 20 | OS2
- 25G
- SR | SFP28 | LC | 2 | OM3/OM4
- LR
- SFP28 | LC | 2 | OM3/OM4
- 10G
- SR | SFP+ | LC | 2 | OM3/OM4
- LR
- SFP+ | LC | 2 | OM3/OM4
- 1G
- SX | SFP | LC | 2 | OM3/OM4
- LX
- SFP | LC | 2 | OS2
