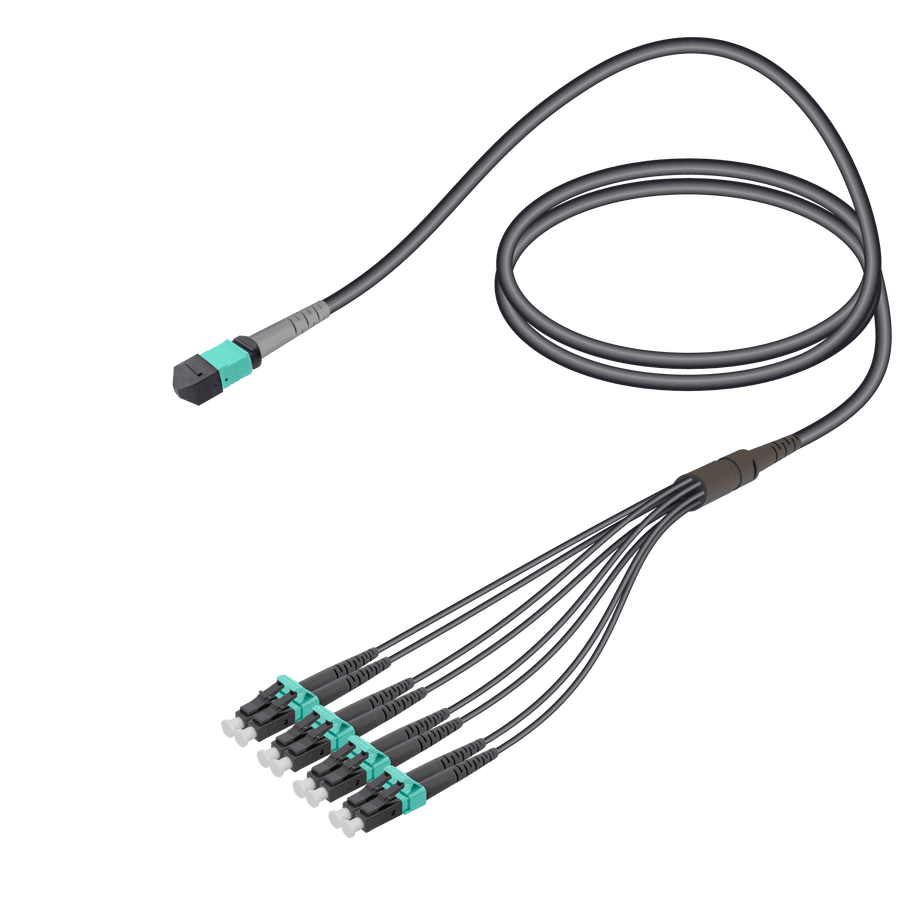

Female MTP Elite to LC/UPC Universal Fanout | Base-8 | Multi Mode G651.OM3 | 4.8/1.8mm
Female MTP Elite to LC/UPC Universal Fanout | Base-8 | Multi Mode G651.OM3 | 4.8/1.8mm
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
Female MTP Elite to LC/UPC Universal Fanout | Base-8 | Multi Mode G651.OM3 | 4.8/1.8mm Features This MTP to LC universal (indoor/outdoor) fanout assembly has one Female Base-8 MTP connector on one side and 4 LC/UPC Duplex connectors on the other, and they are connected by eight 1.8mm Multi -mode OM3 fiber cords that have 8 fibers with 50µm core diameter and 125µm cladding diameter, and they are bonded within a 4.8mm main cord. LC means "Lucent Connector" and it has 1.25mm diameter ceramic ferrule. The UPC ferrule means its surface is ultra polished for ultra physical contact. The Elite MTP connector is a high performance version of the MPO (Multi-fiber Push On) connector and it is designed for better mechanical and optical performance. MTP connectors can terminate 8, 12 or 24 fibers in a single connector, and provide a great 'space advantage' especially in high density data centers. MTP Male connectors have two alignment pins; and MTP Female connectors have two pin slots in response. Features Lower Insertion Loss & Higher Performance Complied to ANSI/TIA-568-C.3, IEEE 802.3ba and adheres to ANSI/TIA-942 Low IL and stable signal transmission ensuring your network safety High-quality MTP connectors and guaranteed by 3D interferometer 100% factory tested Applications QSFP to SFP+ Connection QSFP+ to SFP+ Connection PSM4 to SFP+ Connection 40GE to 10GE Interconnection 400G to 100G Interconnection Specifications Insertion Loss (IEC 61300-3-4-Method-B) MTP ≤0,35dB (avg: 0,1dB); LC ≤0,3dB Return Loss (IEC 61300-3-6-Method-B) MTP : ≥60dB; LC: UPC≥50dB APC≥60dB Durability >100 mating cycles Flammability UL94 V-0 Operating Temperature -10?C to +70?C Cable Diameter 4.8 mm MTP Connector Compliance IEC 61754-7, TIA 604-5, RoHS LC Connector Compliance IEC 61754-20, TIA 604-10-A, RoHS Fiber Structure for Transceiver Modules TRANSCEIVER FORM FACTOR CONNECTOR FIBER COUNT FIBER TYPE 100G CFP/CFP2/CPAK SR10 / XSR10 24F MTP (MPO) 20 OM3/OM4 SR4 CPAK 12F MTP (MPO) 12 OM3/OM4 SR4 / XSR4 QSFP28 12F MTP (MPO) 8 OM3/OM4 PSM4 QSFP28 12F MTP (MPO) 8 OS2 CWDM4 QSFP28 LC 2 OS2 LRL4 CFP2/CPAK/QSFP28 LC 2 OS2 SWDM4 QSFP28 LC 2 OM3/OM4 SR-BD QSFP28 LC 2 OM3/OM4 40G SR4 QSFP+ 12F MTP (MPO) 8 OM3/OM4 40G-C/X/ESR4 QSFP+ 12F MTP (MPO) 8 OM3/OM4 BIDI QSFP+ LC 2 OM3/OM4 LX4 QSFP+ LC 2 OM3/OM4 UNIV QSFP+ LC 2 OM3/OM4, OS2 LR4 / LRL4 / IR4 QSFP+ LC 2 OS2 SWDM4 QSFP+ LC 2 OM3/OM4 PLRL4 / PLR4 QSFP+ 12F MTP (MPO) 8 OS2 4x10G IR / LR QSFP+ 12F MTP (MPO) 8 OS2 10x10G LR CPAK 24F MTP (MPO) 20 OS2 25G SR SFP28 LC 2 OM3/OM4 LR SFP28 LC 2 OM3/OM4 10G SR SFP+ LC 2 OM3/OM4 LR SFP+ LC 2 OM3/OM4 1G SX SFP LC 2 OM3/OM4 LX SFP LC 2 OS2 Weight (Kg) 0.30000001192092896 MTP/MPO to LC Universal Fanout | Base-8 Multi-mode | Datasheet
Especificaciones técnicas
- Insertion Loss (IEC 61300-3-4-Method-B)
- MTP ≤0,35dB (avg: 0,1dB); LC ≤0,3dB
- Return Loss (IEC 61300-3-6-Method-B)
- MTP : ≥60dB; LC: UPC≥50dB APC≥60dB
- Durability
- >100 mating cycles
- Flammability
- UL94 V-0
- Operating Temperature
- -10?C to +70?C
- Cable Diameter
- 4.8 mm
- MTP Connector Compliance
- IEC 61754-7, TIA 604-5, RoHS
- LC Connector Compliance
- IEC 61754-20, TIA 604-10-A, RoHS
- TRANSCEIVER
- FORM FACTOR | CONNECTOR | FIBER COUNT | FIBER TYPE
- 100G
- CFP/CFP2/CPAK | SR10 / XSR10 | 24F MTP (MPO) | 20 | OM3/OM4
- SR4
- CPAK | 12F MTP (MPO) | 12 | OM3/OM4
- SR4 / XSR4
- QSFP28 | 12F MTP (MPO) | 8 | OM3/OM4
- PSM4
- QSFP28 | 12F MTP (MPO) | 8 | OS2
- CWDM4
- QSFP28 | LC | 2 | OS2
- LRL4
- CFP2/CPAK/QSFP28 | LC | 2 | OS2
- SWDM4
- QSFP28 | LC | 2 | OM3/OM4
- SR-BD
- QSFP28 | LC | 2 | OM3/OM4
- 40G
- SR4 | QSFP+ | 12F MTP (MPO) | 8 | OM3/OM4
- 40G-C/X/ESR4
- QSFP+ | 12F MTP (MPO) | 8 | OM3/OM4
- BIDI
- QSFP+ | LC | 2 | OM3/OM4
- LX4
- QSFP+ | LC | 2 | OM3/OM4
- UNIV
- QSFP+ | LC | 2 | OM3/OM4, OS2
- LR4 / LRL4 / IR4
- QSFP+ | LC | 2 | OS2
- SWDM4
- QSFP+ | LC | 2 | OM3/OM4
- PLRL4 / PLR4
- QSFP+ | 12F MTP (MPO) | 8 | OS2
- 4x10G
- IR / LR | QSFP+ | 12F MTP (MPO) | 8 | OS2
- 10x10G
- LR | CPAK | 24F MTP (MPO) | 20 | OS2
- 25G
- SR | SFP28 | LC | 2 | OM3/OM4
- LR
- SFP28 | LC | 2 | OM3/OM4
- 10G
- SR | SFP+ | LC | 2 | OM3/OM4
- LR
- SFP+ | LC | 2 | OM3/OM4
- 1G
- SX | SFP | LC | 2 | OM3/OM4
- LX
- SFP | LC | 2 | OS2
