DIN Rail Termination Box | 6 SC Simplex | DP8
DIN Rail Termination Box | 6 SC Simplex | DP8
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

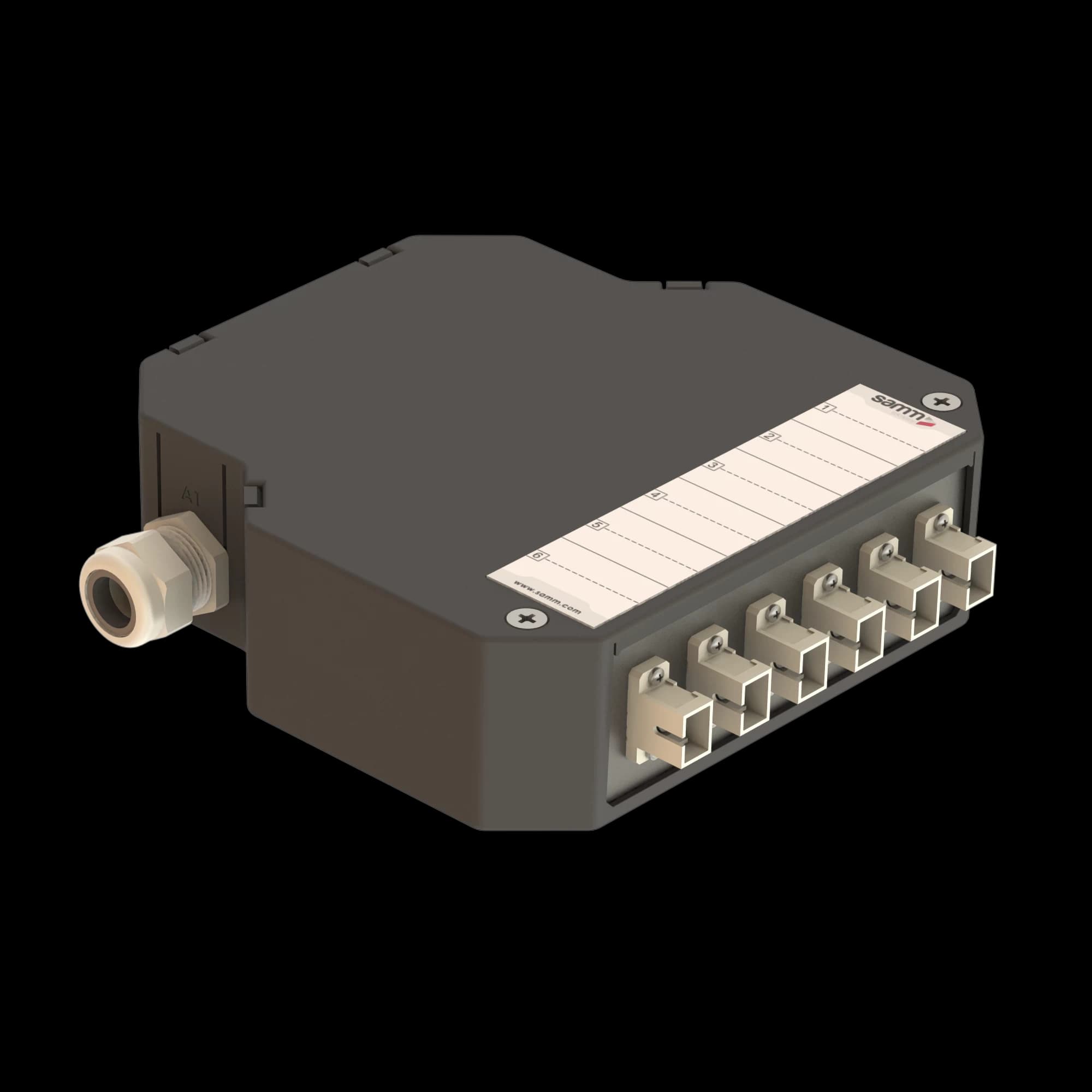

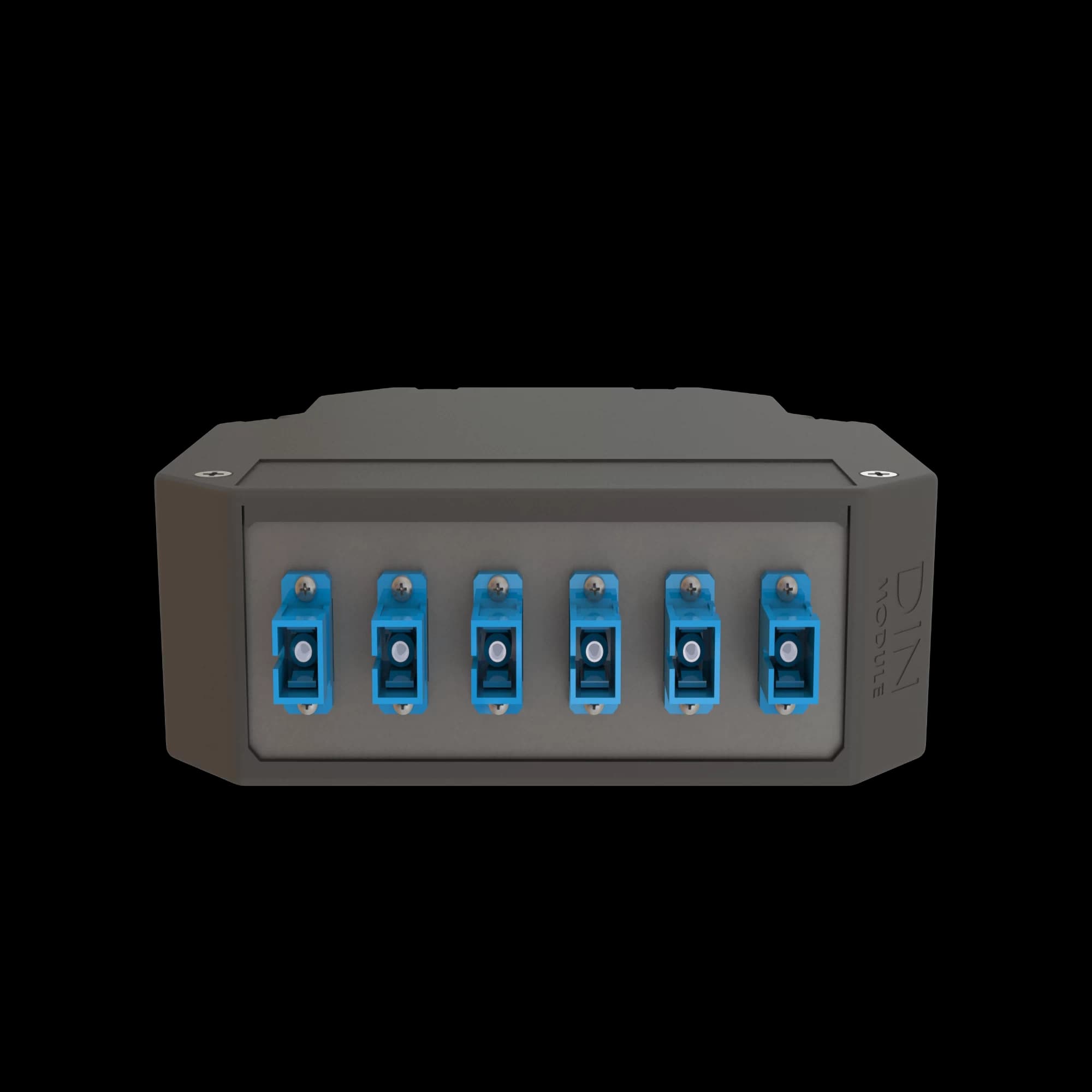

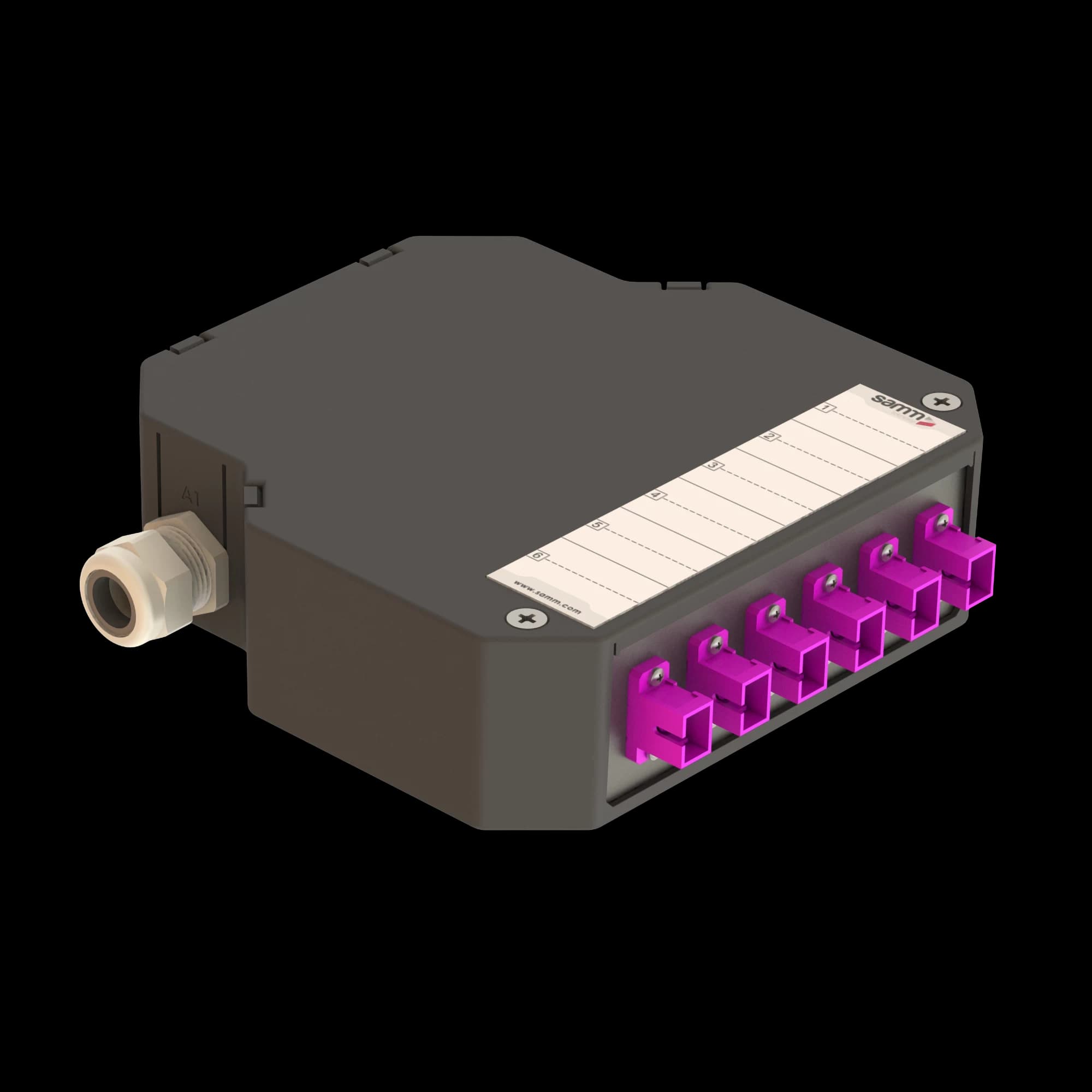

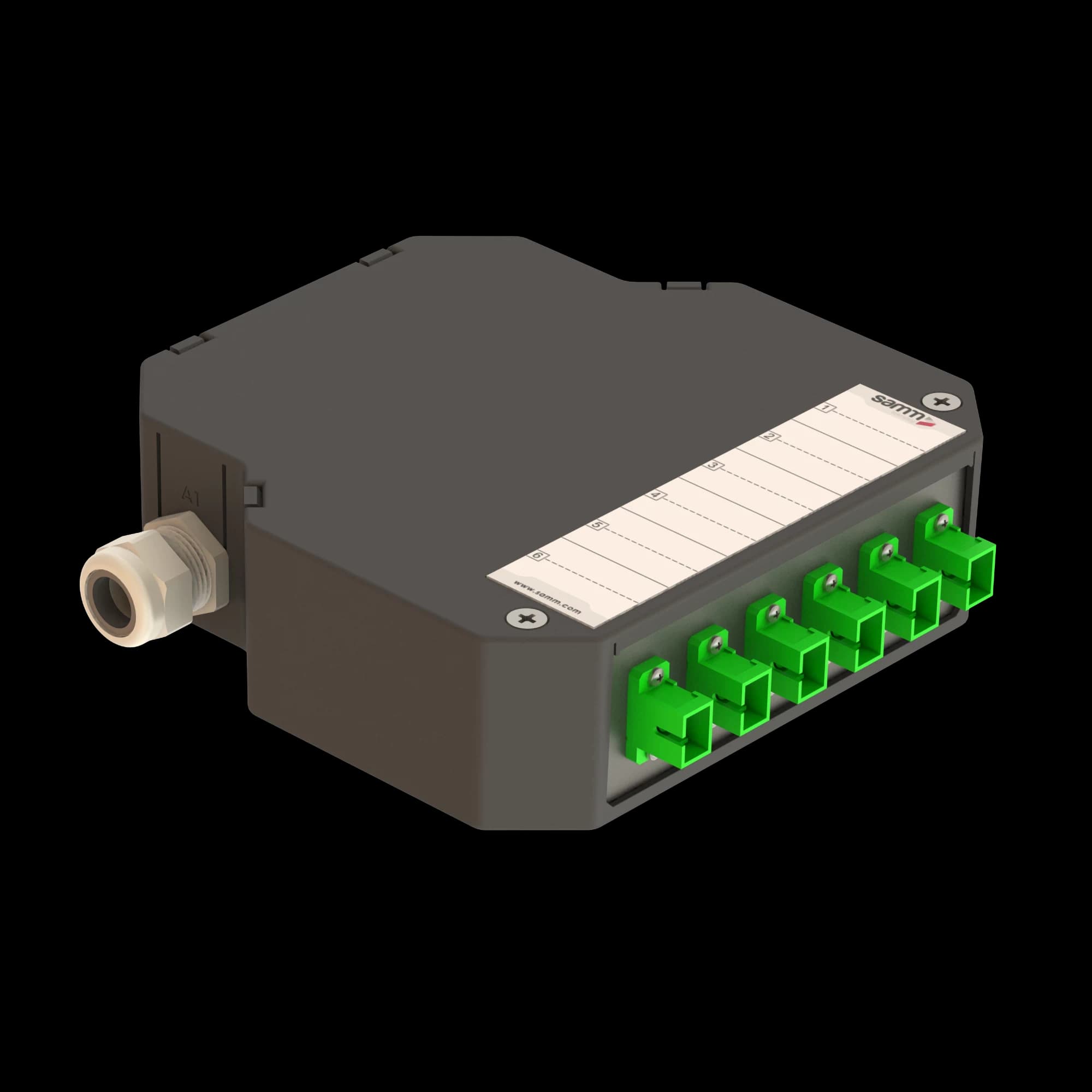

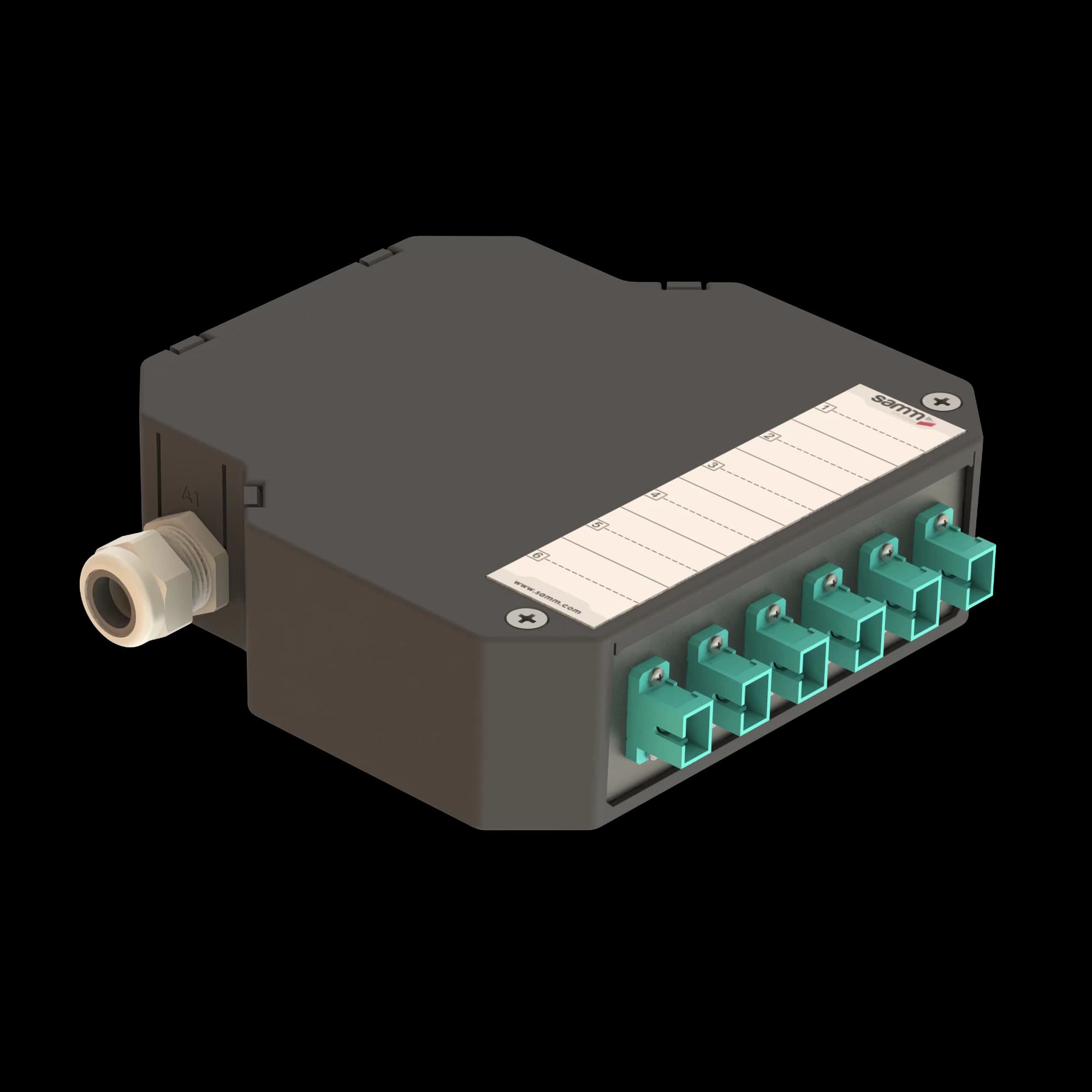

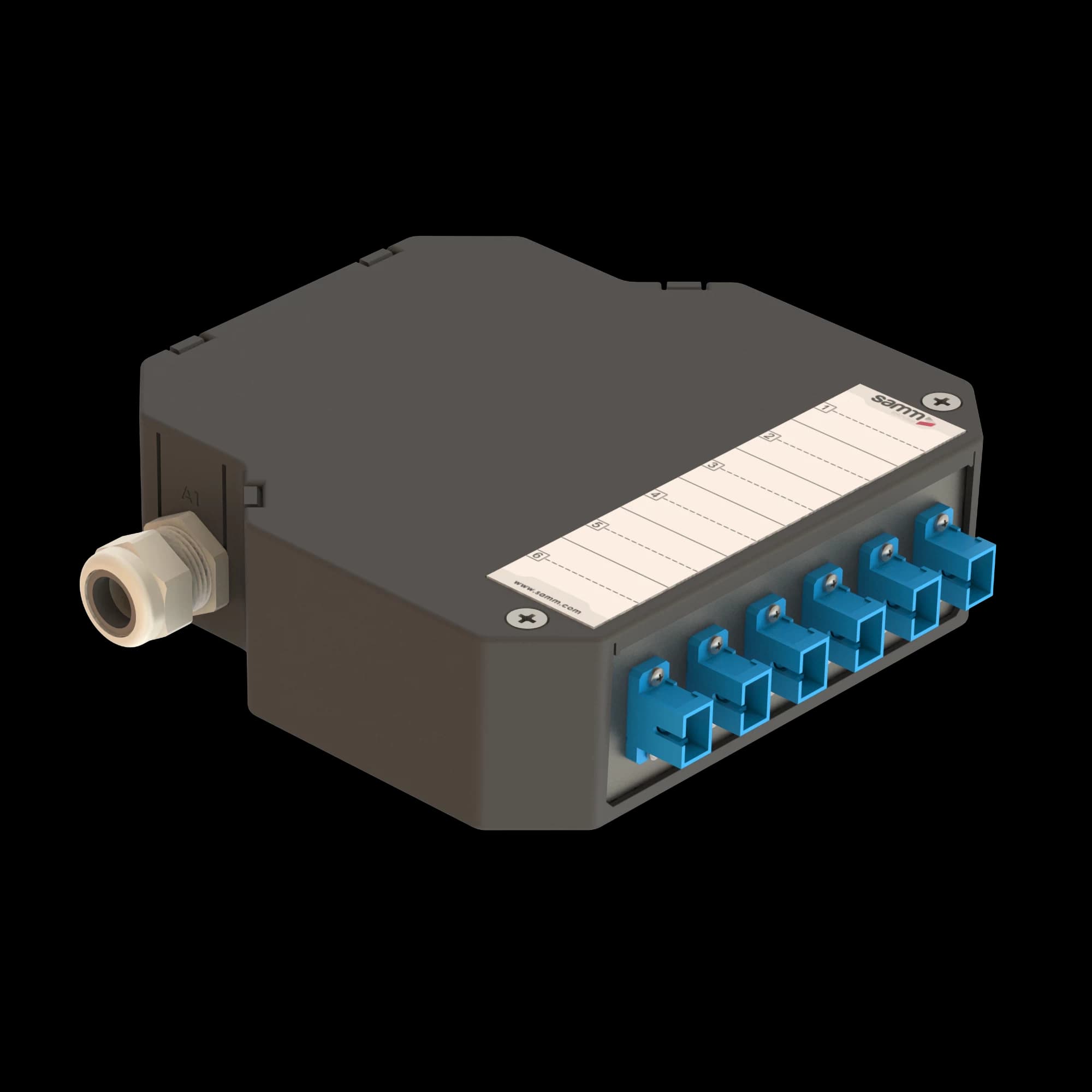

DIN Rail Termination Box | 6 SC Simplex | DP8 Features The DP8 SC DIN rail termination box has 6 SC Simplex straight adapters with 6 fiber capacity. DP8 DIN Rail Fiber Optic Termination Boxes are a splicing / patching module that can be attached to standard 35 mm DIN Rails. These boxes provide termination of fiber optic cables in control cabinets and distribution boxes, with a maximum of 24 fibers. Features and Benefits Made of a special PC/ABS plastic material Quick and easy mounting for standard 35 mm DIN rails High density solutions up to 24F with LC Quad and SC Duplex adapters Four sided cable entry options Horizontal and vertical mounting options Suitable for pre-terminated fiber optic cables Changeable angle direction (for angled face-plates) with patented clip structures Gland or grommet option for cable entries and exits Additional cable and strength member fixing accessories Flame retardancy rating: UL94-V0 Temperature range: -20 °C to +60 °C Applications Industrial Automation Transportation Oil & Gas Power Generation and Transmission Mining Size (cm) Weight (Kg) 21 x 8 x 20 0.5 Plastic Din-rail Mountable Fiber Optic Termination Boxes | Datasheet DIN Plastic Module Installation Guide
Especificaciones técnicas
- Size (cm)
- Weight (Kg)
- 21 x 8 x 20
- 0.5
