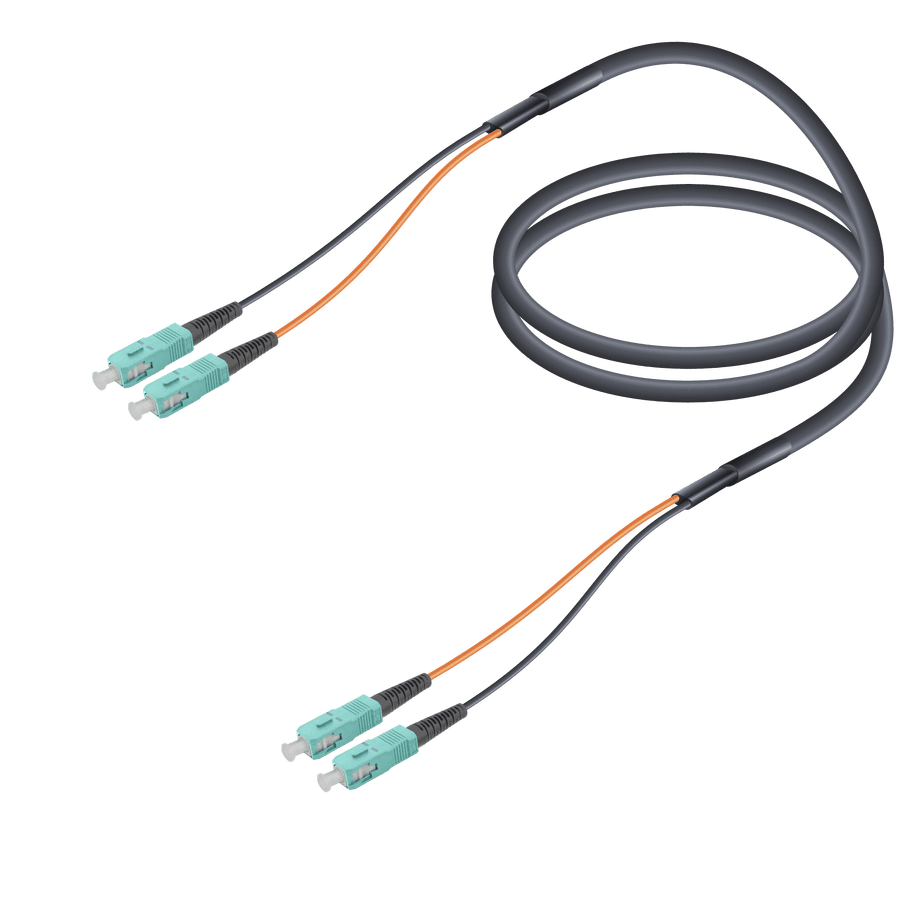

SC/UPC-SC/UPC | Multi Mode G651.OM3 Universal FTTA Breakout | 7.0x2.0mm
SC/UPC-SC/UPC | Multi Mode G651.OM3 Universal FTTA Breakout | 7.0x2.0mm
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
SC/UPC-SC/UPC | Multi Mode G651.OM3 Universal FTTA Breakout | 7.0x2.0mm Features This 7.0mm universal (indoor/outdoor) FTTA breakout has two multi-mode aqua SC/UPC connectors on each side, and they are connected by two multi-mode OM3 fibers with 50µm core diameter and 125µm cladding diameter. SC means "Square Connector" and it has 2.5mm diameter ceramic ferrule, the UPC ferrule of each side connector means its surface is straightly polished for ultra physical contact. Duplex means the cord has two fiber cables bonded together and that it can be used with Rx and Tx systems. Specifications Insertion Loss (IEC 61300-3-4-Method-B): ≤ 0.30 dB Return Loss (IEC 61300-3-6-Method-B): ≥ 50 dB (UPC), ≥ 60 dB (APC) Durability: ≥ 1000 mating cycles Flammability: UL94 V-0 Operating Temperature: -40 ° C to +85 ° C Connector End Face Geometry: IEC 61755-3 LC Connector Compliance: IEC 61754-20, TIA 604-10-A, RoHS SC Connector Compliance: IEC 61754-4, TIA 604-3, RoHS FC Connector Compliance: IEC 61754-13, TIA 604-4-A, RoHS ST Connector Compliance: IEC 61754-2, TIA 604-2, RoHS E2000 Connector Compliance: IEC 61754 - 15, TIA 604 - 16, RoHS Weight (Kg) 0.20000000298023224 Fiber Optic Universal Breakout | Multi Mode 7.0mm | Datasheet
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
