LC/APC-LC/APC | Single Mode G657.A2 Corrugated Steel FTTA Breakout | 7.0x2.85mm
LC/APC-LC/APC | Single Mode G657.A2 Corrugated Steel FTTA Breakout | 7.0x2.85mm
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

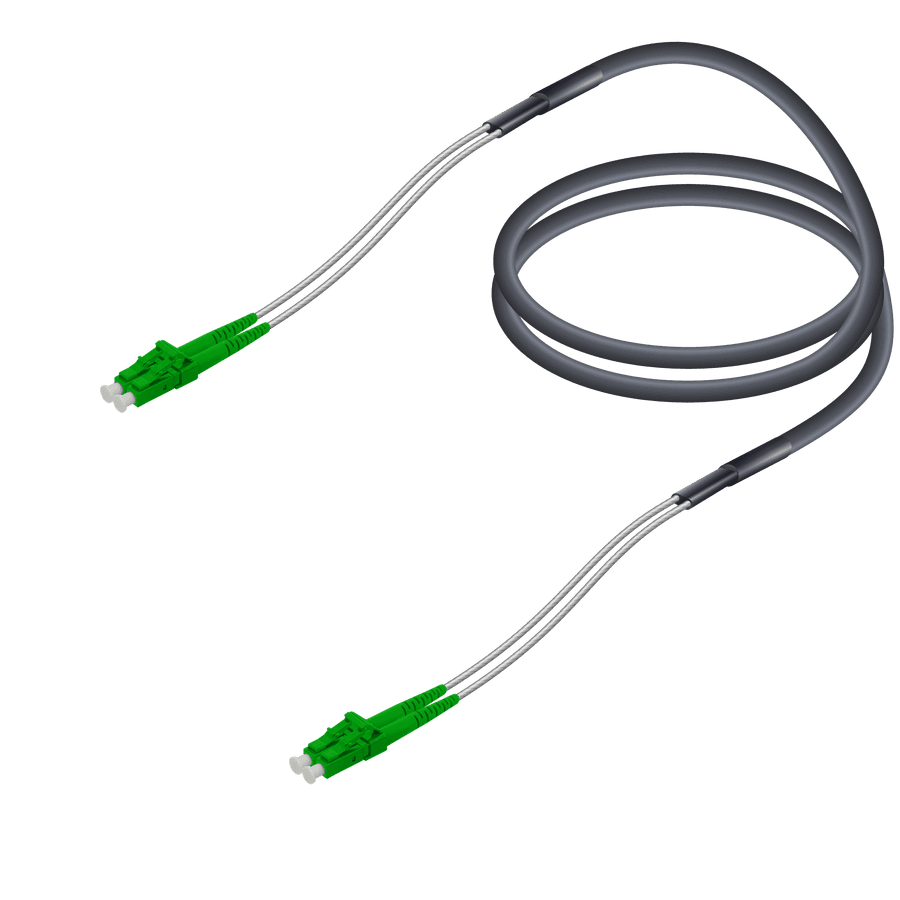

LC/APC-LC/APC | Single Mode G657.A2 Corrugated Steel FTTA Breakout | 7.0x2.85mm Features This 7.0mm universal (indoor/outdoor) FTTA breakout with corrugated steel has two green LC/APC connectors on both sides, and they are connected by two single-mode A2 fibers with 9µm core diameter and 125µm cladding diameter. LC means "Lucent Connector" and it has 1.25mm diameter ceramic ferrule. The connector ferrule on both sides is APC, which means it is polished in an 8° angle for a high precision angled physical contact . Duplex means the cord has two fiber cables bonded together and that it can be used with Rx and Tx systems. Specifications Insertion Loss (IEC 61300-3-4-Method-B): ≤ 0.30 dB Return Loss (IEC 61300-3-6-Method-B): ≥ 50 dB (UPC), ≥ 60 dB (APC) Durability: ≥ 1000 mating cycles Flammability: UL94 V-0 Operating Temperature: -40 ° C to +85 ° C Connector End Face Geometry: IEC 61755-3 LC Connector Compliance: IEC 61754-20, TIA 604-10-A, RoHS SC Connector Compliance: IEC 61754-4, TIA 604-3, RoHS FC Connector Compliance: IEC 61754-13, TIA 604-4-A, RoHS ST Connector Compliance: IEC 61754-2, TIA 604-2, RoHS E2000 Connector Compliance: IEC 61754 - 15, TIA 604 - 16, RoHS Weight (Kg) 0.20000000298023224 Fiber Optic Universal Breakout | Single Mode 7.0mm | Datasheet
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
