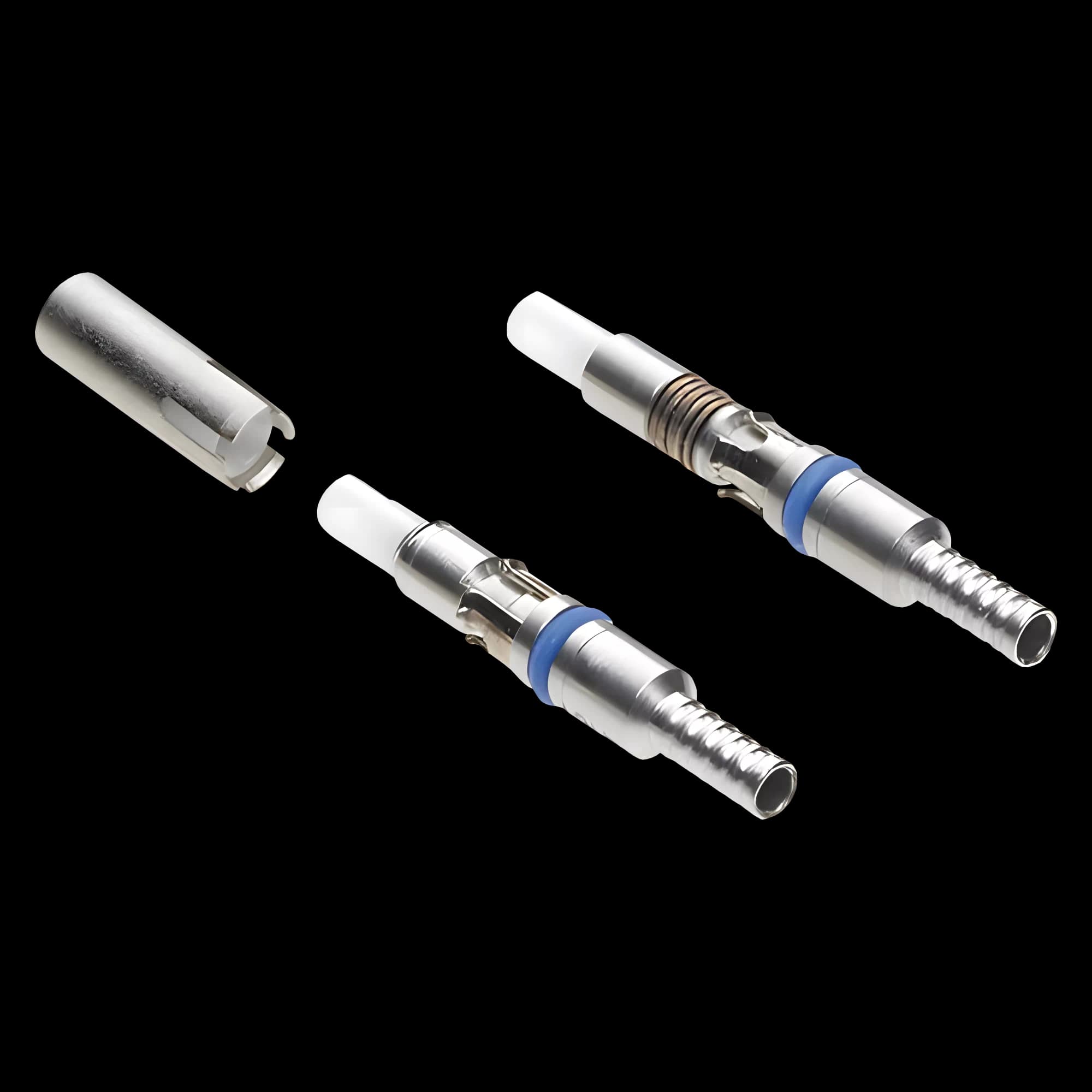

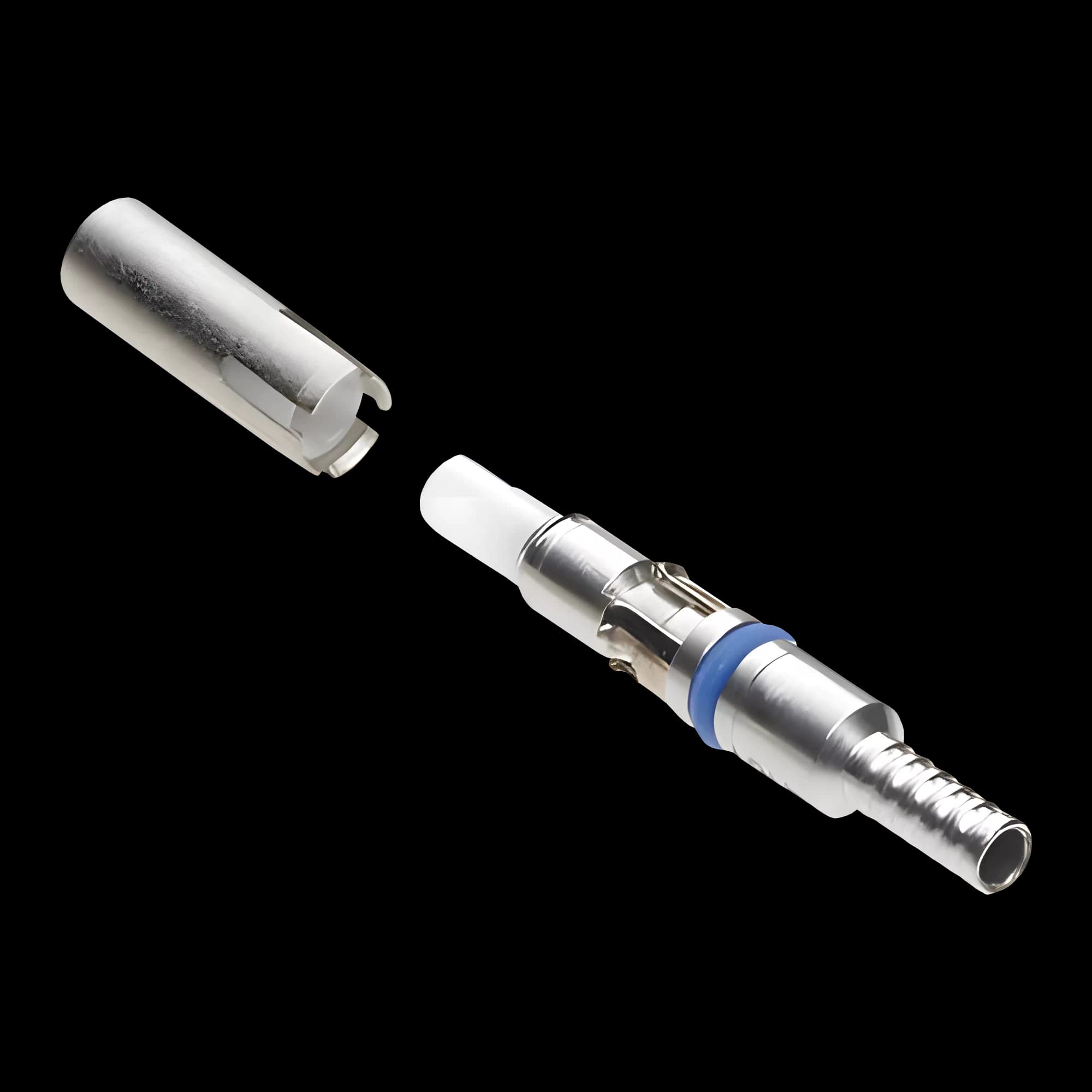

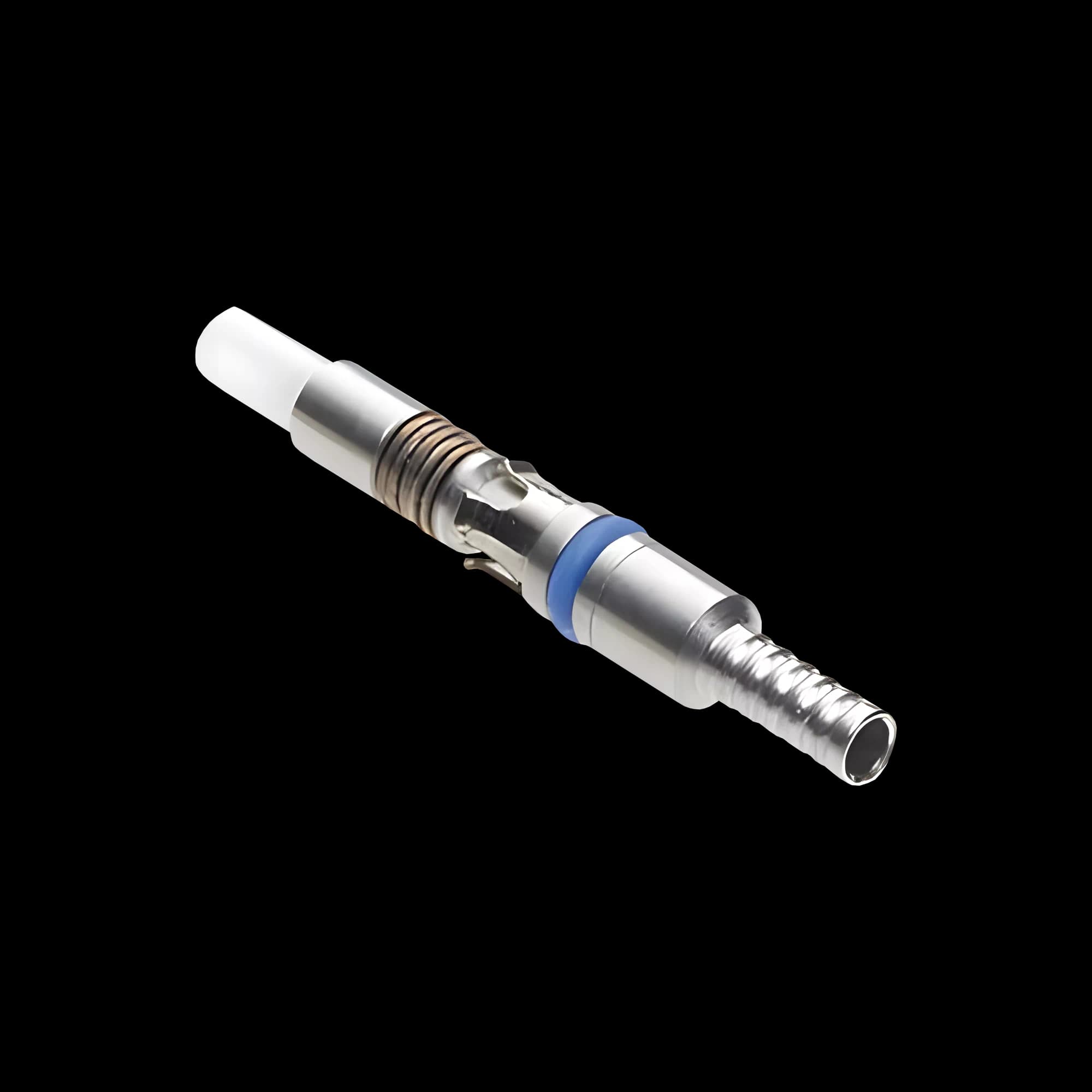

M29504/14 and /15 Military Fiber Optic Termini Features MIL-PRF-29504/14 and /15 fiber optic termini are designed for outstanding optical performance in extreme environments. M29504/14 & /15 termini are qualified to MIL-PRF-29504B specifications. This series of fiber optic termini provide superior optical and mechanical performance and are compatible with M28876 and comparable military-style connectors. MIL-PRF-29504B QPL listed. The M29504/14 and /15 termini design features pre-radius 2.00mm zirconia ultra high-tolerance ferrules, an enhanced cable retention using serrated crimp areas and removable captivated split alignment sleeves. Performance Specification – M29504/14 PINS and M29505/15 SOCKETS Metric Parameters Operating Temperature -65°C to +150°C (dependent on epoxy and cable) Thermal Cycling -54°C to +65°C Thermal Shock -55°C to +85°C Temperature Life +110°C for 240 hours Vibration 68 G random Physical Shock 500 G Mating Durability 500+ cycles Salt Spray 500 hours Pressure Sealing 32psi, (2,000 psi with wiper seal option) Terminus Mating Force 5 lbs. [22.2 N] nominal Terminus Retention Force 22 lbs. [97.9 N] Cable Retention Force 25 lbs. [111.2 N] (dependent on cable construction) Weight 0.7 grams max Standard Materials and Finishes Description Material Finish Terminus Bod Stainless Steel Passivated Alignment Sleeve Zirconia None Alignment Sleeve Hood Beryllium Free Nickel Plated Ferrule (bushing) Zirconia None Retaining Clip Beryllium Free None Belleville Springs Beryllium Free None -Ring Seal Fluorosilicone None Optical Performance Fiber Size Insertion Loss (Max.) Insertion Loss (Typ.) 9/125 *-0.75 dB *-0.35 dB 50/125 *-0.75 dB *-0.35 dB 62.5/125 *-0.75 dB *-0.35 dB Back Reflection (BR) – Single-Mode Fiber Type Back Reflection (dB) Single-mode ≤ -40 dB (PC Finish) Single-mode ≤ -50 dB (UPC Finish)
Especificaciones técnicas
- Metric
- Parameters
- Operating Temperature
- -65°C to +150°C (dependent on epoxy and cable)
- Thermal Cycling
- -54°C to +65°C
- Thermal Shock
- -55°C to +85°C
- Temperature Life
- +110°C for 240 hours
- Vibration
- 68 G random
- Physical Shock
- 500 G
- Mating Durability
- 500+ cycles
- Salt Spray
- 500 hours
- Pressure Sealing
- 32psi, (2,000 psi with wiper seal option)
- Terminus Mating Force
- 5 lbs. [22.2 N] nominal
- Terminus Retention Force
- 22 lbs. [97.9 N]
- Cable Retention Force
- 25 lbs. [111.2 N] (dependent on cable construction)
- Weight
- 0.7 grams max
- Description
- Material | Finish
- Terminus Bod
- Stainless Steel | Passivated
- Alignment Sleeve
- Zirconia | None
- Alignment Sleeve Hood
- Beryllium Free | Nickel Plated
- Ferrule (bushing)
- Zirconia | None
- Retaining Clip
- Beryllium Free | None
- Belleville Springs
- Beryllium Free | None
- -Ring Seal
- Fluorosilicone | None
- Fiber Size
- Insertion Loss (Max.) | Insertion Loss (Typ.)
- 9/125
- *-0.75 dB | *-0.35 dB
- 50/125
- *-0.75 dB | *-0.35 dB
- 62.5/125
- *-0.75 dB | *-0.35 dB
- Fiber Type
- Back Reflection (dB)
- Single-mode
- ≤ -40 dB (PC Finish)
- Single-mode
- ≤ -50 dB (UPC Finish)
