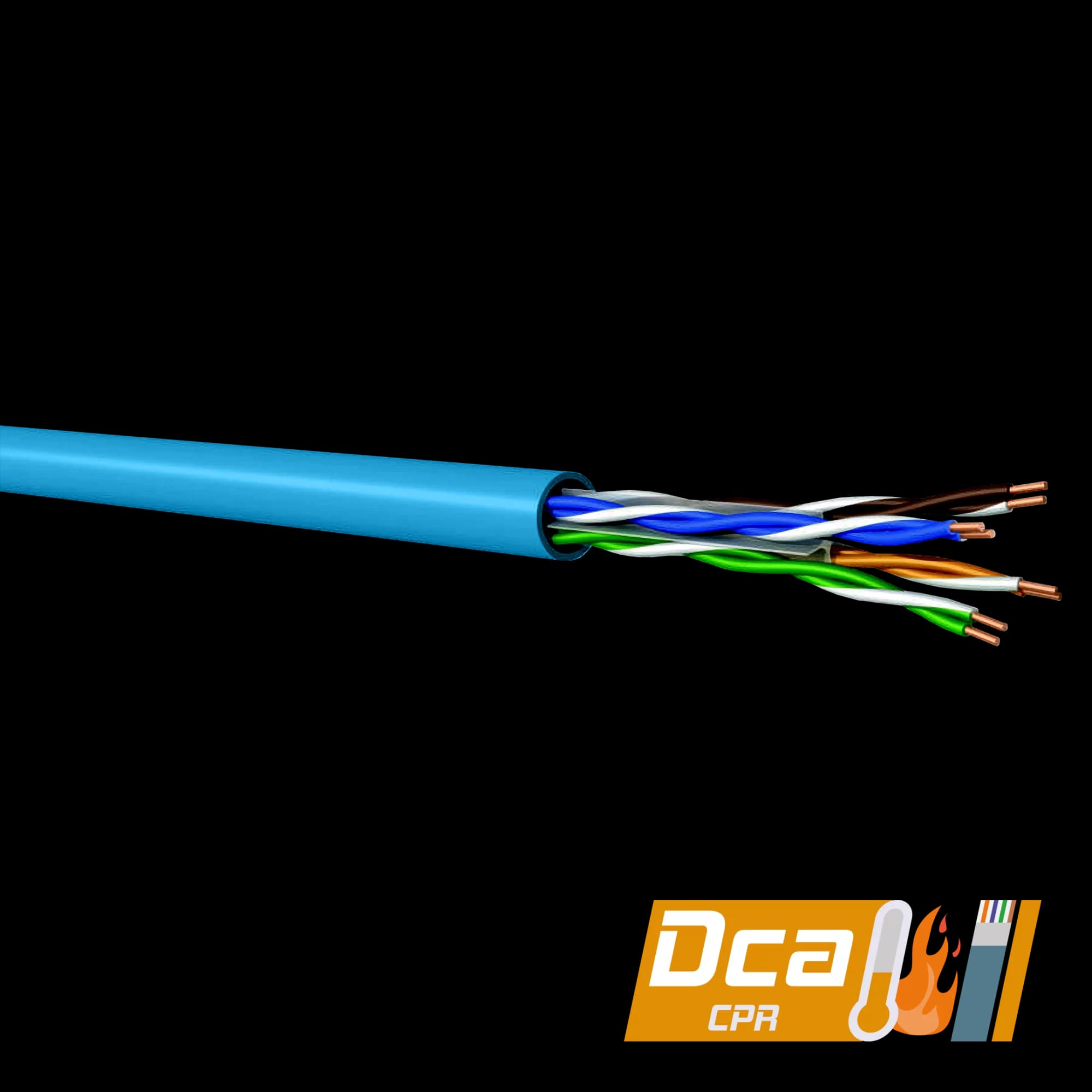

CAT6 U/UTP Data Cable | 400 MHz | LSZH-Dca | 500m | Blue

Descripción

CAT6 U/UTP Data Cable | 400 MHz | LSZH-Dca | 500m | Blue Features This blue category 6 U/UTP solid cable with standardized twisted pairs which is used for ethernet applications that require up to 400 MHz performance specifications. Properties Basic Conductor: Bare copper wire 23 AWG Insulation: Polyolefin Cable Diameter: 6.0 mm Number of Insulated Conductors: 8 / 4 twisted pairs Color Codes of Pairs: Blue x White/Blue | Orange x White/Orange | Green x White/Green | Brown x White/Brown Outer Sheath: LSZH (Halogen free) flame retardant Standard Outer Sheath Color: Blue RAL 5015 Bending radius (Moving): 8xCable outer diameter (mm) Bending radius (Fixed): 4xCable outer diameter (mm) Operating Temperature: -20 to +60C Installation Temperature: 0 to +50C Standards ANSI / TIA / 568.2-D IEC 61156-5 (ISO / IEC-11801 2.) EN 50173-1, EN 50288-6-1 Applications IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T IEEE 802.5 16 MB; ISDN; TPDDI; ATM Power over Ethernet (PoE) / PoE+ EU Declaration Low Voltage Directive ( LVD ) 2014/35/EU Restriction of Hazardous Substances Directive ( RoHS ) 2011/65/EU Flame Resistance Euroclass: Dca - s2, d2, a1 Flame Performance: Flame Retardancy EN 60332-1-2, Smoke Performance EN 61034-2, Halogen Acidity EN 60754-1/2 Size (cm) Weight (Kg) 27 x 39 x 39 20 CAT6 U/UTP Data Cable | Datasheet Declaration of Performance - DoP

Especificaciones técnicas

Size (cm)

Weight (Kg)

27 x 39 x 39

20
