Through Type Fiber Optic OTDR Launch Box | Single Mode G657.A2 | SC APC/FC UPC | 1000 meters
Through Type Fiber Optic OTDR Launch Box | Single Mode G657.A2 | SC APC/FC UPC | 1000 meters
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

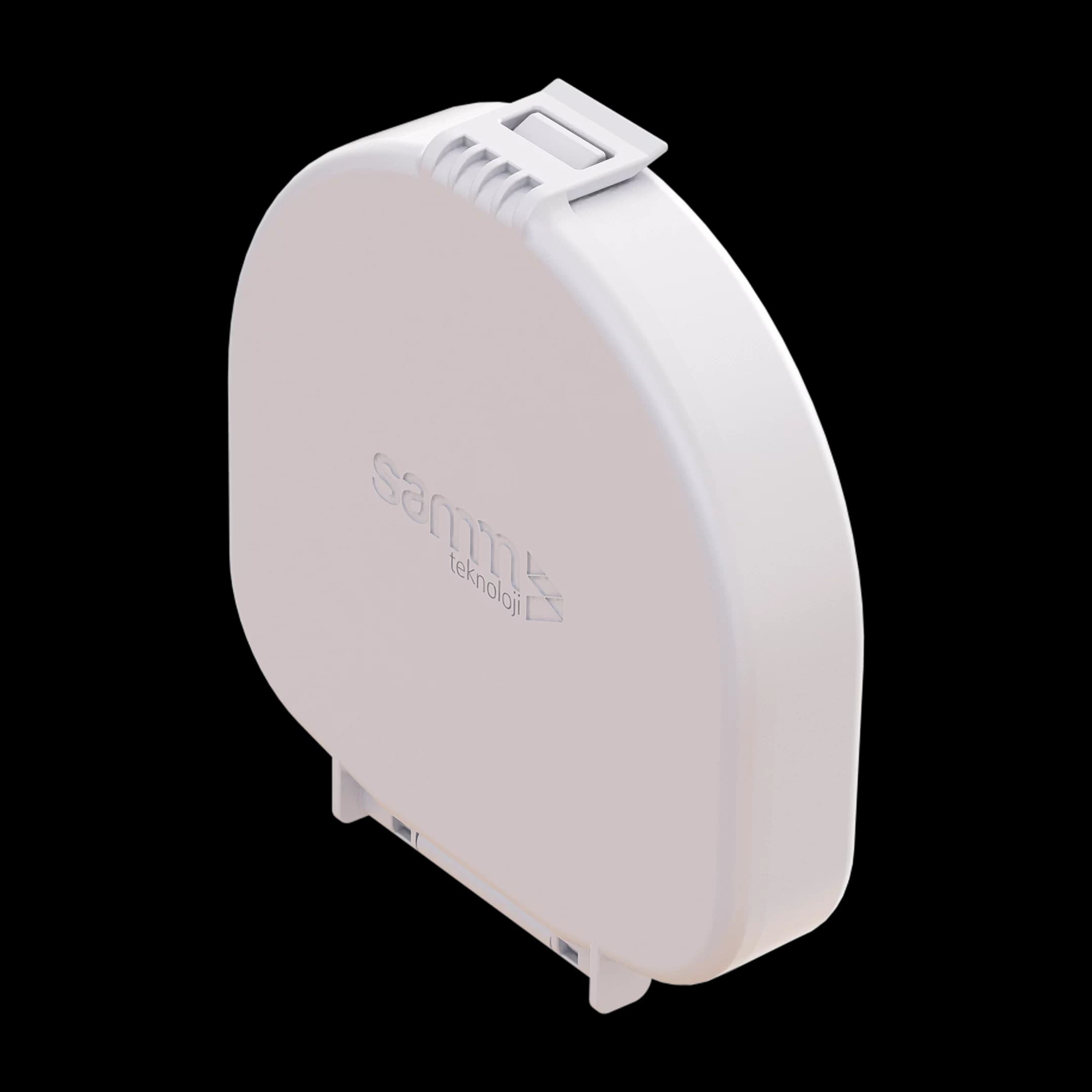

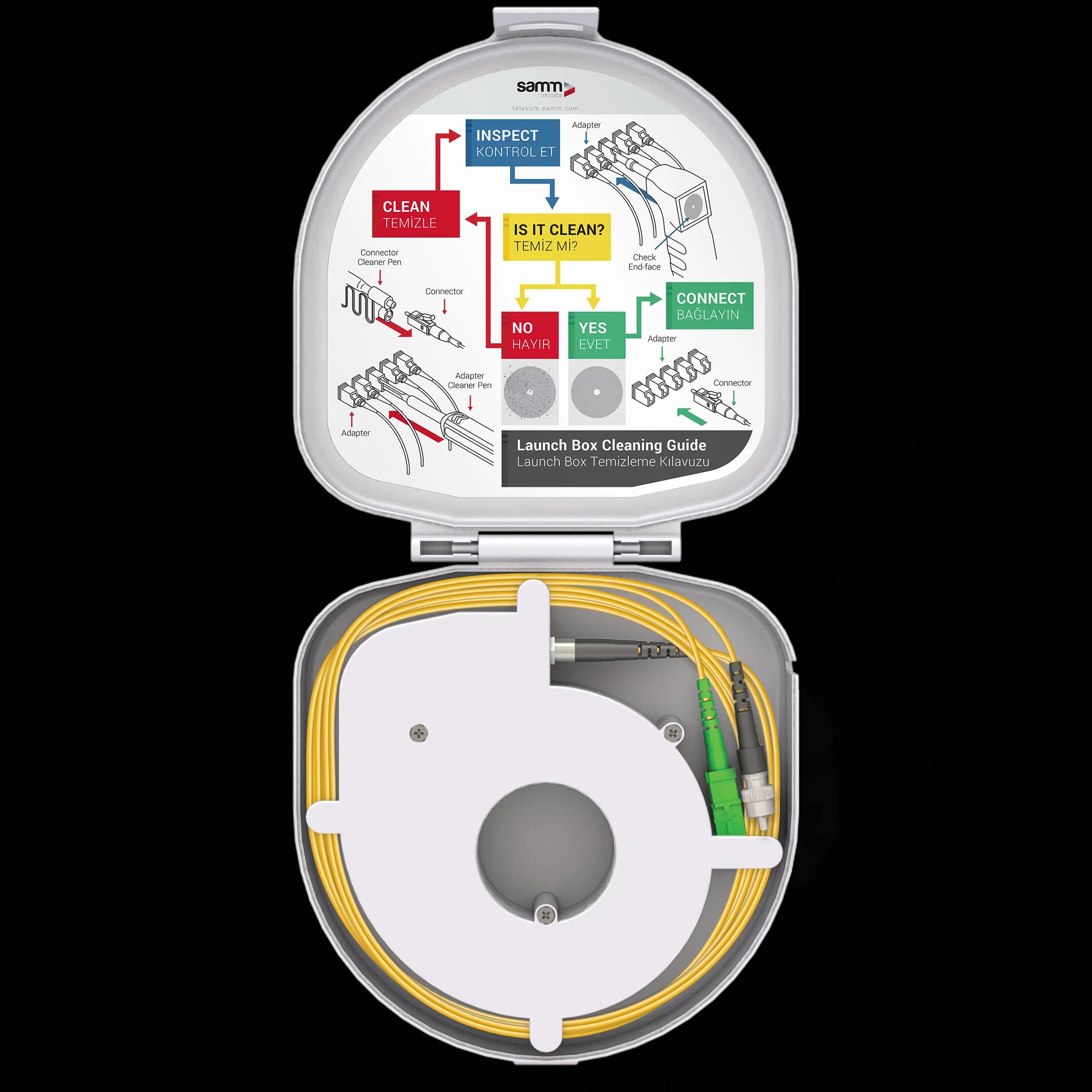

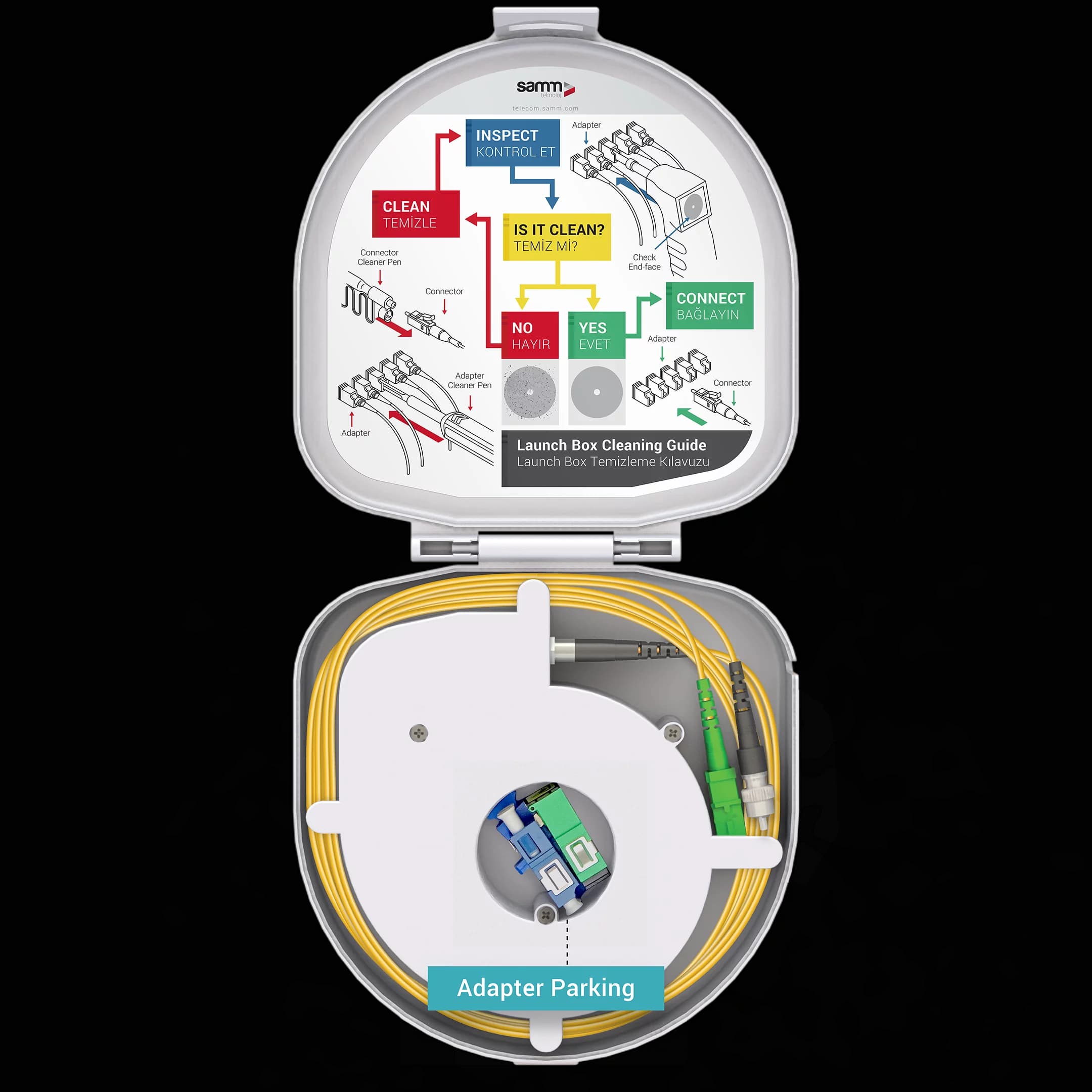

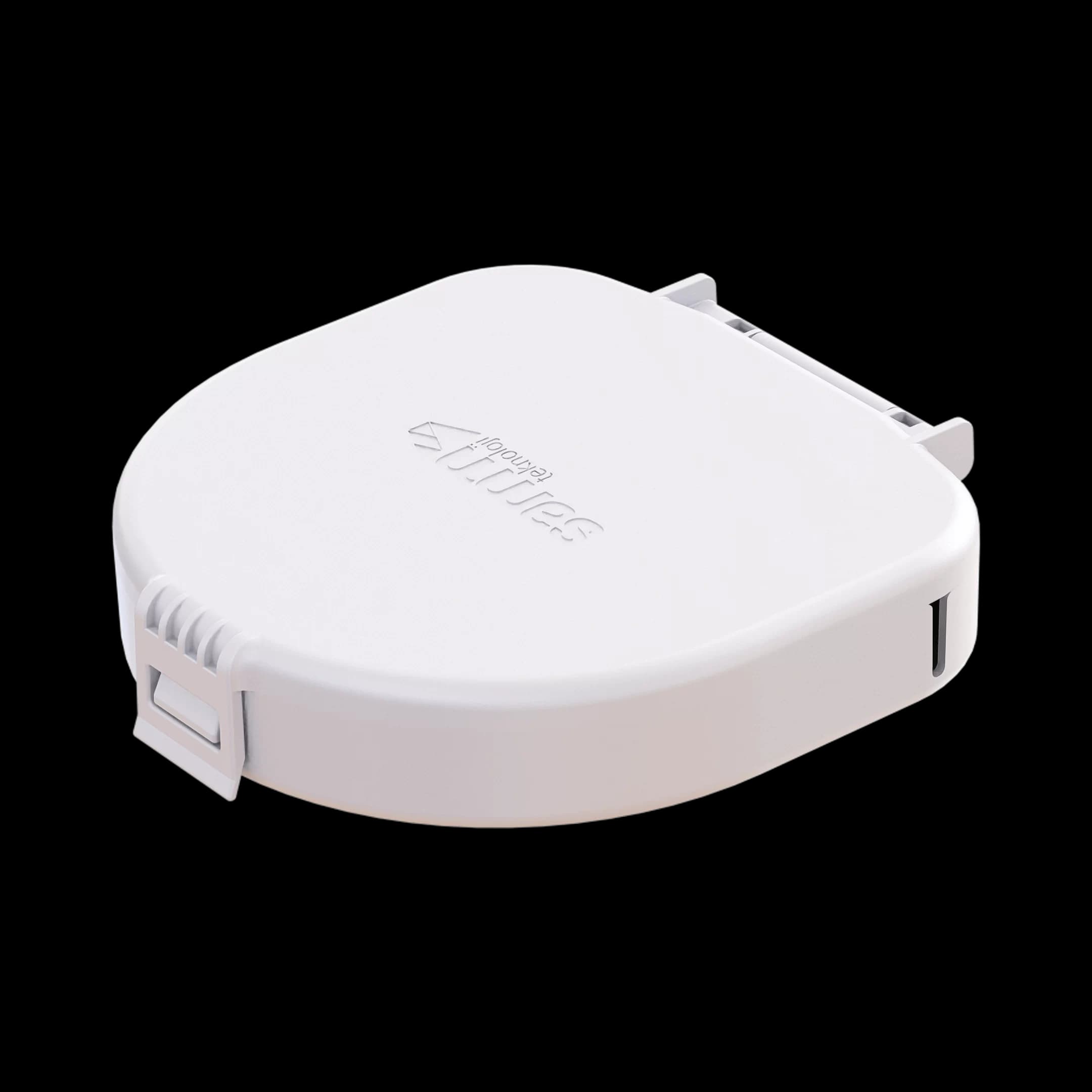

Through Type Fiber Optic OTDR Launch Box | Single Mode G657.A2 | SC APC/FC UPC | 1000 meters Features SC-APC/FC-UPC Through Type, 1000 meters, G657.A2 (9/125 µm), Single Mode Fiber Launch Box. These products are called as dead zone box, dead zone eliminator, pulse suppressor, fiber ring, fiber optic launch cable. Applications Single mode network's measurements Simulation of loss, length, delayed time and system's reflectance Conform to IEC, EIA-TIA and Telecordia performance requirements Use as a launch and receive (tail) lead at each end of the fiber under test in order to comply with optical link testing standards ISO/IEC 14763-32006 Equipment Calibration Key Features Adapter parking area Protected case structure Small/Slim/Low profile design Prevents fiber damage and stress during use or transportation Test result tracking via barcode scanning Ability to use with the cover closed Belt hanger option can be used in the field Size (cm) Weight (Kg) 19.5 x 18 x 5 0.4000000059604645 Fiber Optic OTDR Launch Box | Datasheet
Especificaciones técnicas
- Size (cm)
- Weight (Kg)
- 19.5 x 18 x 5
- 0.4000000059604645
