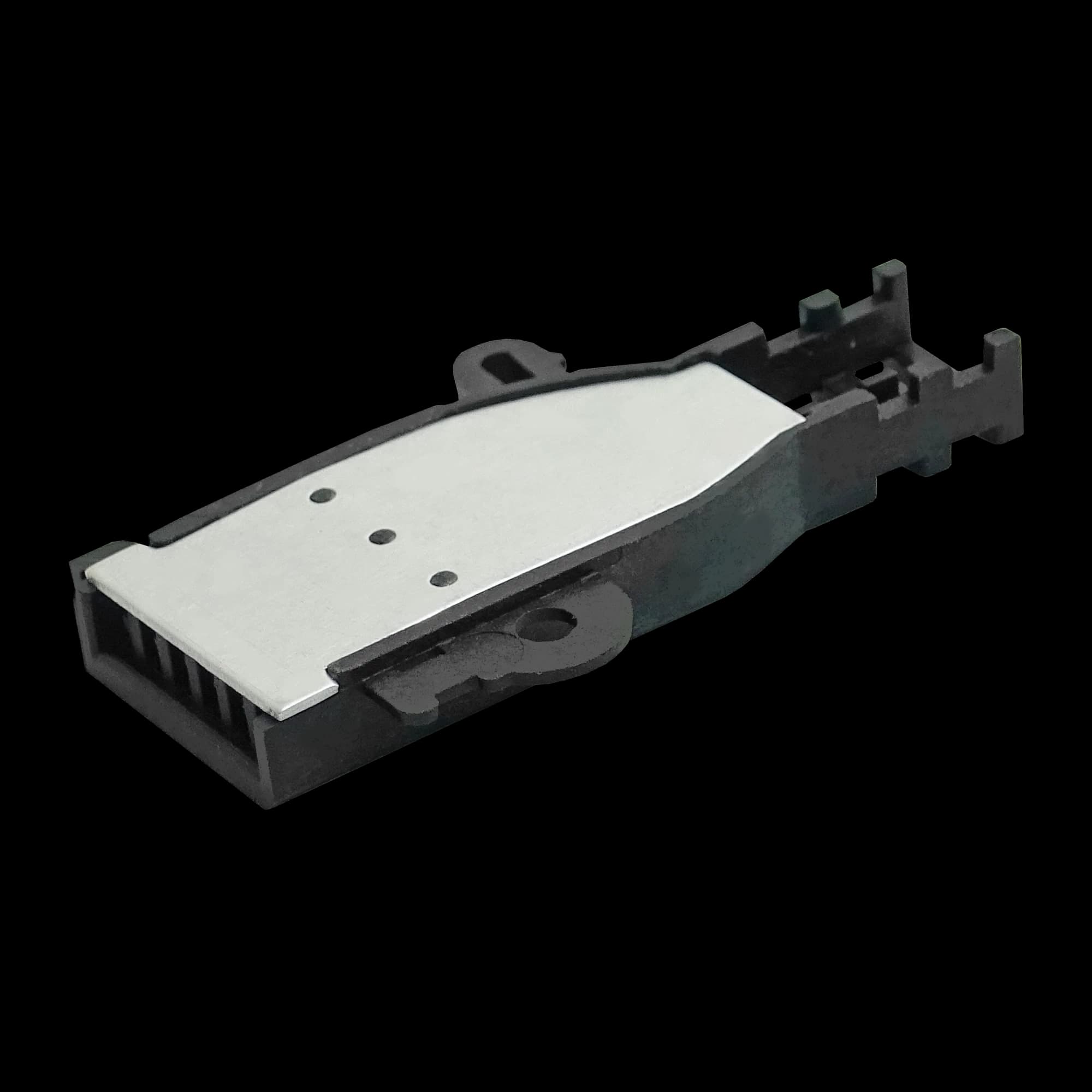

6-Way Loose Tube Fiber Transition Fanout Kit Fiber Optic

Descripción

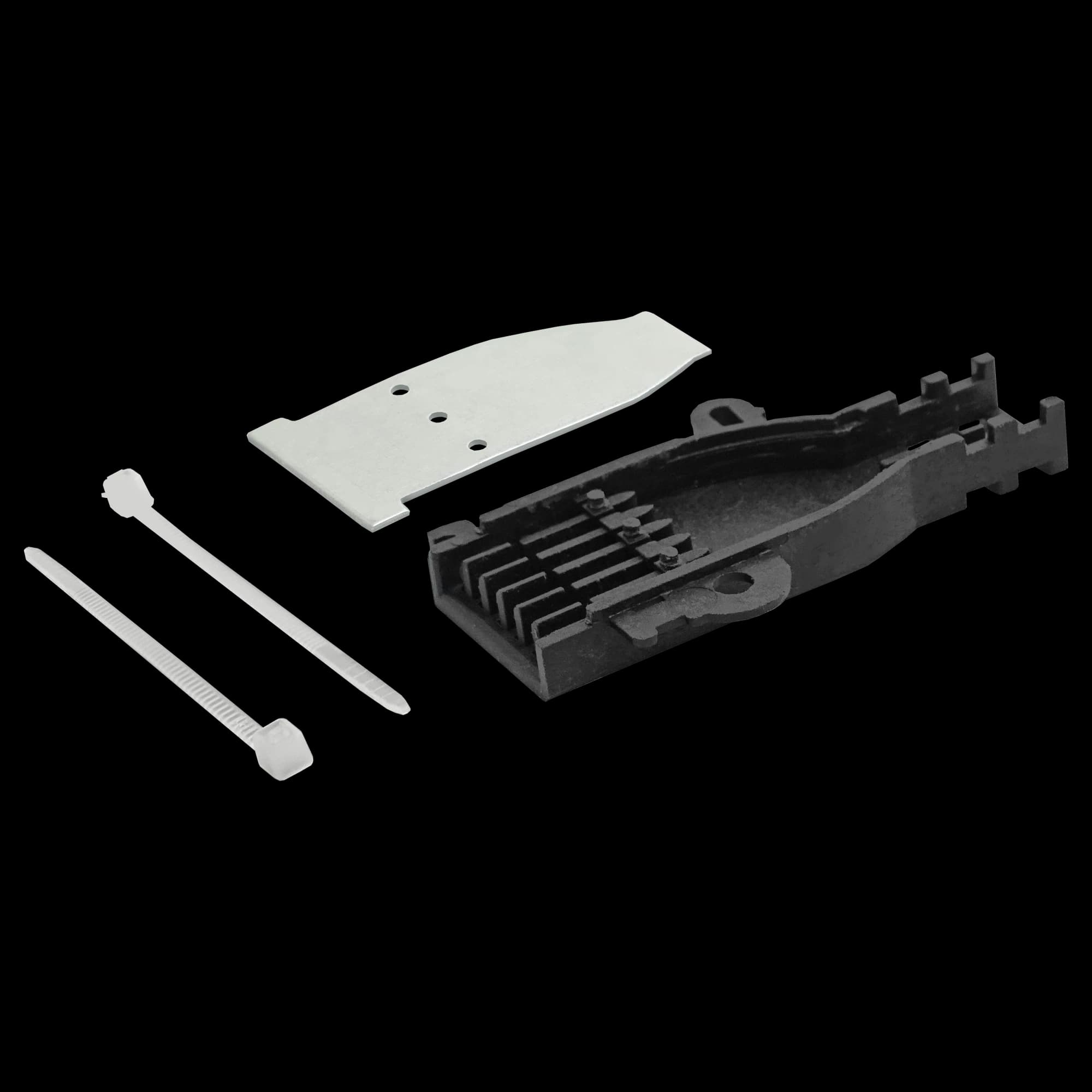

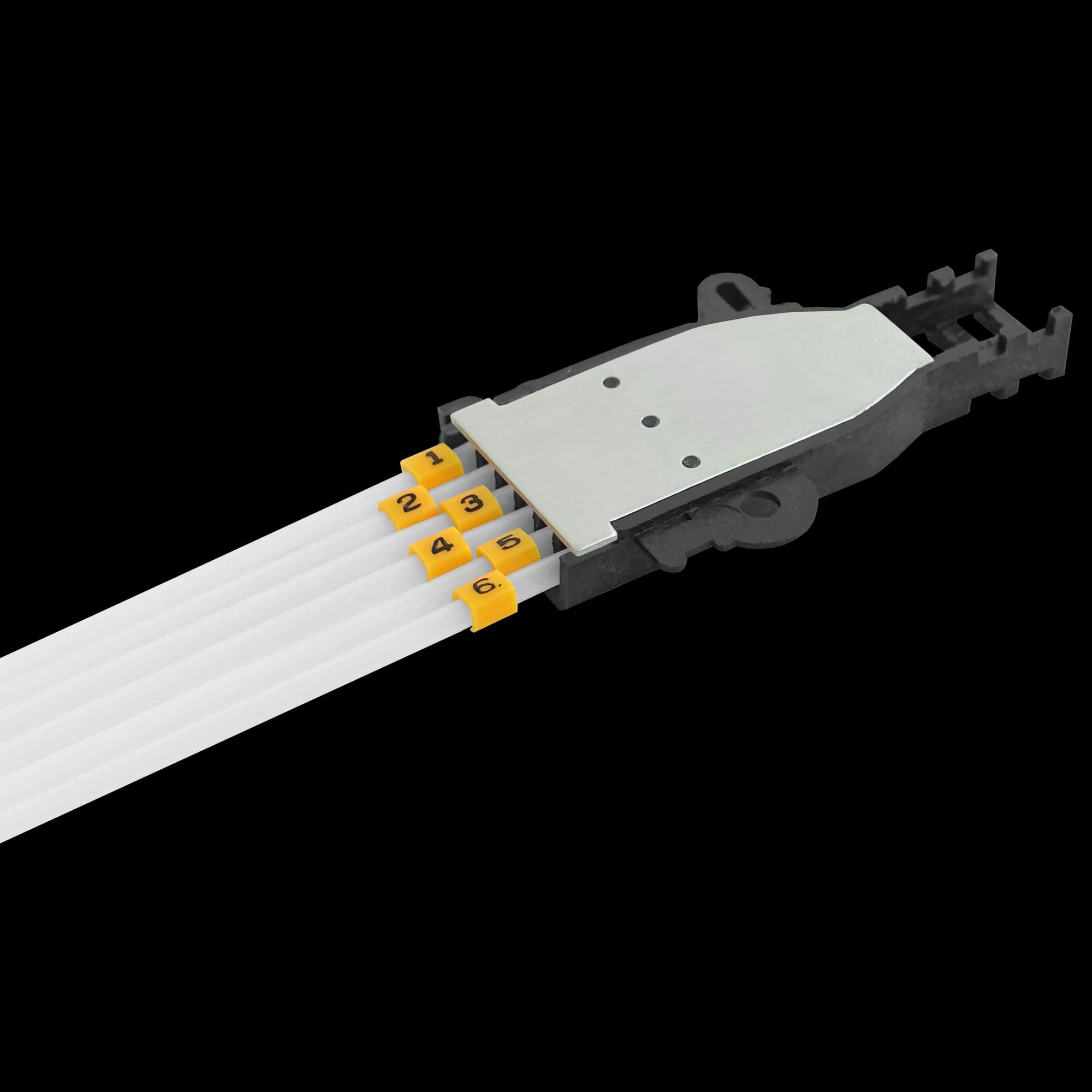

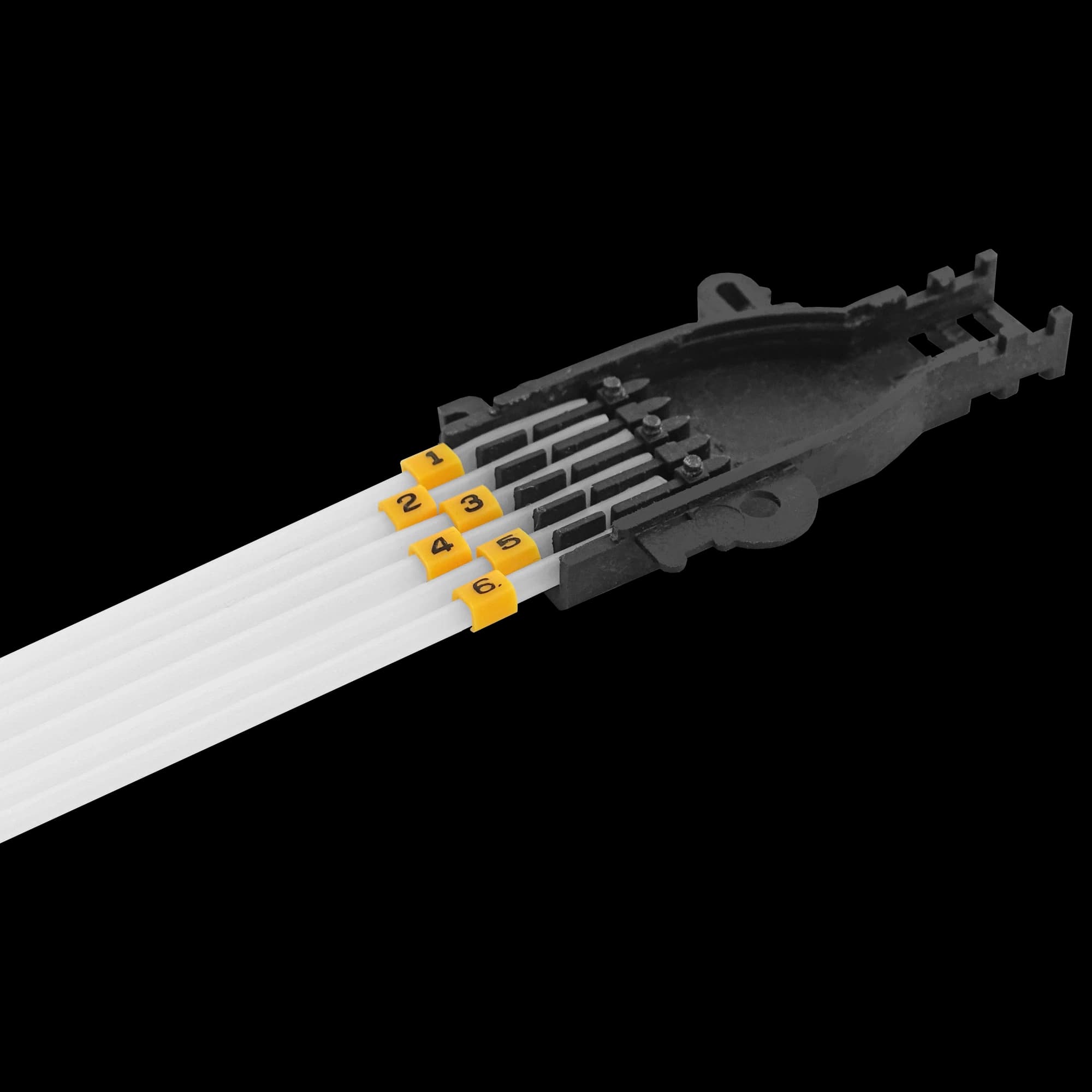

6-Way Loose Tube Fiber Transition Fanout Kit Features SAMM Fan-out kit provides the ideal solution for breakout operations in the field or in factory. It allows to quickly and easily separating the sub-units' bare fiber to single furcation tubing’s, protecting and allowing for termination. The input tubes are simply fitted over a fiber cable element or loose tube and the group of fibers is then divided into the required number per output tube for routing to the splice area. This kit is designed to fan out and furcate 250 micron fibers for direct termination. Features and Benefits Snap fit construction Small and compact Suitable for most types of cable construction Supplied with identification sleeves Removable tubes No special tools required Designed for use with loose tube cables Transitions Fan-out Kit Details Incoming tubes or cables 2x 3,5mm OD or 1x5mm OD Tube Inside/ Outside Dia. 1,5/2,3mm Fiber capacity 6x12(144F) with 250 micron fibers Body Material UL94V0 Plastics Cover Material Anodized Aluminum Fiber Optic 6-Way Loose Tube Fiber Transition Fanout Kit

Especificaciones técnicas

Incoming tubes or cables

2x 3,5mm OD or 1x5mm OD

Tube Inside/ Outside Dia.

1,5/2,3mm

Fiber capacity

6x12(144F) with 250 micron fibers

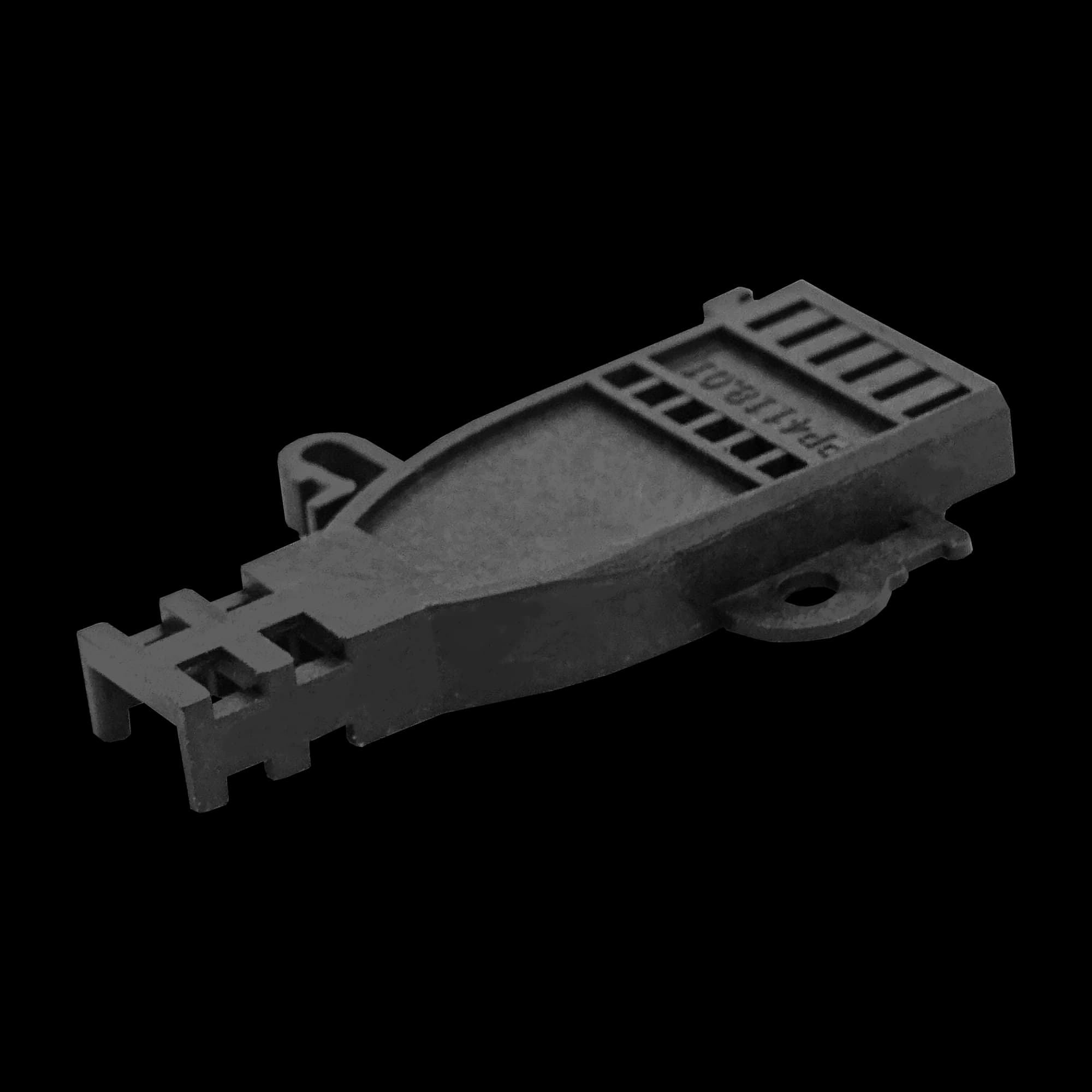

Body Material

UL94V0 Plastics

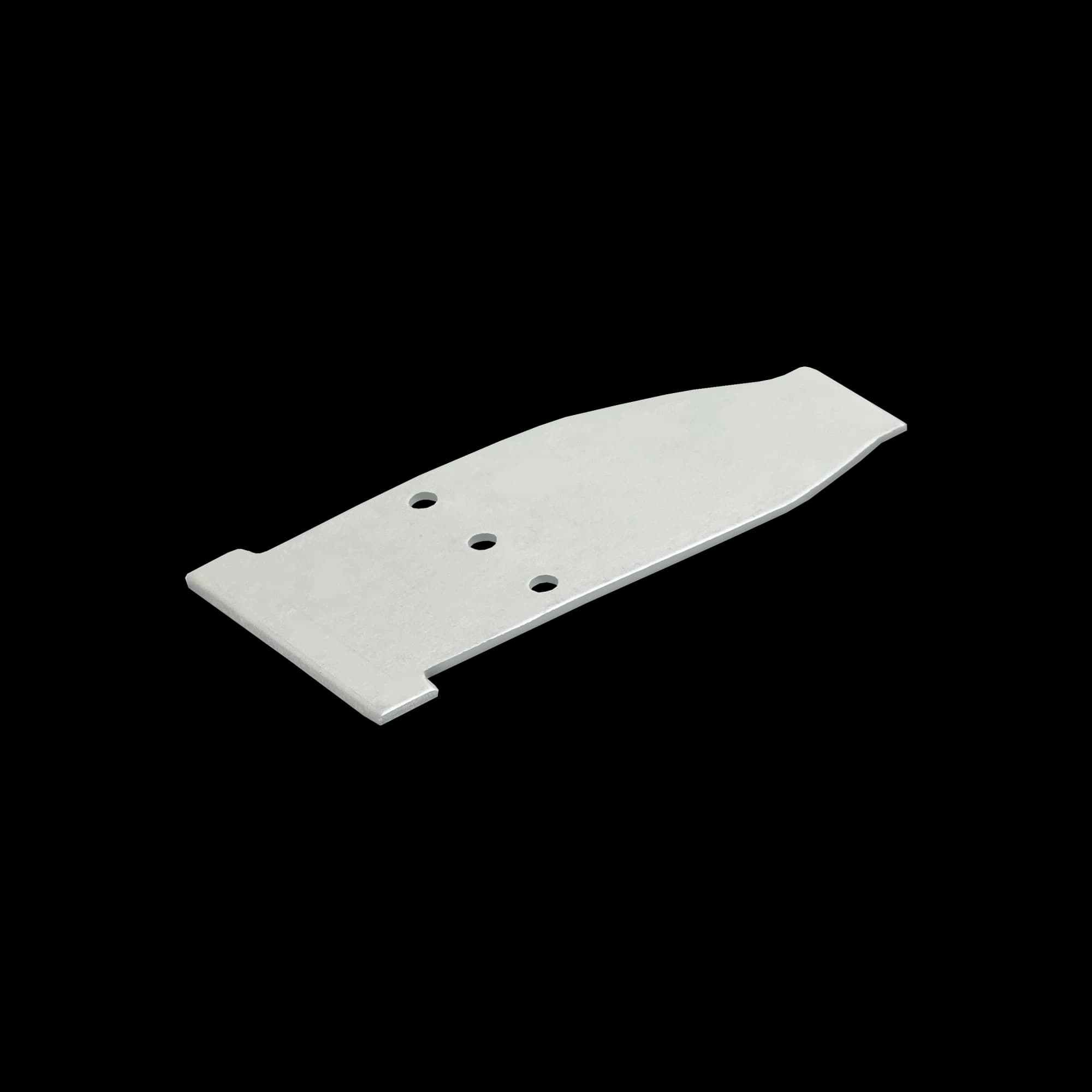

Cover Material

Anodized Aluminum
