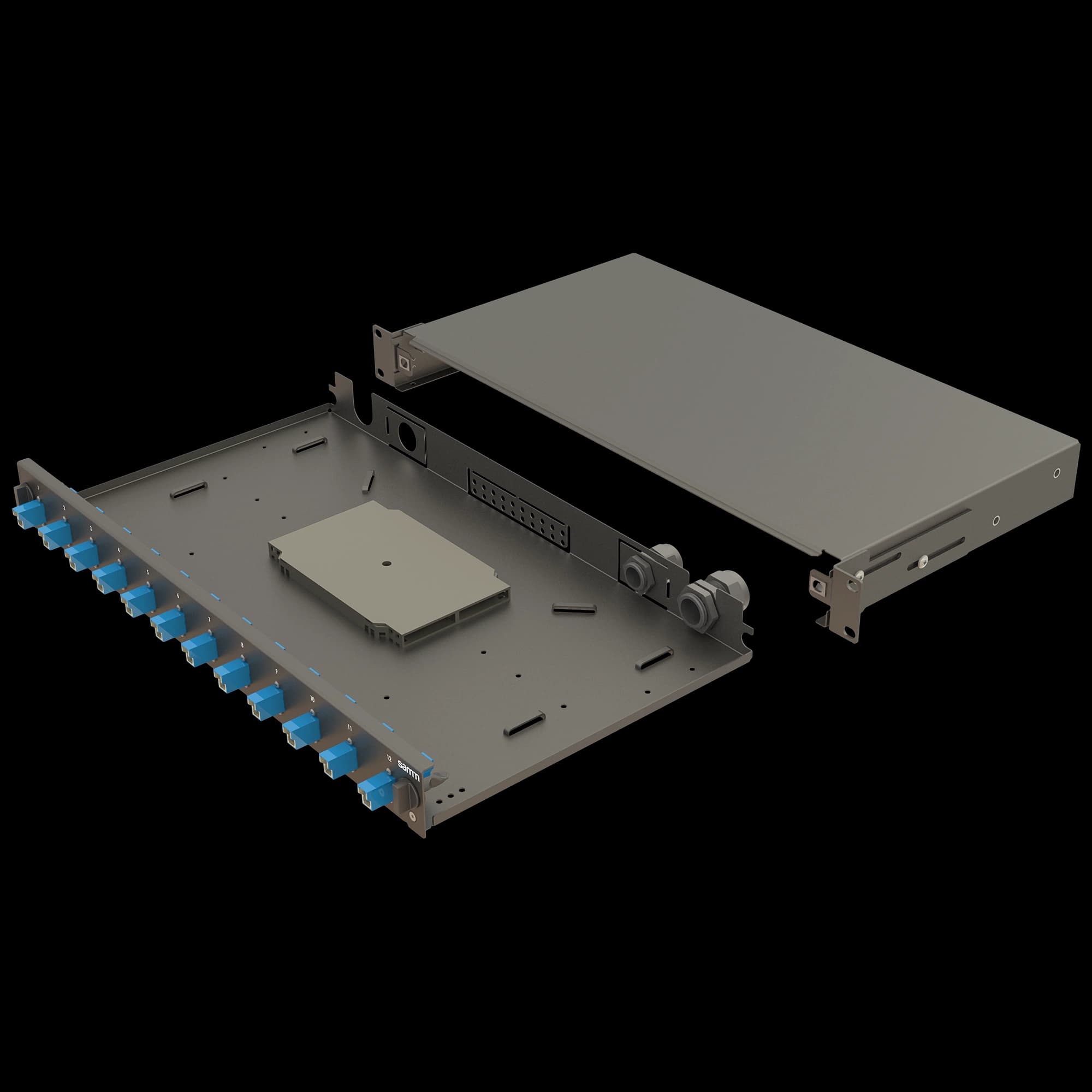

Bright Series | Mechanical Sliding | 12 LSH Simplex | FP01 | 12 Fiber
Bright Series | Mechanical Sliding | 12 LSH Simplex | FP01 | 12 Fiber
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
Bright Series | Mechanical Sliding | 12 LSH Simplex | FP01 | 12 Fiber Features Fixed-Type Bright Series Mechanical-Sliding FP01 Patch Panel Systems are designed for termination of up to 12 optical fibers according to the LSH adapter. These panels can be opened and closed on a plastic rail mechanism. These panels are used in telecom rooms, main distribution rooms and system rooms to terminate, distribute and manage fiber optic infrastructure in many different applications. Properties Different cable entry options Robust and installer-friendly design - providing reduced installation and operating costs Different rear cable entry options with PG16 and PG13.5 gland holes Screwable desing for adapters on front plates Removable shelf design for installation easiness Powder-coated RAL 9000 (Black) Operating temperature: -20°C / +80°C Product Content 1 pc - FP01 Panel 1 pc - PG16 Cable Gland 1 pc - PG13.5 Cable Gland 1 pc - Rack Mounting Set 4 pc - Tire Wrap 6 pc - Bunny Clips 1 pc - BS-SPLKIT1-12F-1T-BLK 12 pc - LSH Simplex Adapters pre-assembled with screws 12 pc - LSH Pigtail (Un-assembled) Size (cm) Weight (Kg) 50 x 28 x 5 2.5299999713897705 Bright Series Patch & Splice Management Panels | Mechanical Sliding | Datasheet
Especificaciones técnicas
- Size (cm)
- Weight (Kg)
- 50 x 28 x 5
- 2.5299999713897705
