Bright Series | Mechanical Sliding | 24 LC Duplex | FP03 | 48 Fiber
Bright Series | Mechanical Sliding | 24 LC Duplex | FP03 | 48 Fiber
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

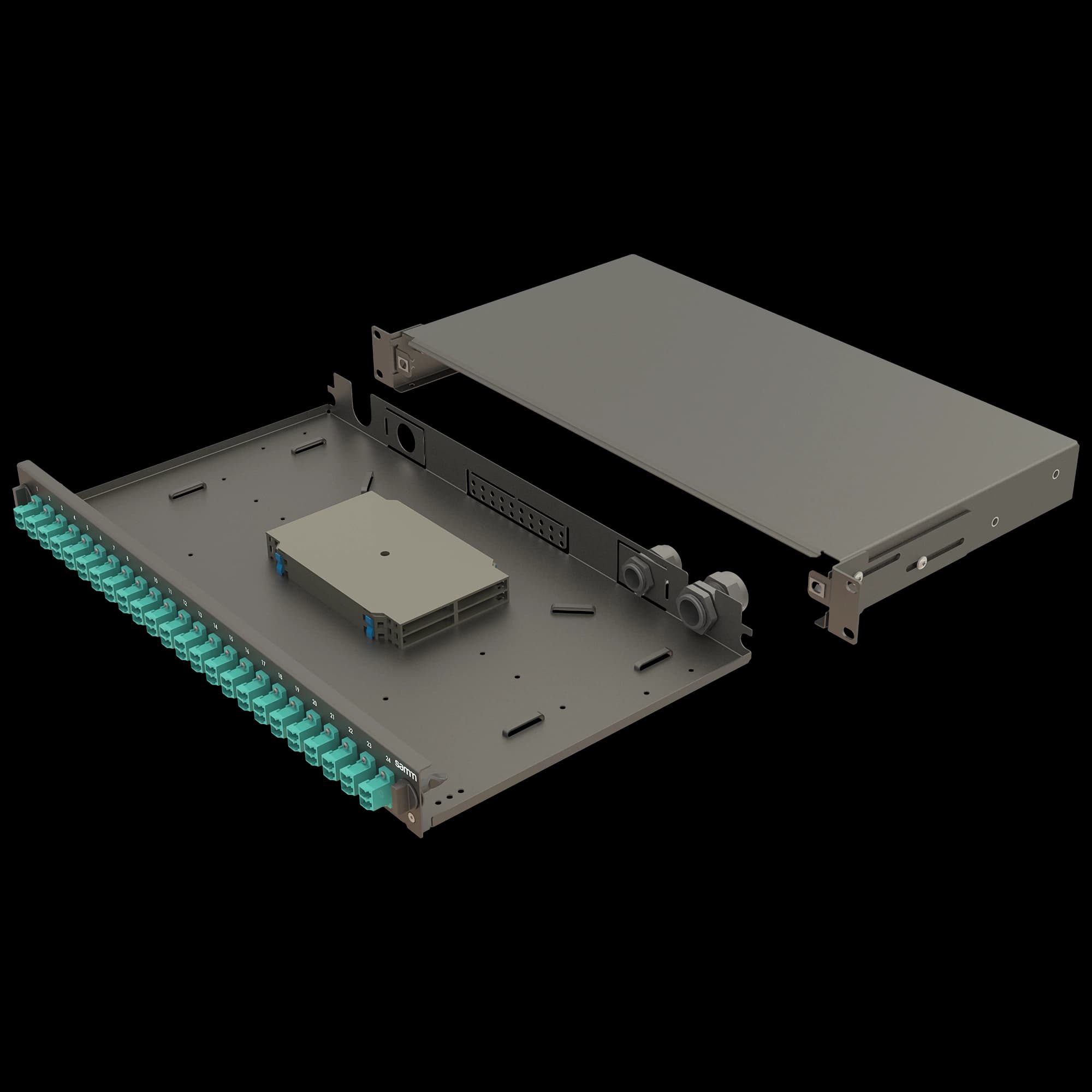

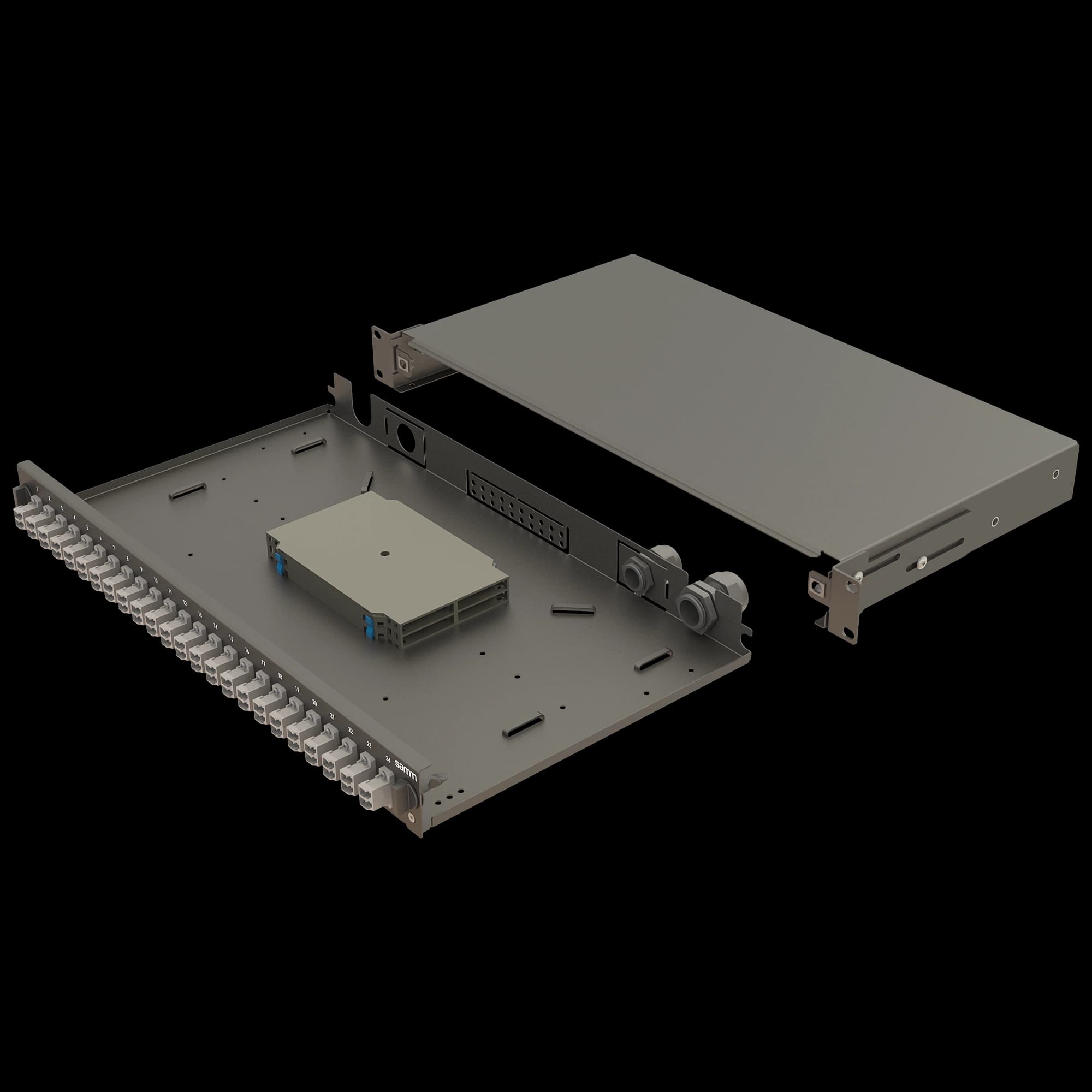

Bright Series | Mechanical Sliding | 24 LC Duplex | FP03 | 48 Fiber Features Fixed-Type Bright Series Mechanical-Sliding FP03 Patch Panel Systems are designed for termination of up to 24 optical fibers according to the LC adapter. These panels can be opened and closed on a plastic rail mechanism. These panels are used in telecom rooms, main distribution rooms and system rooms to terminate, distribute and manage fiber optic infrastructure in many different applications. Properties Different cable entry options Robust and installer-friendly design - providing reduced installation and operating costs Different rear cable entry options with PG16 and PG13.5 gland holes Screwable desing for adapters on front plates Removable shelf design for installation easiness Powder-coated RAL 9000 (Black) Operating temperature: -20°C / +80°C Product Content 1 pc - FP03 Panel 1 pc - PG16 Cable Gland 1 pc - PG13.5 Cable Gland 1 pc - Rack Mounting Set 4 pc - Tire Wrap 6 pc - Bunny Clips 1 pc - BS-SPLKIT4-48F-2T-BLK 24 pc - LC Duplex Adapters pre-assembled with screws 48 pc - LC Pigtail (Un-assembled) Size (cm) Weight (Kg) 50 x 28 x 5 2.5299999713897705 Bright Series Patch & Splice Management Panels | Mechanical Sliding | Datasheet
Especificaciones técnicas
- Size (cm)
- Weight (Kg)
- 50 x 28 x 5
- 2.5299999713897705
