Bright Series | Rail Sliding | 12 Straight LC Duplex | FP11 | 24 Fiber
Bright Series | Rail Sliding | 12 Straight LC Duplex | FP11 | 24 Fiber
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

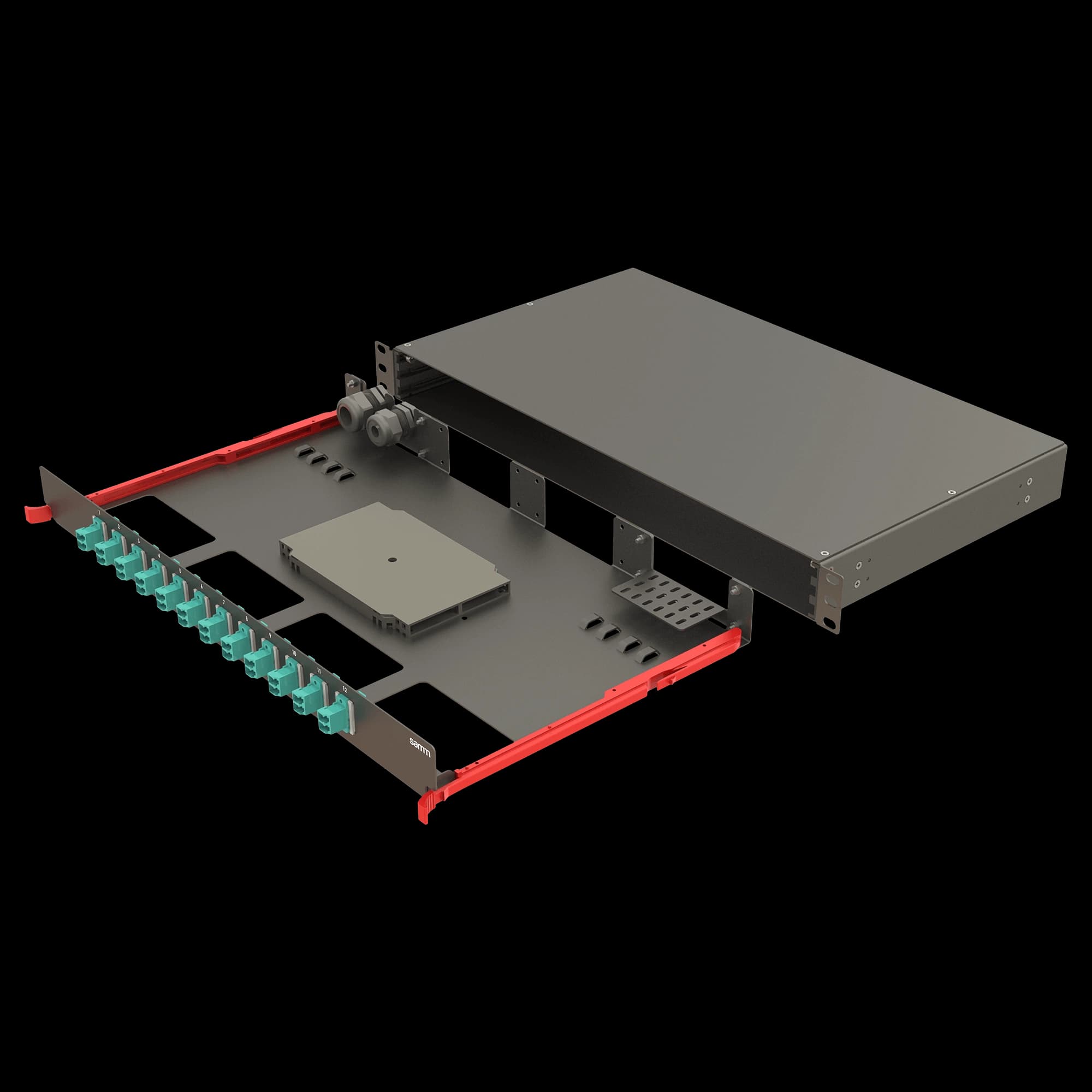

Bright Series | Rail Sliding | 12 Straight LC Duplex | FP11 | 24 Fiber Features Fixed-Type Bright Series Rail-Sliding FP11 Patch Panel Systems are designed for termination of up to 24 optical fibers according to the LC adapter. These panels can be opened and closed on a plastic rail mechanism. These panels are used in telecom rooms, main distribution rooms and system rooms to terminate, distribute and manage fiber optic infrastructure in many different applications. Properties Different cable entry options Special plastic rail and locking mechanism Robust and installer-friendly design - providing reduced installation and operating costs Different rear cable entry options with PG16 and PG13.5 gland holes Screwable desing for adapters on front plates Patented adapter clips for angled applications Removable shelf design for installation easiness Powder-coated RAL 9000 (Black) Operating temperature: -20°C / +80°C Product Content 1 pc - FP11 Panel 1 pc - BS-REP_SET_02 1 pc - BS-REP_SET_03 1 pc - Rack Mounting Set 4 pc - Tire Wrap 1 pc - BS-SPLKIT2-24F-1T-BLK 24 pc - LC Duplex Adapters pre-assembled with screws 24 pc - LC Pigtail (Un-assembled) Size (cm) Weight (Kg) 50 x 28 x 6 2.5299999713897705 Fixed-Type Bright Series Fiber Optic Patch Panels | Rail Sliding 1U | Datasheet
Especificaciones técnicas
- Size (cm)
- Weight (Kg)
- 50 x 28 x 6
- 2.5299999713897705
