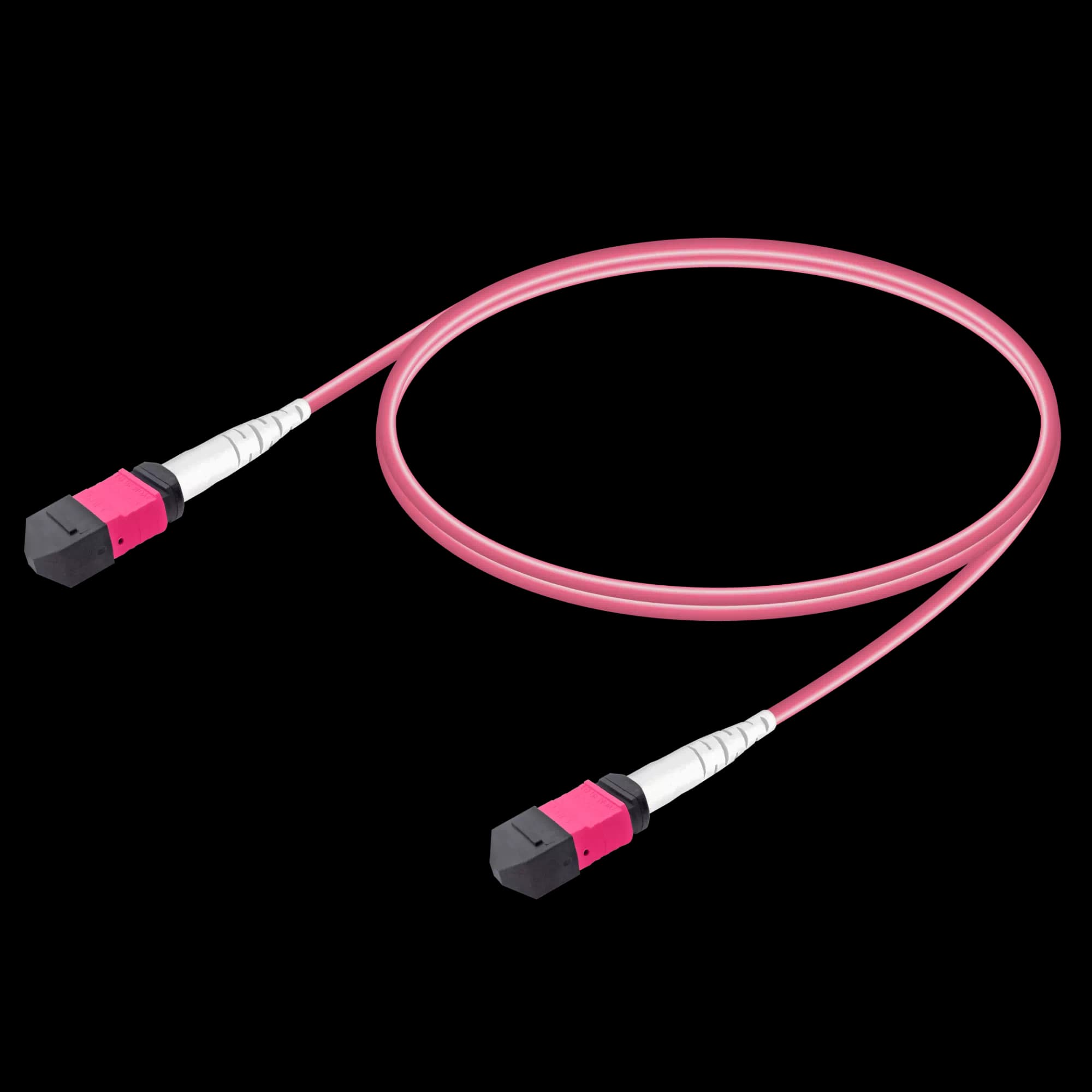

MTP Elite Male-Male Patch Cord | Base-16 | Multi-Mode G651.OM4 | 3.0mm

Descripción

MTP Elite Male-Male Patch Cord | Base-16 | Multi-Mode G651.OM4 | 3.0mm Features 16 Fibers MTP® patch cord cables are used for 200/400/800G QSFP-DD SR8 optics direct/interconect connection and supporting 200/400/800G transmission for Hyperscale Data Center. Type B 16 Fibers MTP®-16 trunk cable is suitable for 16-fiber parallel multi mode optical transceiver connections. The assemblies are offered in single row 16-fiber configurations to achieve high density physical contact for multi-fiber connectors in the market. The connector hardware offers a unique keying feature as opposed to the centered keying feature on the traditional MPO hardware. This new keying design, standardized by TIA 604-18 (FOCIS 18), IEC (61754-7-3) and IEC (61754-7-4), ensures proper mating of the MTP®-16 connector without inadvertently mating the 16 fiber connector hardware with standard MPO compliant hardware. MTP®-16 adapters are available in full or reduced flange mounting and opposed or aligned key orientation. Features Support 200G/400G/800G transmission for Hyperscale Data Center Type B polarity for 400GBASE-SR8 QSFP-DD link Different multimode fibers OM3/OM4/OM5 for 400G Ethernet applications up to applications 70 / 100 / 100 meters (at 850 nm) Low IL and stable signal transmission ensuring your network safety High-quality MTP(MPO) connectors and guaranteed by 3D interferometer 100% factory tested Applications QSFP-DD SR8 / QSFP-DD SR8 Connections Specifications Insertion Loss (IEC 61300-3-4-Method-B) Average: 0.10 dB, Max: 0.35 dB Return Loss (IEC 61300-3-6-Method-B) ≥ 20 dB Durability >100 mating cycles Flammability UL94 V-0 Operating Temperature -10°C to +70°C Cable Diameter 3.0 mm MTP Connector Compliance TIA 604-18 (FOCIS 18), IEC 61754-7-3, IEC 61754-7-4, RoHS Fiber Optic MTP Patch Cord | Multi Mode | Datasheet MTP/MPO Base-16 Patch Cord Polarity

Especificaciones técnicas

Insertion Loss (IEC 61300-3-4-Method-B)

Average: 0.10 dB, Max: 0.35 dB

Return Loss (IEC 61300-3-6-Method-B)

≥ 20 dB

Durability

>100 mating cycles

Flammability

UL94 V-0

Operating Temperature

-10°C to +70°C

Cable Diameter

3.0 mm

MTP Connector Compliance

TIA 604-18 (FOCIS 18), IEC 61754-7-3, IEC 61754-7-4, RoHS
