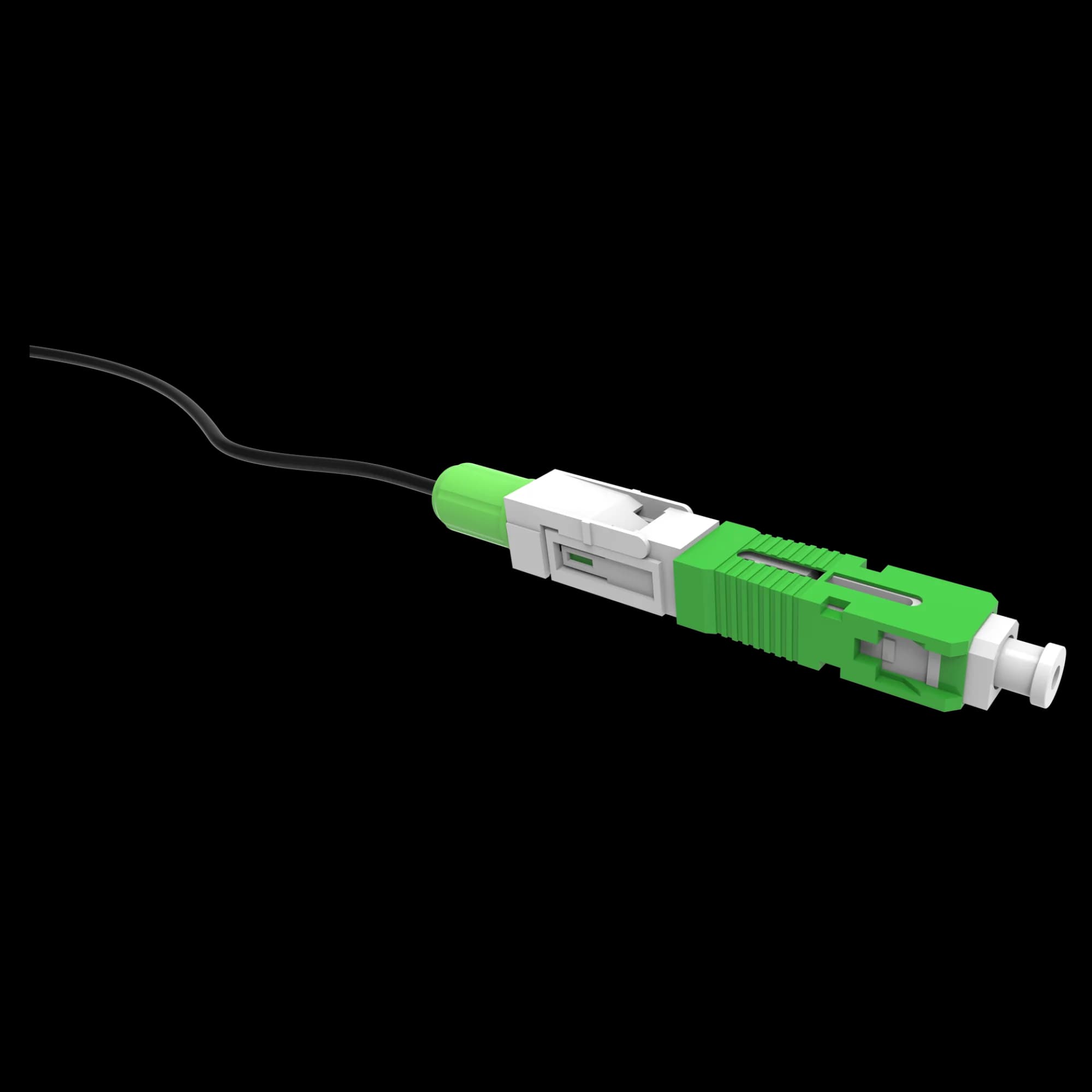

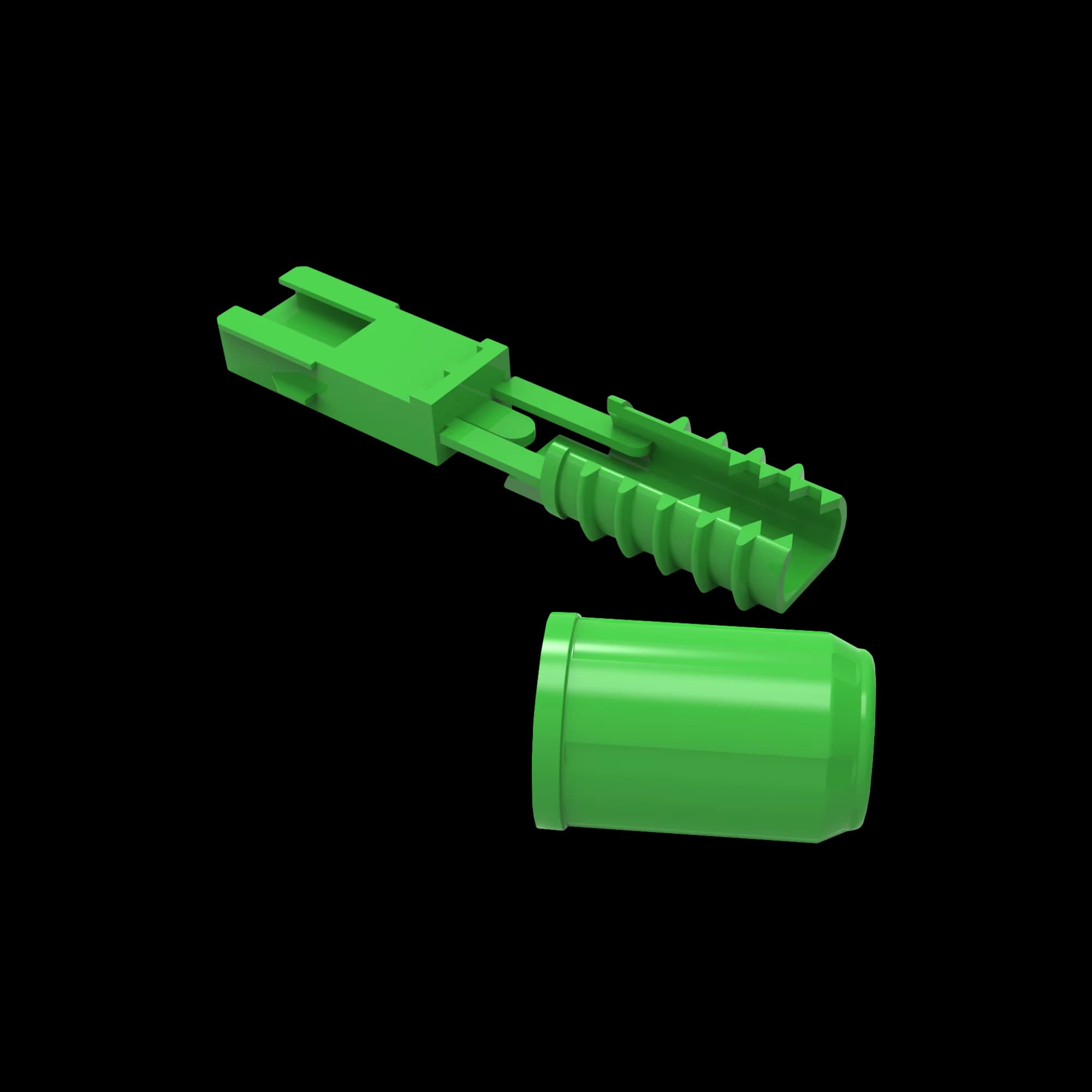

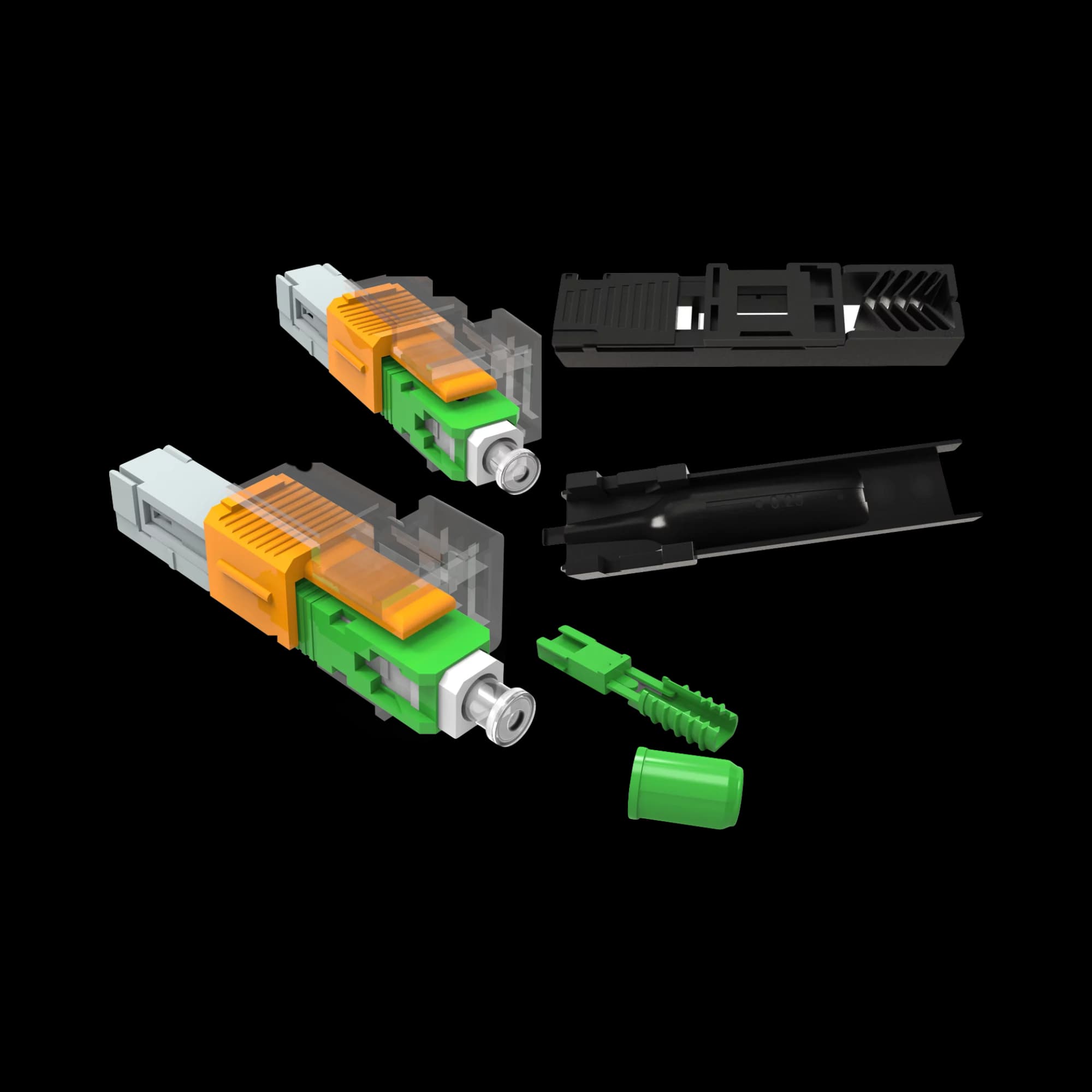

Furukawa EZ! CONNECTOR-35400062 Field Connector, SM SC/APC

Descripción

Furukawa EZ! CONNECTOR-35400062 Field Connector, SM SC/APC Features An SC-APC field connector for easy installation. This EZ! connector requires no special tools, epoxy or polishing during field installation. The SC-APC EZ! field connector has high optical and mechanical performance and provides quick and easy field termination. The EZ! field optical connector was developed for quick and easy connection of compact round cables with diameter 3mm and semi tight coating. This easy connector is used for field connectorization of optical cables in FTTx networks, and it is designed for indoor application in controlled areas or in termination boxes. Features Insertion Loss (dB) Typical: 0.3 dB / Maximum 0.5 dB Return Loss (dB) Typical: 50 dB / Maximum: 55 dB Polishing Type APC Fiber Type Single Mode Width 9.2 mm Height 7.4 mm Depth 61.0 mm Axial load 20N (0,2 dB change) Operation Temperature -25C° to 75°C. Storage Temperature -25C° to 75°C. SC-APC Field Type EZ! Round Cable Connector | Datasheet

Especificaciones técnicas

Insertion Loss (dB)

Typical: 0.3 dB / Maximum 0.5 dB

Return Loss (dB)

Typical: 50 dB / Maximum: 55 dB

Polishing Type

APC

Fiber Type

Single Mode

Width

9.2 mm

Height

7.4 mm

Depth

61.0 mm

Axial load

20N (0,2 dB change)

Operation Temperature

-25C° to 75°C.

Storage Temperature

-25C° to 75°C.
