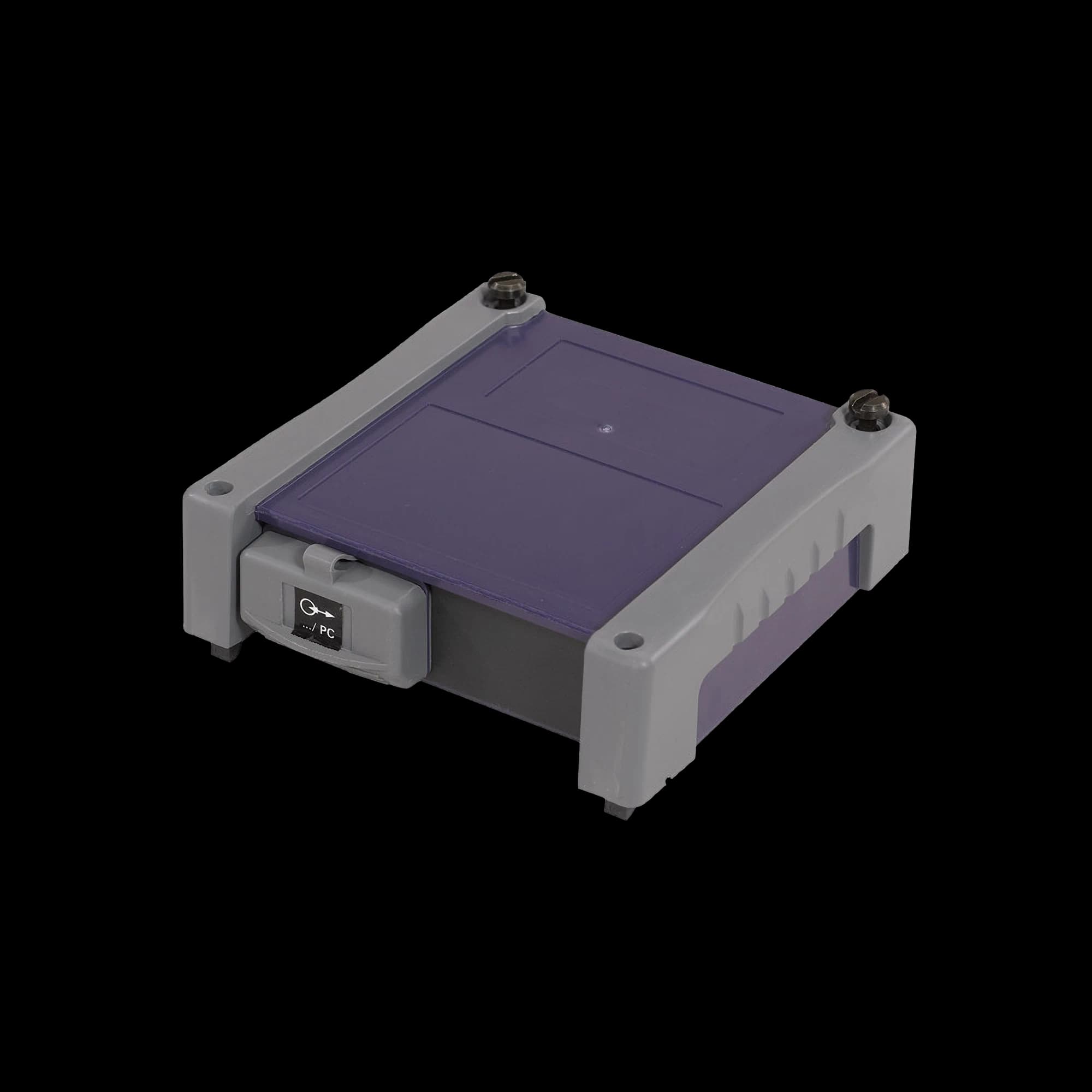

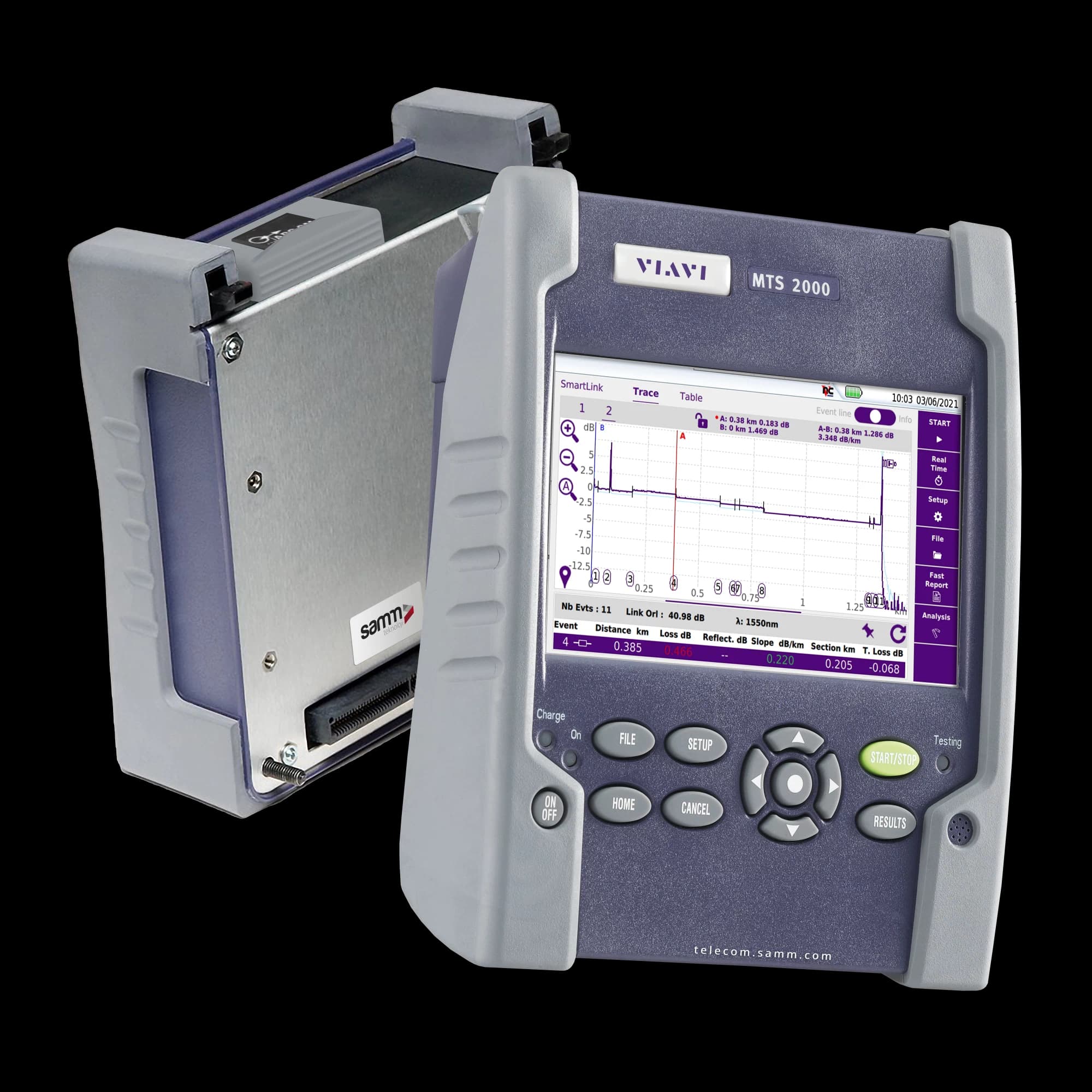

MTS-2000 + CWDM OTDR

Descripción

MTS-2000 + CWDM OTDR Features To successfully establish and maintain C-RAN, DAS, CWDM, and fronthaul networks, you can use the VIAVI MTS-2000 OTDR with CWDM Module. The T-BERD®/MTS platform's suite of testing tools, along with the optical performance of the CWDM OTDR family, guarantees that testing tasks are carried out correctly the first time. MTS-2000 + CWDM OTDR Testing features Automatic multitest configurations Easy-to-read summarresults table with pass/fail analysis Quick trace interpretation with SLM (optional) FastReport™ onboard report generation MTS-2000 + CWDM OTDR Benefits Characterize fiber links with exact CWDM wavelengths Qualify C-RAN, DAS, and any mobile fronthaul network Troubleshoot live networks with in-service testing capability Verify end-to-end continuity using the continuous wave source function Eliminate OTDR interpretation errors with Smart Link Mapper (SLM) without comprising test times MTS-2000 + CWDM OTDR Features 8 or 10 CWDM wavelengths in 1 module and 18 wavelengths in 2 modules Optimized performance for access and metro applications Integrated CW light source with modulation capability Instantaneous traffic detection MTS-2000 + CWDM OTDR Applications Qualification of fronthaul access networks Testing new CWDM wavelength routes without disrupting traffic on active channels Pinpointing faults and their exact locations while in service VIAVI MTS-2000 Details 5-inch touch screen Charge indicator On indicator File menu Setup menu Start/Stop Testing indicator On/Off Home page Cancel Direction and validation keys Results page Loudspeaker Headset jack AC/DC input Slave mini USB port RJ45 connector Master USB ports (2) Power meter port VFL or talk set port WiFi and Bluetooth options Stylus for touch screen Multimode Singlemode+Multimode Singlemode Type MM OTDR QUAD OTDR LM OTDR MA OTDR MP OTDR Wavelengths 850/1300 850/1300/1310/1550 1310/1550/1625/1650 1310/1550/1625/1650 1310/1490/1550/1625/1650 nm Dyn. range 27/25dB 27/25/37/35dB 34/32/32/30dB 37/35/35/33dB 42/40/40/40/40dB EDZ 0.8 m 08 m MM / 0.9 m SM 1 m 0.9 m 0.8 m ADZ 4 m 4 m 4 m 4 m 4 m Applications - MM networks (Datacom/IT/Private Enterprises) - MM networks - Short/Medium Range SM Distances - Short Distances - Test before or after the splitter or up to 1/16 splitter on PON Networks - Short/Medium Range Distances - Test through up to 1/32 splitter on PON Networks - Medium/Long Range Distances - Test through up to 1/128 splitter on PON Networks MTS-2000 + CWDM Module OTDR | Datasheet

Especificaciones técnicas

Type

MM OTDR | QUAD OTDR | LM OTDR | MA OTDR | MP OTDR

Wavelengths

850/1300 | 850/1300/1310/1550 | 1310/1550/1625/1650 | 1310/1550/1625/1650 | 1310/1490/1550/1625/1650 nm

Dyn. range

27/25dB | 27/25/37/35dB | 34/32/32/30dB | 37/35/35/33dB | 42/40/40/40/40dB

EDZ

0.8 m | 08 m MM / 0.9 m SM | 1 m | 0.9 m | 0.8 m

ADZ

4 m | 4 m | 4 m | 4 m | 4 m

Applications

- MM networks (Datacom/IT/Private Enterprises) | - MM networks - Short/Medium Range SM Distances | - Short Distances - Test before or after the splitter or up to 1/16 splitter on PON Networks | - Short/Medium Range Distances - Test through up to 1/32 splitter on PON Networks | - Medium/Long Range Distances - Test through up to 1/128 splitter on PON Networks
