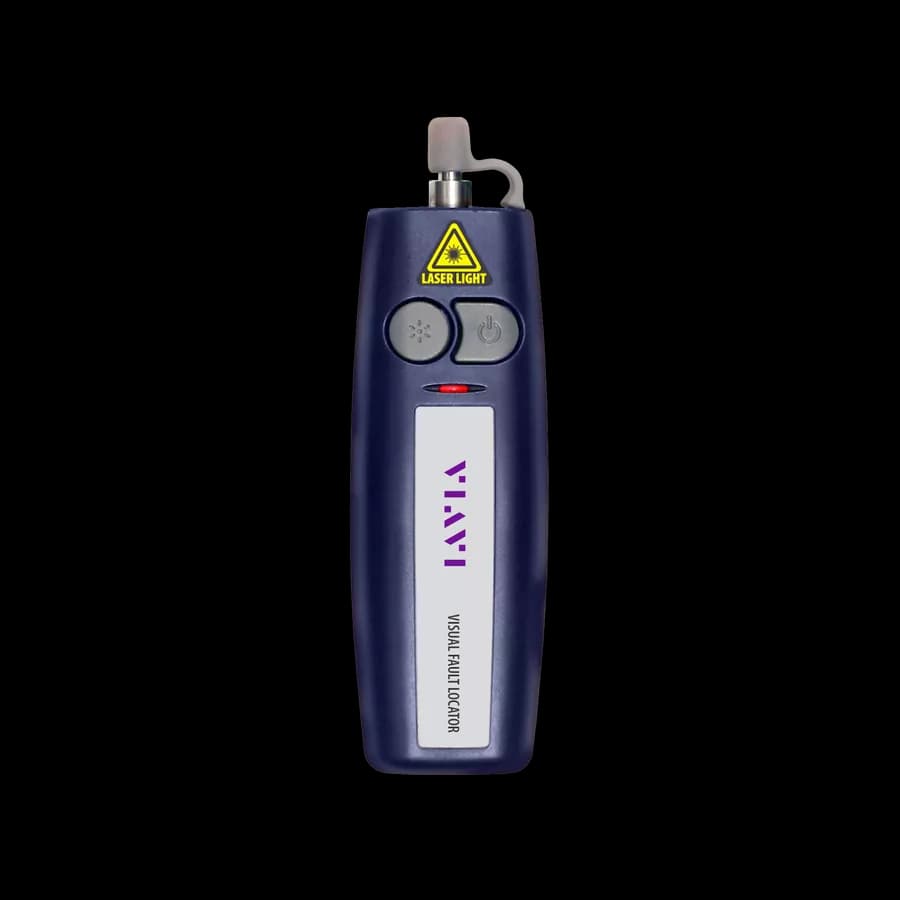

FFL-050 Visual Fault locator
FFL-050 Visual Fault locator
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

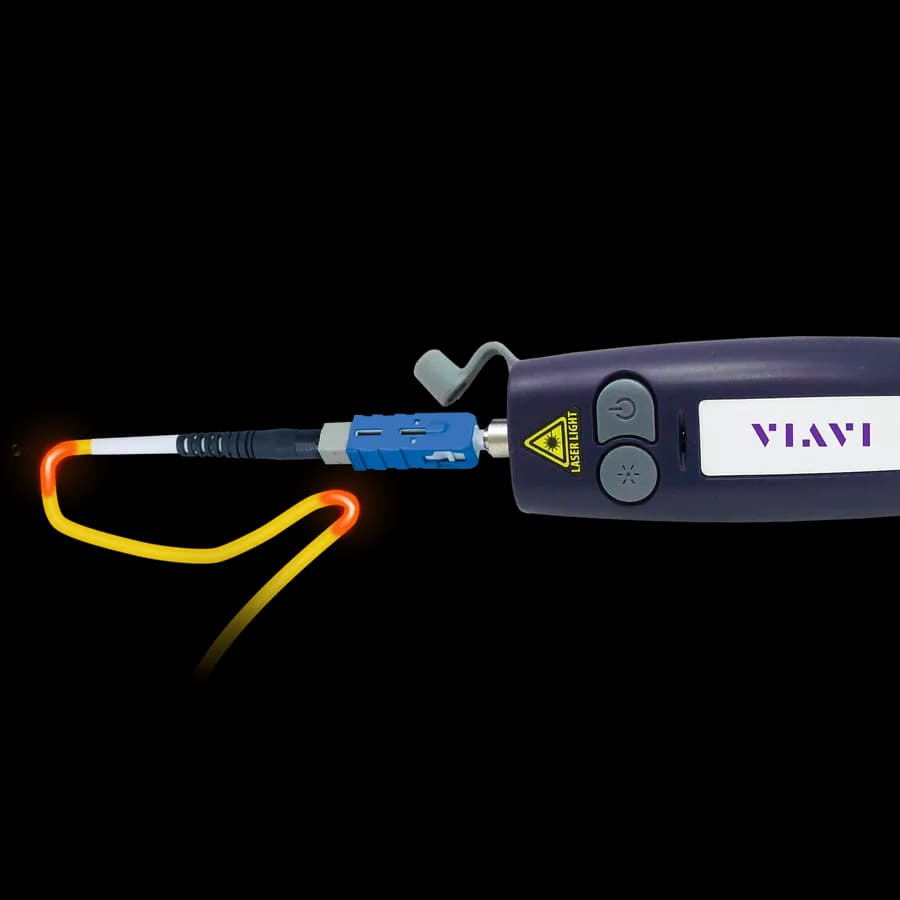

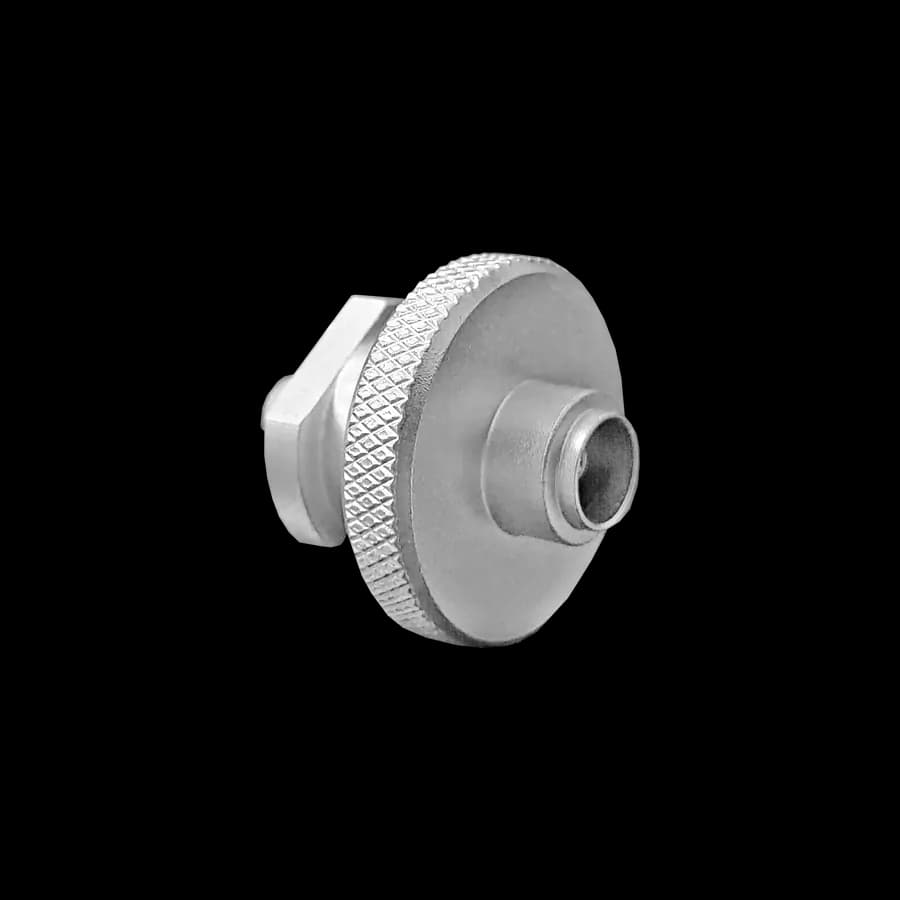

FFL-050 Visual Fault locator Features The Visual Fault Locator VIAVI VFL FFL-050 is a quick and easy tool for locating fiber problems points, preforming continuity tests and for fiber identification. The visual fault locator FFL-050 sends a red laser beam that makes any light escaping point glow red, this glow is enough to locate damages from far distances. FFL-050 has a 2.5mm interface, which makes it compatibles with SC, ST and FC fiber optic connectors. FFL-050 is very small and portable; works for 30 hours using AAA batteries, has continuous and blinking light options and with a 1.25 mm adapter can connect to LC and MU connectors. VIAVI FFL-050 VFL Benefits Very small and easy to use Quick damage locating in optical fiber Continuous or flashing illumination modes Economically priced 30 hours battery life Protective rubber end cap VIAVI FFL-050 VFL Features Compact, ergonomic design for ultimate portability Visible wavelength is 650 nm High powered laser (1 mW) Signal range is 7 Km for singlemode and 5 Km for multimode Continuous or Flash illumination Universal connector interface for quick and easy connection 2.5 mm connector input (1.25 mm adapter available) Includes soft-sided carrying case with belt loop VIAVI FFL-050 VFL Applications Locates sharp bends, breaks, and damages in optical fiber Performs end-to-end continuity tests Performs fiber tracing and identification Visual Fault Locators FFL-050 FFL-100 | Datasheet
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
