OMK-35 Fiber Optic Test Kit | Single Mode

Descripción

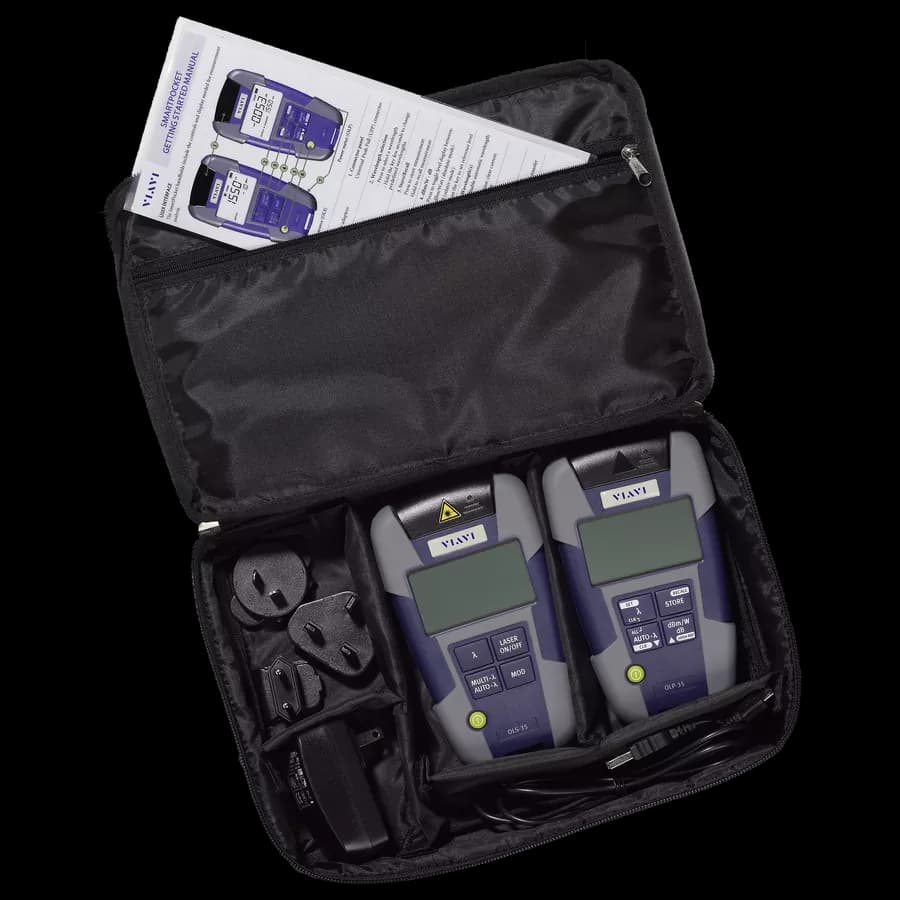

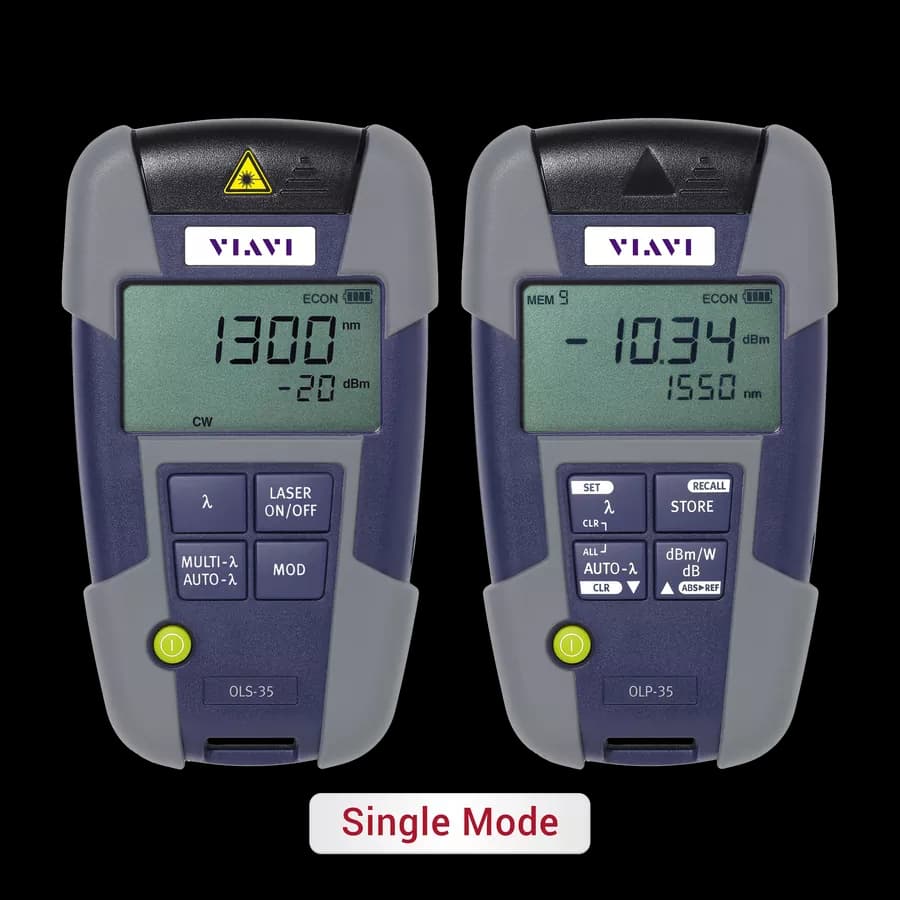

OMK-35 Fiber Optic Test Kit | Single Mode Features OMK-35 is suitable for Single-mode with dual wavelengths 1310/1550 nm, and has a push/pull adapter interface UPP. Including OLS-35 light source and OLP-35 power meter, from VIAVI, OMK-35 Service Provider Test Kit is best test kit for power level and loss measurement tests in Access, Metro, and Core fiber optic networks. VIAVI optic test kits are globally used for installing and maintaining fiber optic networks by performing insertion loss measurements, and continuity checks. VIAVI OMK-35 Features Access, core, and metro single-mode testing combinations A lightweight, shock-resistant splash-proof design Push/Pull (UPP) 2.5 mm adapter -1.25 mm optional- Auto-ʎ automatic wavelength identification TwinTest automatically tests two wavelengths Error-free and efficient testing Storage capability of 100 results Micro USB port fast report transfer Compatible with SmartReporter free software Pass/Fail report generation for PDF or Excel VIAVI OMK-35 Applications Power level test, link Insertion loss measurement, continuity checking and tone detection for single-mode Access, core, and metro fiber optic networks with 1310/1550 nm wavelength. instruments Applications Kit Light Source Power Meter Wavelength MM SM Access/FTTX Metro/Core LAN/WAN Enterprise Enterprise OMK-34 OLS-34 OLP-34 850/1300nm ✓ ✓ OMK-36 OLS-36 OLP-35 850/1300nm 1310/1550nm ✓ ✓ ✓ ✓ ✓ Service Providers OMK-35 OLS-35 OLP-35 1310/1550nm ✓ ✓ ✓ OMK-38 OLS-35 OLP-38 1310/1550nm ✓ ✓ Video overlay ✓ CATV OMK-34 Enterprise Kit OMK-36 Enterprise Quad Kit OMK-35 Service Provider Kit OMK-38 Service Provider Hi-Power Kit Light Source OLS-34 OLS-36 OLS-35 OLS-35 Fiber type MM (50/125 µm) MM (50/125 µm)/SM SM SM Output power -20 dBm -20 dBm/-7 dBm -7 dBm -7 dBm Wavelength uncertainty ± 20 nm Connector type Switchable adapters Power Meter OLP-34 OLP-35 OLP-35 OLP-38 Power range -60 to +5 dBm -65 to +10 dBm -65 to +10 dBm -50 to +26 dBm Max. input power +13 dBm +16 dBm +16 dBm +27 dBm Connector type Universal push pull (UPP), interface 2.5 mm (1.25 mm as accessory) Data storage 100 results General Loss Test Set Specifications 850 nm ✓ ✓ 1300 nm ✓ ✓ 1310 nm ✓ ✓ ✓ 1550 nm ✓ ✓ ✓ Loss dynamic range 40 dB 40/58 dB 58 dB 43 dB General Specifications Dimension w x h x d 280 x 215 x 50 mm (11 x 8.5 x 2 in) Weight 0.6 kg (1.32 lb) SmartPocket Optical Test Kits | Datasheet

Especificaciones técnicas

instruments

Applications

Kit

Light Source | Power Meter | Wavelength | MM | SM | Access/FTTX | Metro/Core | LAN/WAN Enterprise

Enterprise

OMK-34 | OLS-34 | OLP-34 | 850/1300nm | ✓ | | | | ✓

OMK-36

OLS-36 | OLP-35 | 850/1300nm 1310/1550nm | ✓ | ✓ | ✓ | ✓ | ✓

Service Providers

OMK-35 | OLS-35 | OLP-35 | 1310/1550nm | | ✓ | ✓ | ✓ |

OMK-38

OLS-35 | OLP-38 | 1310/1550nm | | ✓ | ✓ Video overlay | ✓ CATV |

Light Source

OLS-34 | OLS-36 | OLS-35 | OLS-35

Fiber type

MM (50/125 µm) | MM (50/125 µm)/SM | SM | SM

Output power

-20 dBm | -20 dBm/-7 dBm | -7 dBm | -7 dBm

Wavelength uncertainty

± 20 nm

Connector type

Switchable adapters

Power Meter

OLP-34 | OLP-35 | OLP-35 | OLP-38

Power range

-60 to +5 dBm | -65 to +10 dBm | -65 to +10 dBm | -50 to +26 dBm

Max. input power

+13 dBm | +16 dBm | +16 dBm | +27 dBm

Connector type

Universal push pull (UPP), interface 2.5 mm (1.25 mm as accessory)

Data storage

100 results

850 nm

✓ | ✓ | |

1300 nm

✓ | ✓ | |

1310 nm

| ✓ | ✓ | ✓

1550 nm

| ✓ | ✓ | ✓

Loss dynamic range

40 dB | 40/58 dB | 58 dB | 43 dB

Dimension w x h x d

280 x 215 x 50 mm (11 x 8.5 x 2 in)

Weight

0.6 kg (1.32 lb)
