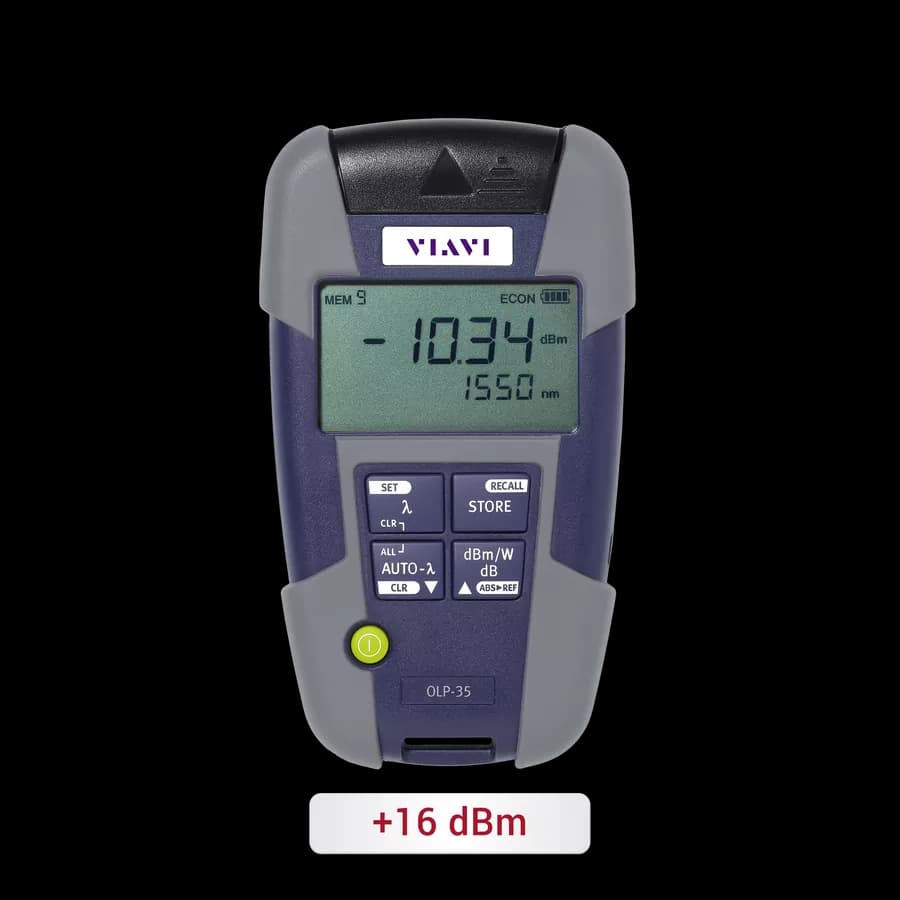

OLP-35 Optical Power Meter | Standard

Descripción

OLP-35 Optical Power Meter | Standard Features OLP-35 is the easy to use professional solution for testing fiber optic networks' insertion loss and continuity using a +16 dBm power range. An Optical Power Meter optimized for standard telecommunication network applications in single-mode. VIAVI OLP-35 is rugged and offers intuitive one-button operation, large display with constant readings, storage capacity and micro-USB data transfer. VIAVI OLP-35 Benefits Cost-effective, rugged high-performance solution 3-year recalibration period 1 nm incremental universal wavelength settings Universal optical interface supports all 2.5 mm Can optionally support 1.25 mm connectors Auto wavelength detection and TwinTest mode Internal data storage and PC download capability Quick start operation with no warm-up VIAVI OLP-35 Applications Measuring optical power levels and link insertion loss 850/1300 nm single-mode wavelengths Standard level tests for use in telecom, CATV, and military applications OLP-34 / OLP-35 / OLP-38 Comparison OLP-34 OLP-35 OLP-38 Detector type InGaAs InGaAs Filtered InGaAs Optical interface/connectors Universal 2.5 mm/1.25 mm1 Universal 2.5 mm/1.25 mm1 Universal 2.5 mm/1.25 mm1 Wavelength range 780 to 1600 nm 780 to 1650 nm 780 to 1650 nm Wavelength settings 780 to 1600 nm, step size 1 nm 780 to 1650 nm, step size 1 nm 780 to 1650 nm, step size 1 nm Programmable wavelengths 5 presets (customized) 5 presets (customized) 5 presets (customized) Calibrated wavelengths 850, 980, 1310, 1490, 1550 nm 850, 980, 1310, 1490, 1550, 1625 nm 850, 980, 1310, 1490, 1550, 1625 nm Power range –60 to +5 dBm –65 to +10 dBm –50 to +26 dBm Display range –60 to +10 dBm –65 to +13 dBm –50 to +26 dBm Max. input power +13 dBm +16 dBm +27 dBm Measurement units dB/dBm/W dB/dBm/W dB/dBm/W Intrinsic uncertainty2 ±0.2 dB (±5%) ±0.2 dB (±5%) ±0.2 dB (±5%) Linearity3 ±0.06 dB (–50 to +5 dBm) ±0.06 dB (–50 to +5 dBm) ±0.06 dB (–32 to +20 dBm) Tone detection 270 Hz, 1 kHz, 2 kHz 270 Hz, 1 kHz, 2 kHz 270 Hz, 1 kHz, 2 kHz Auto λ mode4 Yes Yes Yes Multi λ mode4 TwinTest/serial TripleTest TwinTest/serial TripleTest TwinTest/serial TripleTest SmartPocket Optical Power Meters | Datasheet SmartPocket V2 Family | Datasheet

Especificaciones técnicas

Detector type

InGaAs | InGaAs | Filtered InGaAs

Optical interface/connectors

Universal 2.5 mm/1.25 mm1 | Universal 2.5 mm/1.25 mm1 | Universal 2.5 mm/1.25 mm1

Wavelength range

780 to 1600 nm | 780 to 1650 nm | 780 to 1650 nm

Wavelength settings

780 to 1600 nm, step size 1 nm | 780 to 1650 nm, step size 1 nm | 780 to 1650 nm, step size 1 nm

Programmable wavelengths

5 presets (customized) | 5 presets (customized) | 5 presets (customized)

Calibrated wavelengths

850, 980, 1310, 1490, 1550 nm | 850, 980, 1310, 1490, 1550, 1625 nm | 850, 980, 1310, 1490, 1550, 1625 nm

Power range

–60 to +5 dBm | –65 to +10 dBm | –50 to +26 dBm

Display range

–60 to +10 dBm | –65 to +13 dBm | –50 to +26 dBm

Max. input power

+13 dBm | +16 dBm | +27 dBm

Measurement units

dB/dBm/W | dB/dBm/W | dB/dBm/W

Intrinsic uncertainty2

±0.2 dB (±5%) | ±0.2 dB (±5%) | ±0.2 dB (±5%)

Linearity3

±0.06 dB (–50 to +5 dBm) | ±0.06 dB (–50 to +5 dBm) | ±0.06 dB (–32 to +20 dBm)

Tone detection

270 Hz, 1 kHz, 2 kHz | 270 Hz, 1 kHz, 2 kHz | 270 Hz, 1 kHz, 2 kHz

Auto λ mode4

Yes | Yes | Yes

Multi λ mode4

TwinTest/serial TripleTest | TwinTest/serial TripleTest | TwinTest/serial TripleTest
