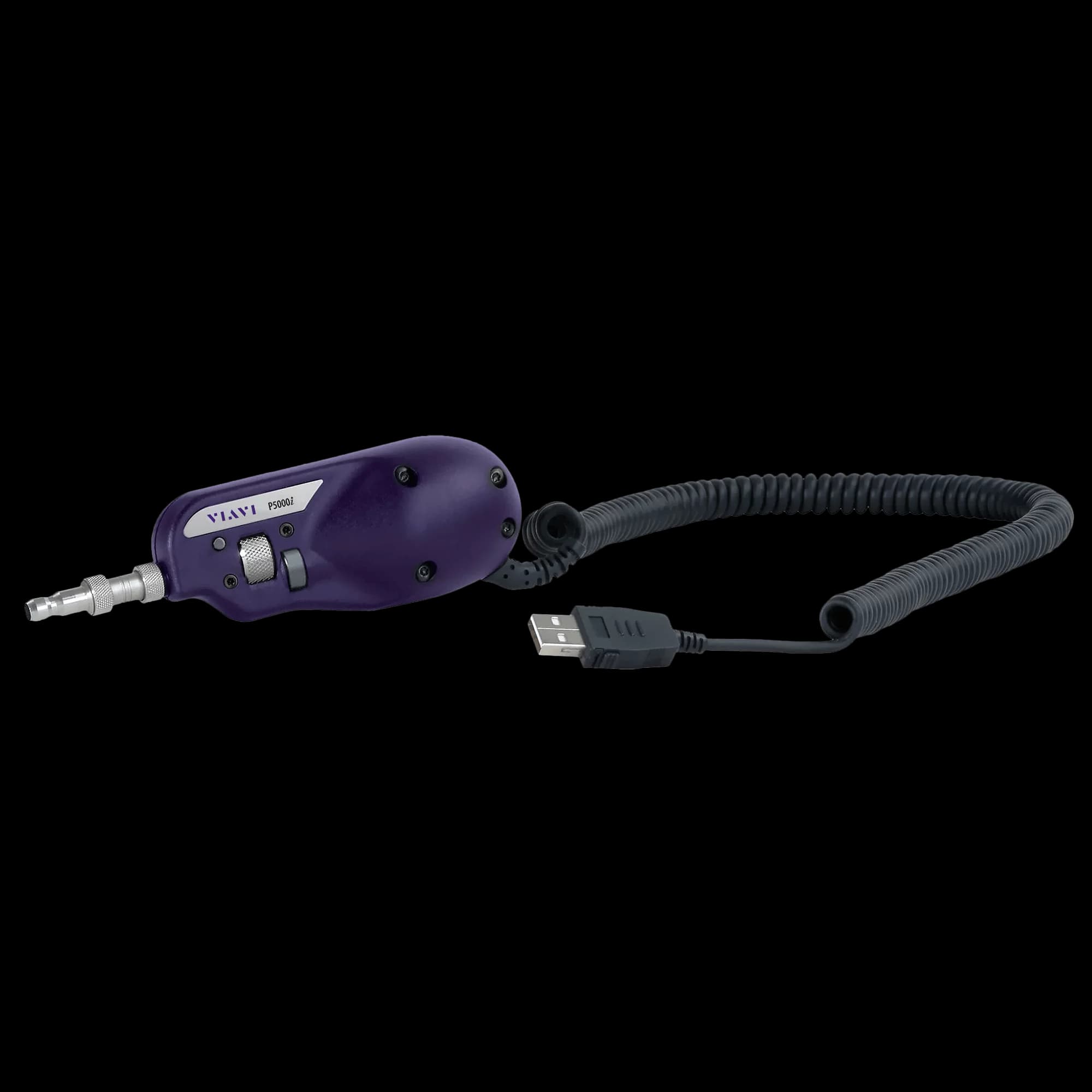

P5000i Fiber Microscope

Descripción

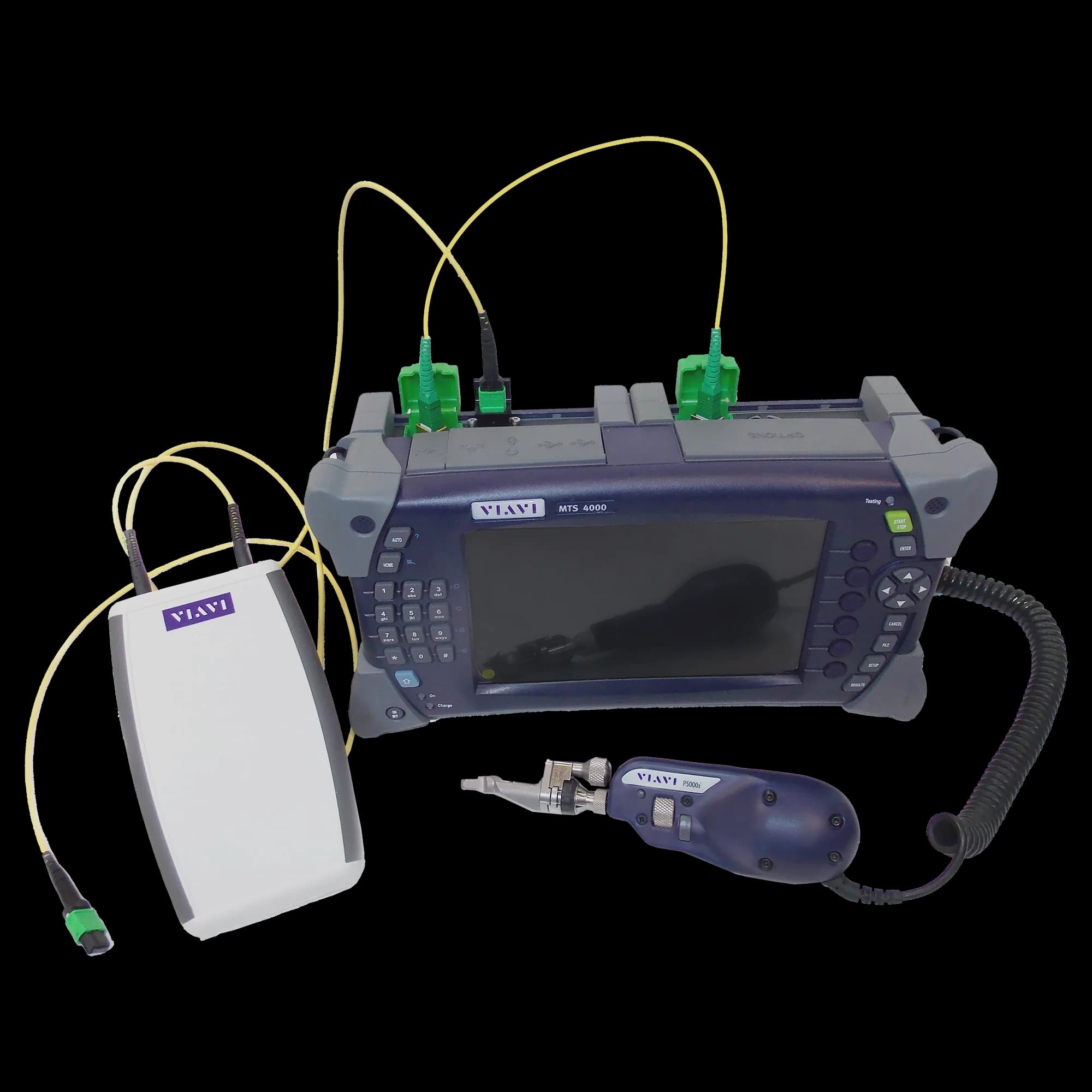

P5000i Fiber Microscope Features The P5000i fiber microscope provides decisive and objective Pass/Fail analysis of fiber optic lines, and generate reports based on industry standards. The VIAVI P5000i is a digital handheld microscope that automatically inspects and certifies the end faces of fiber optic connectors according to industry standards and specifications. VIAVI P5000i digital microscope provides instant pass/fail results at the push of a button, eliminating subjective and time-consuming guesswork. VIAVI P5000i Digital Microscope Features Connects via USB with multiple devices including Viavi tools, laptops/PCs, and Android mobile devices Repeatable pass/fail analysis eliminates subjective guesswork from the measurement process User-selectable acceptance profiles allow certification to an acceptance criteria Includes FiberChekPRO™ software for analysis and reporting with laptops/PCs Automatic image centering ensures the fiber always appears in the center of the screen Detailed report generation to certify and document results Dual magnification (200X and 400X) functionality provides high-level and detailed inspection and analysis Magnification toggle button allows easy switching in both live and analysis views Accepts FBPT series tips for comprehensive support for all connector types used in today’s network VIAVI P5000i Digital Microscope Details Weight 110 g (3.88 oz) Dimensions (w × h × d) 140 x 46 x 44 mm (5.5 x 1.8 x 1.7 in) Low mag field-of-view (FOV) Horizontal: 740 μm Vertical: 550 μm High mag field-of-view (FOC) Horizontal: 370 μm Vertical: 275 μm Live image 640 x 480 fps Connector USB 2.0 (backwards compatible to USB 1 Cord length 183 cm (6 ft) Camera sensor 2560 x 1920, 1/2.5-in CMOS Particle size detection <1 μm Light source Blue LED, 100,000+ hour life Lighting technique Coaxial Power source USB Port Certification CE P5000i Fiber Mikroskop | Datasheet

Especificaciones técnicas

Weight

110 g (3.88 oz)

Dimensions (w × h × d)

140 x 46 x 44 mm (5.5 x 1.8 x 1.7 in)

Low mag field-of-view (FOV)

Horizontal: 740 μm Vertical: 550 μm

High mag field-of-view (FOC)

Horizontal: 370 μm Vertical: 275 μm

Live image

640 x 480 fps

Connector

USB 2.0 (backwards compatible to USB 1

Cord length

183 cm (6 ft)

Camera sensor

2560 x 1920, 1/2.5-in CMOS

Particle size detection

<1 μm

Light source

Blue LED, 100,000+ hour life

Lighting technique

Coaxial

Power source

USB Port

Certification

CE
