LGX Box with Two 1625 nm Filters (SC/APC) OMLGX2F162SA
LGX Box with Two 1625 nm Filters (SC/APC) OMLGX2F162SA
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

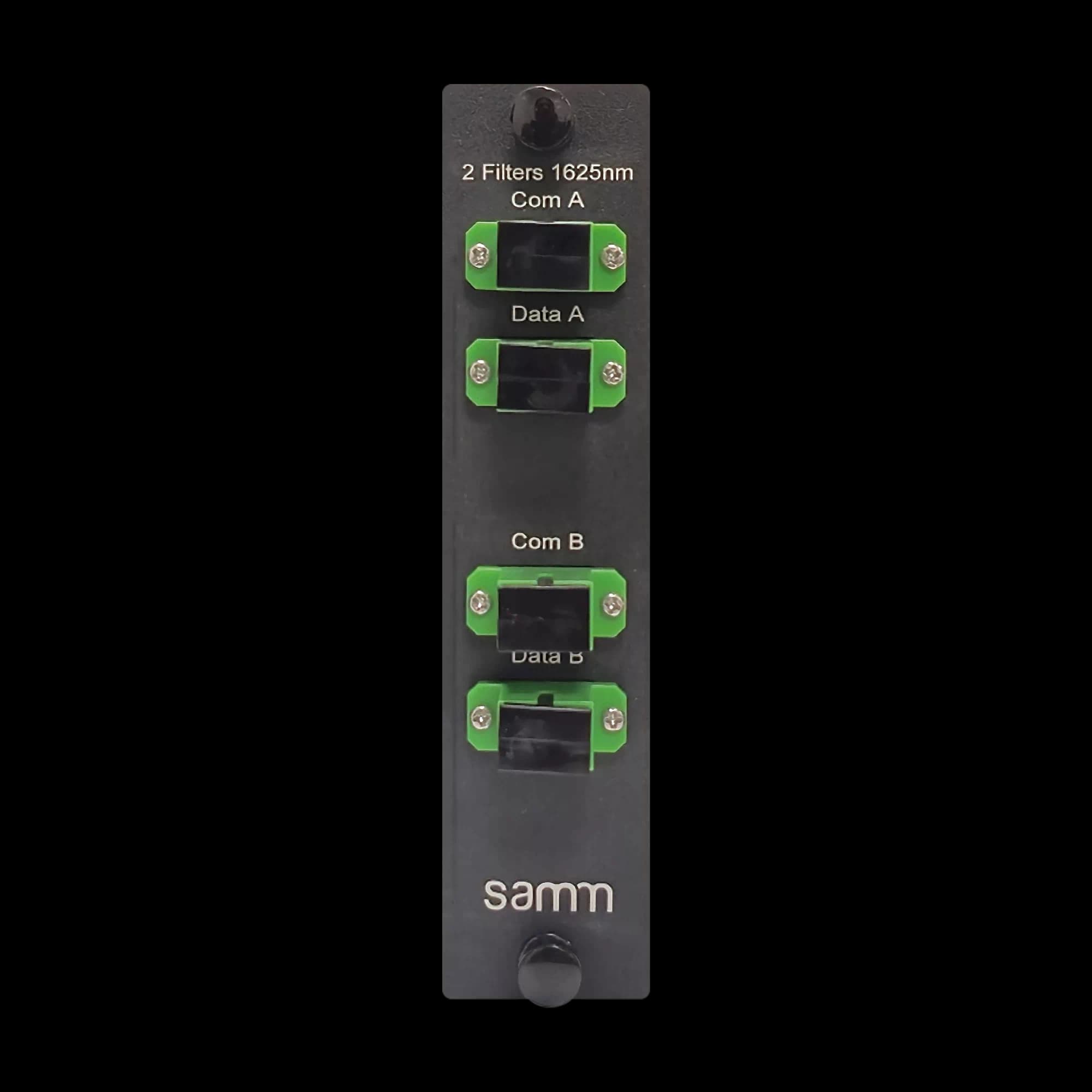

LGX Box with Two 1625 nm Filters (SC/APC) Features The 1625 nm Filter Module (SC/APC) is a passive optical component designed to separate the 1625 nm wavelength—typically used for OTDR-based fiber monitoring—from active transmission wavelengths such as 1310 nm, 1490 nm, and 1550 nm. It enables non-intrusive, in-service fiber testing without disrupting live data traffic. Housed in a standard LGX module, the bypass unit maintains excellent optical performance with low insertion loss and high isolation, ensuring reliable monitoring access in GPON, XGS-PON, RFoG, and other FTTx networks. Key Features Passes 1625 nm OTDR signals while blocking standard service wavelengths Enables in-service fiber monitoring without traffic interruption High isolation between 1625 nm and live transmission bands (1310/1490/1550 nm) Low insertion loss and high return loss Fully passive – no power required Housed in a standard LGX module, compatible with 19" racks Applications Continuous OTDR-based fiber health monitoring Integration with Remote Fiber Test Systems (RFTS) Multi-path fiber monitoring in FTTx networks OMLGX2F162SA LGX Passive Components Modules Samm Teknoloji
