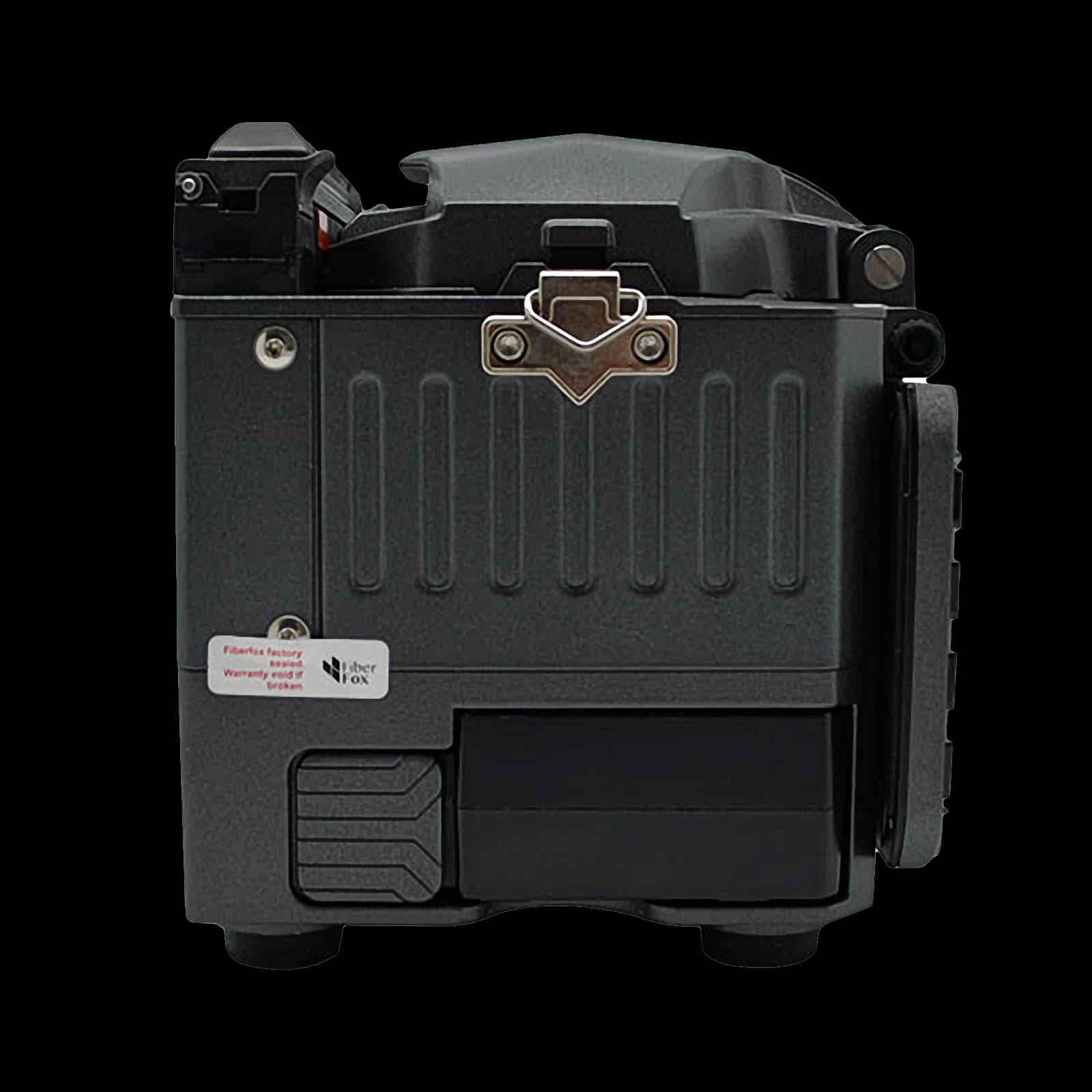

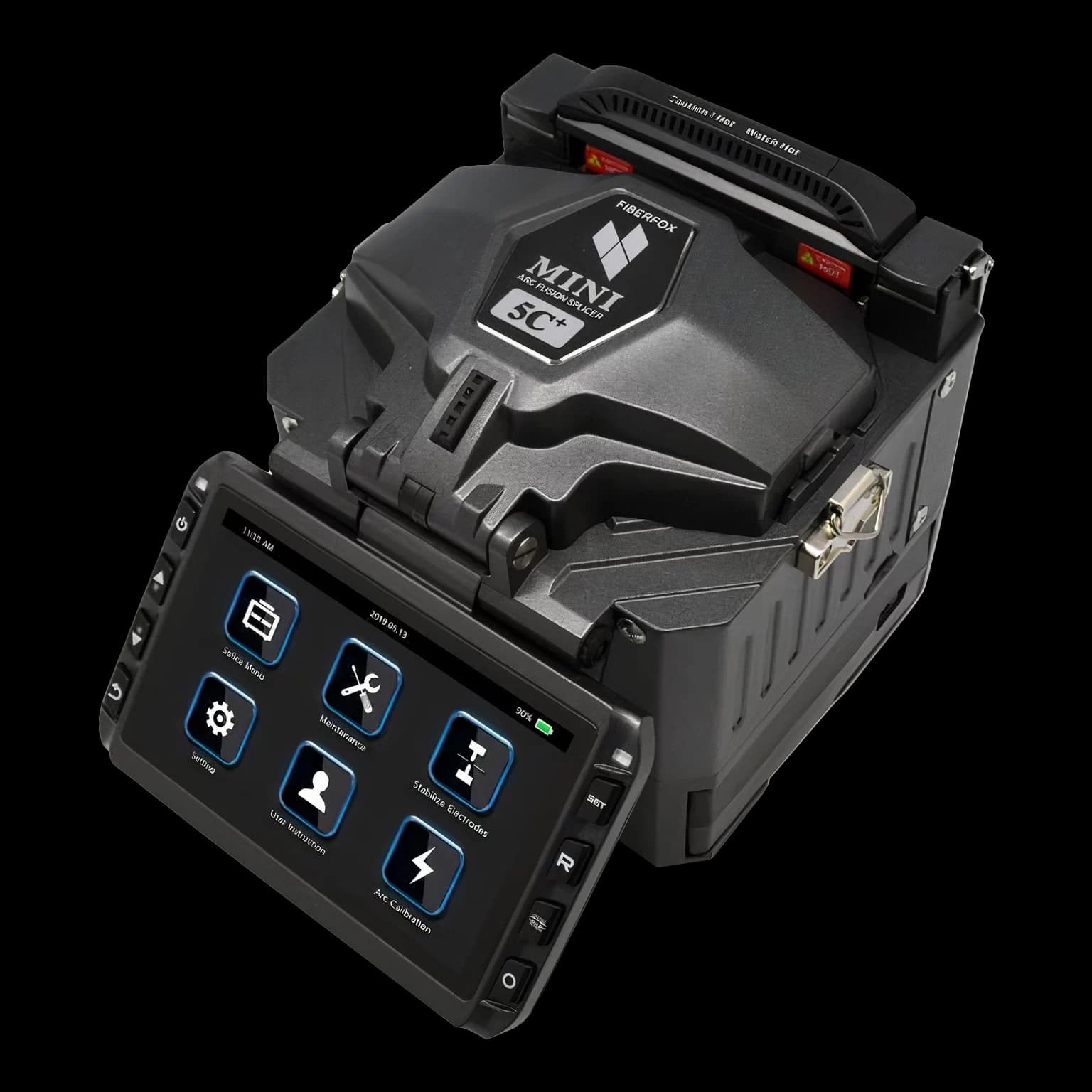

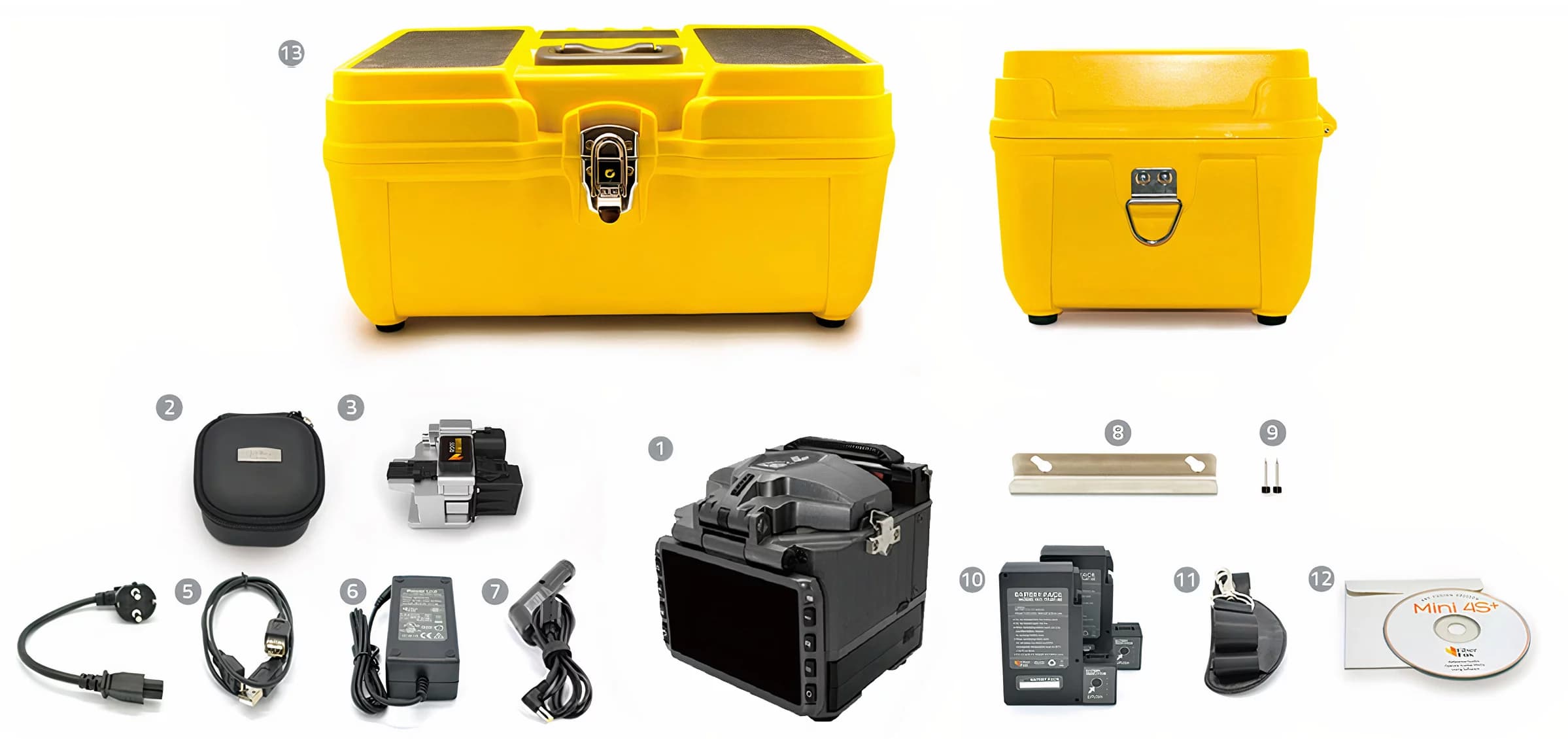

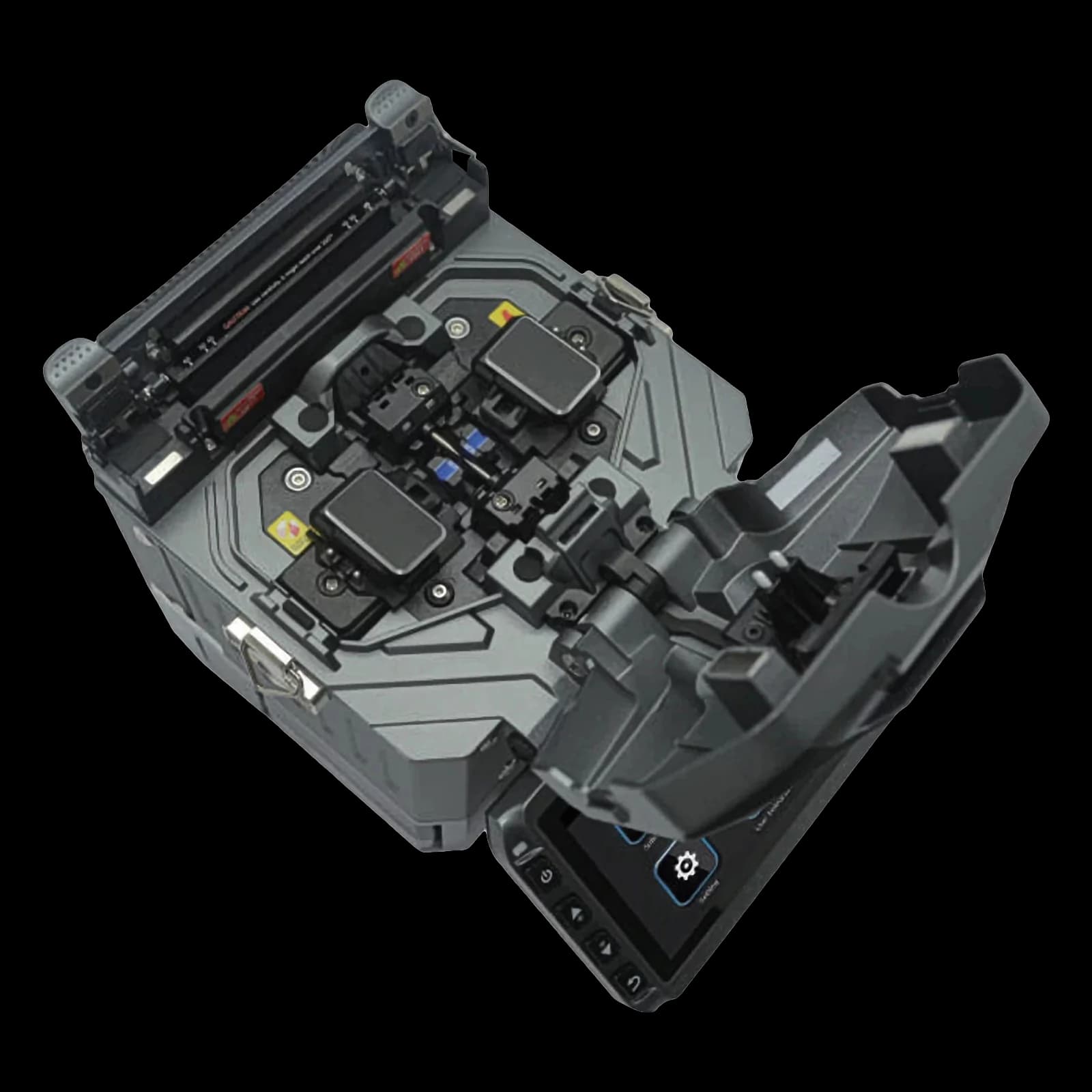

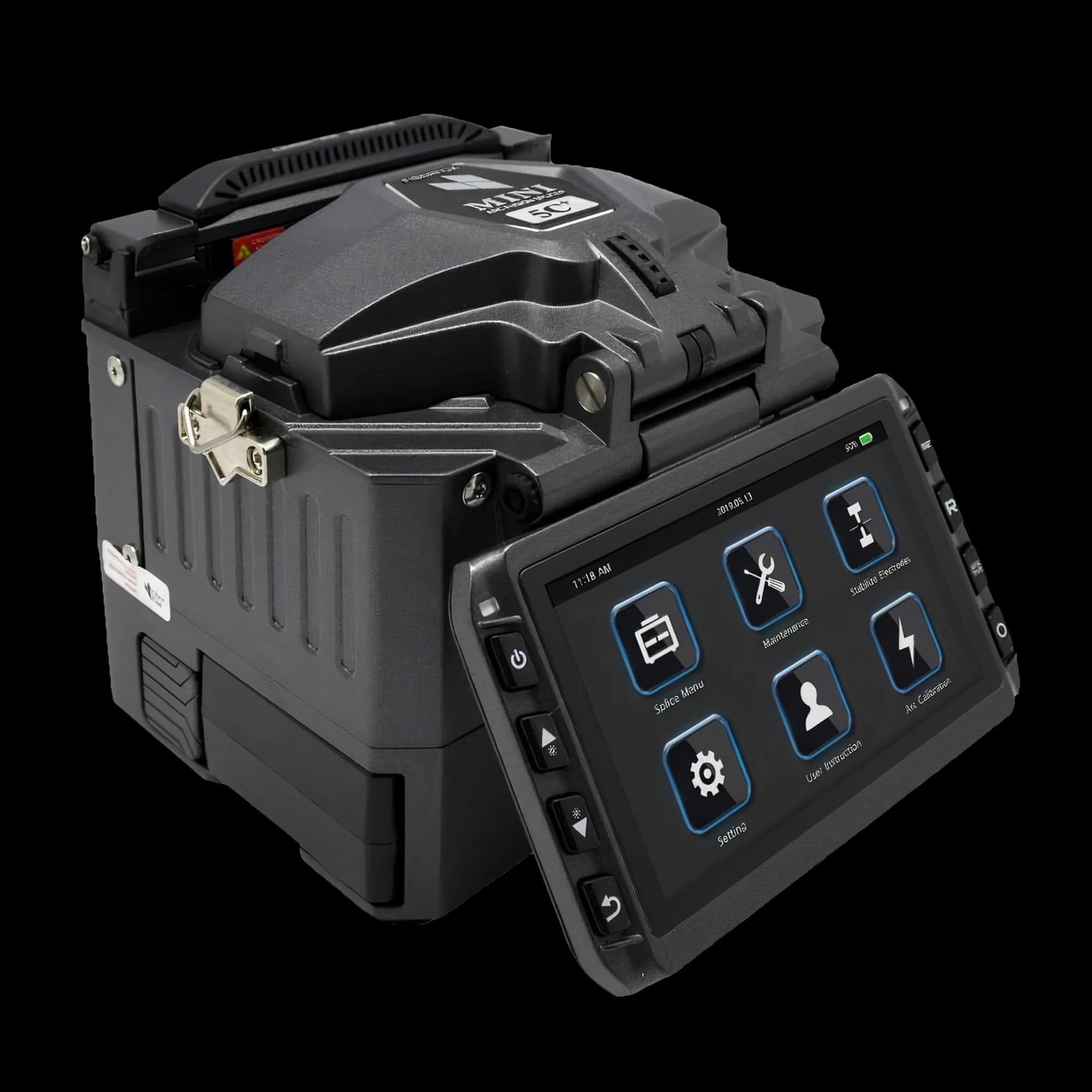

Mini 5C+ Fusion Splicer
Mini 5C+ Fusion Splicer
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

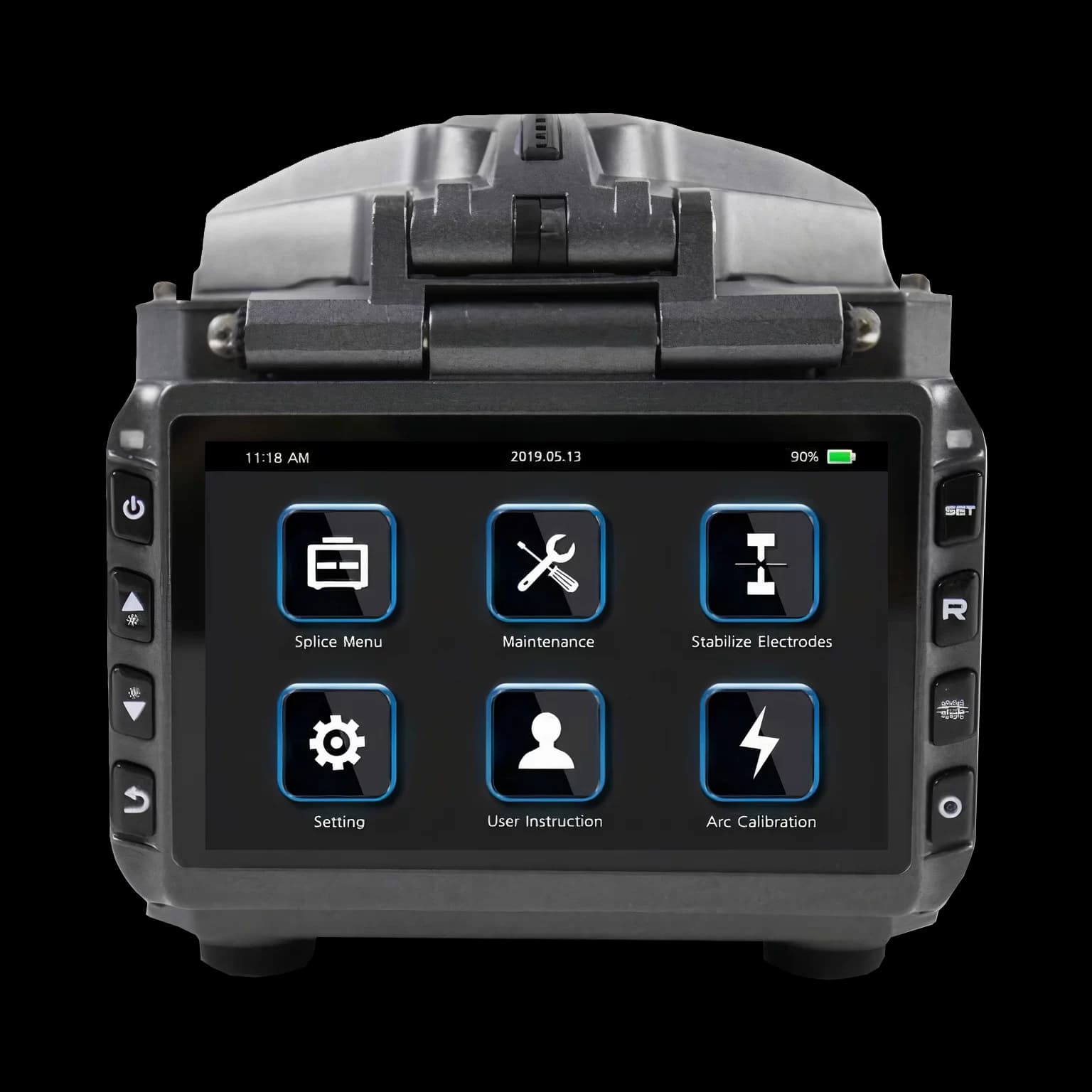

Mini 5C+ Fusion Splicer Features Mini 5C+ fusion splicer with digital zoom and DCID (Digitalized Core Image Detecting) system from FiberFox. The Mini 5C+ has an average 0.02 dB splicing loss and 6 seconds fast performance. In addition, it can heat shrink a splice protector sleeve in 10 seconds from room temperature and in 6 seconds with continuous heating. It also uses two batteries that can last for 600 cycles of splicing and sleeve heating. Furthermore, FiberFox Mini 5C+ has LED lighting, a tempered glass touch screen and it is compatible with SOC (splice on connectors). All FiberFox fusion splicer dust-proof, anti-shock and waterproof. FiberFox Mini 5C+ Fusion Splicer Splicing Method Core Alignment DCID (Digitized Core Image Detecting) System Average Loss SM(0.02dB) / MM(0.01dB) / DS(0.04dB) / NZDS(0.04dB) / G.657(0.02dB) Return Loss >>60dB Splice Time 6s average SM Electrode Lifespan >5,500 arcs Applicable Fiber SM(ITU-T G.652, MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655), IT-G657A, IT-G657B, 0.25mm, 0.9mm, 2.0mm, 2.4mm, 3.0mm, FLAT(indoor cable) Cleaved Length Coating Diameter < 0.25mm = 5-16mm, Coating Diameter > 0.25mm = 8-16mm minimum Coating Diameter 100-3000um Cladding Diameter 80-150um Heating Programs Factory installed mode : 4, User installable mode : 32 Heating Time Typical 10s (60mm sleeve) / 5 Sec (Micro Sleeve) Protection Sleeve 20, 25, 30, 40, 60mm, SOC-3.0, SOC-0.9 & Micro sleeve Data Output Mini USB 2.0 Splice Programs Factory Installed : 12 user modes, User installable mode : 128 Splice Memory Up to 10,000 records and 2,000 splice images Battery Typical 200 Cycles (Splice & Heat) / single battery <2 Batteries Standard> Power Supply AC 100-240V input or DC 9~14V Monitor Color 4.3’’ HD LCD monitor, with Touch Screen (Tempered Glass) Cameras 2 CCD camera system Magnification XY : 160 times , X/Y : 320 times Fiber Display X/Y or XY, single X.Y Weight 2.88 lbs. (without battery) Size 4.8 x 4.88 x 5.4 (in) Wind Protection The max wind speed 15m/s Operating Environment Elevation 0-5000 meters, -10 ~ +60 ˚C, 0~95% relative humidity Storage Condition Temperature -40 to 80˚C, 0~95% relative humidity, battery -20~30˚C Pull Test 1.96~2.25N (standard) FiberFox Mini 5C+ Package Contents MINI 5C+ Fusion Splicer Cleaver Soft-case MINI 50GB+ Cleaver Power Cord USB Cable AC Adapter Car Cigar Cable Cooling Tray Spare Electrode 2 Battery Packs Shoulder Strap User Manual CD Hand Carrying Case Mini 5C+ Fusion Splicer | Datasheet
Especificaciones técnicas
Consulta las características del producto con uno de nuestros asesores.
