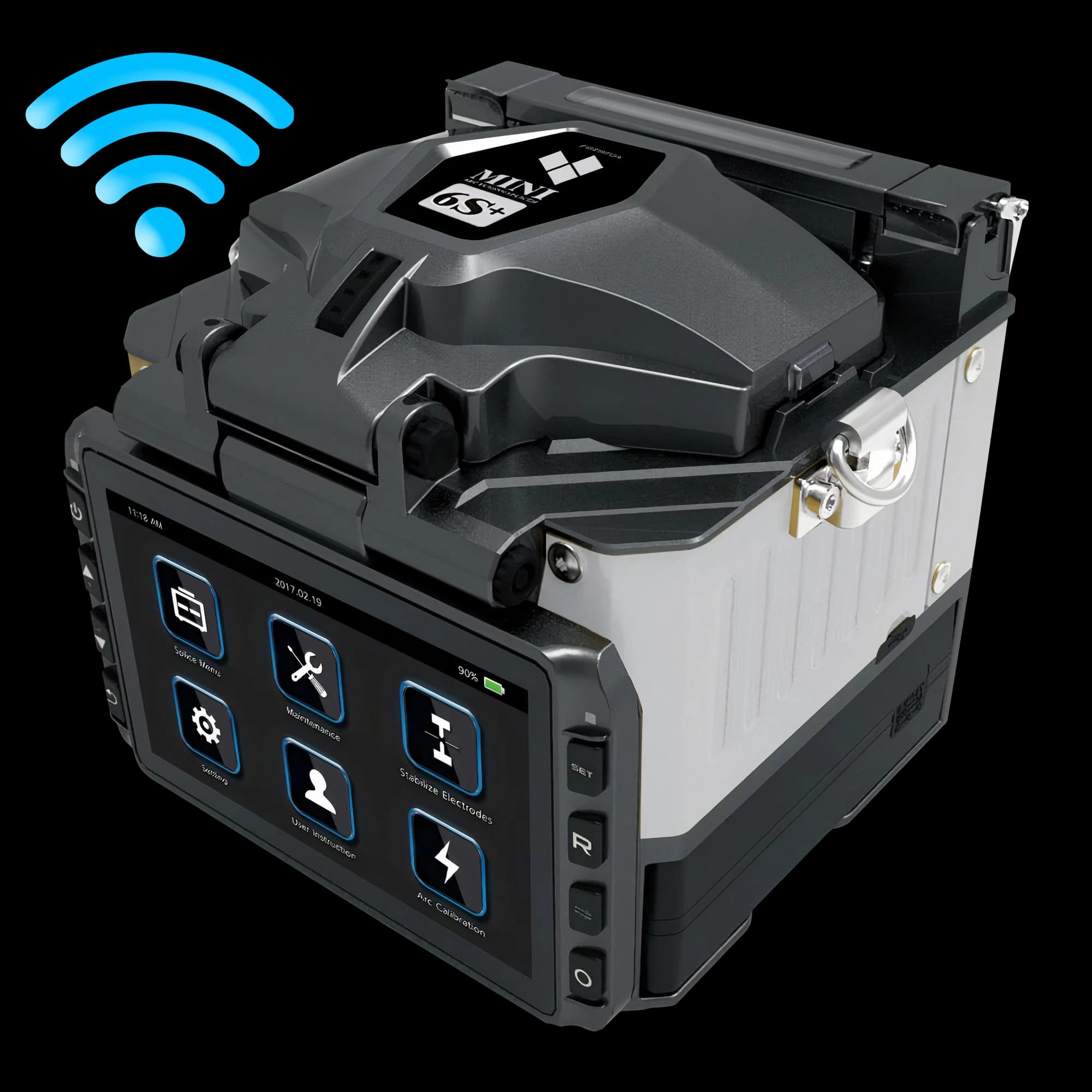

Mini 6S+ Wi-Fi Fusion Splicer
Mini 6S+ Wi-Fi Fusion Splicer
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
Mini 6S+ Wi-Fi Fusion Splicer Features Mini 6S+ W fusion splicer with WiFi connection and AOCAT (Automatic Optical Core Analysis & Tracking) system from FiberFox. The Mini 6S+ has and automatic alignment and fusion process and it has an average 0.02 dB splicing loss and 6 seconds fast performance. It can connect and send PDF reports to phones using a WiFi connection and the Android or the iOS application. Mini 6S+ W can heat shrink a splice protector sleeve in 10 seconds from room temperature and in 6 seconds with continuous heating, and it also uses two batteries that can last for 600 cycles of splicing and sleeve heating. Furthermore, FiberFox Mini 6S+ W has LED lighting, a tempered glass touch screen and it is compatible with SOC (splice on connectors). All FiberFox fusion splicer dust-proof, anti-shock and waterproof. FiberFox Mini 6S+ W Fusion Splicer Specs Splicing Method Core Alignment AOCAT(Automatic Optical Core Analysis & Tracking) System Average Loss SM(0.02dB) / MM(0.01dB) / DS(0.04dB) / NZDS(0.04dB) / G.657(0.02dB) Return Loss >>60dB Splice Time 6s average SM Electrodve Lifespan >5,500 arcs Applicable Fiber SM(ITU-T G.652, MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655), IT-G657A, IT-G657B, 0.25mm, 0.9mm, 2.0mm, 2.4mm, 3.0mm, FLAT(indoor cable) Cleaved Length Coating Diameter < 0.25mm = 8-16mm, Coating Diameter > 0.25mm = 16mm minimum Coating Diameter 100-3,000um Cladding Diameter 80-150um Heating Programs Factory installed mode : 10, User installable mode : 32 Heating Time 10s (* 6 sec with continuous heating mode) Protection Sleeve 40mm, 60mm, SOC Connector Data Output Mini USB - Wi-Fi - Phone App Splice Programs Factory installed mode: 38, User installable mode: 90 Splice Memory Up to 10,000 records and 2,000 splice images Battery Typical 200 Cycles (Splice & Heat) / single battery <2 Batteries Standard> Power Supply AC 100-240V input or DC 9~14V Monitor 720P Color 4.3’’ LCD monitor, with Full Touch Screen (Tempered Glass) Cameras 2 CCD camera system magnification XY style : 160 power, X/Y : 320 power Fiber Display X/Y or XY, single X.Y Weight 3.09 lbs (without battery) Size 4.8 x 4.88 x 5.4 (in) Wind Protection The max wind speed 15m/s Operating Environment Elevation 0-5,000 meters, -15~60˚C, 0~95% relative humidity Storage Condition Temperature -40 to 176˚F, 0~95% relative humidity, battery -4~86˚F Pull Test 1.96~2.25N (standard) FiberFox Mini 6S+ W Package Contents MINI 6S+ Wi-Fi Fusion Splicer Cleaver Soft-case MINI 50GB+ Cleaver Power Cord USB Cable AC Adapter Car Cigar Cable Cooling Tray Spare Electrode 2 Battery Packs Shoulder Strap User Manual CD Hand Carrying Case Mini 6S+ W Fusion Splicer | Datasheet
