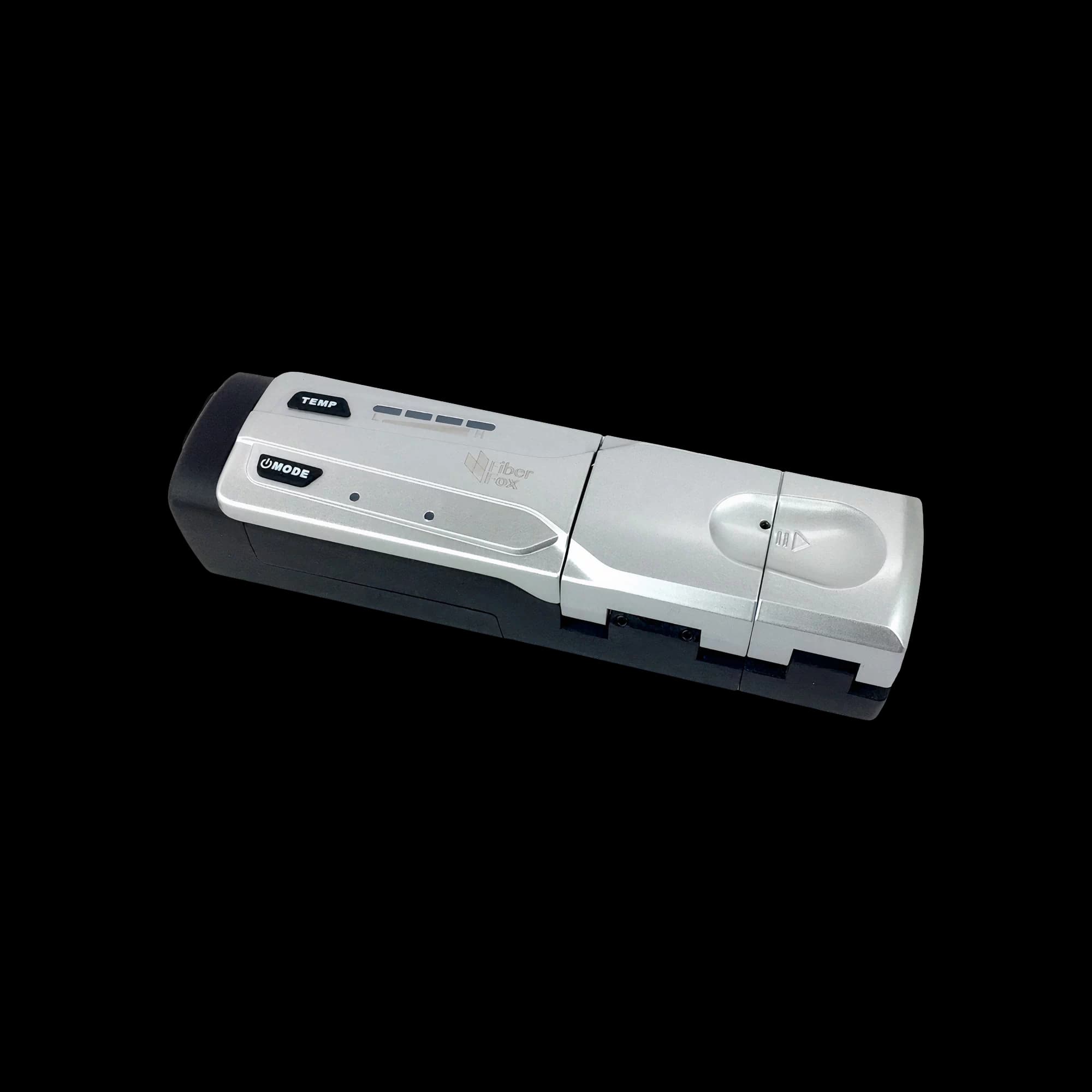

HS-12 Thermal Stripper
HS-12 Thermal Stripper
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

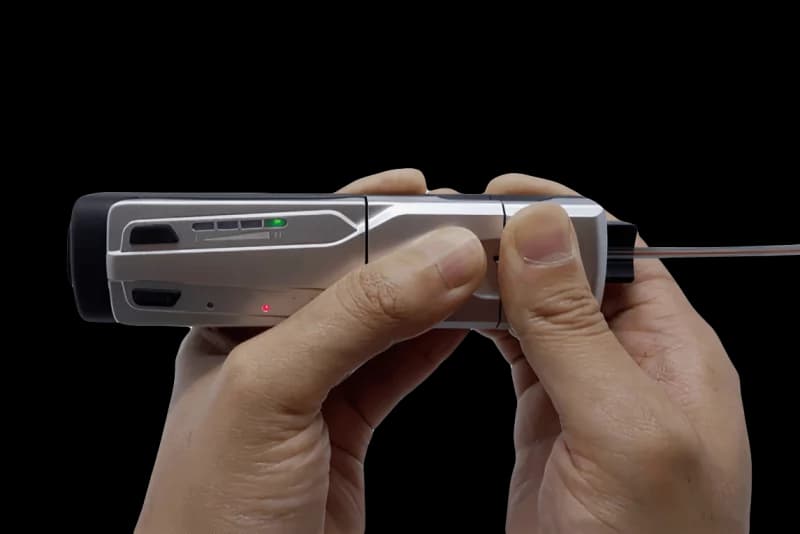

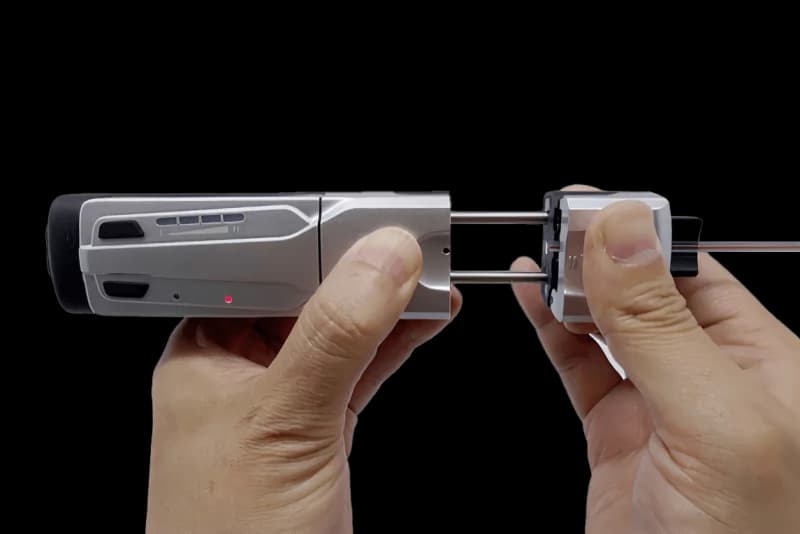

HS-12 Thermal Stripper Features The HS-12 from FiberFox is the world's fastest thermal stripper used for stripping cable jackets in the fusion splicing process. FiberFox HS-12 can heat strip a single and multiple (ribbon) fiber cables in 4 seconds. In additions, it has a long lasting battery, enough for 500 strips. HS-12 Thermal Stripper Specifications Fiber Material Silica glass Coating Material UV cured resin Coating Thickness “Single fiber: 0.25~0.4mm 2 to 12 Ribbon fiber: 0.3~0.4mm” Cladding Diameter 125μm Coating Removal Length max 30mm Heating Mode Normal mode / Power save mode Temperature Settings Normal mode: approx. 80℃, 95℃, 110℃, 130℃ Power save mode: approx. 70℃, 80℃, 95℃, 110℃ Fiber Holder Type FH-2, FH-4, FH-6, FH-8, FH-10, FH-12, FH-250, FH-900 Power Supply Method AC drive: AC100~240V, 50/60Hz Operating Condition Temperature: 0℃~40℃ / Humidity: 0%~95% Applicable Fiber Type Single fiber: 250μm, 900μm, 3.0mm fiber cable and flat cable Ribbon fiber: 2 to 12 ribbon fiber cable Heating Time Approx. 4~5sec at normal mode Approx. 5~6sec at save mode Battery Capacity Approx. 500 stripping with 12 ribbon fiber with a full charged battery How to Use a HS-12 Fiber Optic Thermal Stripper Turn on The Stripper Switch the HS-12 thermal stripper on, and never forget to adjust the thermal strippers settings. Different types of fibers require different settings and temperature. Place The Fiber Move the thermal stripper's sliding part outward until it cannot be pulled anymore. Open the sliding part cover and the heater cover, and place the fiber with its holder in the sliding part. Close the Slider Cover Close the sliding part cover with the fiber holder inside it. Slide Inward Slide the fiber holder part toward the thermal heater, with its cover closed. Keep the heater cover open to look and make sure you slide until the fiber length is accurate. Close Heater's Cover Close the thermal heater cover and it will start heating automatically. You will have to wait until the temperature light starts to blink. Pull Slider Outward After you see the temperature light blinking, hold both covers tightly and pull the slider away from the thermal heater. The heated coating will be removed and the fiber will be stripped and ready for cleaving then fusion splicing. HS-12 Thermal Stripper | Datasheet
