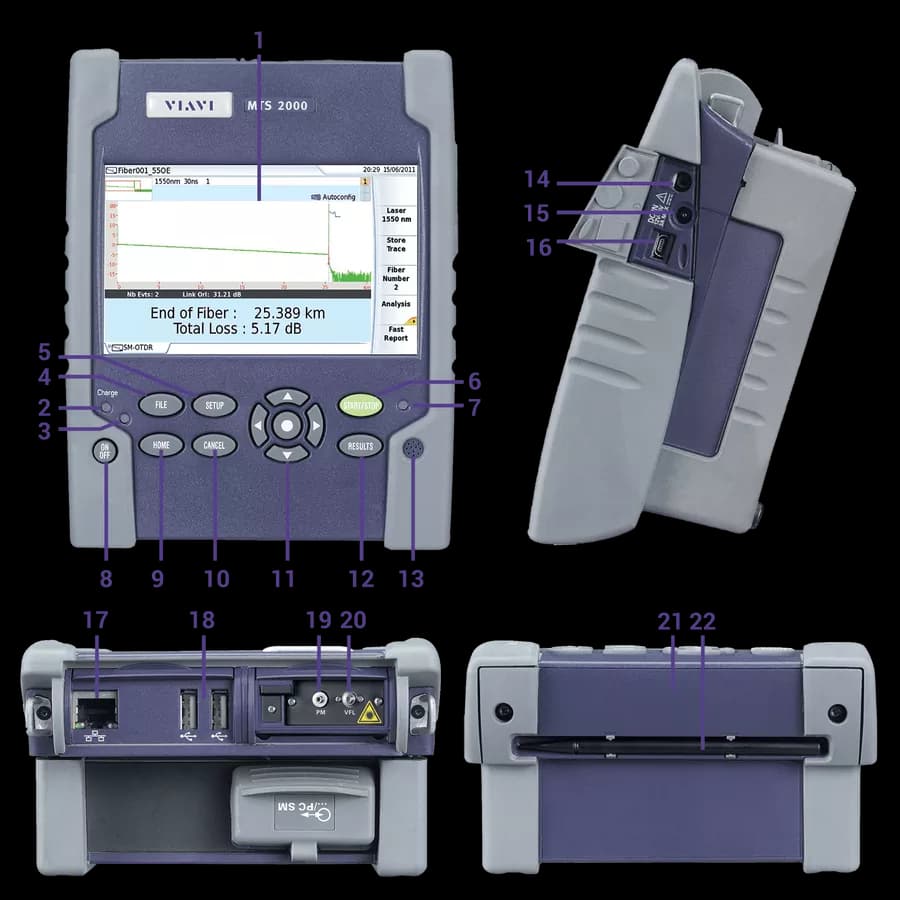

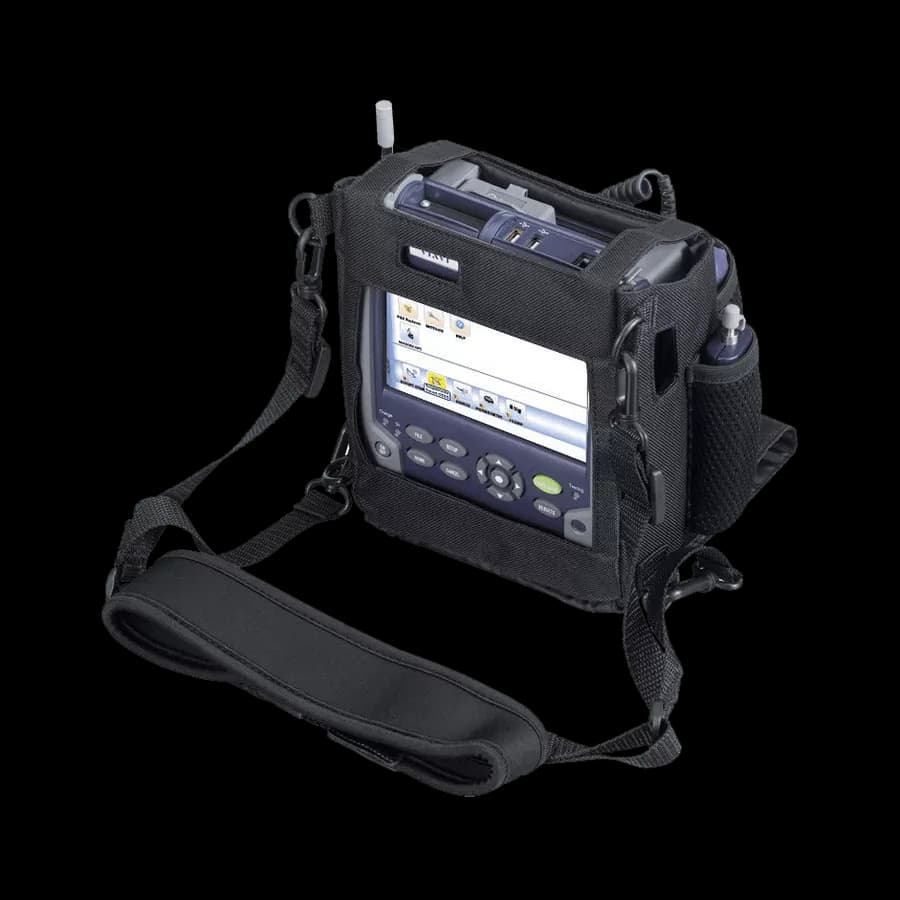

MTS-2000 OTDR + FiberComplete Module VIAVI

Descripción

MTS-2000 OTDR + FiberComplete Module Features The VIAVI MTS-2000 OTDR with FiberComplete Module is the first method to completely automate all essential fiber-qualification tests, including bidirectional insertion loss (IL), optical return loss (ORL), and optical time domain reflectometry (OTDR), with a single module from a single optical port. Every technician may now be supplied with a single piece of equipment that meets all the requirements for conventional fiber testing. The most comprehensive fiber-testing solution for quickly and easily assessing point-to-point or point-to-multipoint passive-optical networks is provided by the MTS-2000 OTDR VIAVI with FiberComplete module. VIAVI MTS-2000 OTDR with FiberComplete Key Benefits One powerful unit equips field technicians with all the fundamental fiber tests they need Cuts test time by more than half with fewer connections and disconnections, automatic continuity check, and an intelligent fault finder Minimizes training and gets reliable measurements using a single connection port that combines a fully automated process with easy-to-read results Optimizes workflow: Compiles test results into one complete cable view, automatically stores measurements VIAVI MTS-2000 OTDR with FiberComplete Key Features 4.5 s measurement time for bi-directional IL/ORL and length at two wavelengths Full setup and data exchange between near end and far end units for fewer mistakes and retests Smart Link Mapper (SLM) icon-based map view of the fiber link Real-time continuity check and automatic product pairing (single strand and ribbon/MPO cables) Manage fiber and cable results Step-by-step wizard lets you reference initial IL/ORL tests Smart Access Anywhere (SAA) for remote control and field tech support StrataSync enabled for centralized cloud based asset, configuration, test data and workflow management VIAVI MTS-2000 OTDR with FiberComplete Applications Measure bidirectional OTDR, IL, and ORL with one unit Troubleshoot in FaultFinder mode for immediate results Conduct acceptance tests in Bidirectional OTDR mode Certify ribbon and MPO-based cables by adding VIAVI MPO switch module VIAVI MTS-2000 Details 5-inch touch screen Charge indicator On indicator File menu Setup menu Start/Stop Testing indicator On/Off Home page Cancel Direction and validation keys Results page Loudspeaker Headset jack AC/DC input Slave mini USB port RJ45 connector Master USB ports (2) Power meter port VFL or talk set port WiFi and Bluetooth options Stylus for touch screen Multimode Singlemode+Multimode Singlemode Type MM OTDR QUAD OTDR LM OTDR MA OTDR MP OTDR Wavelengths 850/1300 850/1300/1310/1550 1310/1550/1625/1650 1310/1550/1625/1650 1310/1490/1550/1625/1650 nm Dyn. range 27/25dB 27/25/37/35dB 34/32/32/30dB 37/35/35/33dB 42/40/40/40/40dB EDZ 0.8 m 08 m MM / 0.9 m SM 1 m 0.9 m 0.8 m ADZ 4 m 4 m 4 m 4 m 4 m Applications - MM networks (Datacom/IT/Private Enterprises) - MM networks - Short/Medium Range SM Distances - Short Distances - Test before or after the splitter or up to 1/16 splitter on PON Networks - Short/Medium Range Distances - Test through up to 1/32 splitter on PON Networks - Medium/Long Range Distances - Test through up to 1/128 splitter on PON Networks VIAVI MTS-2000 + FiberComplete Module OTDR | Datasheet

Especificaciones técnicas

Type

MM OTDR | QUAD OTDR | LM OTDR | MA OTDR | MP OTDR

Wavelengths

850/1300 | 850/1300/1310/1550 | 1310/1550/1625/1650 | 1310/1550/1625/1650 | 1310/1490/1550/1625/1650 nm

Dyn. range

27/25dB | 27/25/37/35dB | 34/32/32/30dB | 37/35/35/33dB | 42/40/40/40/40dB

EDZ

0.8 m | 08 m MM / 0.9 m SM | 1 m | 0.9 m | 0.8 m

ADZ

4 m | 4 m | 4 m | 4 m | 4 m

Applications

- MM networks (Datacom/IT/Private Enterprises) | - MM networks - Short/Medium Range SM Distances | - Short Distances - Test before or after the splitter or up to 1/16 splitter on PON Networks | - Short/Medium Range Distances - Test through up to 1/32 splitter on PON Networks | - Medium/Long Range Distances - Test through up to 1/128 splitter on PON Networks
